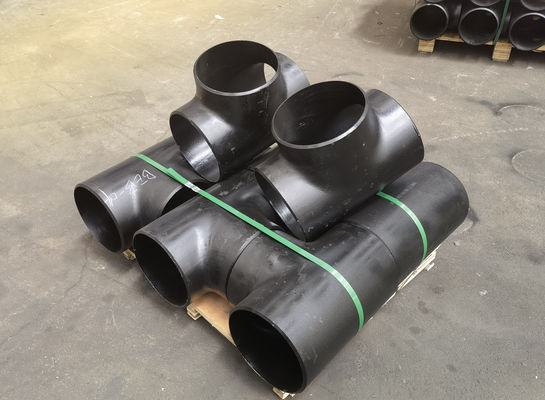

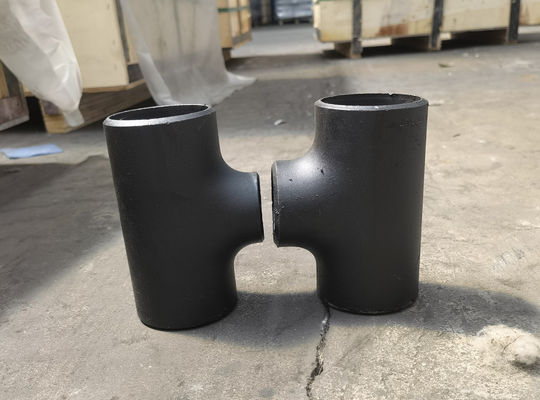

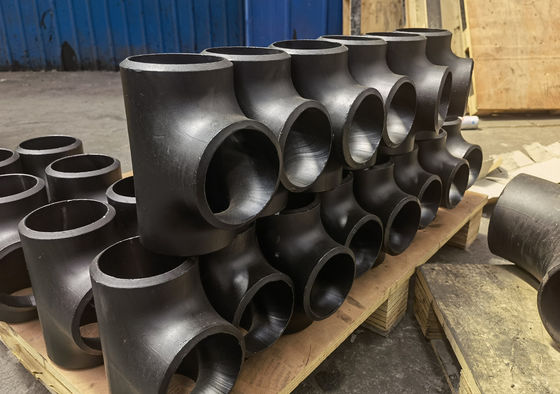

ANSI B16.9 T Shaped ERW Fabricated Pipe Fittings SCH10 SCH20 SCH100 SCH120 SCHXXS

Description
Material: A234 WPB Size: 1/2" TO 48"
Thickness: SCH10, SCH20, SCH30, STD, SCH40, SCH80, SCH120, SCH160 XXS
High Light:

T Shaped ERW Fabricated Pipe Fittings

,

ERW Fabricated Pipe Fittings SCH10

,

SCHXXS T Shaped erw pipe fittings

ANSI B 16.9 BUTT WELDED & seamless SCH10 SCH20 SCH40 SCH80 SCH100 SCH120 SCH160 SCHXXS

Tee is a kind of chemical pipe fittings with three holes, namely one inlet and two outlets; or two inlets and one outlet. There are T-shaped and Y-shaped tees, and tees with equal-diameter nozzles and reducing nozzles, used at the junction of three same or different pipelines. [1] The main function of the tee is to change the direction of the fluid. The outer diameter range is from 2.5″ to 60″ (2.5 inches = DN65, 60 inches = DN1500), the wall thickness is 3-60mm, from 26″ to 60″ (26 inches = DN650, 60 inches = DN1500) for welding tees. The wall thickness is from 28 to 60mm. The pressure ratings are Sch5s, Sch10s, Sch10, Sch20, Sch30, Sch40s, STD, Sch40, Sch60, Sch80s, XS; Sch80, Sch100, Sch120, Sch140, Sch160, XXS.



Specifications ASME B16.9 Buttweld Straight Tee & Cross
ANSI B16.9 Buttweld Straight Tee Pipe Fittings size Seamless Butt Weld Fittings: 1/2" - 24"
Welded Butt Weld Fittings: 1/2" - 48"
ASME B16.9 Straight Cross Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Buttweld Straight Cross Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Stainless Steel Buttweld Straight Tee & Cross Types Seamless / ERW / Welded / Fabricated Pipe Fittings
Cross Pipe FittingsType DN15-DN1200
Connection Welding
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings
Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
ASME B16.9 Straight Cross Fittings Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D.
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Manufacturing process Push, Press, Forge, Cast, etc.
Stainless Steel Buttweld Straight Tee & Cross Fittings Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Origin & Mills Japanese, Indian, USA, Korean, European, Ukraine, Russian
Key markets and industries for Straight Tee & Cross
  • Bitumen upgraders.
  • Heavy oil refineries.
  • Nuclear power (mostly seamless).
  • Petrochemicals and acids.
Application
  • Fittings To Connect Pipe & Tubes in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc
  • ASME B16.9 Schedule 10 Straight Tee & Cross are an economical alternative for lower-pressure applications.
  • ANSI B16.9 Schedule 40 Straight Tee & Cross have a thicker wall for higher-pressure applications.
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Carbon Steel Equal Tee Pipe Fitting exporter in India, 24 inch 1/2 to 48 Inch Barred Equal Tee supplier, ASME B16.9 Stainless Steel Equal Tee Fitting manufacturers, ASME B16.9 Tee

Dimensions of ASME B16.9 Straight Cross

ANSI/ASME B16.9 Buttweld Straight Tee & Cross
NPS O.D.
D
Center-to-End
C
Center-to-End
M
1/2 21.3 25 25
3/4 26.7 29 29
1 33.4 38 38
42.2 48 48
48.3 57 57
2 60.3 64 64
73 76 76
3 88.9 86 86
101.6 95 95
4 114.3 105 105
5 141.3 124 124
6 168.3 143 143
8 219.1 178 178
10 273 216 216
12 323.8 254 254
14 355.6 279 279
16 406.4 305 305
18 457 343 343
20 508 381 381
22 559 419 419
24 610 432 432
26 660 495 495
28 711 521 521
30 762 559 559
32 813 597 597
34 864 635 635
36 914 673 673
38 965 711 711
40 1016 749 749
42 1067 762 711
44 1118 813 762
46 1168 851 800
48 1219 889 838



Dimensions of ASME B 16.9 Buttweld Straight Cross

Dimensions of ASME B 16.9  Buttweld Straight Cross
Nominal Pipe Size (NPS) DN Outside Diameter at Bevel Center- to-End
Run.C Outlet. M[Notes(1) and (2)]
1/2 15 21.3 25 25
3/4 20 26.7 29 29
1 25 33.4 38 38
1-1/4 32 42.2 48 48
1-1/2 40 48.3 57 57
2 50 60.3 64 64
2-1/2 65 73.0 76 76
3 80 88.9 86 86
3-1/2 90 101.6 95 95
4 100 114.3 105 105
5 125 141.3 124 124
6 150 168.3 143 143
8 200 219.1 178 178
10 250 273.0 216 216
12 300 323.8 254 254
14 350 355.6 279 279
16 400 406.4 305 305
18 450 457 343 343
20 500 508 381 381
22 550 559 419 419
24 600 610 432 432
26 650 660 495 495
28 700 711 521 521
30 750 762 559 559
32 800 813 597 597
34 850 864 635 635
36 900 914 673 673
38 950 965 711 711
40 1000 1016 749 749
42 1050 1067 762 711
44 1100 1118 813 762
46 1150 1168 851 800
48 1200 1219 889 838
