Product Details:
|
| Type: | Seamless, Welded | Size: | 1/2"-80" |
|---|---|---|---|
| Thickness: | STD,SCH20 SCH40 SCH80 SCH160,DIN, JIS,EN | Material: | WPB A234, ASTM 403 304/304L, 316/316L |
| Paintting: | Light Oiling, Black Painting | Packing: | Ply Wooden Cases,pallet |
| High Light: | St45 E24 Straight Steel Pipe Tee,St37 St45 E24 Straight Steel Pipe Tee,St45 E24 Pipe Tee For Petrochemical |
||
Straight Tee ,Reducer Tee,Seamless Welded ANSI B16.9,DIN2615,JIS B2311

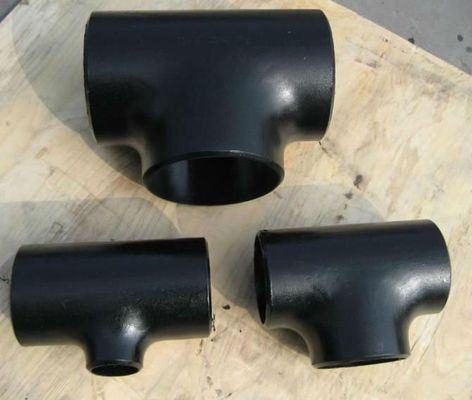

TEE Seamless Welded
Specification List
| Porduct Name | Carbon Steel /Stainless Steel TEE |
| Size | 1/2"-24" seamless, 26"-80" welded |
| Standard | ANSI B16.9, EN10253-2, DIN2615, JIS B2311, |
| Wall thickness | STD, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, DIN,JIS and etc. |
| Type | Seamless and Welded |
| End | Bevel end/BE/buttweld |
| Surface | nature color, varnished, black painting, anti-rust oil etc. |
| Material |
Carbon steel: A234WPB, A420WPL6 St37,St45, E24, A42CP, 16Mn, Q345, P245GH, P235GH, P265GH, P280GH,P295GH,P355GH etc. |
| Pipeline steel: WPHY42, WPHY52, WPHY60, WPHY65,WPHY70, WPHY80 and etc. | |
| Cr-Mo alloy steel: P11,P22,P5, P9,P91, 10CrMo9-10, 16Mo3 etc. | |
| Application |
Petrochemical industy;avation and aerospace industry;pharmaceutical industry; gas exhaust;power plant;ship buliding;water treament,etc. |
| Advantages | ready stock,faster delivery time;available in all sizes,austomized;high quality |
| Nominal Pipe Size (Inches) | Outside diameter at bevel |
Center-to-End | |
|---|---|---|---|
| Run (C) | Outlet(M) | ||
| 1/2 | 21.3 | 25 | 25 |
| 3/4 | 26.7 | 29 | 29 |
| 1 | 33.4 | 38 | 38 |
| 1 1/4 | 42.2 | 48 | 48 |
| 1 1/2 | 48.3 | 57 | 57 |
| 2 | 60.3 | 64 | 64 |
| 2 1/2 | 73.0 | 76 | 76 |
| 3 | 88.9 | 86 | 86 |
| 3 1/2 | 101.6 | 95 | 95 |
| 4 | 114.3 | 105 | 105 |
| 5 | 141.3 | 124 | 124 |
| 6 | 168.3 | 143 | 143 |
| 8 | 219.1 | 178 | 178 |
| 10 | 273.0 | 216 | 216 |
| 12 | 323.8 | 254 | 254 |
| 14 | 355.6 | 279 | 279 |
| 16 | 406.4 | 305 | 305 |
| 18 | 457.0 | 343 | 343 |
| 20 | 508.0 | 381 | 381 |
| 22 | 559.0 | 419 | 419 |
| 24 | 610.0 | 432 | 432 |
The dimensions are in millimeters
Source : ASME B16.9 Tee – 2007
Dimensions are in millimeters unless otherwise indicated. Wall thickness (t) must be specified by customer.
1. who are we?
We are based in Hebei, China, start from 1986,sell flange and pipe fitting sold around the world.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Forged Flange, Fitting,Forged Fitting, Seamless Pipe.
4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Arabic,French
