Product Details:
|
| CARBON STEEL: | A234WPB | SS STEEL: | 304L ,316L |
|---|---|---|---|
| TYPE: | EQUAL ,REDUCING | DEGREE: | 90° |
| Coating: | Anti-Rust Oil , Black Painting | ||

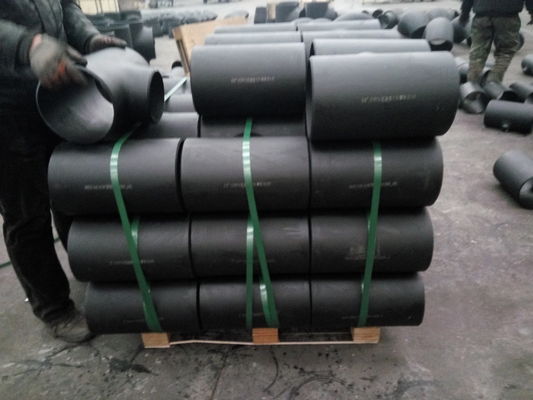

| High Light: | astm a234wpb carbon steel pipe tee,ansi b16.9 carbon steel pipe tee |
||
A Reducing Tee is a T-shaped pipe fitting with two outlets that cut at 90 degrees to the most line. These tees are accessible with a combination of differing outlet sizes. In ASME B16.9 Reducing Tee branch port estimate is littler than the other ports of the run. Stainless Steel Reducing tee may be a sort of pipe fitting in which the branch port measure is littler than the ports of the run. This sort of pipe fitting can moreover consider measure decrease from one of the run ports to the other.
| Nominal Pipe Size | Outside diameter at bevel |
Center-to-End | |||
|---|---|---|---|---|---|
| Run | Outlet | Run | Outlet | Run (C) | Outlet (M) |
| 1/2" | 1/4" 3/8" |
21.3 | 13.7 17.3 |
25 | 25 |
| 3/4" | 3/8" 1/2" |
26.7 | 17.3 21.3 |
29 | 29 |
| 1" | 1/2" 3/4" |
33.4 | 21.3 26.7 |
38 | 38 |
| 1 1/4" | 1/2" 3/4" 1" |
42.2 | 21.3 26.7 33.4 |
48 | 48 |
| 1 1/2" | 1/2" 3/4" 1" 1 1/4" |
48.3 | 21.3 26.7 33.4 42.2 |
57 | 57 |
| 2" | 3/4" 1" 1 1/4" 1 1/2" |
60.3 | 26.7 33.4 42.2 48.3 |
64 | 44 51 57 60 |
| 2 1/2" | 1" 1 1/4" 1 1/2" 2" |
73.0 | 33.4 42.2 48.3 60.3 |
76 | 57 64 67 70 |
| 3" | 1 1/4" 1 1/2" 2" 2 1/2" |
88.9 | 42.2 48.3 60.3 73.0 |
86 | 70 73 76 83 |
| 3 1/2" | 1 1/2" 2" 2 1/2" 3" |
101.6 | 48.3 60.3 73.0 88.9 |
95 | 79 83 89 92 |
| 4" | 1 1/2" 2" 2 1/2" 3" 3 1/2" |
114.3 | 48.3 60.3 73.0 88.9 101.6 |
105 | 86 89 95 98 102 |
| 5" | 2" 2 1/2" 3" 3 1/2" 4" |
141.3 | 60.3 73.0 88.9 101.6 114.3 |
124 | 105 108 111 114 117 |
| 6" | 2 1/2" 3" 3 1/2" 4" 5 |
168.3 | 73.0 88.9 101.6 114.3 141.3 |
143 | 121 124 127 130 137 |
| 8" | 3 1/2" 4" 5" 6" |
219.1 | 101.6 114.3 141.3 168.3 |
178 | 152 156 162 168 |
| 10" | 4" 5" 6" 8" |
273.0 | 114.3 141.3 168.3 219.1 |
216 | 184 191 194 203 |
| 12" | 5" 6" 8" 10" |
323.8 | 141.3 168.3 219.1 273.0 |
254 | 216 219 229 241 |
| 14" | 6" 8" 10" 12" |
355.6 | 168.3 219.1 273.0 323.8 |
279 | 238 248 257 270 |
| 16" | 6" 8" 10" 12" 14" |
406.4 | 168.3 219.1 273.0 323.8 355.6 |
305 | 264 273 283 295 305 |
| 18" | 8" 10" 12" 14" 16" |
457.0 | 219.1 273.0 323.8 355.6 406.4 |
343 | 298 308 321 330 330 |
| 20" | 8" 10" 12" 14" 16" 18" |
508.0 | 219.1 273.0 323.8 355.6 406.4 457.0 |
381 | 324 333 346 356 356 368 |
| 22" | 10" 12" 14" 16" 18" 20" |
559.0 | 273.0 323.8 355.6 406.4 457.0 508.0 |
419 | 359 371 381 381 394 406 |
| 24" | 10" 12" 14" 16" 18" 20" 22" |
610.0 | 273.0 323.8 355.6 406.4 457.0 508.0 559.0 |
432 | 384 397 406 406 419 432 432 |
The dimensions are in millimeters
Source : ASME B16.9 – 2018
