Thickness 2mm To 100mm Black Pipe Reducing Tee SCH40 SCH80 SCH160 Equal Tee

Thickness 2mm To 100mm Black Pipe Reducing Tee SCH40 SCH80 SCH160 Equal Tee
Thickness 2mm To 100mm Black Pipe Reducing Tee SCH40 SCH80 SCH160 Equal Tee Thickness 2mm To 100mm Black Pipe Reducing Tee SCH40 SCH80 SCH160 Equal Tee Thickness 2mm To 100mm Black Pipe Reducing Tee SCH40 SCH80 SCH160 Equal Tee Thickness 2mm To 100mm Black Pipe Reducing Tee SCH40 SCH80 SCH160 Equal Tee

Large Image :  Thickness 2mm To 100mm Black Pipe Reducing Tee SCH40 SCH80 SCH160 Equal Tee

Product Details:
Place of Origin: CHINA
Brand Name: XF
Certification: ISO,PED,ADW2000
Model Number: 1/2"-60"
Payment & Shipping Terms:
Minimum Order Quantity: 1ton
Price: Negotiation
Packaging Details: Plywood pallet or cases, according to client's requirement.
Delivery Time: 30days
Payment Terms: L/C, D/P, T/T
Supply Ability: 10000 tons per month

Thickness 2mm To 100mm Black Pipe Reducing Tee SCH40 SCH80 SCH160 Equal Tee

Description
Type: Seamless And Welded Seamless: 1/2″~24″ DN15~DN600
Welded: 2 1/2″~72″ DN150~DN1800 Standard: DIN,JIS,ANSI
Thickness: Sch10, Sch20, Std, Sch40, Xs, Sch80, Sch120, Sch160, Xxs Materials: A234WPB,ASTM 403 304/304L,316/316L
Paintting: Black Paint, Anti Rust Oil, Hot-Dipped Galvanized Packing: Plywood Pallet Or Cases, According To Client's Requirement.
High Light:

100mm Black Pipe Reducing

,

2mm black pipe reducing tee

,

SCH80 SCH160 Equal Tee

Equal Tee/Reducing Tee Seamless Welded SCH40 SCH80 SCH160 ,BLACK PAINTTING





Place of Origin:China

We can provide seamless pipe tees and welding pipe tees,which can also be divided into equal tees and reducing tees.

Equal Tee/Reducing Tee



Description:

A tee is also called triplet,three way and “T” pieces and it can be used to either combine or split a fluid flow. Most common are tees with the same inlet and outlet sizes,

but ‘reducing’ tees are available as well. it means the one or two ends are differ in dimension.due to thisdimension differ,the makes the tee fittings with the capacity tocontrol the volume when requried.




  • Size
    • Seamless :1/2″~24″ DN15~DN600
    • Welded : 4″~72″ DN150~DN1800
    • Wall Thinkness : sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100,sch120, sch140, sch160, xxs, std,sch5s, sch20s, sch40s, sch80s

     •Standards
ASME B16.9-2007
ASME B16.25-2007
ASME B16.5-2007
EN10253-1-1999 EN10253-2-2007 EN10253-3-2008 EN10253-4-2008
DIN2605-1-1992 DIN2605-2-1995
JIS B2311-2009 JIS B2312-2009 JIS B2313-2009
GB/T12459-2005 GB/T13401-2005 GB/T10752-2005
SH/T3408-1996 SH/T3409-1996
SY/T0609-2006 SY/T0518-2002 SY/T0510-1998
DL/T695-1999 GD2000 GD87-1101
HG/T21635-1987 HG/T21631-1990

  • Materials
    • Carbon steel: ASTM/ASME A234 WPB,WPC
    • Alloy steel: ASTM/ASME A234 WP 1-WP 12-WP 11-WP 22-WP 5-WP 91-WP 911
    • Stanless steel: ASTM/ASME A403 WP 304-304L-304H-304LN-304N;ASTM/ASME A403 WP 316-316L-316H-316LN-316N-316Ti;ASTM/ASME A403 WP 321-321H ASTM/ASME A403 WP 347-347H
    • Low-temperature steel:ASTM/ASME A402 WPL 3-WPL 6
    • High performance: ASTM/ASME A860 WPHY 42-46-52-60-65-70
Pattern Weld Seamless
Nominal size

1/2”-48”

(DN15-DN1200)

1/2”-20”

(DN15-DN500)

Wall thickness 2~100mm 2~50mm
Bend radius SCH5S-SCH160 ,XXS SCH5-SCH160





Nominal Pipe Size(mm) Outside diameter
at bevel(mm)
Center-to-End
Run (C) Outlet(M)
1/2" 21.3 25 25
3/4" 26.7 29 29
1" 33.4 38 38
1 1/4" 42.2 48 48
1 1/2" 48.3 57 57
2" 60.3 64 64
2 1/2" 73.0 76 76
3" 88.9 86 86
3 1/2" 101.6 95 95
4" 114.3 105 105
5" 141.3 124 124
6" 168.3 143 143
8" 219.1 178 178
10" 273.0 216 216
12" 323.8 254 254
14" 355.6 279 279
16" 406.4 305 305
18" 457.0 343 343
20" 508.0 381 381
22" 559.0 419 419
24" 610.0 432 432

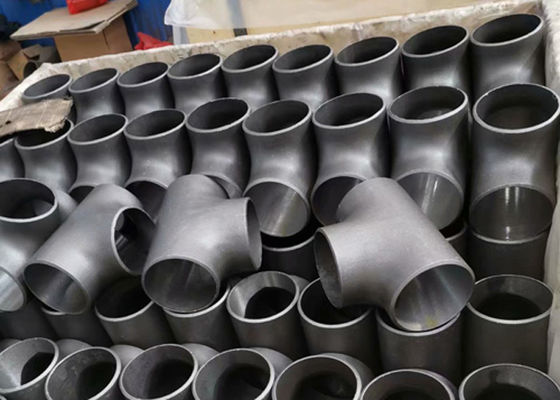

Thickness 2mm To 100mm Black Pipe Reducing Tee SCH40 SCH80 SCH160 Equal Tee 0

Process of manufacturing



Thickness 2mm To 100mm Black Pipe Reducing Tee SCH40 SCH80 SCH160 Equal Tee 1

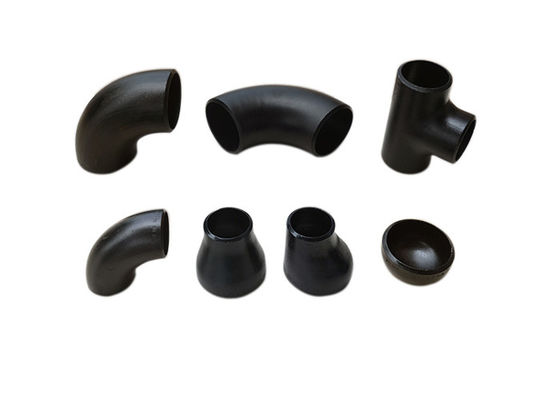

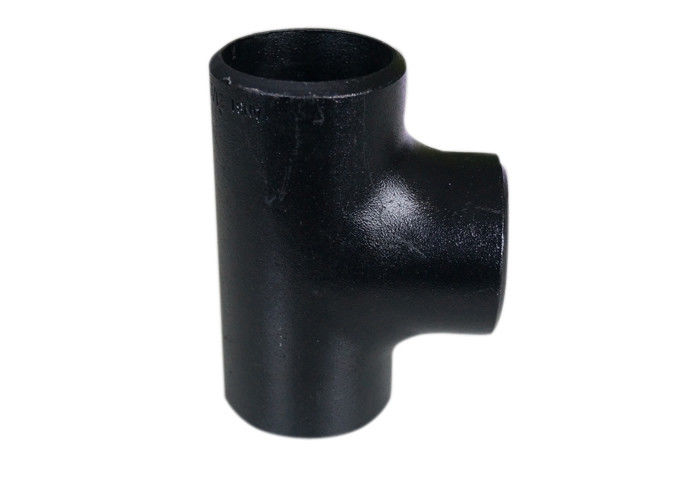

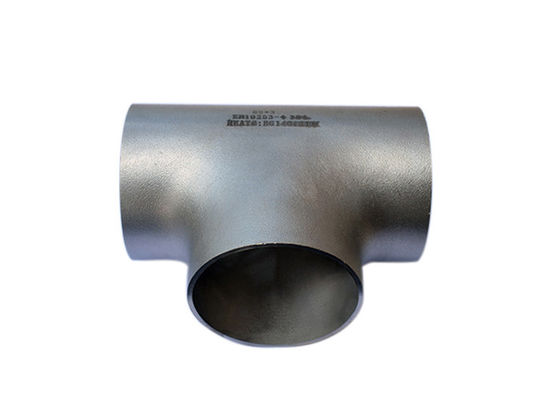

Products showing of our company:







Thickness 2mm To 100mm Black Pipe Reducing Tee SCH40 SCH80 SCH160 Equal Tee 2





Thickness 2mm To 100mm Black Pipe Reducing Tee SCH40 SCH80 SCH160 Equal Tee 3







Thickness 2mm To 100mm Black Pipe Reducing Tee SCH40 SCH80 SCH160 Equal Tee 4
