Product Details:
|
| Product: | Butt Welded Pipe Tee | Type: | Equal Tee ,Reducing Tee |
|---|---|---|---|
| Wall Thickness: | 2mm- 60mm, SCH10, SCH20,SCH30, STD SCH40 | Material: | Carbon Steel ASTM A234 WPB, P265GH |
| Size: | 1/2" To 24" For Seamless Type; 4" To 72" For Welded Type | Packing: | Seaworthy Plywood Case |
| High Light: | 18'' Butt Welded Pipe Fitting Tee,16'' Butt Welded Pipe Fitting Tee,14'' CS SS tee fitting |
||
Equal Tee/Reducing Tee Seamless Welded SCH40 SCH80 SCH160 ,BLACK PAINTTING
Place of Origin:China
We can provide seamless pipe tees and welding pipe tees,which can also be divided into equal tees and reducing tees.
Equal Tee/Reducing Tee
Description:
A tee is also called triplet,three way and “T” pieces and it can be used to either combine or split a fluid flow. Most common are tees with the same inlet and outlet sizes,
but ‘reducing’ tees are available as well. it means the one or two ends are differ in dimension.due to thisdimension differ,the makes the tee fittings with the capacity tocontrol the volume when requried.
•Standards
ASME B16.9-2007
ASME B16.25-2007
ASME B16.5-2007
EN10253-1-1999 EN10253-2-2007 EN10253-3-2008 EN10253-4-2008
DIN2605-1-1992 DIN2605-2-1995
JIS B2311-2009 JIS B2312-2009 JIS B2313-2009
| Pattern | Weld | Seamless |
| Nominal size |
1/2”-48” (DN15-DN1200) |
1/2”-20” (DN15-DN500) |
| Wall thickness | 2~100mm | 2~50mm |
| Bend radius | SCH5S-SCH160 ,XXS | SCH5-SCH160 |
| Nominal Pipe Size(mm) | Outside diameter at bevel(mm) |
Center-to-End | |
| Run (C) | Outlet(M) | ||
| 1/2" | 21.3 | 25 | 25 |
| 3/4" | 26.7 | 29 | 29 |
| 1" | 33.4 | 38 | 38 |
| 1 1/4" | 42.2 | 48 | 48 |
| 1 1/2" | 48.3 | 57 | 57 |
| 2" | 60.3 | 64 | 64 |
| 2 1/2" | 73.0 | 76 | 76 |
| 3" | 88.9 | 86 | 86 |
| 3 1/2" | 101.6 | 95 | 95 |
| 4" | 114.3 | 105 | 105 |
| 5" | 141.3 | 124 | 124 |
| 6" | 168.3 | 143 | 143 |
| 8" | 219.1 | 178 | 178 |
| 10" | 273.0 | 216 | 216 |
| 12" | 323.8 | 254 | 254 |
| 14" | 355.6 | 279 | 279 |
| 16" | 406.4 | 305 | 305 |
| 18" | 457.0 | 343 | 343 |
| 20" | 508.0 | 381 | 381 |
| 22" | 559.0 | 419 | 419 |
| 24" | 610.0 | 432 | 432 |

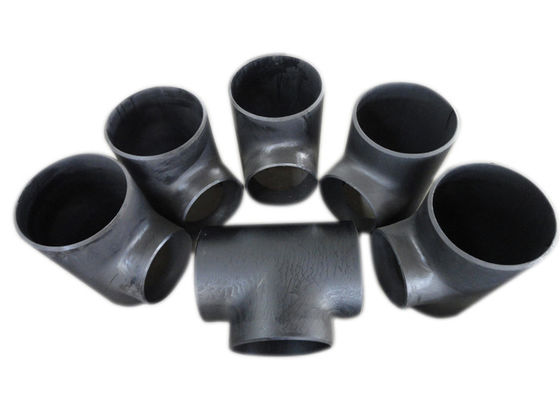

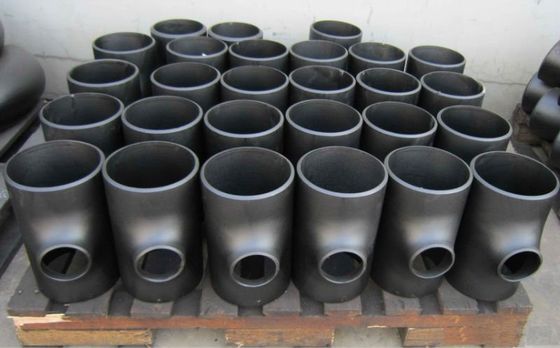

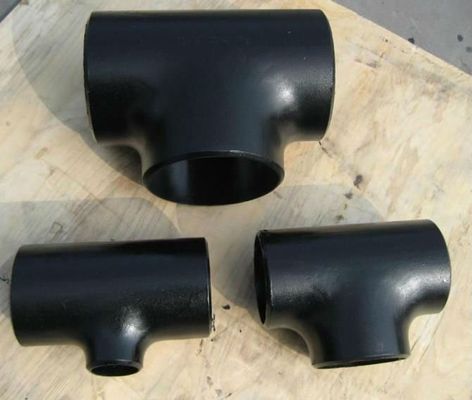

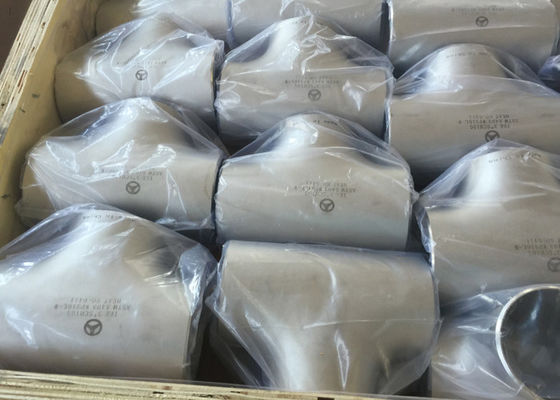

Products showing of our company:
