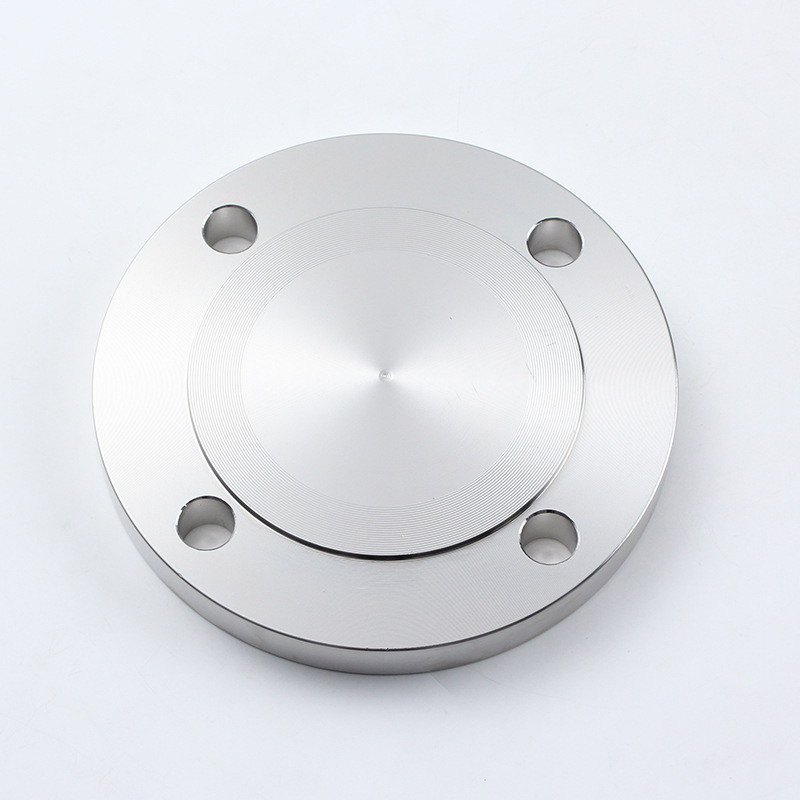

BS 4504 PN10 PN16 PN25 PN40 Standard Blind Flange

BS 4504 Standard Blind Flanges: Precision Components for Pressure Applications

1. Product Description: BS 4504 Standard Blind Flanges are specialized flanges designed to provide a sealed end in pressure systems and pipelines. These flanges are manufactured to meet the British Standard 4504, which ensures their quality and reliability for various industrial applications. They are available in different pressure ratings, including PN10, PN16, PN25, and PN40, to suit a range of operating conditions.

2. Product Parameters:

3. Mechanical Properties:

4. Pressure Ratings:

5. Chemical Composition:

6. Product Uses:

• Pressure Vessels: Used to close off the ends of pressure vessels.
• Piping Systems: Ideal for creating a closed or "blind" end in a pipeline.
• Industrial Plants: Employed in various industrial plants for maintenance and testing purposes.
• Machinery and Equipment: Utilized in machinery that requires flanged connections.

7. Product Grade Standards:

• BS 4504: The flanges are manufactured in compliance with the British Standard 4504, which specifies the requirements for steel flanges for pressure purposes.

Conclusion: BS 4504 Standard Blind Flanges are versatile and robust, offering a reliable solution for pressure applications where a sealed or closed end is required. Their adherence to BS 4504 ensures that these flanges are manufactured to high standards of quality and safety, making them suitable for a wide range of industrial uses.
