Hot Forging Steel FLANGE BS 4504 BS10 PN6 PN10 PN16 PN25 PN40 SORF Plate Blind

Hot Forging Steel Flange BS4504 SORF, FLAT ,BLIND ,WNRF ,THRF FLANGE

BS10 TABLE D,TABLE FLANGE

The BS 4504 PN 16 Flange Dimensions covers integrally cast or forged, plain, boss, and welding neck type flanges, in ten tables. Although the BS 4504 Forged Flange is obsolescent, it remains in use today for the dimensions of light duty as well as economic stainless steel flanges. The Flanges As Per BS 4504 is used in those applications where corrosion resistance and hygiene are the primary considerations instead of the usual high pressures and temperatures, as required by conventional flanges.

Product Introducting

Carbon Steel Flanges Test Certificates

We provide Manufacturer TC (Test Certificate) in accordance to EN 10204/3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report. We also provide Standard certificates like EN 10204 3.1 and additional requirement like. NACE MR 01075. FERRIT CONTENT as per norms if requested by clients.

• EN 10204/3.1B,
• Raw Materials Certificate
• 100% Radiography Test Report
• Third Party Inspection Report, etc

•    Types of Flanges -

• Our manufacturing facilities is well equipped to manufacture various types of flanges namely:

•     Blind Flange-
• A Blind flange is round plate which has all of the relevant boltholes but no centre hole,
• Because of this feature this flange is used to close off the ends of a piping systems and pressure vessel openings.
• It also permits easy access to vessels or Piping systems for inspection purposes.
•

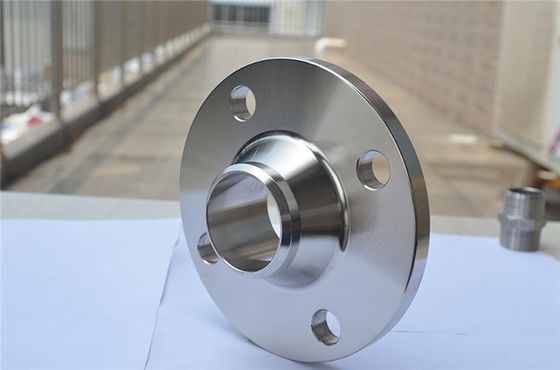

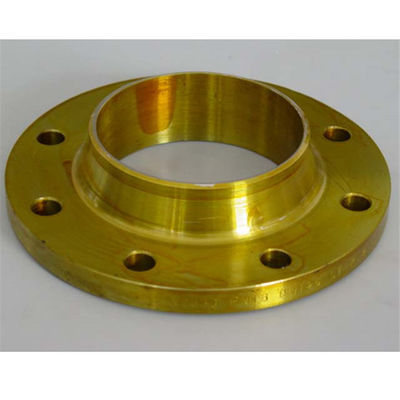

•     Weld Neck Flange-
• Weld Neck Flanges have a long tapered hub and are often used for high pressure applications.
• These flanges are designed to be joined to a Piping system by Bun Welding. The Neck, or Hub,
• transmits stresses to the Pipe, reducing stress concentrations at the base of the Flange.
• The gradual transition of thickness from the base of the Hub to the wall thickness at the Bun Weld,
• provides important reinforcement of the Flange. The bore of the Flange matches the bore of the Pipe,
• reducing turbulence and erosion. These flanges are ideal for extreme fluctuations of temperature
• and in environments where there may be high pressure or high temperature being dealt with.
•

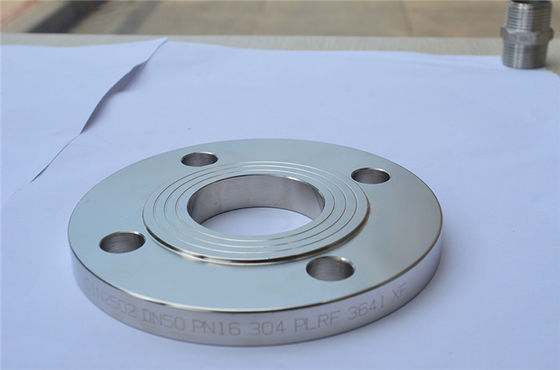

•     Slip-on Flange-
• These are easily fitted and welded into different pipes. Slip on pipe flange is slipped over the Pipe and
• then welded both inside and outside to provide sufficient strength and prevent leakage.
• These flanges are ideal for lower pressure applications. This Flange is used in preference to Weld Necks by
• many users because of its lower cost and the fact that less accuracy is required when cutting pipe to length.
•
•     Socket Weld Flange-
• These flanges are attached by inserting the pipe into the socket end. This allows for a smooth bore and better
• flow of the fluid or gas inside of the pipe. Socket-weld pipe flanges are mainly used for smaller sizes of high
• pressure pipes.
•
•     Threaded Flange-
• Threaded flanges are similar to slip-on pipe flanges except the bore of threaded pipe flange has tapered threads.
• These flanges are ideal for relatively low pressure piping systems. Threaded flanges are used with pipes that have
• external threads. The benefit of these pipe flanges is that it can be attached without welding.
•
•     Lap Joint Flange-
• Lap Joint Flanges slide over the pipe and are most commonly used with Stub End Fittings. A pipe is typically welded
• to the Stub End and the Lap Joint pipe flange is free to rotate around the stub end. Lap Joint pipe flanges are often
• used for applications that require frequent dismantling. Threaded pipe flanges are often used for small diameter,
• high pressure requirements.

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
