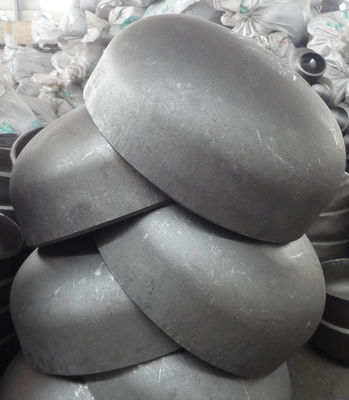

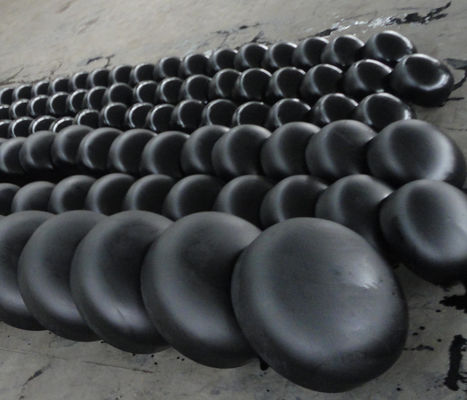

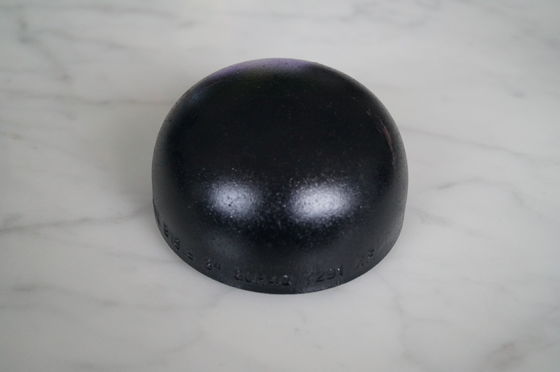

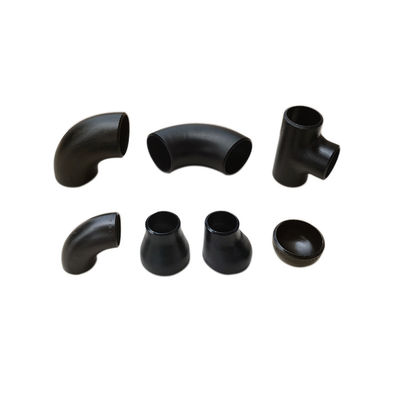

Asme B16.9 Stainless Buttweld Caps DIN2617 JIS EN STD 4 Inch 2 Inch Galvanized Pipe Cap

Asme B16.9 Stainless Buttweld Caps DIN2617 JIS EN STD 4 Inch 2 Inch Galvanized Pipe Cap
Asme B16.9 Stainless Buttweld Caps DIN2617 JIS EN STD 4 Inch 2 Inch Galvanized Pipe Cap Asme B16.9 Stainless Buttweld Caps DIN2617 JIS EN STD 4 Inch 2 Inch Galvanized Pipe Cap Asme B16.9 Stainless Buttweld Caps DIN2617 JIS EN STD 4 Inch 2 Inch Galvanized Pipe Cap Asme B16.9 Stainless Buttweld Caps DIN2617 JIS EN STD 4 Inch 2 Inch Galvanized Pipe Cap

Large Image :  Asme B16.9 Stainless Buttweld Caps DIN2617 JIS EN STD 4 Inch 2 Inch Galvanized Pipe Cap

Product Details:
Place of Origin: CHINA
Brand Name: XF
Certification: ISO9001 , PED AND AD2000 W0 EN10204 3.1
Model Number: 1/2"-80"
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Discussible
Packaging Details: Plywood Cases And Pallets
Delivery Time: 4WEEKS
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1500TONS ONE MONTHS

Asme B16.9 Stainless Buttweld Caps DIN2617 JIS EN STD 4 Inch 2 Inch Galvanized Pipe Cap

Description
STANDARD: ASME B16.9,DIN2617,JIS Size: 1/2"-80"
Material: A234 WPB SS304/314L SS316/316L Coating: Black Paint , Oil , Cold Galvanized And Hot Galvanized
Package: Plywood Cases And Pallets Thickness: STD, SCH40, SCH80, SCH120, SCH160,DIN,JIS
Certificate: ISO9001 , PED AND AD2000 W0 EN10204 3.1
High Light:

DIN2617 4 inch steel pipe cap

,

Asme B16.9 Stainless Buttweld Caps

,

STD 2 inch galvanized pipe cap

Asme B16.9 Din2617 Jis,En,Std Sch40 Sch80 Sch160 Seamless Black Paint Cap Fitting

CAP FITTING



Specification List

Porduct Name Carbon Steel /Stainless Steel CAP
Size 1/2"-80" seamless
Standard ANSI B16.9, EN10253-2, DIN2617, JIS B2311,
Wall thickness STD, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, DIN,JIS and etc.
Type Seamless and Welded
End Bevel end/BE/buttweld
Surface nature color, varnished, black painting, anti-rust oil etc.
Material

Carbon steel: A234WPB, A420WPL6 St37,St45, E24, A42CP, 16Mn, Q345, P245GH,

P235GH, P265GH, P280GH,P295GH,P355GH etc.

Pipeline steel: WPHY42, WPHY52, WPHY60, WPHY65,WPHY70, WPHY80 and etc.
Cr-Mo alloy steel: P11,P22,P5, P9,P91, 10CrMo9-10, 16Mo3 etc.
Application

Petrochemical industy;avation and aerospace industry;pharmaceutical industry;

gas exhaust;power plant;ship buliding;water treament,etc.

Advantages ready stock,faster delivery time;available in all sizes,austomized;high quality




ASME B16.9 End Cap Dimensions, Stainless Steel Pipe Cap Dimensions, Carbon Steel Pipe Cap:

Pipe Cap Dimensions Chart

ASME B16.9 End Cap Dimensions



CODE FOSTD - FOXS
NOMINAL DIAMETER
WALL TH. S MM
HEIGHT
H MM
THEORETICAL WEIGHT KG
POLL.
D MM
STD
XS
STD
XS
5
1/2
21.34
2.77
3.73
25.4
0.03
-
7
3/4
26.67
2.87
3.91
25.4
0.06
0.08
10
1
33.40
3.38
4.55
38.1
0.10
0.14
12
1'' 1/4
42.16
3.56
4.85
38.1
0.14
0.18
15
1'' 1/2
48.26
3.68
5.08
38.1
0.16
0.23
20
2
60.32
3.91
5.54
38.1
0.27
0.32
25
2'' 1/2
73.02
5.16
7.01
38.1
0.41
0.45
30
3
88.90
5.49
7.62
50.8
0.65
0.82
40
4
114.30
6.02
8.56
63.5
1.15
1.54
50
5
141.30
6.55
9.52
76.2
1.90
2.59
60
6
168.27
7.11
10.97
88.9
2.92
4.10
80
8
219.07
8.18
12.70
101.6
5.07
7.3
100
10
273
9.27
12.70
127
9.1
12.0
120
12
323.9
9.52
12.70
152
13.6
17.0
140
14
355.6
9.52
12.70
165
14.42
19.8
160
16
406.4
9.52
12.70
178
18.86
25.89
180
18
457.2
9.52
12.70
203
27.65
36.52
200
20
508
9.52
12.70
229
35.60
46.98
240
24
609.6
9.52
12.70
267
46
64.60



ANSI B16.9 End Cap Dimensions



CAPS - ANSI B 16.9 dimension
inches mm Height
D E
1/2 15 21,34 25,40
3/4 20 26,67 31,75
1 25 33,40 38,10
1 1/4 32 42,16 38,10
1 1/2 40 48,26 38,10
2 50 60,32 38,10
2 1/2 65 73,02 38,10
3 80 88,90 50,80
3 1/2 90 101,60 63,50
4 100 114,30 63,50
5 125 141,30 76,20
6 150 168,27 88,90
8 200 219,07 101,60
10 250 273,05 127,00
12 300 323,85 152,40
14 350 355,60 165,10
16 400 406,40 177,80
18 450 457,20 203,20
20 500 508,00 228,60
22 550 558,80 254,00
24 600 609,60 266,70
28 700 711,20 266,70
Dimension in mm



ANSI B16.9 PIPE ENDS – Dimensional tolerances

DIMENSIONAL TOLERANCES – SS PIPE CAPS
For all fittings Caps
Nominal Pipe Size (NPS) Outside Ø at Bevel Inside Ø at End Wall Thickness
t / t1
Overall Length E
1/2 a 2 1/2 1 0,8 Not 4
3 a 3 1/2 1 1,6 less 4
4 +2 -1 1,6 than 4
5 a 6 +3 -1 1,6 87,50% 7
8 2 1,6 of nominal 7
10 +4 -3 3,2 tickness 7
12 a 18 +4 -3 3,2   7
20 a 24 +6 -5 4,8   7
26 a 30 +7 -5 4,8   10
32 a 48 +7 -5 4,8   10
