Product Details:
|
| Material: | A234 WPB | Thickness: | SCH10, SCH20, SCH30, STD, SCH40, SCH80, SCH120, SCH160 XXS |
|---|---|---|---|
| Size: | 1/2" TO 48" | ||
| High Light: | DN1200 Stainless Steel Buttweld Caps SCH10,DN1200 Stainless Steel Buttweld Caps SCH20,DN1200 stainless steel buttweld caps SCH100 |
||

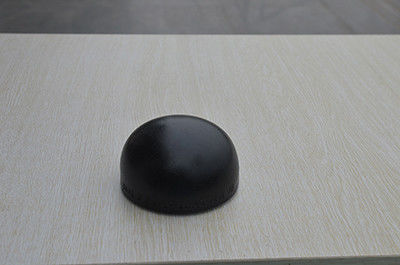

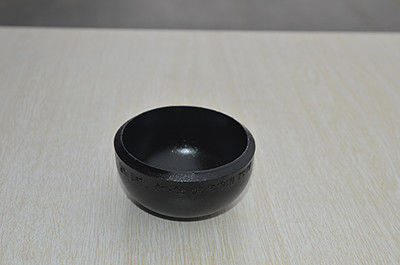

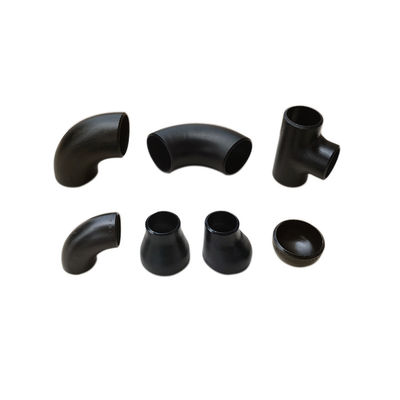

ANSI B 16.9 BUTT WELDED & seamless SCH10 SCH20 SCH40 SCH80 SCH100 SCH120 SCH160 XXS CAP
| Specifications | Cap |
|---|---|
| Pipe End Cap Pipe Fittings size | Seamless Butt Weld Fittings: 1/2" - 24" Welded Butt Weld Fittings: 1/2" - 48" |
| Pipe Cap Fittings Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Bw Pipe Cap Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Cap Bw Sch 80 Types | Seamless / ERW / Welded / Fabricated Pipe Fittings |
| Bw Cap Type | DN15-DN1200 |
| Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings |
| Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Pipe Cap FittingsFittings | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Cap Bw Sch 80 Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Key markets and industries for Pipe Cap |
|
| Application |
|
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
| Code FOSTD - FOXS | Nominal Diameter | Wall Th. S mm | Height H mm | Theoretical Weight kg | |||
|---|---|---|---|---|---|---|---|
| Poll. | D mm | STD | XS | STD | XS | ||
| 5 | 1/2 | 21.34 | 2.77 | 3.73 | 25.4 | 0.03 | - |
| 7 | 3/4 | 26.67 | 2.87 | 3.91 | 25.4 | 0.06 | 0.08 |
| 10 | 1 | 33.40 | 3.38 | 4.55 | 38.1 | 0.10 | 0.14 |
| 12 | 1'' 1/4 | 42.16 | 3.56 | 4.85 | 38.1 | 0.14 | 0.18 |
| 15 | 1'' 1/2 | 48.26 | 3.68 | 5.08 | 38.1 | 0.16 | 0.23 |
| 20 | 2 | 60.32 | 3.91 | 5.54 | 38.1 | 0.27 | 0.32 |
| 25 | 2'' 1/2 | 73.02 | 5.16 | 7.01 | 38.1 | 0.41 | 0.45 |
| 30 | 3 | 88.90 | 5.49 | 7.62 | 50.8 | 0.65 | 0.82 |
| 40 | 4 | 114.30 | 6.02 | 8.56 | 63.5 | 1.15 | 1.54 |
| 50 | 5 | 141.30 | 6.55 | 9.52 | 76.2 | 1.90 | 2.59 |
| 60 | 6 | 168.27 | 7.11 | 10.97 | 88.9 | 2.92 | 4.10 |
| 80 | 8 | 219.07 | 8.18 | 12.70 | 101.6 | 5.07 | 7.3 |
| 100 | 10 | 273 | 9.27 | 12.70 | 127 | 9.1 | 12.0 |
| 120 | 12 | 323.9 | 9.52 | 12.70 | 152 | 13.6 | 17.0 |
| 140 | 14 | 355.6 | 9.52 | 12.70 | 165 | 14.42 | 19.8 |
| 160 | 16 | 406.4 | 9.52 | 12.70 | 178 | 18.86 | 25.89 |
| 180 | 18 | 457.2 | 9.52 | 12.70 | 203 | 27.65 | 36.52 |
| 200 | 20 | 508 | 9.52 | 12.70 | 229 | 35.60 | 46.98 |
| 240 | 24 | 609.6 | 9.52 | 12.70 | 267 | 46 | 64.60 |
| NPS | STD | XS | SCH 160 | XXS |
| 1 | 0.09 | 0.14 | 0.18 | 0.23 |
| 1.1/4 | 0.14 | 0.18 | 0.23 | 0.34 |
| 1.1/2 | 0.18 | 0.23 | 0.27 | 0.41 |
| 2 | 0.27 | 0.34 | 0.57 | 0.68 |
| 2.1/2 | 0.41 | 0.45 | 0.79 | 1.13 |
| 3 | 0.68 | 0.79 | 1.32 | 1.81 |
| 3.1/2 | 0.91 | 1.13 | – | 2.72 |
| 4 | 1.13 | 1.36 | 2.68 | 3.4 |
| 5 | 2.04 | 2.49 | 4.54 | 5.44 |
| 6 | 2.95 | 4.08 | 6.8 | 8.16 |
| 8 | 5.44 | 7.26 | 14.06 | 13.61 |
| 10 | 9.07 | 11.34 | 25.85 | – |
| 12 | 13.61 | 16.33 | 43.09 | – |
| 14 | 16.33 | 20.41 | – | – |
| 16 | 18.14 | 24.49 | – | – |
| 18 | 24.49 | 32.66 | – | – |
| 20 | 34.02 | 39.01 | – | – |
| 22 | 42.64 | 56.7 | – | – |
| 24 | 43.54 | 58.97 | – | – |
| 26 | 53.98 | 72.12 | – | – |
| 30 | 78.02 | 103.87 | – | – |
| NPS | STD | XS | SCH 160 | XXS |
