Product Details:
|
| Material: | Carbon Steel And Stainless Steel | Collor: | BLACK |
|---|---|---|---|
| Thickness: | STD,SCH40,SCH80 ,XS,SCH160 | ||

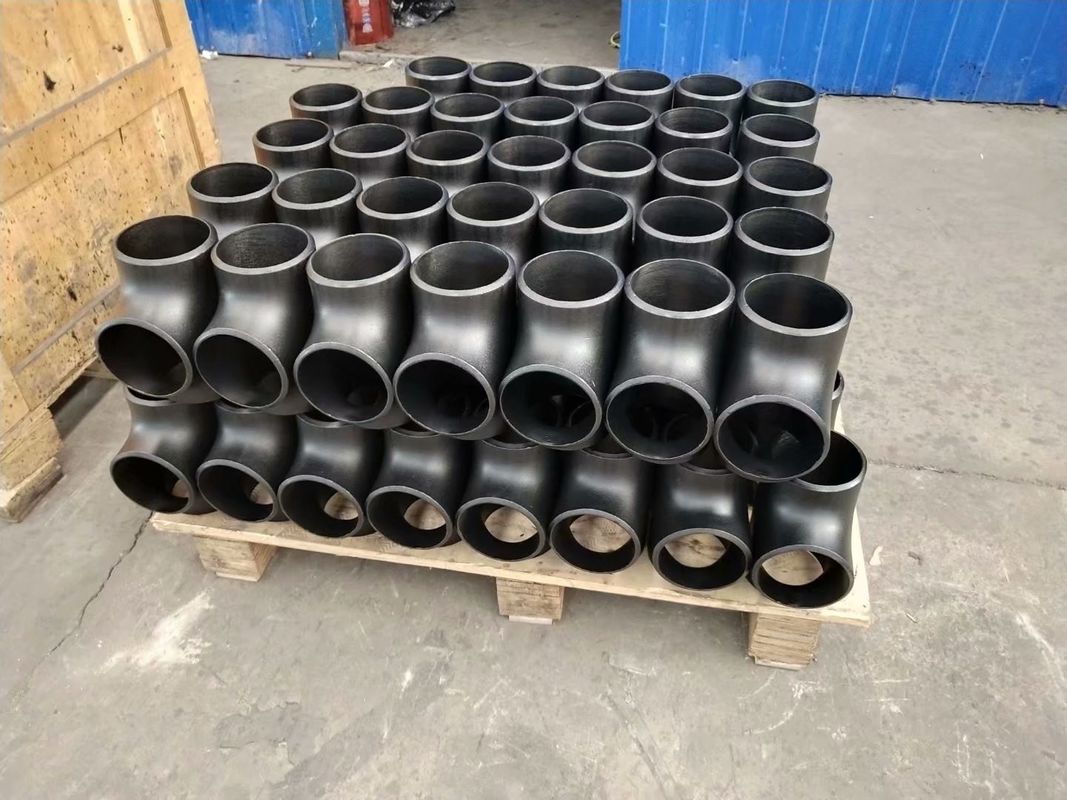

| High Light: | WP304 Black Welded Reducing Tee,WP316L Welded Reducing Tee,A105N 6'' equal tee Seamless |
||
1) Standard: ASME B16.9,B16.28,SA420,B16.11, SA403, ASTM A234, A694,DIN 2605,DIN2616,DIN 2615,DIN 2617,JIS 2311, JIS 2312 etc.
2) Materials: A234-WPB, WP304, WP316L, A105N,
3) OD: 1/2" - 48".
4) WT: Sch5 - Sch160.
5) Surface: Painted with black paint (or varnish), galvanized,
6) Packaging: wooden case, pallet.
Dimensions-of-butt-welding-straight-tees-and-crosses-ASME-B16.9
| NPS | OD, D | Center to End | |
| Run, C | Outlet, M [Notes(1),(2)] | ||
| 1/2 | 21.3 | 25 | 25 |
| 3/4 | 26.7 | 29 | 29 |
| 1 | 33.4 | 38 | 38 |
| 1 ¼ | 42.2 | 48 | 48 |
| 1 ½ | 48.3 | 57 | 57 |
| 2 | 60.3 | 64 | 64 |
| 2 ½ | 73 | 76 | 76 |
| 3 | 88.9 | 86 | 86 |
| 3 ½ | 101.6 | 95 | 95 |
| 4 | 114.3 | 105 | 105 |
| 5 | 141.3 | 124 | 124 |
| 6 | 168.3 | 143 | 143 |
| 8 | 219.1 | 178 | 178 |
| 10 | 273 | 216 | 216 |
| 12 | 323.8 | 254 | 254 |
| 14 | 355.6 | 279 | 279 |
| 16 | 406.4 | 305 | 305 |
| 18 | 457 | 343 | 343 |
| 20 | 508 | 381 | 381 |
| 22 | 559 | 419 | 419 |
| 24 | 610 | 432 | 432 |
| 26 | 660 | 495 | 495 |
| 28 | 711 | 521 | 521 |
| 30 | 762 | 559 | 559 |
| 32 | 813 | 597 | 597 |
| 34 | 864 | 635 | 635 |
| 36 | 914 | 673 | 673 |
| 38 | 965 | 711 | 711 |
| 40 | 1016 | 749 | 749 |
| 42 | 1067 | 762 | 711 |
| 44 | 1118 | 813 | 762 |
| 46 | 1168 | 851 | 800 |
| 48 | 1219 | 889 | 838 |
........
Material
1) Carbon Steel ,S235 & Stainless Steel SS304, SS316, SS316L
Surface Antirust:
Surface antirust 1: Antirust light oil
Surface antirust 2: Black paint coating

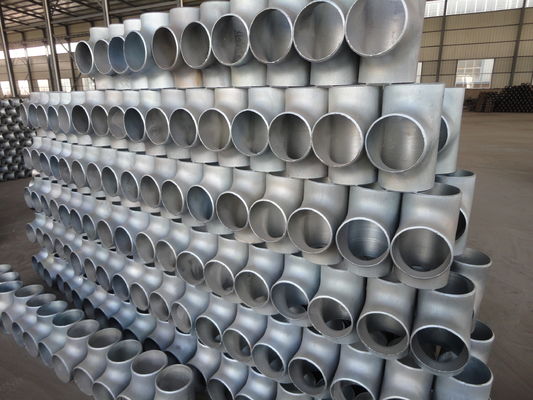

Surface antirust 3: Galnavized (Hot Dipped Galvanized or Electro Galvanized
Terms:
1) Payment: Irrevocable L/C at sight or T/T, D/P
2) Delivery term FOB China Port or CIF Buyer’s Port

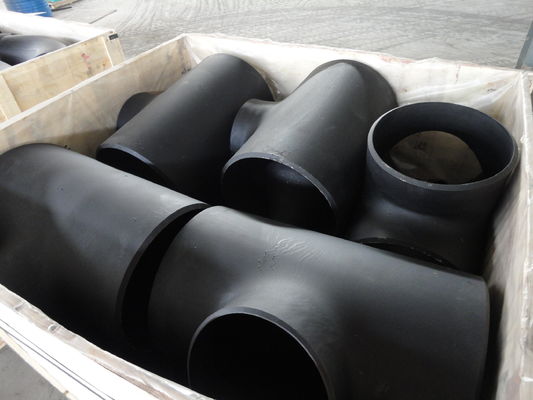

3) Packing: Plywood Pallet/case
Contact:
Sales Manager: Grace Zhang
HEBEI XINFENG HIGH-PRESSURE FLANGE AND PIPE FITTING CO.,LTD.
Add.: Mencun County,Cangzhou City,Hebei province,China 061400
Mobile:86 18031772015 (wechat, whatsapp)
Tel: 86-317-6725755
Email: info4@hbxfgj.com
Skype: cangzhouzhangnan
FAQ:
1. What is your MOQ?
Normally our MOQ for each size is 1ton. If you think it is too much, we can discuss according to your requirement in details.
2. Can you offer free sample?
Yes, we can provide free samples of 150m - 200m.
3. What is your delivery time?
We wil deliver in 30-45 days
4. Can you accept mixed products in one container?
Yes, we accept for sure.
