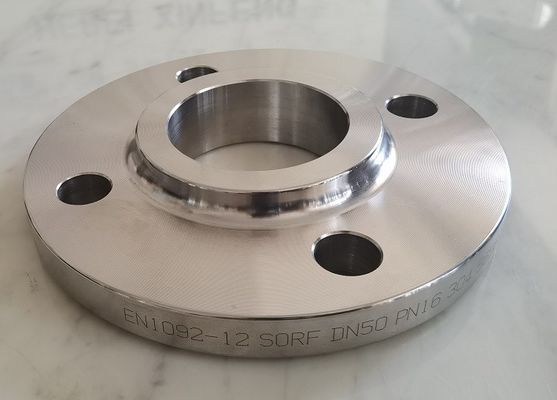

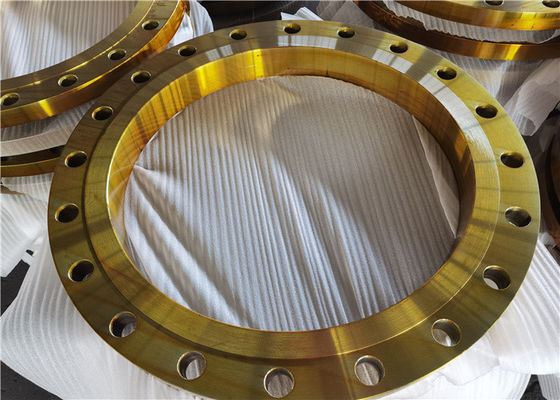

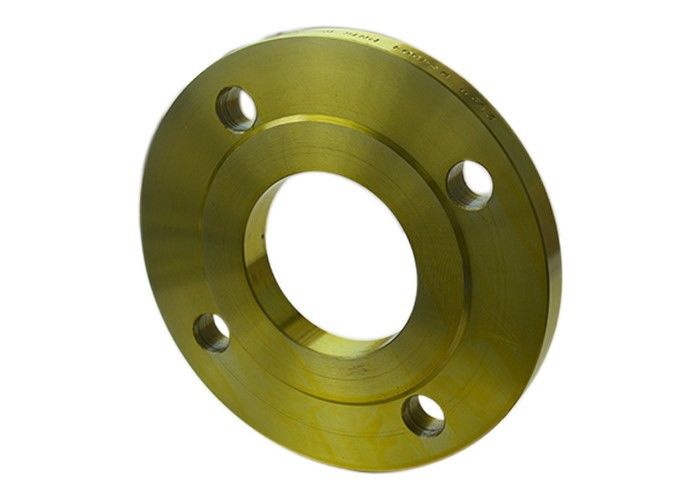

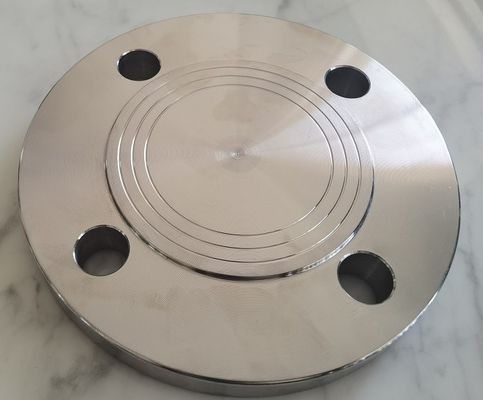

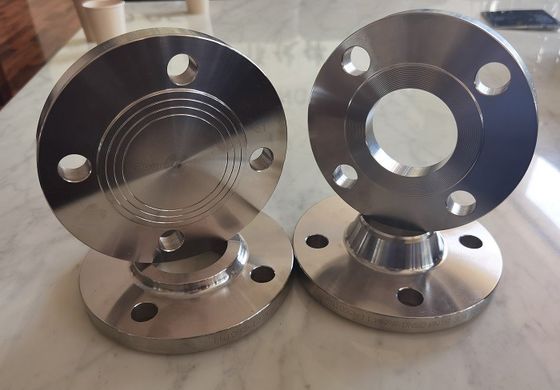

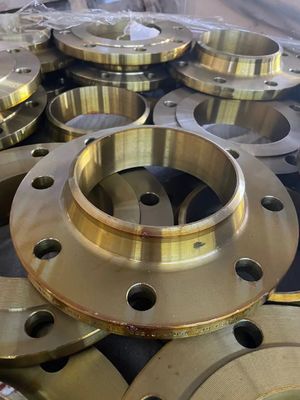

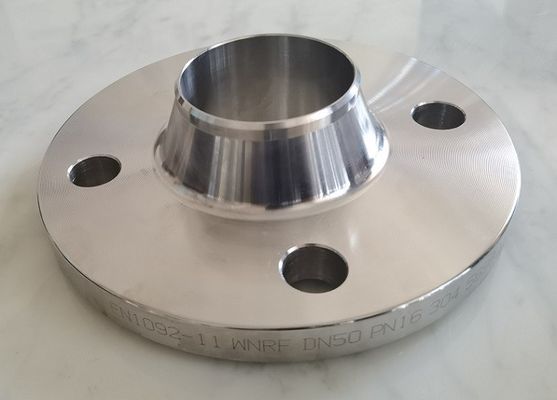

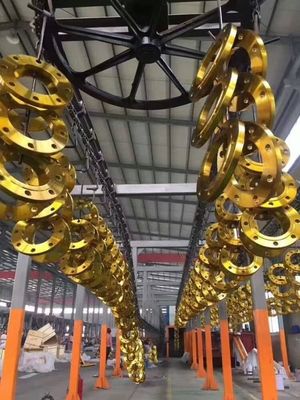

Threaded Carbon Steel Stainless BS4504 PN10 Flange WN SO DN10 To DN1600

Description
Material: Carbon Steel A105 & Stainless Steel SS304, SS316, SS316L Pressure: PN16,PN10,PN6,PN25,PN40,PN63,PN100,PN160
Color: Black Or Yellow Or Anti-rust Oil
High Light:

SO DN10 To DN1600 Flanges

,

BS4504 SO DN10 To DN1600 Flange

,

SO DN10 To DN1600 Flange

BS 4504 PN16 Flange, BS 4504 Flange Dimensions



Carbon Steel ,Stainless steel BS 4504 PN6 PN10 PN16 PN25 PN40 W/N SO BL SIZE: DN10 TO DN1600

BS4504 Forged Flanges, BS 4504 PN10 Flanges, BS 4504 PN6 Flange Dimensions

BS 4504 Flange Weight, BS 4504 PN40 Flange, Flanges as Per BS 4504, Flange BS4504 PN16, BS 4504 Material

BS 4504 Circular Flanges for pipes valves and fittings, BS 4504 Flange Pressure Ratings, BS 4504 flanges uk, Stainless Steel BS 4504 Flange
Flange Dimensions as per BS 4504 , BS 4504 PN10 Flanges Dimensions, BS 4504 PN10 Flange Tables, BS 4504 PN10 2501

Threaded Carbon Steel Stainless BS4504 PN10 Flange WN SO DN10 To DN1600 0Threaded Carbon Steel Stainless BS4504 PN10 Flange WN SO DN10 To DN1600 1Threaded Carbon Steel Stainless BS4504 PN10 Flange WN SO DN10 To DN1600 2

BS 4504 Flange Standard Specification

Standard BS 4504 (British Standards)
Size DN15 – DN2000
Type Weld Neck Flanges, Threaded flanges, Slip On Flanges, Plate Flanges, Blind Flanges
Process Forged, Stamped
Pressure Grade PN6, PN10, PN16, PN25, PN40



BS 4504 Flange Material Specification

Stainless Steel BS 4504 Flange:
ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L

Duplex & Super Duplex Steel BS 4504 Flange:
ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61

Carbon Steel BS 4504 Flange:
ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706

Low Temperature Carbon Steel BS 4504 Flange: ASTM A350, LF2, LF3

Alloy Steel BS 4504 Flange:
ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91

Copper Alloy Steel BS 4504 Flange: ASTM SB 61 , SB62 , SB151 , SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200

Nickel Alloy BS 4504 Flange:
ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020)



BS 4504 FLANGE DIMENSIONS, BS 4504 FLANGE WEIGHT

BS 4504 Dimensions in MM



BS 4504 PN6 Flange Dimensions

BS 4504 PN6 Flange Dimensions



Nom. Size Flange Raised Face Boss Drilling



Bolting

Neck Bore Diameter
DN A C C1 C2 D D1 G X N No. I J   M F E R T B
10 75 12 12 12 20 28 35 2 25 4 11 50 M10 26 17.2 6 3 1.8 18.0
15 80 12 12 12 20 30 40 2 30 4 11 55 M10 30 21.3 6 3 2.0 22.0
20 90 14 14 14 24 32 50 2 40 4 11 65 M10 38 26.9 6 4 2.3 27.5
25 100 14 14 14 24 35 60 2 50 4 11 75 M10 42 33.7 6 4 2.6 34.5
32 120 14 16 14 26 35 70 2 60 4 14 90 M12 55 42.4 6 5 2.6 43.5
40 130 14 16 14 26 38 80 3 70 4 14 100 M12 62 48.3 7 5 2.6 49.5
50 140 14 16 14 28 38 90 3 80 4 14 110 M12 74 60.3 8 5 2.9 61.5
65 160 14 16 14 32 38 110 3 100 4 14 130 M12 88 76.1 9 6 2.9 77.5
80 190 16 18 16 34 42 128 3 110 4 18 150 M16 102 88.9 10 6 3.2 90.5
100 210 16 18 16 40 45 148 3 130 4 18 170 M16 130 114.3 10 6 3.6 116.0
125 240 18 20 18 44 48 178 3 160 8 18 200 M16 155 139.7 10 6 4.0 141.5
150 265 18 20 18 44 48 202 3 185 8 18 225 M16 184 168.3 12 8 4.5 170.5
200 320 20 22 20 44 55 258 3 240 8 18 280 M16 236 219.1 15 8 5.6 221.5
250 375 22 24 22 44 60 312 3 295 12 18 335 M16 290 273.0 15 10 6.3 276.5
300 440 22 24 22 44 62 365 4 355 12 22 395 M20 342 323.9 15 10 7.1 327.5
350 490 22 26 22 62 415 4 12 22 445 M20 385 355.6 15 10 7.1 359.5
400 540 22 28 22 65 465 4 16 22 495 M20 438 406.4 15 10 7.1 411.0
450 595 24 30 24 65 520 4 16 22 550 M20 492 457.0 15 12 7.1 462.0
500 645 24 30 24 68 570 4 20 22 600 M20 538 508.0 15 12 7.1 513.5
600 755 24 32 34 70 670 5 20 26 705 M24 640 610.0 16 12 7.1 616.5
700 860 24 40 38 70 775 5 24 26 810 M24 740 711.0 16 12 7.1
800 975 24 44 42 70 880 5 24 30 920 M27 842 813.0 16 12 7.1
900 1075 26 48 46 70 980 5 24 30 1020 M27 942 914.0 16 12 7.1
1000 1175 26 52 52 70 1080 5 28 30 1120 M27 1045 1016.0 16 12 7.1
1200 1405 28 60 60 90 1295 5 32 33 1340 M30 1248 1220.0 20 12 8.0
1400 1630 32 68 68 90 1510 5 36 36 1560 M33 1452 1420.0 20 12 8.0
1600 1830 34 76 76 90 1710 5 40 36 1760 M33 1655 1620.0 20 12 9.0
1800 2045 36 84 84 100 1920 5 44 39 1970 M36 1855 1820.0 20 15 10.0
2000 2265 38 92 92 110 2125 5 48 42 2180 M39 2058 2020.0 25 15 11.0



BS 4504 PN10 Flange Dimensions

BS 4504 PN10 Flange Dimensions



Nom. Size Flange Raised Face Boss Drilling



Bolting

Neck Bore Diameter
DN A C C1 C2 D D1 G X N No. I J M F E R T B
10 90 14 14 14 20 35 40 2 30 4 14 60 M12 28 17.2 6 3 1.8 18.0
15 95 14 14 14 20 35 45 2 35 4 14 65 M12 32 21.3 6 3 2.0 22.0
20 105 16 16 16 24 38 58 2 45 4 14 75 M12 39 26.9 6 4 2.3 27.5
25 115 16 16 16 24 38 68 2 52 4 14 85 M12 46 33.7 6 4 2.6 34.5
32 140 16 18 16 26 40 78 2 60 4 18 100 M16 56 42.4 6 5 2.6 43.5
40 150 16 18 16 26 42 88 3 70 4 18 110 M16 64 48.3 7 5 2.6 49.5
50 165 18 20 18 28 45 102 3 84 4 18 125 M16 74 60.3 8 5 2.9 61.5
65 185 18 20 18 32 45 122 3 104 4 / 8 18 145 M16 92 76.1 10 6 2.9 77.5
80 200 20 20 20 34 50 138 3 118 8 18 160 M16 110 88.9 10 6 3.2 90.5
100 220 20 22 20 40 52 162 3 140 8 18 180 M16 130 114.3 12 6 3.6 116.0
125 * 250 22 22 22 44 55 188 3 168 8 18 210 M16 158 139.7 12 6 4.0 141.5
150 285 22 24 22 44 55 212 3 195 8 22 240 M20 184 168.3 12 8 4.5 170.5
200 340 24 24 24 44 62 268 3 246 8 22 295 M20 234 219.1 16 8 5.6 221.5
250 395 26 26 26 46 68 320 3 298 12 22 350 M20 288 273.0 16 10 6.3 276.5
300 445 26 28 26 46 68 370 4 350 12 22 400 M20 342 323.9 16 10 7.1 327.6
350 505 26 28 26 53 68 430 4 400 16 22 460 M20 390 355.6 16 10 7.1 359.0
400 565 26 32 26 57 72 482 4 456 16 26 515 M24 440 406.4 16 10 7.1 411.0
450 615 28 36 28 63 72 532 4 502 20 26 565 M24 488 457.0 16 12 7.1 462.0
500 670 28 38 28 67 75 585 4 559 20 26 620 M24 540 508.0 16 12 7.1 513.5
600 780 28 42 34 75 80 685 5 658 20 30 725 M27 640 610.0 18 12 7.1 616.5
700 895 30 38 80 800 5 24 30 840 M27 746 711.0 18 12 8.0
800 1015 32 42 90 905 5 24 33 950 M30 848 813.0 18 12 8.0
900 1115 34 46 95 1005 5 28 33 1050 M30 948 914.0 20 12 10.0
1000 1230 34 52 95 1110 5 28 36 1160 M33 1050 1016.0 20 12 10.0
1200 1455 38 60 115 1330 5 32 39 1380 M36 1256 1220.0 25 12 11.0
1400 1675 42 120 1535 5 36 42 1590 M39 1460 1420.0 25 12 12.0
1600 1915 46 130 1760 5 40 48 1820 M45 1666 1620.0 25 12 14.0
1800 2115 50 140 1960 5 44 48 2020 M45 1866 1820.0 30 15 15.0
2000 2325 54 150 2170 5 48 48 2230 M45 2070 2020.0 30 15 16.0
2200 2550 58 160 2370 6 52 56 2440 M52 2275 2220.0 35 15
2400 2760 62 170 2570 6 56 56 2650 M52 2478 2420.0 35 15
2600 2960 65 180 2780 6 60 56 2850 M52 2680 2620.0 40 18
2800 3180 70 190 3000 6 64 56 3070 M52 2882 2820.0 40 18
3000 3405 75 200 3210 6 68 62 3290 M56 3085 3020.0 40 18



BS 4504 PN16 Flange Dimenisons

BS 4504 PN16 Flange Dimensions



Nom. Size Flange Raised Face Boss Drilling



Bolting

Neck Bore Diameter
DN A C C1 C2 D D1 G X N No. I J   M F E R T B
10 90 14 14 14 20 35 40 2 30 4 14 60 M12 28 17.2 6 3 1.8 18.0
15 95 14 14 14 20 35 45 2 35 4 14 65 M12 32 21.3 6 3 2.0 22.0
20 105 16 16 16 24 38 58 2 45 4 14 75 M12 39 26.9 6 4 2.3 27.5
25 115 16 16 16 24 38 68 2 52 4 14 85 M12 46 33.7 6 4 2.6 34.5
32 140 16 18 16 26 40 78 2 60 4 18 100 M16 56 42.4 6 5 2.6 43.5
40 150 16 18 16 26 42 88 3 70 4 18 110 M16 64 48.3 7 5 2.6 49.5
50 165 18 20 18 28 45 102 3 84 4 18 125 M16 74 60.3 8 5 2.9 61.5
65 185 18 20 18 32 45 122 3 104 4 / 8 18 145 M16 92 76.1 10 6 2.9 77.5
80 200 20 20 20 34 50 138 3 118 8 18 160 M16 110 88.9 10 6 3.2 90.5
100 220 20 22 20 40 52 162 3 140 8 18 180 M16 130 114.3 12 6 3.6 116.0
125 * 250 22 22 22 44 55 188 3 168 8 18 210 M16 158 139.7 12 6 4.0 141.5
150 285 22 24 22 44 55 212 3 195 8 22 240 M20 184 168.3 12 8 4.5 170.5
200 340 24 26 24 44 62 268 3 246 12 22 295 M20 234 219.1 16 8 5.6 221.5
250 405 26 29 26 46 70 320 3 298 12 26 355 M24 288 273.0 16 10 6.3 276.5
300 460 28 32 28 46 78 378 4 350 12 26 410 M24 342 323.9 16 10 7.1 327.6
350 520 30 35 30 57 82 438 4 400 16 26 470 M24 390 355.6 16 10 8.0 359.0
400 580 32 38 32 63 85 490 4 456 16 30 525 M27 444 406.4 16 10 8.0 411.0
450 640 34 42 36 63 87 550 4 502 20 30 585 M27 490 457.0 16 12 8.0 462.0
500 715 34 46 36 73 90 610 4 559 20 33 650 M30 546 508.0 16 12 8.0 513.5
600 840 36 52 44 83 95 725 5 658 20 36 770 M33 650 610.0 18 12 8.8 616.5
700 910 36 60 48 83 100 795 5 760 24 36 840 M33 750 711.0 18 12 8.6
800 1025 38 68 52 90 105 900 5 864 24 39 950 M36 848 813.0 20 12 10.0
900 1125 40 76 58 94 110 1000 5 968 28 39 1050 M36 948 914.0 20 12 10.0
1000 1255 42 84 64 100 120 1115 5 1072 28 42 1170 M39 1056 1016.0 22 12 10.0
1200 1485 48 98 76 130 1330 5 32 48 1390 M45 1260 1220.0 30 12 12.5
1400 1685 52 145 1530 5 36 48 1590 M45 1465 1420.0 30 12 14.2
1600 1930 58 160 1750 5 40 56 1820 M52 1668 1620.0 35 12 16.0
1800 2130 62 170 1950 5 44 56 2020 M52 1870 1820.0 35 15 17.5
2000 2435 66 190 2150 5 48 62 2230 M56 2072 2020.0 40 15 20.0

BS 4504 PN25 Flange Dimenisons

BS 4504 PN25 Flange Dimensions



Nom. Size Flange Raised Face Boss Drilling



Bolting

Neck Bore Diameter
DN A C C1 C2 D D1 G X N No. I J M F E R T B
10 90 16 14 16 22 35 40 2 30 4 14 60 M12 28 17.2 6 3 1.8 18.0
15 95 16 14 16 22 38 45 2 35 4 14 65 M12 32 21.3 6 3 2.0 22.0
20 105 18 16 18 26 40 58 2 45 4 14 75 M12 40 26.9 6 4 2.3 27.5
25 115 18 16 18 28 40 68 2 52 4 14 85 M12 46 33.7 6 4 2.6 34.5
32 140 18 18 18 30 42 78 2 60 4 18 100 M16 56 42.4 6 5 2.6 43.5
40 150 18 18 18 32 45 88 3 70 4 18 110 M16 64 48.3 7 5 2.6 49.5
50 165 20 20 20 34 48 102 3 84 4 18 125 M16 74 60.3 8 5 2.9 61.5
65 185 22 22 22 38 52 122 3 104 8 18 145 M16 92 76.1 10 6 2.9 77.5
80 200 24 24 24 40 58 138 3 118 8 18 160 M16 110 88.9 12 6 3.2 90.5
100 235 24 26 24 44 65 162 3 145 8 22 190 M20 134 114.3 12 6 3.6 116.0
125 270 26 28 26 48 68 188 3 170 8 26 220 M24 162 139.7 12 6 4.0 141.5
150 300 28 30 28 52 75 218 3 200 8 26 250 M24 190 168.3 12 8 4.5 170.5
200 360 30 32 30 52 80 278 3 256 12 26 310 M24 244 219.1 16 8 6.3 221.5
250 425 32 35 32 60 88 335 3 310 12 30 370 M27 296 273.0 18 10 7.1 276.5
300 485 34 38 34 67 92 395 4 364 16 30 430 M27 350 323.9 18 10 8.0 327.5
350 555 38 42 38 72 100 450 4 418 16 33 490 M30 398 355.6 20 10 8.0 359.5
400 620 40 46 40 78 110 505 4 472 16 36 550 M33 452 406.4 20 10 8.8 411.0
450 670 42 50 44 84 110 555 4 520 20 36 600 M33 500 457.0 20 12 8.8 462.0
500 730 44 56 45 90 125 615 4 580 20 36 660 M33 558 508.0 20 12 10.0 513.5
600 845 46 68 54 100 125 720 5 684 20 39 770 M36 660 610.0 20 12 11.0 616.5
700 960 46 125 820 5 24 42 875 M39 760 711.0 20 12 12.5
800 1085 50 135 930 5 24 48 990 M45 864 813.0 22 12 14.2
900 1185 54 145 1030 5 28 48 1090 M45 968 914.0 24 12 16.0
1000 1320 58 155 1140 5 28 56 1210 M52 1070 1016.0 24 12 17.5
1200 1530 1350 5 32 56 1420 M52 1220.0 12 12.5
1400 1755 1560 5 36 62 1640 M56 1420.0 12 14.2
1600 1975 1780 5 40 62 1860 M56 1620.0 12 16.0
1800 2185 1985 5 44 70 2070 M64 1820.0 15 17.5
2000 2425 2210 5 48 70 2300 M64 2020.0 15 20.0



BS 4504 PN40 Flange Dimenisons

BS 4504 PN40 Flange Dimensions



Nom. Size Flange Raised Face Boss Drilling



Bolting

Neck Bore Diameter
DN A C C1 C2 D D1 G X N No. I J   M F E R T B
10 90 16 14 16 22 35 40 2 30 4 14 60 M12 28 17.2 6 3 1.8 18.0
15 95 16 14 16 22 38 45 2 35 4 14 65 M12 32 21.3 6 3 2.0 22.0
20 105 18 16 18 26 40 58 2 45 4 14 75 M12 40 26.9 6 4 2.3 27.5
25 115 18 16 18 28 40 68 2 52 4 14 85 M12 46 33.7 6 4 2.6 34.5
32 140 18 18 18 30 42 78 2 60 4 18 100 M16 56 42.4 6 5 2.6 43.5
40 150 18 18 18 32 45 88 3 70 4 18 110 M16 64 48.3 7 5 2.6 49.5
50 165 20 20 20 34 48 102 3 84 4 18 125 M16 74 60.3 8 5 2.9 61.5
65 185 22 22 22 38 52 122 3 104 8 18 145 M16 92 76.1 10 6 2.9 77.5
80 200 24 24 24 40 58 138 3 118 8 18 160 M16 110 88.9 12 6 3.2 90.5
100 235 24 26 24 44 65 162 3 145 8 22 190 M20 134 114.3 12 6 3.6 116.0
125 270 26 28 26 48 68 188 3 170 8 26 220 M24 162 139.7 12 6 4.0 141.5
150 300 28 30 28 52 75 218 3 200 8 26 250 M24 190 168.3 12 8 4.5 170.5
200 375 34 36 36 52 88 285 3 260 12 30 320 M27 244 219.1 16 8 6.3 221.5
250 450 38 42 38 60 105 345 3 312 12 33 385 M30 306 273.0 18 10 7.1 276.5
300 515 42 48 42 67 115 410 4 380 16 33 450 M30 362 323.9 18 10 8.0 327.5
350 580 46 54 46 72 125 465 4 424 16 36 510 M33 408 355.6 20 10 8.8 359.5
400 660 50 60 50 78 135 535 4 478 16 39 585 M36 462 406.4 20 10 11.0 411.0
450 685 50 66 54 84 135 560 4 522 20 39 610 M36 500 457.0 20 12 12.5 462.0
500 755 52 72 56 90 140 615 4 576 20 42 670 M39 562 508.0 20 12 14.2 513.5
600 890 60 84 70 100 150 735 5 686 20 48 795 M45 666 610.0 20 12 16.0 6165







Contact Details
Hebei Xinfeng High-pressure Flange and Pipe Fitting Co., Ltd.

Contact Person: Miss. Mandy Liu

Tel: 0086 18903173335

Fax: 86-0317-6853077-6723871

Send your inquiry directly to us (0 / 3000)

Other Products
