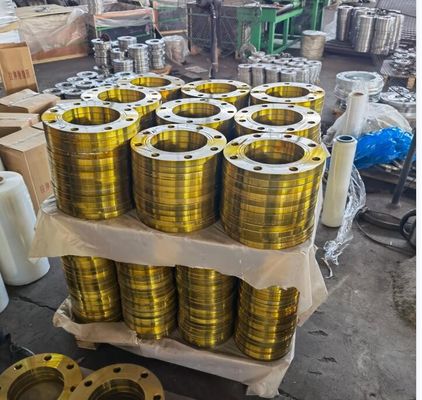

BS10 TABLE D E F H Forged FLANGE BS 4504 PN6 PN10 PN16 PN25 PN40 PN63 PN100 PN160

Large Image : BS10 TABLE D E F H Forged FLANGE BS 4504 PN6 PN10 PN16 PN25 PN40 PN63 PN100 PN160

Product Details:

Place of Origin:	CHINA
Brand Name:	XF
Certification:	EN10204 3.1 ISO9001 , PED AND AD2000 W0
Model Number:	DN15-DN2000

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	USD 1-100 One PCS
Packaging Details:	PLYWOODEN AND PALLET
Delivery Time:	15-30DAYS
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	2000TONS ONE MONTH

Contact Now

BS10 TABLE D E F H Forged FLANGE BS 4504 PN6 PN10 PN16 PN25 PN40 PN63 PN100 PN160

Description

Produce Method:	FORGED	Standard:	BS4504
Pressure:	PN6,PN10;PN16;PN25;PN40;PN63;PN100 BS10 TABLE D , BS10 TABLE E	Size Range:	DN15-DN2000
Flange Type:	Plate Flange , Blind , Slip On , Welding Neck,Threaded Flange	Material:	Carbon Steel A105; C22.8; ST37.2; S235JR; Stainless Steel 304/304L ; 316/316L;
Coating:	Black Paint , Yellow Paint , Hot Galvanized , Cold Galvanized And Oil	Packing:	Seay Worthy Plywood Cases Or Pallet
High Light:	TABLE H Forged FLANGE BS 4504 , FLANGE BS 4504 PN6 PN10 , BS10 TABLE D FLANGE PN160

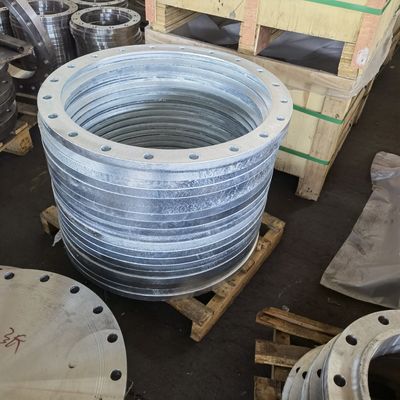

BS4504 PN10, PN16 PLATE FLANGE ,BLIND SLIP ON AND WELDED NECK FLANGE WITH HOT DIP GALVANIZED

Product Introducting

Product	Hot forging steel flanges
Standard	BS4504
Flange type	101 PLATE; 105 BLIND; 111 WELDING NECK; 112 SLIP ON; 113 THREADED BS10 TABLE D , TALE E, TABLE F , TABLE H
Size range	DN10-DN2000
Pressure	PN6; PN10;PN16;PN25;PN40;PN63;PN100
Material	carbon steel A105; C22.8; ST37.2; S235JR; stainless steel 304/304L ; 316/316L;
Packing	seay worthy plywood cases or pallet

Product: Hot forging steel flanges

Standard: BS4504

Flange type: 101 PLATE; 105 BLIND; 111 WELDING NECK; 112 SLIP ON; 113 THREADED

Size range: DN10-DN2000

Pressure: PN6; PN10;PN16;PN25;PN40;PN63;PN100

Material: carbon steel A105; C22.8; ST37.2; S235JR; stainless steel 304/304L ; 316/316L;

Packing: seay worthy plywood cases or pallet

BS10 TABLE D E F H Forged FLANGE BS 4504 PN6 PN10 PN16 PN25 PN40 PN63 PN100 PN160 0

BS 10 Flange Dimensions

BS 10 2Table D Flange Dimensions

Nominal	O.D of		Dia. of		Dia. of		No. of		Dia. of		Thickness
Pipe size	Pipe		Flange		Bolt Circle		Bolt		Bolt

1/2"		21.3		95.3		66.7		4		12.7		4.8
3/4"		26.7		101.6		73.0		4		12.7		4.8
1"		33.4		114.3		82.6		4		12.7		4.8
1 1/4"		42.2		120.7		87.6		4		12.7		6.4
1 1/2"		48.3		133.4		98.4		4		12.7		6.4
2"		60.3		152.4		114.3		4		15.9		7.9
2 1/2"		73.0		165.1		127.0		4		15.9		7.9
3"		88.9		184.2		146.1		4		15.9		9.5
3 1/2"		101.6		203.2		165.1		4		15.9		9.5
4"		114.3		215.9		177.8		4		15.9		9.5
5"		141.3		254.0		209.6		8		15.9		12.7
6"		168.3		279.4		228.6		8		15.9		12.7
7"		190.5		304.8		260.4		8		15.9		12.7
8"		219.1		336.6		292.1		8		15.9		12.7
9"		244.5		368.3		323.9		8		15.9		15.9
10"		273.0		406.4		355.6		8		19.1		15.9
12"		323.9		457.2		406.4		12		19.1		15.9
14"		355.6		527.1		469.9		12		22.2		19.1
16"		406.4		577.9		520.7		12		22.2		19.1
18"		457.2		641.4		584.2		12		22.2		22.2
20"		508.0		704.9		641.4		16		22.5		25.4
24"		609.6		825.5		755.7		16		25.4		28.6

BS 10 Table E Flange Dimensions

Nominal	Dia. of	Dia. of		No. of	Dia. of	Thickness
Pipe Size	Flange	Bolt Circle		Bolt	Bolt
1/2"	95.3	66.7	4		12.7	6.4
3/4"	101.6	73.0	4		12.7	6.4
1"	114.3	82.6	4		12.7	7.1
1 1/4"	120.7	87.3	4		12.7	7.9
1 1/2"	133.4	98.4	4		12.7	8.7
2"	152.4	114.3	4		15.9	9.5
2 1/2"	165.1	127.0	4		15.9	10.3
3"	184.2	146.1	4		15.9	11.1
3 1/2"	203.2	165.1	8		15.9	11.9
4"	215.9	177.8	8		15.9	12.7
5"	254.0	209.6	8		15.9	14.3
6"	279.4	228.6	8		19.1	17.5
7"	304.8	260.4	8		19.1	19.1
8"	336.6	292.1	8		19.1	19.1
9"	368.3	323.9	12		19.1	20.6
10"	406.4	355.6	12		19.1	22.2
12"	457.2	406.4	12		22.2	25.4
14"	527.2	469.9	12		22.2	25.4
16"	577.9	520.7	12		22.2	25.4
18"	641.4	584.2	16		22.2	28.6
20"	704.9	647.4	16		22.2	31.8
24"	825.5	755.7	16		25.4	38.1

BS 10 Table F Flange Dimensions

Nominal	O.D. of		Dia of		Dia of		No. of		Dia. of		Thickness
Pipe Size	Pipe		Flange		Bolt Circle		Bolt		Bolt
1/2"		21.3		95.3		66.7		4		12.7		9.5

3/4"		26.7		101.6		73.0		4		12.7		9.5
1"		33.4		120.7		87.3		4		15.9		9.5
1 1/4"		42.2		133.4		98.4		4		15.9		12.7
1 1/2"		48.3		139.7		104.8		4		15.9		12.7
2"		60.3		165.1		127.0		4		15.9		15.9
2 1/2"		73.0		184.2		146.1		8		15.9		15.9
3"		88.9		203.2		165.1		8		15.9		15.9
3 1/2"		101.6		215.9		177.8		8		15.9		19.1
4"		114.3		228.6		190.5		8		15.9		19.1
5"		141.3		279.4		235.0		8		19.1		22.2
6"		168.3		304.8		260.4		12		19.1		22.2
7"		190.3		336.6		292.1		12		19.1		22.2
8"		219.1		368.3		323.9		12		19.1		25.4
9"		244.5		406.4		355.6		12		22.2		25.4
10"		273.0		431.8		381.0		12		22.2		25.4
12"		323.0		489.0		438.2		16		22.2		28.6
14"		355.6		552.5		495.3		16		25.4		31.8
16"		406.4		609.6		552.5		20		25.4		31.8
18"		457.2		673.1		609.6		20		28.6		34.9
20"		508.0		736.6		673.1		24		28.6		38.1
24"		609.6		850.9		781.1		24		31.8		41.3

BS 10 Table H Flange Dimensions

Nominal	Dia of		Dia. of		No. of		Dia. of		Thickness
Pipe size	Flange		Bolt Circle		Bolt		Bolt
1/2"		114.3		82.6		4		15.9		12.7
3/4"		114.3		82.6		4		15.9		12.7
1"		120.78		87.3		4		15.9		14.3
1 1/4"	133.4		98.4		4		15.9		17.5
1 1/2"		139.7		104.8		4		15.9		17.5
2"	165.1		127.0		4		15.9		19.1
2 1/2"		184.2		146.1		8		15.9		19.1
3"	203.2		165.1		8		15.9		22.2
3 1/2"		215.9		177.8		8		15.9		22.2
4"	228.6		190.5		8		15.9		25.4
5"		279.4		235.0		8		19.1		28.6
6"		304.8		260.4		12		19.1		28.6
7"		336.6		292.1		12		19.1		31.8
8"		368.3		323.9		12		19.1		31.8
9"		406.4		355.6		12		22.2		34.9
10"		431.8		381.0		12		22.2		34.9
12"		489.0		438.2		16		22.2		38.1
14"		552.5		495.3		16		25.4		41.3
16"		609.6		552.5		20		25.4		44.5
18"		673.1		609.6		20		28.6		47.6
20"		736.6		673.1		24		28.6		50.8
24"		850.9		781.1		24		31.8		57.2

BS 10 Flanges Dimensions in mm, BS 10 Flanges Sizes

NOMINAL BORE 15	FLANGE DIAMETER in mm	PCD	BOLTS	BOLTSIZE	HOLE SIZE	THICKNESS
Table D	3 3/4" / 95	2 5/8" / 67	4	1/2"	9/16" / 14	3/8" / 10
Table E	3 3/4" / 95	2 5/8" / 67	4	1/2"	9/16" / 14	3/8" / 10
Table F	3 3/4" / 95	2 5/8" / 67	4	1/2"	9/16" / 14	3/8" / 10
Table H	4 1/2" / 114	3 1/4" / 83	4	5/8"	11/16" / 17	1/2" / 13
Table J	4 1/2" / 114	3 1/4" / 83	4	5/8"	11/16" / 17	5/8" / 16
Table K	4 1/2" / 114	3 1/4" / 83	4	5/8"	11/16" / 17	3/4" / 19
NOMINAL BORE 20	FLANGE DIAMETER in mm	PCD	BOLTS	BOLTSIZE	HOLE SIZE	THICKNESS
Table D	4" / 102"	2 7/8" / 73"	4	1/2"	9/16" / 14"	3/8" / 10"
Table E	4" / 102"	2 7/8" / 73"	4	1/2"	9/16" / 14"	3/8" / 10"
Table F	4" / 102"	2 7/8" / 73"	4	1/2"	9/16" / 14"	3/8" / 10"
Table H	4 1/2" / 114"	3 1/4" / 83"	4	5/8"	11/16" / 17"	1/2" / 13"
Table J	4 1/2" / 114"	3 1/4" / 83"	4	5/8"	11/16" / 17"	5/8" / 16"
Table K	4 1/2" / 114"	3 1/4" / 83"	4	5/8"	11/16" / 17"	3/4" / 19"
NOMINAL BORE 25	FLANGE DIAMETER	PCD	BOLTS	BOLTSIZE	HOLE SIZE	THICKNESS
Table D	4 1/2" / 114	3 1/4" / 83	4	1/2"	9/16" / 14	3/8" / 10
Table E	4 1/2" / 114	3 1/4" / 83	4	1/2"	9/16" / 14	3/8" / 10
Table F	4 3/4" / 121	3 7/16" / 87	4	5/8"	9/16" / 14	3/8" / 10
Table H	4 3/4" / 121	3 7/16" / 87	4	5/8"	11/16" / 17	9/16" / 14
Table J	4 3/4" / 121	3 7/16" / 87	4	5/8"	11/16" / 17	3/4" / 19
Table K	5" / 127	3 3/4" / 95	4	5/8"	11/16" / 17	7/8" / 22
NOMINAL BORE 32	FLANGE DIAMETER	PCD	BOLTS	BOLTSIZE	HOLE SIZE	THICKNESS
Table D	4 3/4" / 121	3 7/16" / 87	4	1/2"	9/16" / 14	1/2" / 13
Table E	4 3/4" / 121	3 7/16" / 87	4	1/2"	9/16" / 14	1/2" / 13
Table F	5 1/4" / 133	3 7/8" / 98	4	5/8"	11/16" / 17	1/2" / 13
Table H	5 1/4" / 133	3 7/8" / 98	4	5/8"	11/16" / 17	11/16" / 17
Table J	5 1/4" / 133	3 7/8" / 98	4	5/8"	11/16" / 17	3/4" / 19
Table K	5 1/4" / 133	3 7/8" / 98	4	5/8"	11/16" / 17	7/8" / 22
NOMINAL BORE 40	FLANGE DIAMETER	PCD	BOLTS	BOLTSIZE	HOLE SIZE	THICKNESS
Table D	5 1/4" / 133	3 7/8" / 98	4	1/2"	9/16" / 14	1/2" / 13
Table E	5 1/4" / 133	3 7/8" / 98	4	1/2"	9/16" / 14	1/2" / 13
Table F	5 1/2" / 140	4 1/8" / 105	4	5/8"	11/16" / 17	1/2" / 13
Table H	5 1/2" / 140	4 1/8" / 105	4	5/8"	11/16" / 17	11/16" / 17
Table J	5 1/2" / 140	4 1/8" / 105	4	5/8"	11/16" / 17	7/8" / 22
Table K	6" / 152	4 1/2" / 114	4	3/4"	7/8" / 22	1" / 25
NOMINAL BORE 50	FLANGE DIAMETER	PCD	BOLTS	BOLTSIZE	HOLE SIZE	THICKNESS
Table D	6" / 152	4 1/2" / 114	4	5/8"	11/16" / 17	9/16" / 14
Table E	6" / 152	4 1/2" / 114	4	5/8"	11/16" / 17	9/16" / 14
Table F	6 1/2" / 165	5" / 127	4	5/8"	11/16" / 17	5/8" / 16
Table H	6 1/2" / 165	5" / 127	4	5/8"	11/16" / 17	3/4" / 19
Table J	6 1/2" / 165	5" / 127	4	3/4"	7/8" / 22	1" / 25
Table K	6 1/2" / 165	5" / 127	8	5/8"	11/16" / 17	1" / 25
NOMINAL BORE 65	FLANGE DIAMETER	PCD	BOLTS	BOLTSIZE	HOLE SIZE	THICKNESS
Table D	6 1/2" / 165	5" / 127	4	5/8"	11/16" / 17	9/16" / 14
Table E	6 1/2" / 165	5" / 127	4	5/8"	11/16" / 17	9/16" / 14
Table F	7 1/4" / 184	5 3/4" / 146	8	5/8"	11/16" / 17	5/8" / 16
Table H	7 1/4" / 184	5 3/4" / 146	8	5/8"	11/16" / 17	3/4" / 19
Table J	7 1/4" / 184	5 3/4" / 146	8	3/4"	7/8" / 22	1" / 25
Table K	7 1/4" / 184	5 3/4" / 146	8	3/4"	7/8" / 22	1 1/8" / 29
NOMINAL BORE 80	FLANGE DIAMETER	PCD	BOLTS	BOLTSIZE	HOLE SIZE	THICKNESS
Table D	8 1/2" / 216	7" / 178	4	5/8"	11/16" / 17	11/16" / 17
Table E	8 1/2" / 216	7" / 178	8	5/8"	11/16" / 17	11/16" / 17
Table F	9" / 229	7 1/2" / 191	8	5/8"	11/16" / 17	3/4" / 19
Table H	9" / 229	7 1/2" / 191	8	5/8"	11/16" / 17	1" / 25
Table J	9" / 229	7 1/2" / 191	8	3/4"	7/8" / 22	1 3/8" / 35
Table K	9 1/2" / 241	7 3/4" / 197	8	7/8"	1" / 25	1 3/8" / 35
NOMINAL BORE 100	FLANGE DIAMETER	PCD	BOLTS	BOLTSIZE	HOLE SIZE	THICKNESS
Table D	8 1/2" / 216	7" / 178	4	5/8"	11/16" / 17	11/16" / 17
Table E	8 1/2" / 216	7" / 178	8	5/8"	11/16" / 17	11/16" / 17
Table F	9" / 229	7 1/2" / 191	8	5/8"	11/16" / 17	3/4" / 19
Table H	9" / 229	7 1/2" / 191	8	5/8"	11/16" / 17	1" / 25
Table J	9" / 229	7 1/2" / 191	8	3/4"	7/8" / 22	1 3/8" / 35
Table K	9 1/2" / 241	7 3/4" / 197	8	7/8"	1" / 25	1 3/8" / 35

FAQ

1. who are we?
We are based in Hebei, China, start from 2001,sell to South Asia(7.69%),Southern Europe(7.69%),Northern Europe(7.69%),Central America(7.69%),Western Europe(7.69%),Eastern Asia(7.69%),Mid East(7.69%),Oceania(7.69%),Africa(7.69%),Southeast Asia(7.69%),Eastern Europe(7.69%),South America(7.69%),North America(7.69%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
flange,elbow,pipe fittings

4. why should you buy from us not from other suppliers?
null

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD,EUR,JPY,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Cash;
Language Spoken:English,Chinese,Russian

Contact:

Sales Manager: Annie

HEBEI XINFENG HIGH-PRESSURE FLANGE AND PIPE FITTING CO.,LTD.

Add.: Mencun County,Cangzhou City,Hebei province,China 061400

Mobile:86 18031772012 (wechat, whatsapp)

Tel: 86-317-6016612

Email: info3@hbxfgj.com

Skype: annie1989723

QQ:532326446

Tag:

304 316 FLANGE BS4504 PN6,

CT20 16MN FLANGE BS4504 PN6,

BS4504 PN10 PN100 Flanges

Contact Details

Hebei Xinfeng High-pressure Flange and Pipe Fitting Co., Ltd.

Contact Person: Miss. Mandy Liu

Tel: 0086 18903173335

Fax: 86-0317-6853077-6723871

Other Products

BS 4504 PN25 Carbon Steel Weld Neck Flange for Industrial Piping Systems

Size: DN15-DN2000, DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN2000

Flange Type: WN,SO,PL,BL,SW,LF/SE,TH

Pressure: PN6, PN10, PN16, PN25, PN40, PN64, PN100,PN160

Material: Carbon Steel, S235JR, RST37-2, A105, Tainless Steel, ASTM A182, F304/ 304L, F316/ 316L, 316Ti, 321

BS 4504 Carbon Steel Blind Flanges For Pn2.5/6/10/16/25/40

Process: Forged

Material: Carbon Steel, S235JR, RST37-2, A105, Tainless Steel, ASTM A182, F304/ 304L, F316/ 316L, 316Ti, 321

Connection Type: Welding Neck, Slip On, Blind, Socket Welding, Threaded

Size: DN15-DN2000, DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN2000

FLANGE BS 4504 Welding Neck Slip On Carbon Steel Flange

Application: Petroleum, Chemical, Power, Gas, Metallurgy, Shipbuilding, Construction, Etc.

Material: Carbon Steel, S235JR, RST37-2, A105, Tainless Steel, ASTM A182, F304/ 304L, F316/ 316L, 316Ti, 321

Flange Type: WN,SO,PL,BL,SW,LF/SE,TH

Certificate: ISO, CE, API, BV, Etc.

BS 4504 Carbon Forged Steel Slip On Flange manufacturers

Sealing Surface: RF,FF. Black Paint, Yellow Paint,transparent Paint, Cold And Hot Dip Galvanize

Size: DN15-DN2000, DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN2000

Certificate: ISO, CE, API, BV, Etc.

Process: Forged

PN10 Carbon Steel BS 4504 Slip On Welding Neck Flanges

Size: DN15-DN2000, DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN2000

Certificate: ISO, CE, API, BV, Etc.

Application: Petroleum, Chemical, Power, Gas, Metallurgy, Shipbuilding, Construction, Etc.

Pressure: PN6, PN10, PN16, PN25, PN40, PN64, PN100,PN160

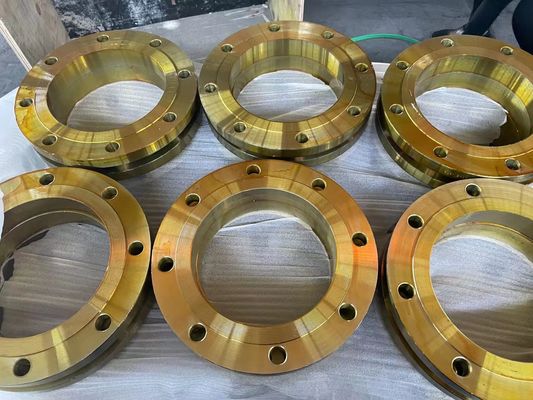

BS10 TABLE D E F H Forged FLANGE BS 4504 PN6 PN10 PN16 PN25 PN40 PN63 PN100 PN160

BS10 TABLE D E F H Forged FLANGE BS 4504 PN6 PN10 PN16 PN25 PN40 PN63 PN100 PN160

BS10 TABLE D E F H Forged FLANGE BS 4504 PN6 PN10 PN16 PN25 PN40 PN63 PN100 PN160

TABLE H Forged FLANGE BS 4504

FLANGE BS 4504 PN6 PN10

BS10 TABLE D FLANGE PN160

BS 10 Flange Dimensions

BS 10 2Table D Flange Dimensions

BS 10 Table E Flange Dimensions

BS 10 Table F Flange Dimensions

BS 10 Table H Flange Dimensions

BS 10 Flanges Dimensions in mm, BS 10 Flanges Sizes

NOMINAL BORE

15

FLANGE DIAMETER in mm

PCD

BOLTS

BOLTSIZE

HOLE SIZE

THICKNESS

NOMINAL BORE

20

FLANGE DIAMETER in mm

PCD

BOLTS

BOLTSIZE

HOLE SIZE

THICKNESS

NOMINAL BORE

25

FLANGE DIAMETER

PCD

BOLTS

BOLTSIZE

HOLE SIZE

THICKNESS

NOMINAL BORE

32

FLANGE DIAMETER

PCD

BOLTS

BOLTSIZE

HOLE SIZE

THICKNESS

NOMINAL BORE

40

FLANGE DIAMETER

PCD

BOLTS

BOLTSIZE

HOLE SIZE

THICKNESS

NOMINAL BORE

50

FLANGE DIAMETER

PCD

BOLTS

BOLTSIZE

HOLE SIZE

THICKNESS

NOMINAL BORE

65

FLANGE DIAMETER

PCD

BOLTS

BOLTSIZE

HOLE SIZE

THICKNESS

NOMINAL BORE

80

FLANGE DIAMETER

PCD

BOLTS

BOLTSIZE

HOLE SIZE

THICKNESS

NOMINAL BORE

100

FLANGE DIAMETER

PCD
