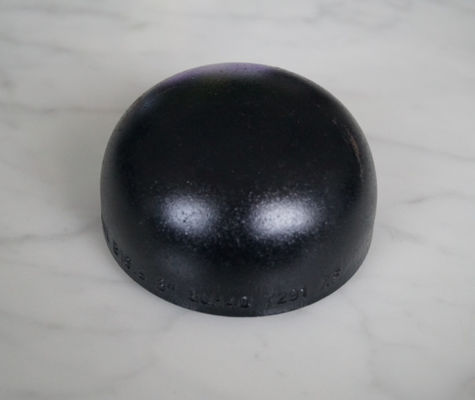

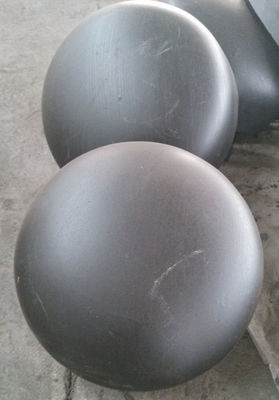

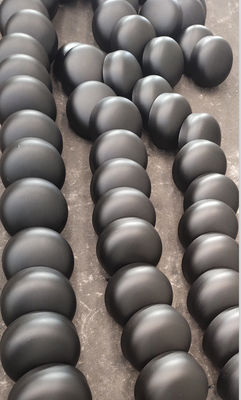

CS SS 304L 316L ASTM A234 WPB 2 Inch Steel Pipe Cap SCH40 SCH80 XS SCH160

CARBON STEEL ANSI B16.9 ASTM A234 WPB CAP FOND SCH40 SCH80 XS SCH160

What is ASME B16.9 Cap?

ASME B16.9 Cap act as defensive devices and are planned to secure ANSI B16.9 cap of different shapes. The main reason for utilizing ASME B16.9 Cap is to waterproof the associations. They are too utilized to shut the closes of water-powered or pneumatic channels and tubes. SS End Caps are utilized within the plumbing device of residential, commercial and mechanical water supply lines, machinery and preparing hardware, etc. They are moreover fitted on water pump lines with the sole reason for expelling air blocks.

ASME B16.9 end cap dimensions

Code FOSTD - FOXS	Nominal Diameter		Wall Th. S mm		Height H mm	Theoretical Weight kg
	Poll.	D mm	STD	XS		STD	XS
5	1/2	21.34	2.77	3.73	25.4	0.03	-
7	3/4	26.67	2.87	3.91	25.4	0.06	0.08
10	1	33.40	3.38	4.55	38.1	0.10	0.14
12	1'' 1/4	42.16	3.56	4.85	38.1	0.14	0.18
15	1'' 1/2	48.26	3.68	5.08	38.1	0.16	0.23
20	2	60.32	3.91	5.54	38.1	0.27	0.32
25	2'' 1/2	73.02	5.16	7.01	38.1	0.41	0.45
30	3	88.90	5.49	7.62	50.8	0.65	0.82
40	4	114.30	6.02	8.56	63.5	1.15	1.54
50	5	141.30	6.55	9.52	76.2	1.90	2.59
60	6	168.27	7.11	10.97	88.9	2.92	4.10
80	8	219.07	8.18	12.70	101.6	5.07	7.3
100	10	273	9.27	12.70	127	9.1	12.0
120	12	323.9	9.52	12.70	152	13.6	17.0
140	14	355.6	9.52	12.70	165	14.42	19.8
160	16	406.4	9.52	12.70	178	18.86	25.89
180	18	457.2	9.52	12.70	203	27.65	36.52
200	20	508	9.52	12.70	229	35.60	46.98
240	24	609.6	9.52	12.70	267	46	64.60
