Product Details:
|
| Location: | Hebei Province, China | Material: | P245GH/P250GH/P280GH/P265GH/S235JRG2/ST37-2 |
|---|---|---|---|
| Certificate: | ISO,PED | Type: | WN,SO,THREADED,BLIND |
| Origin: | China | Surface: | RF,FF,RTJ |
| Color: | Black,Yellow, Rust Proof Oil | Usage: | GAS Or Petrolem |
| Payment: | 30% Advance Payment,against BL Copy | Standard: | EN1092-1 DIN |
| Export: | Since 1988 | Material2: | A182 F304/304L,316/316L |
| Using: | Pipe Connection | ||
| High Light: | SO Blind PN16 DN200 Flange,BS4504 BS10 flange dn200 pn16,SO Forged Carbon Steel Flange |
||

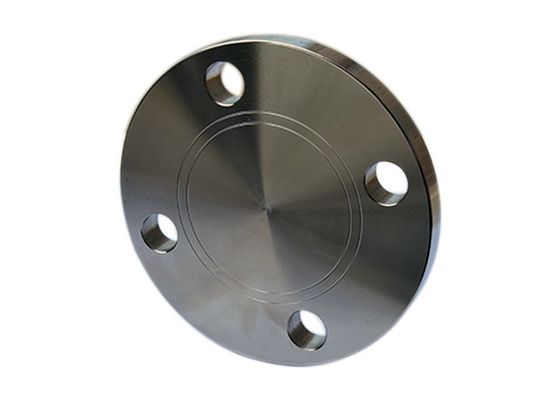

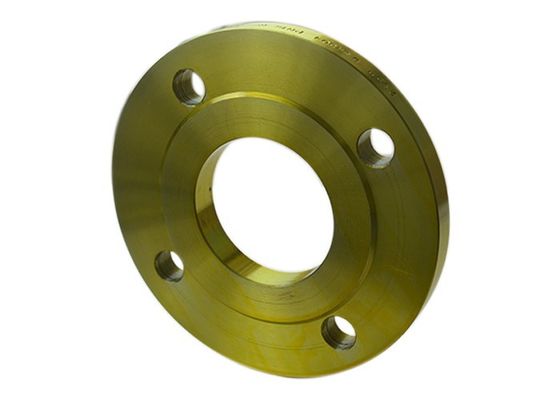

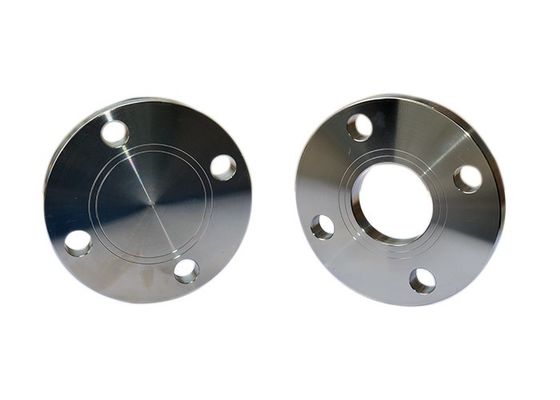

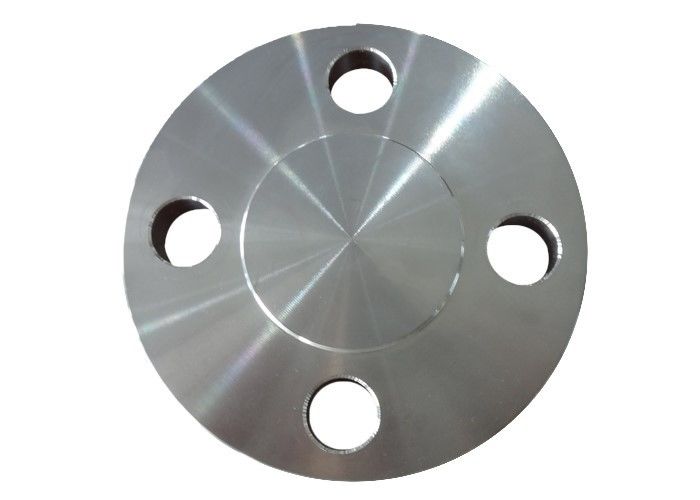

So Blind Flange BS4504 and BS10 PN16 DN200 Forged Carbon Steel Flange
FORGED FLANGE
1) ANSI B16.5, ASME B16.5/B16.47 FLANGE
Size range: 1/2" to 80" DN15 to DN2000
Design: welding neck, slip on, blind, socket welding, threaded, lap-joint
Pressure: 150#, 300#, 600#,900#,1500#, 2500#
Wall thickness for welding neck flange: STD, SCH40, SCH80, SCH160. SCHXXS
Material: Carbon steel A105, Stainless steel 304/304L, 316/316L
Coating: black paint, yellow transparent paint, cold and hot dip galvanize
2) EN1092-1 FLANGE
Size range: DN15 to DN2000
Design: type01 plate flange, type02 loose flange, type05 blind flange, type11 welding necking type12 slip on flange, type 13 threaded flange
Pressure: PN6, PN10, PN16, PN25, PN40, PN64, PN100
Material: Carbon steel C22.8, S235, S235JR, P235GH, P245GH,P250GH,P280GH,P265GH.Stainless steel: 304/304L, 316/316L
Coating: black paint, yellow transparent paint, cold and hot dip galvanize
3) DIN FLANGE
Size range: DN15 to DN2000
Design: slip on flange DIN2573,2576,2502,2503, 2543,2545
welding neck falnge DIN2631, 2632,2633,2634,2635
blind flange DIN 2527 PN6, PN10, PN16, PN25, PN40
threaded falnge DIN2565,2566,2567,2567
loose flange DIN 2641,2642,2656,2673
Material: Carbon steel ST37.2/S235JR,C22.8. Stainless steel 1.4301, 1.4404
4) GOST FLANGE
Size range: DN15 to DN 2000
Design : plate falnge 12820-80, welding neck flange 12821-80
Pressure: PN6, PN10, PN16, PN25, PN40
Material: Carbon steel CT-20. Stainless steel 304/304L, 316/316L
Coating: rust-proof oil, cold and hot galvanize
5) JIS B2220 FALNGE
Size ragne : 15A to 2000A
Design: SOP, BIND, SOH,
Puressure: 1K, 2K, 5K, 10K, 16K, 20K, 30K, 40K
Material: Carbon steel SS400, Stainless steel SUS304, SUS316
Coating : rust-proof oil, cold and hot galvanize
ALL PRODUCT DETAIL
| Iterm | Welding Neck Flange,Plate Flange,Slip on flange,Blind Flange,Threaded Flange,Socket Welding Flange | |
| Standard | ANSI | ANSI B16.5 ASME B16.47 series A/B |
| DIN | DIN | |
| GOST | GOST 12820-80/GOST 12821-80/GOST 12822-80/ | |
| EN | EN1092-1:2002 | |
| JIS | JIS B2220-2004, KS D3576, KS B6216 KS B1511-2007 JIS B2261; JIS B8210 | |
| BS | BS4504 BS10 Table D/E | |
| Material | ANSI | CS A105/SA 105NSS 304/304L, 316/316L Alloy Steel: WHPY45/52/65/80 |
| DIN | CS RST37.2;S235JR SS 304/304L,316/316L | |
| GOST | CS CT20;16MN;SS 304/304L,316/316L | |
| EN | CS RST37.2;S235JR;C22.8SS 304/304L,316/316L | |
| JIS | SS400,SF440 SS 304/304L, 316/316L | |
| BS | CSRST37.2;S235JR;C22.8;Q235SS 304/304L,316/316L | |
| Pressure | ANSI | Class 150, 300, 600, 900, 1500 2500lbs |
| DIN | PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
| GOST | PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
| EN | PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
| JIS | 1K,2K,5K,10K,16K,20K,30K,40K | |
| BS | PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
| Size | ANSI | 1/2” – 60” |
| DIN | DN15-DN2000 | |
| GOST | DN15-DN1600 | |
| EN | DN15-DN2000 | |
| JIS | 15A-1500A | |
| BS | DN15-DN2000 | |
| Coating | varnish, yellow paint, anti-rust oil, galvanizing etc | |
| Usage | Used for the connection of all kinds of pipeline. | |
| Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry,and general pipes connecting projects etc. | ||
| FLANGES DIN / EN | |||
| Type | Norm | Nominal Pressure | Dimension |
| Welding Neck Flange | EN1092-1 Typ11 | PN6-PN400 | DN10-DN2000 |
| DIN 2631 - DIN 2638 | |||
| Blind Flanges | EN1092-1 Typ05 | PN6-PN400 | DN10-DN2000 |
| DIN 2527 | |||
| Flat Flanges for welding | DIN 2573 | PN6-PN40 | DN10-DN2000 |
| DIN 2576 | |||
| EN1092-1 Typ01 | |||
| Loose Flange + Weld-on Collars | DIN2642 | PN10-40 | DN10-DN2000 |
| EN1092-1 Typ02 | |||
| EN1092-1 Typ32 | |||
| Loose Flange + Weld Neck Collars | DIN 2673 | PN10-PN40 | DN15-DN2000 |
| EN1092-1 Typ04 | |||
| EN1092-1 Typ34 | |||
| Threaded Flanges | EN1092-1 TYP13 | PN10-PN40 | ½“-6“ |
Materials: P250GH/C22.8, P265GH, 16Mo3, 13CrMo4-5, 10CrMo9-10, P355N, P355QH1, 1.4301, 1.4307, 1.4404, 1.4541, 1.4571, 1.4462,
a) How can I get more details about your products?
You can send an email to our email address. We will provide catalogue and pictures of our products for your reference.We can also supply pipe fittings, bolt and nut, gaskets etc. We aim to be your piping system solution provider.
b) How can I get some samples?
If you need, we will offer you samples for free, but new customers are expected to pay express charge.
c) Do you provide customized parts?
Yes, you can give us drawings and we will manufacture accordingly.
