Carbon Steel FLANGE BS 4504 PN6 To PN40 BS10 T/E T/D 1/2' To 48" WN SO PL BL

Carbon Steel FLANGE BS 4504 PN6 To PN40 BS10 T/E T/D 1/2' To 48" WN SO PL BL

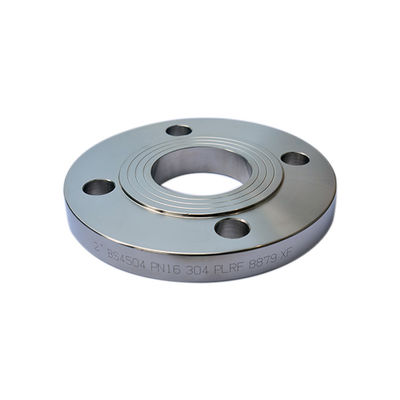

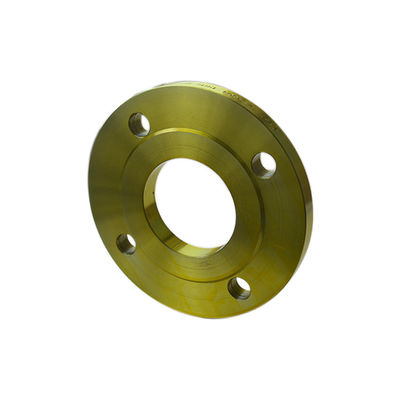

Carbon Steel FLANGE BS 4504 PN6 To PN40 BS10 T/E T/D 1/2' To 48" WN SO PL BL Carbon Steel FLANGE BS 4504 PN6 To PN40 BS10 T/E T/D 1/2' To 48" WN SO PL BL

Large Image :  Carbon Steel FLANGE BS 4504 PN6 To PN40 BS10 T/E T/D 1/2' To 48" WN SO PL BL

Product Details:
Place of Origin: CN
Brand Name: XF
Certification: ISO9001.PED
Model Number: XF1258
Payment & Shipping Terms:
Minimum Order Quantity: 5TONS
Price: USD1200/TON
Packaging Details: PLYWOODEN CASES / PALLET
Delivery Time: 30DAYS AFTER GET THE ADVATNAGE PAYMENT
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1500TONS/MONTH

Carbon Steel FLANGE BS 4504 PN6 To PN40 BS10 T/E T/D 1/2' To 48" WN SO PL BL

Description
SIZE: 1/2"-48" PRESSURE: T/D.T/E.PN6.PN10.PN16.PN25.PN40
MATERIAL: ST37.2/Q235/S235JR/CT20/16MN TYPE: WN,PLATE,BLIND,SO,THR
PAYMENT METHOD: T/T , L/C , D/P 30% ADVATANGE PAYMENT 70% SEE B/L COPY PORT OF LOADING: XINGANG,QINGDAO,SHANGHAI OR ACCORDING TO YOUR REQUIRMENT
High Light:

Carbon Steel FLANGE BS 4504 PN6

,

FLANGE BS 4504 PN6 WN

,

BS10 T/E 48" BL FLANGE

CARBON STEEL FLANGE BS4504 PN6-PN40 & BS10 T/E,T/D 1/2'-48" WN/SO/PL/BL



Specification:

STANDARD:BS4504 & BS10

SIZE:DN10-DN2000

PRESSURE:T/D.T/E ,PN16,PN10,PN6,PN25,PN40,PN63

TYPE:PLATE, WELDING NECK,SLIP ON , BLIND ,THREADED FLANGE

MATERAIL:16MN,20#.Q235.S235JR,ST37.2

COATING:RUST-PROOF OIL,YELLOW PAINT

MIN ORDER :5TONS

PACKAGE:PLYWOODEN CASE PACKAGE,WOOD PALLET PACKAGE

PAYMENT:L/C,T/T

DELIVERY TIME:15DAYS AFTER THE PAYMENT AND YOUR REQUIRMENTS



We are a leading manufacturer in flanges and pipefittings in China and our products have been exported to customers all over the world ,such as korea,russia,coutries and regions in middle east,southeast Asia,south America and west Europe.

the flanges and the pipefittings collection in th emost standard and material.
We think the quality is the soul of an enterprise,so we put the quality as the first consideration.and now if your quantity can reach 1-2 20 foot containers we can try our best to give you our some discounts ,hope we can get a chance to cooeprate with you and your esteemed company .

further information will be forwarded to you to promote cooperation .



Carbon Steel FLANGE BS 4504 PN6 To PN40 BS10 T/E T/D 1/2' To 48" WN SO PL BL 0
尺寸   BL/PL DIN/EN1092-1 SO ANSI B16.5 SO DIN/EN1092-1 WN ANSI B16.5 WN LP PE
1/2" 15 1220 2000 1940 2070 2000 1250 1300
3/4" 20 1220 2000 1940 2070 2000 1250 1300
1" 25 1220 1800 1740 1870 1800 1250 1300
1-1/4" 32 1220 1540 1480 1610 1540 1250 1300
1-1/2" 40 1220 1540 1480 1610 1540 1250 1300
2" 50 1220 1450 1390 1520 1450 1250 1300
2-1/2" 65 1160 1300 1240 1370 1300 1190 1240
3" 80 1160 1300 1240 1370 1300 1190 1240
4" 100 1160 1300 1240 1370 1300 1190 1240
5" 125 1160 1300 1240 1370 1300 1190 1240
6" 150 1160 1300 1240 1370 1300 1190 1240
8" 200 1160 1300 1240 1370 1300 1190 1240
10" 250 1160 1300 1240 1370 1300 1190 1240
12" 300 1160 1300 1240 1370 1300 1190 1240
14" 350 1210 1370 1280 1450 1370 1240 1290
16" 400 1210 1370 1280 1450 1370 1240 1290
18" 450 1210 1370 1280 1450 1370 1240 1290
20" 500 1210 1370 1280 1450 1370 1240 1290
24" 600 1270 1370 1280 1450 1370 1300 1350
26" 650 1270 1470 1380 1630 1470 1300 1350
28" 700 1270 1470 1380 1630 1470 1300 1350
30" 750 1270 1470 1380 1630 1470 1300 1350
32" 800 1270 1470 1380 1630 1470 1300 1350
36" 900 1270 1540 1450 1630 1470 1300 1350
40" 1000 1270 1540 1450 1630 1470 1300 1350
48" 1200 1270 1770 1680 1770 1610 1300 1350
56" 1400 1350 1770 1680 1870 1710 1380 1430
64" 1600 1350 1770 1680 2070 1910 1380 1430
72" 1800 1620 2250 2160 2230 2070 1650 1700
80" 2000 1620 2250 2160 2230 2270 1650 1700
