Product Details:
|
| FLANGE SIZE: | 1/2"-48" | THE PRESSURE: | T/D.T/E.PN6.PN10.PN16.PN25.PN40 |
|---|---|---|---|
| PAYMENT METHOD: | T/T , L/C , D/P 30% ADVATANGE PAYMENT 70% SEE B/L COPY | OTHER: | WE ALSO CAN SUPPLY STAINLESS STEEL FLANGE |
| MATERIAL: | ST37.2.C22.8.CT20.S235JR.Q235..... | ||
| High Light: | BS4504 PN6 CS Flange T/E,PN40 Flange T/E T/D 1/2 Inch,48 Inch WN SO PL Flange |
||

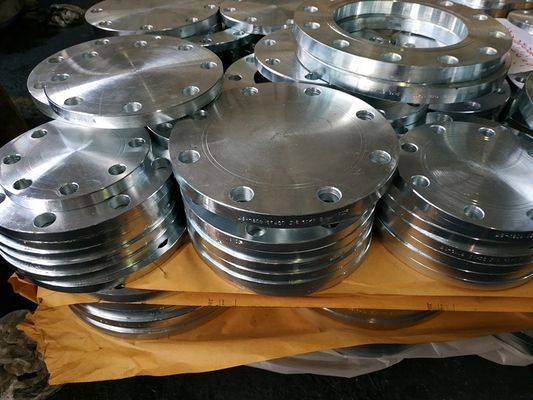

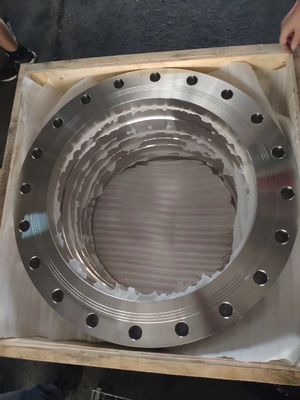

CS BS4504 PN6-PN40 & BS10 T/E,T/D 1/2'-48" WN/SO/PL/BL FLANGE
Specification:
STANDARD:BS4504 & BS10
SIZE:DN10-DN2000
PRESSURE:T/D.T/E ,PN16,PN10,PN6,PN25,PN40,PN63
TYPE:PLATE, WELDING NECK,SLIP ON , BLIND ,THREADED FLANGE
MATERAIL:16MN,20#.Q235.S235JR,ST37.2

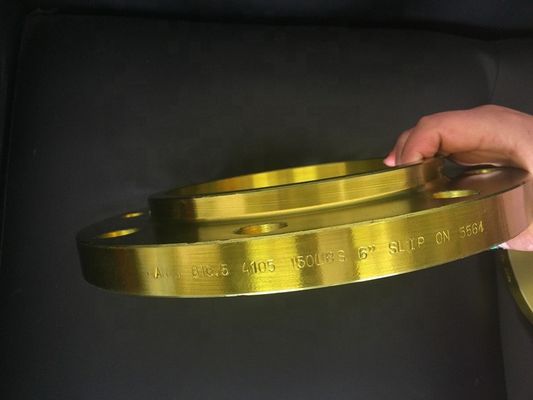

COATING:RUST-PROOF OIL,YELLOW PAINT
MIN ORDER :5TONS
PACKAGE:PLYWOODEN CASE PACKAGE,WOOD PALLET PACKAGE
PAYMENT:L/C,T/T
DELIVERY TIME:15DAYS AFTER THE PAYMENT AND YOUR REQUIRMENTS
We are a leading manufacturer in flanges and pipefittings in China and our products have been exported to customers all over the world ,such as korea,russia,coutries and regions in middle east,southeast Asia,south America and west Europe.
the flanges and the pipefittings collection in th emost standard and material.
We think the quality is the soul of an enterprise,so we put the quality as the first consideration.and now if your quantity can reach 1-2 20 foot containers we can try our best to give you our some discounts ,hope we can get a chance to cooeprate with you and your esteemed company .
further information will be forwarded to you to promote cooperation .
| 尺寸 | BL/PL | DIN/EN1092-1 SO | ANSI B16.5 SO | DIN/EN1092-1 WN | ANSI B16.5 WN | LP | PE | |
| 1/2" | 15 | 1220 | 2000 | 1940 | 2070 | 2000 | 1250 | 1300 |
| 3/4" | 20 | 1220 | 2000 | 1940 | 2070 | 2000 | 1250 | 1300 |
| 1" | 25 | 1220 | 1800 | 1740 | 1870 | 1800 | 1250 | 1300 |
| 1-1/4" | 32 | 1220 | 1540 | 1480 | 1610 | 1540 | 1250 | 1300 |
| 1-1/2" | 40 | 1220 | 1540 | 1480 | 1610 | 1540 | 1250 | 1300 |
| 2" | 50 | 1220 | 1450 | 1390 | 1520 | 1450 | 1250 | 1300 |
| 2-1/2" | 65 | 1160 | 1300 | 1240 | 1370 | 1300 | 1190 | 1240 |
| 3" | 80 | 1160 | 1300 | 1240 | 1370 | 1300 | 1190 | 1240 |
| 4" | 100 | 1160 | 1300 | 1240 | 1370 | 1300 | 1190 | 1240 |
| 5" | 125 | 1160 | 1300 | 1240 | 1370 | 1300 | 1190 | 1240 |
| 6" | 150 | 1160 | 1300 | 1240 | 1370 | 1300 | 1190 | 1240 |
| 8" | 200 | 1160 | 1300 | 1240 | 1370 | 1300 | 1190 | 1240 |
| 10" | 250 | 1160 | 1300 | 1240 | 1370 | 1300 | 1190 | 1240 |
| 12" | 300 | 1160 | 1300 | 1240 | 1370 | 1300 | 1190 | 1240 |
|
