Product Details:
|
| Place Of Origin: | China | Port: | TianJin |
|---|---|---|---|
| Pressure: | PN6-PN250 | Flange Type: | Plate,Loose Plate,Blind,Welding Neck,Slip On,Threaded,Collar |
| Coating: | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold And Hot Dip Galvanized | Surface: | Flat Face (TYPEA), Raised Face(TYPE B1 And B2) , Tongue (TYPE C) Groove A Continuous Line Above The Grrove(TYPE D), Spigot(TYPE E) Recess(TYPE F) O-ring Spigot(TYPE G) O-ring Groove(TYPE H) |
| High Light: | pn6 carbon steel blind flange,din en 1092-1 carbon steel blind flange,oil paint blind flange carbon steel |
||
PN6 Carbon steel FLANGE DIN EN 1092-1 BLIND Oil Black Paint FLANGE

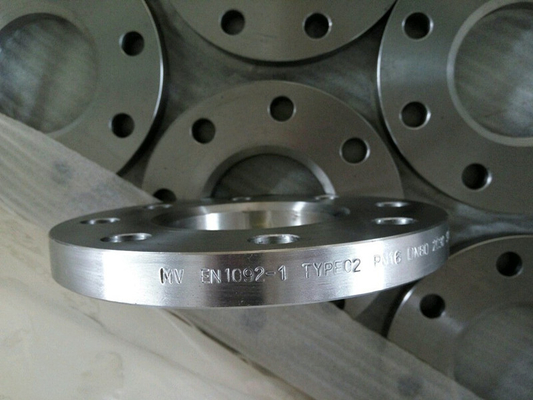

Standard:EN 1092-1
Flange type:01PLATE;02.04LOOSE PLATE;05BLIND;11WELDING NECK;12SLIP ON;13THREADED;32PLATE COLLAR;34WELD-NECK COLLAR;
Size range:DN15-DN3000
Pressure:PN6;PN10;PN16;PN25;PN40;PN63;PN100;PN160;PN250
Material:Carbon steel P235GH;P245GH;P250GH;P265GH;P280GH
Stainless steel ASTM A 182 F304/304L;F316/316L;F321;F51
| Material |
Carbon Steel: ASTM A105. ASTM A350 LF1. LF2, CL1/CL2, A234, S235JRG2, P245GH P250GH, P280GHM 16MN, 20MN ,20#,etc.
Low Temperature Carbon Steel: ASTM SA350 LF2,LF3...
High Strength Steel: ASTM SA694 F42/46/52/56/60/65
Stainless steel: SUS F304 , F316 , F316L , F304L(JIS G 3214) , 329J4L ...
Duplex stainless steel:ASTM A182 F51/F53/F55/F60 ...
Nicke alloys:Nickel 200, Monel 400, Inconel 600/625, Incoloy 825/800... |
| Standard | ANSI/ASME/ASA B16.5 FLANGES, ANSI B16.47 A/B FLANGES |
| JIS B 2220 FLANGES, KS B 1503, DIN SERIES, UNI, EN1092-1, BS4504 | |
| BS 10 TABLE D/E/F FLANGES, SANS 1123 FLANGES/SABS 1123 | |
| GOST12820-80/GOST12821-80, NFE29203/NS/AS/ISO/AWWA FLANGES | |
| Type | Plate/Blind/Slip-On/Weld-Neck/Blade/Threaded/Socket-Weld/Lap-Jiont/Figure-8 Blanks/Orifice |
| Back- up Ring /Red Blind/ Paddle Blind | |
| Client's Flange/Special Flange | |
| Pressure | 150LBS, 300,600,900,1500,2500 ANSI, ASA B16.5 |
| PN6 PN10 PN16 PN25 PN40 PN64-DIN/UNI | |
| PN6 PN10 PN16 PN25 PN40 PN63-EN1092-1/BS4504 | |
| PN0.6Pa, PN1.0Pa, PN1.6. PN2.5,PN4.0-GOST12820-80 | |
| PN0.6Pa, PN1.0Pa, PN1.6. PN2.5,PN4.0, PN6.3. -GOST12821-80 | |
| 600kPa, 1000.1600.2500.4000.-SANS 1123 | |
| 5K, 10K, 16K, 20K, 30K, 40K-JIS B2220/KS B1503 | |
| TABLE D, TABLE E ,TABLE F-BS 10, AS2129 | |
| CLASS D, CLASS E, CALSS F, AWWA C207 | |
| Surface | Oil/ ARust Preventing ntirust Oil |
| Black/Yellow/Golden Coating (Water-Based Paint) Varnish Paint Coating Varnish Oil Coating | |
| Electro Galvanizing Coating (Cold Galvanizing, Color Golden or silvery white) Hot Dip Galvanizing | |
| Technique | Forging |
| Heat Treatment: Annealing Quenching and tempering Precipitation/Selective/Case Harding | |
| Application | Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry |
| Inspection | Factory In-House Check or The Third Party Inspection |
