Product Details:
|
| Face Type: | RF, FF, RTJ | Type:: | Welding Flange |
|---|---|---|---|
| Standard: | ANSI, DIN, JIS, GOST, En1092 | Pressure: | PN6-PN40, PN6, PN10, PN16, PN25, PN40, PN64, PN100,PN160 |
| Processing Methods: | Forged Flange, Cast Flange | Size: | DN15-DN2000, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450 |
| Material: | CS, RST37.2, S235JR, P245GH, P250GH, C22.8 | Coating: | Black Paint, Anti-rust Paint, Yellow Transparent |
| High Light: | c22.8 pipe plate flange,dn250 pipe plate flange,paint coating forged steel flanges |
||

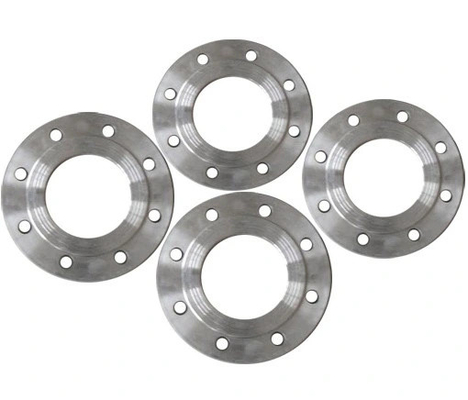

FLANGE DIN EN 1092-1 is a welding flange with an EN 1092-1 standard. This flange is pressure-rated at PN6-PN40, PN6, PN10, PN16, PN25, PN40, PN64, PN100, PN160 and is available in sizes DN15-DN2000, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450. It is available in CS, RST37.2, S235JR, P245GH, P250GH, C22.8 materials with black paint, anti-rust paint, and yellow transparent coating. Type02 loose flange is also available.
| Parameter | Value |
|---|---|
| Product | Flange DIN EN 1092-1 |
| Size | DN15-DN2000, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450 |
| Standard | ANSI, DIN, JIS, GOST, En1092 |
| Type | Welding Flange |
| Processing methods | Forged Flange, Cast Flange |
| Material | CS, RST37.2, S235JR, P245GH, P250GH, C22.8 |
| Face Type | RF, FF, RTJ |
| Pressure | PN6-PN40, PN6, PN10, PN16, PN25, PN40, PN64, PN100, PN160 |
| Coating | Black Paint, Anti-rust Paint, Yellow Transparent |
| Keywords | EN1092-1 PN16 TYPE01A FLAT FLANGE, FLANGE_DIN_EN_1092-1, EN1092-1 PN16 TYPE01B FLAT FLANGE |
FLANGE DIN EN 1092-1 is a leading brand of high-quality flanges, produced by XF. It is certified by PED and ISO CERTIFICATE, with a minimum order quantity of 5TON and a price that is negotiable. This flange is available in a variety of sizes and face types, ranging from DN15-DN2000, and is available in RF, FF, and RTJ. Forged Flange and Cast Flange are two of the processing methods available. Additionally, coating options include Black Paint, Anti-rust Paint, and Yellow Transparent. This flange is most commonly available in Pressure PN6-PN40, PN6, PN10, PN16, PN25, PN40, PN64, PN100, PN160, with a DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450. This flange is supplied in a standard export seaworthy package, and can be delivered in 15-45 DAYS. Payment terms include L/C, D/A, D/P, T/T, and Supply Ability is 1000-5000 TONS/MONTH. Specialty items include EN1092-1 PN16 TYPE02 LOOSE FLANGE, Carbon Steel Flange, and type01 plate flange.
Packaging and Shipping for FLANGE DIN EN 1092-1:
The FLANGE DIN EN 1092-1 will be packaged in corrugated carton boxes, each box containing up to 25 pieces. The boxes will then be palletised, shrink-wrapped and secured with strapping for protection and stability during transit.
