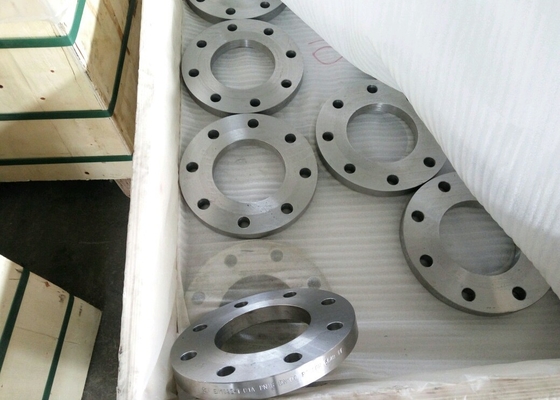

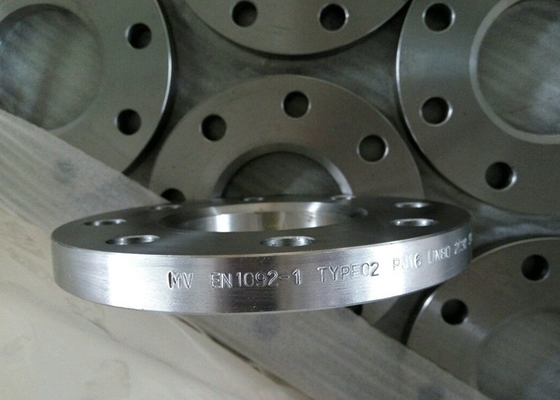

EN 1092-1 TYPE 02 LOOSE FLANGE CARBON STEEL ST37.2 S235JR PN16 ANTI RUST OIL

EN 1092-1 TYPE 02 LOOSE FLANGE CARBON STEEL ST37.2 S235JR PN16 ANTI RUST OIL
EN 1092-1 TYPE 02 LOOSE FLANGE CARBON STEEL ST37.2 S235JR PN16 ANTI RUST OIL EN 1092-1 TYPE 02 LOOSE FLANGE CARBON STEEL ST37.2 S235JR PN16 ANTI RUST OIL EN 1092-1 TYPE 02 LOOSE FLANGE CARBON STEEL ST37.2 S235JR PN16 ANTI RUST OIL

Large Image :  EN 1092-1 TYPE 02 LOOSE FLANGE CARBON STEEL ST37.2 S235JR PN16 ANTI RUST OIL

Product Details:
Place of Origin: CHINA
Brand Name: XF
Certification: ISO, CE
Model Number: XF-FLANGE016
Payment & Shipping Terms:
Minimum Order Quantity: 2TONS
Price: USD1160/TON TO USD2270/TON
Packaging Details: PLYWOOD CASES AND PALLETS
Delivery Time: 10-45DAYS
Payment Terms: L/C, D/P, T/T
Supply Ability: 5000TONS/MONTH

EN 1092-1 TYPE 02 LOOSE FLANGE CARBON STEEL ST37.2 S235JR PN16 ANTI RUST OIL

Description
MATERIAL: CARBON STEEL ST37.2, C.S. S235JR, P245GH, SS304/L, SS316/L Flange Type: WN FLANGE, SO FLANGE, BLIND FLANGE, SW FLANGE, PLATE FLANGE, LAP JOINT FLANGE
STANDARD: ANSI B16.5, ANSI B16.47A, ANSI B16.47B, AWWA CLASS D, DIN, EN1092-1 SIZE: 1/2" TO 80", 0.5 INCH TO 80 INCH
SURFACE TREATMENT: BLACK PAINTING, YELLOW PAINTING, GALVANISING, ANTI-RUST OIL SEALING FACE FLANGE: RAISED FACE (RF), FLAT FACE (FF), RING JOINT TYPE(RTJ)
Package: Sea Worthy Plywood Cases/Pallets Price Term: FOB, CIF, CFR
Production Period: Less Than 60tons Within 30days, More Than 60tons 50days Certificate: PED, ISO
Flange Pressure: PN6, PN10, PN16, PN25, PN40, PN63, PN100
High Light:

en 1092-1 type 02 loose flange

,

st37.2 loose flange

,

loose flange pn16

EN1092-1 Type02 Loose Flange Carbon Steel St37.2 S235JR Flange PN16 Flange Anti-Rust Oil



1, This European Standard for a single series of flanges specïfies requirements for circular steel flanges in PN designations PN 2.5 to PN 100 and nominal sizes from DN 10 to DN 4000. This standard specifies the flange types and their facings, dimensions. tolerances. threading. bolt sizes. flange jointing face surface finish. marking. materials. pressure/ temperature ratings and approximate flange masses. This standard does not apply to flanges made from bar stock by turning, or to flanges of types 11, 12 and 13 made from plate material.



2, Normative references This European Standard incorporates by dated or undated reference provisions from other pubIicatons. These normative references are cited at the appropnate places in the text and the pubIicatons are listed hereafter. For dated references, subsequent amendments to or revïsïons of any of these publications appy to this European Standard only when incorporated in t by amendment or revision. For undated references the atest edition of the publication referred to appiies (inciuding amendments).



EN1092-1 Flanges
Material : 1. Stainless Steel ASTM/ASME A/SA182 F304, F304L, F316, F316L, ASTM/ASME A/SA351 CF8, CF3, CF8M,
CF3M, DIN1.4301, DIN1.4306, DIN1.4401, DIN1.4404, DIN1.4308, DIN1.4408, DIN1.4306, DIN1.4409
2. Carbon Steel ASTM/ASME A/SA105 A/SA105N & A/SA216-WCB, DIN1.0402, DIN1.0460, DIN1.0619
Dimension : EN 1092-1
Size : DN10 ~ DN4000
Pressure : PN2.5, PN6, PN10, PN16, PN25, PN40, PN63, PN100, PN160, PN250, PN320, PN400
Type No. : Type 01 Plate Flange (slip on) for Welding, Type 02 Loose Plate Flanges with Weld On Plate Collar or for lapped pipe end, Type 04 Loose Plate Flanges with Weld Neck Collar, Type 05 Blind Flange, Type 11 Weld Neck Flange, Type 12 Hubbed Slip On Flanges for Welding, Type 13 Hubbed Threaded Flanges, Type 21 Integral Flange, Type 32 Weld on Plate Collar, Type 33 Lapped Pipe End, Type 34 Weld neck Collar, Type 35 Welding Neck, Type 36 Pressed collar with long neck, Type 37 Pressed Collar
Face Type : A - Flat Face (FF), B - Raised Face (RF), C - Tongue, D - Groove, E - Spigot, F - Recess, G - O-ring spigot,
H - O’ring groove
Coating : Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanize



SIZE MATERIAL FLANGE TYPE
1/2"-80" Stainless Steel weld neck flange
Slip on Flange
socket weld flange
LAP Joint Flange
Threaded flange
blind flange
CARBON STEEL, STAINLESS STEEL weld neck flange
Slip on Flange
socket weld flange
LAP Joint Flange
Threaded flange
blind flange
Sealing face of flanges RF with serrated finish
FF with 3 waterlines
FF with smooth finis
RTJ (Ring Joint Type)
FF with serrated finish
RF with water lines





EN 1092-1 TYPE 02 LOOSE FLANGE CARBON STEEL ST37.2 S235JR PN16 ANTI RUST OIL 0





types of flanges (typ) up to DIN EN 1092-1

Typ 01: Plate (slip-on) flanges for welding Typ 13: Hubbed threaded flanges
Typ 02: Loose plate flanges with weld-on plate collar Typ 21: Integral flanges
Typ 04: Loose plate flanges with weld-neck collar Typ 32: Weld-on plate collars
Typ 05: Blank (blind) flanges Typ 33: Lapped pipe ends
Typ 11: Weld-neck flanges Typ 34: Weld-neck collars
Typ 12: Hubbed slip-on flanges for welding

D: Outside Diameter
K: Diameter of Bolt Circle
L: Diameter of Bolt Hole
  A: Outside Diameter of Neck
E: Chamfer
F: Collar thickness
  G max: Diameter of Shoulders
R: Corner Radius
N: Neck Diameter
S: Neck Thickness (Preferred value)
DN Mating dimensions A Bore Diameter Flange Thickness E F G max Length Neck
Diameters
R S
D K L Bolting
No Size B1 B2 B3 C1 C2 C3 C4 H1 H2 H3 N1 N2 N3
Flange type
01, 02, 05, 11, 12, 21 11
21*
34
01
12
32
02 04 01
02
04
11
12
13
21 05 02
04
32
34
05 12
13
11
34
11
34
11
34
12
13
21 11
12
13
21
11
34
10 Usar dimensiones PN 40
15
20
25
32
40
50 165 125 18 4 M16 60.3 61.5 65 77 19 18 18 18 5 16 - 28 45 8 74 84 84 5 2.9
65 185 145 18 ** M16 76.1 77.5 81 96 20 18 18 18 6 16 55 32 45 10 92 104 104 6 2.9
80 200 160 18 8 M16 88.9 90.5 94 108 20 20 20 20 6 16 70 34 50 10 105 118 120 6 3.2
100 220 180 18 8 M16 114.3 116 120 134 22 20 20 20 6 18 90 40 52 12 131 140 140 8 3.6
125 250 210 18 8 M16 139.7 141.5 145 162 22 22 22 22 6 18 115 44 55 12 156 168 170 8 4
150 285 240 18 8 M20 168.3 170.5 174 188 24 22 22 22 6 20 140 44 55 12 184 195 190 10 4.5
200 340 295 22 12 M20 219.1 221.5 226 240 26 24 24 24 6 20 190 44 62 16 235 246 246 10 5.9
250 405 355 26 12 M24 273 276.5 281 294 29 26 26 26 8 22 235 46 70 16 292 298 296 12 6.3
300 460 410 26 12 M24 323.9 327.5 333 348 32 28 28 28 8 24 285 46 78 16 344 350 350 12 7.1
350 520 470 26 16 M24 355.6 359.5 365 400 35 30 30 30 8 26 330 57 82 16 390 400 410 12 8
400 580 525 30 16 M27 406.4 411 416 454 38 32 32 32 8 28 380 63 85 16 445 456 458 12 8
450 640 585 30 20 M27 457 462 467 500 42 40 40 40 8 30 425 68 87 16 490 502 516 12 8
500 715 650 33 20 M30 508 513.5 519 556 46 44 44 44 8 32 475 73 90 16 548 559 576 12 8
600 840 770 36 20 M33 610 616.5 622 660 52 54 54 54 8 32 575 83 95 18 652 658 690 12 8.8
700 910 840 36 24 M33 711.1 - - - - 36 42 48 - - 670 83 100 18 755 760 760 12 8.8
800 1025 950 39 24 M36 813 - - - - 38 42 52 - - 770 90 105 20 855 864 862 12 10
900 1125 1050 39 28 M36 914 - - - - 40 44 58 - - 860 94 110 20 955 968 962 12 10
1000 1255 1170 42 28 M39 1016 - - - - 42 46 64 - - 960 100 120 22 1058 1072 1076 16 10
1200 1485 1390 48 32 M45 1219 - - - - 48 52 76 - - 1160 - 130 30 1262 - 1282 16 12.5
1400 1685 1590 48 36 M45 1422 - - - - 52 58 - - - 1346 - 145 30 1465 - 1482 16 14.2
1600 1930 1820 56 40 M52 1626 - - - - 58 64 - - - 1546 - 160 35 1668 - 1696 16 16
1800 2130 2020 56 44 M52 1829 - - - - 62 68 - - - 1746 - 170 35 1870 - 1896 16 17.5
2000 2345 2230 62 48 M56 2032 - - - - 66 70 - - - 1950 - 180 40 2072 - 2100 16 20

* For flanges type 21 the outside hub diameter approximately corresponds to the outside pipe diameter.

Note : The p/t rating from EN 1092-1 apply only for flange type 05, 11, 12, 13 and 21 having nominal sizes up to and including DN 600. The p/t rating of all other flanges shall be agreed between the manufacturer and the purchaser.














EN 1092-1 TYPE 02 LOOSE FLANGE CARBON STEEL ST37.2 S235JR PN16 ANTI RUST OIL 1



EN 1092-1 TYPE 02 LOOSE FLANGE CARBON STEEL ST37.2 S235JR PN16 ANTI RUST OIL 2



EN 1092-1 TYPE 02 LOOSE FLANGE CARBON STEEL ST37.2 S235JR PN16 ANTI RUST OIL 3



EN 1092-1 TYPE 02 LOOSE FLANGE CARBON STEEL ST37.2 S235JR PN16 ANTI RUST OIL 4
