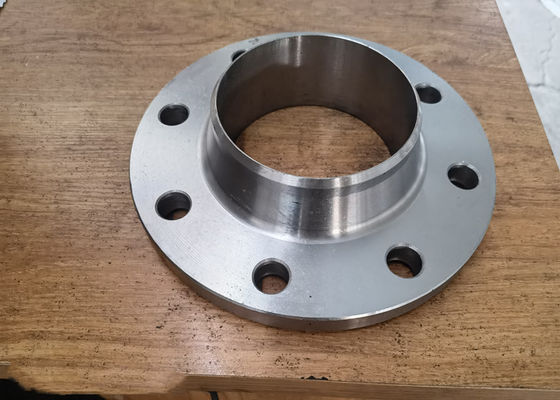

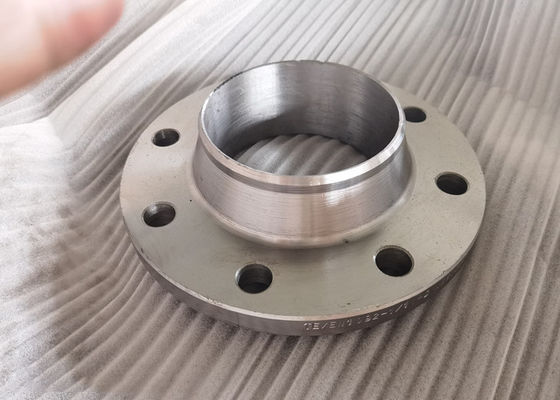

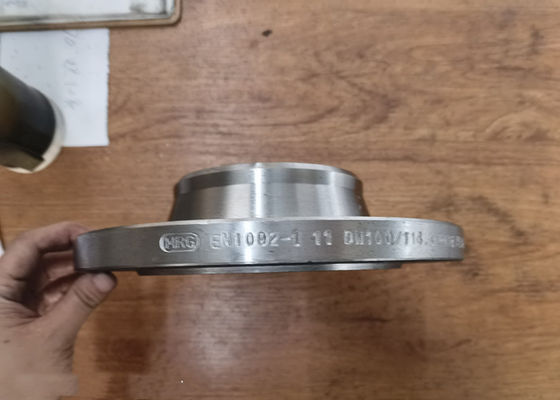

DIN EN 1092-1 TYPE 11 DIN 2632 Raise Face Flange PN10 DIN 2635 P235GH P250GH P280GH

WN SO Flange DIN EN1092-1 TYPE11 DIN2632 PN10 DIN2635 P235GH P250GH P280GH

Flange is the parts which connects two pipe ends, flange connection is defined by the flange, gasket and bolt three are connected as a group of combined sealing structure of the detachable connection. The gasket is added between the two flanges and then fastened by bolts. Different pressure flange, thickness is different, and the bolts they use are different, when pump and valve connect with pipe, the parts of the equipment are also made of the corresponding flange shape, also known as flange connection, usually closured bolted connection parts are also known as flanges, such as the connection of ventilation pipe, this kind of parts can be called "flange type part", but this connection is only part of a device, such as the connection between flange and water pump, it's not inapposite to call water pump as flange type parts,but relative small valve,it can be called as flange type parts .

EN1092-1 FLANGE

Size range: DN15 to DN2000

Design: type01 plate flange, type02 loose flange, type05 blind flange, type11 welding necking type12 slip on flange, type 13 threaded flange

Pressure: PN6, PN10, PN16, PN25, PN40, PN64, PN100

Material: Carbon steel C22.8, S235, S235JR, P235GH, P245GH,P250GH,P280GH,P265GH.Stainless steel: 304/304L, 316/316L

Coating: black paint, yellow transparent paint, cold and hot dip galvanize

PACKING WAY:

Loading Container;

TUBE EXHIBITION:

1. Are you trading company or manufacturer ?

We are manufacturer ,You can see the Alibaba certification.

2. How long is your delivery time?

Generally 30-40days if less 200ton. Above 200ton, 50days.

3. Do you provide samples ? is it free or extra ?

Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ?

30% advance payment,70% against BL copy
