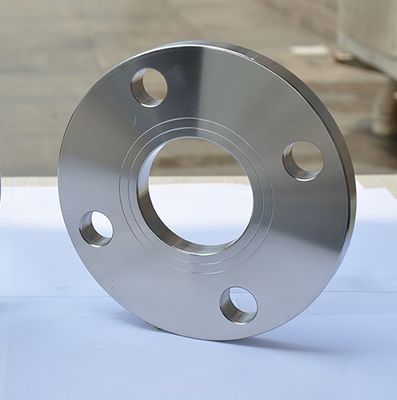

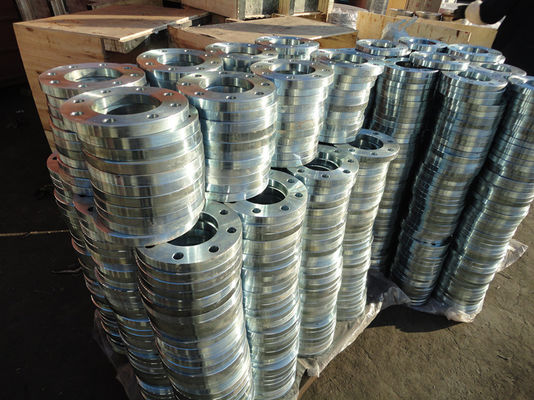

Plate SABS 1123 Flange 600kpa 1000kpa 1600kpa 2500kpa Table D Table E Carbon Steel

Plate SABS 1123 Flange 600kpa 1000kpa 1600kpa 2500kpa Table D Table E Carbon Steel
Plate SABS 1123 Flange 600kpa 1000kpa 1600kpa 2500kpa Table D Table E Carbon Steel Plate SABS 1123 Flange 600kpa 1000kpa 1600kpa 2500kpa Table D Table E Carbon Steel Plate SABS 1123 Flange 600kpa 1000kpa 1600kpa 2500kpa Table D Table E Carbon Steel

Large Image :  Plate SABS 1123 Flange 600kpa 1000kpa 1600kpa 2500kpa Table D Table E Carbon Steel

Product Details:
Place of Origin: CHINA
Brand Name: XF (info4@hbxfgj.com)
Certification: ISO,TUV,CE
Model Number: SABS 1123
Payment & Shipping Terms:
Minimum Order Quantity: 5 Tons
Packaging Details: plywood case and pallet
Delivery Time: 30-40 days
Payment Terms: L/C,D/P, T/T
Supply Ability: 3000 tons/month

Plate SABS 1123 Flange 600kpa 1000kpa 1600kpa 2500kpa Table D Table E Carbon Steel

Description
Material: Carbon Steel And Stainless Steel Surface Treatment: Light Oil ,Galvanize
Pressure: 600kpa 1000kpa 1600kpa 2500kpa Type: SO ,BLIND
Size: DN15-DN600
High Light:

1600kpa 2500kpa Table D Flange

,

1600kpa Table E Flange

,

2500kpa Table D Flange

SABS 1123 PLATE FLANGE 600kpa 1000kpa 1600kpa 2500kpa TABLE D TABLE E CARBON STEEL FLANGE





STANDARD



Type

Pressure

Material size

Process

Surface

treatment



SABS1123



SO ,BLIND

600kpa 1000kpa 1600kpa 2500kpa

carbon steel

stainless steel


DN15-DN600

FORGED, FORGING

Yellow paint

Light oil

Flange Details:

S.A.B.S 1123 Flanges





Plate SABS 1123 Flange 600kpa 1000kpa 1600kpa 2500kpa Table D Table E Carbon Steel 0

S.A.B.S 1123 Flanges



Nominal pressure 1000 kPa 1000/2 = Table 9 1000/4 = Table 11 1000/3 = Table 10 1000/8 = Table 13
Nom. Size

Pipe O.D

d1

Flange Raised face



Bolting

Drilling Neck Boss
D b b1 b2 b3 h h1 d4 f No. d2 k d3 h2 r d5
10 17.2 90 8 10 8 10 14 35 40 2 M12 4 14 60 28 6 4 30
15 21.3 95 8 10 8 10 14 35 45 2 M12 4 14 65 32 6 4 35
20 26.9 105 8 10 8 10 16 38 58 2 M12 4 14 75 40 6 4 45
25 33.7 115 8 10 8 10 16 38 68 2 M12 4 14 85 46 6 4 52
32 42.4 140 10 10 10 10 20 40 78 2 M16 4 18 100 56 6 6 60
40 48.3 150 10 10 10 10 20 42 88 3 M16 4 18 110 64 7 6 70
50 60.3 165 12 10 10 12 20 45 102 3 M16 4 18 125 75 8 6 85
65 76.1 185 12 12 12 12 26 45 122 3 M16 4 18 145 90 10 6 105
80 88.9 200 14 12 12 14 26 50 138 3 M16 8 18 160 105 10 8 118
100 114.3 220 14 12 12 14 32 52 158 3 M16 8 18 180 131 12 8 140
*125 139.7 250 16 14 14 16 36 55 188 3 M16 8 18 210 156 12 8 168
150 168.3 285 18 16 16 18 38 55 212 3 M20 8 22 240 184 12 10 195
*175 193.7 315 18 16 - 18 - 60 242 3 M20 8 22 270 210 12 10 -
200 219.1 340 18 18 - 18 - 62 268 3 M20 8 22 295 235 16 10 -
*225 244.5 370 18 18 - 18 - 62 290 3 M20 8 22 325 265 16 10 -
250 273.0 395 20 20 - 20 - 68 320 3 M20 12 22 350 292 16 12 -
300 323.9 445 22 22 - 22 - 68 370 4 M20 12 22 400 344 16 12 -
350 355.6 505 26 25 - 25 - 68 430 4 M20 16 22 460 385 16 12 -
400 406.4 565 26 25 - 25 - 72 482 4 M24 16 26 515 400 16 12 -
450 457.2 615 28 30 - 30 - 72 532 4 M24 20 26 565 492 16 12 -
500 508.0 670 28 32 - 32 - 75 585 4 M24 20 26 620 542 16 12 -
550 559.0 730 28 35 - 35 - 80 635 5 M24 20 26 675 592 18 12 -
600 609.6 780 28 38 - 38 - 80 685 5 M24 20 26 725 642 18 12 -



........



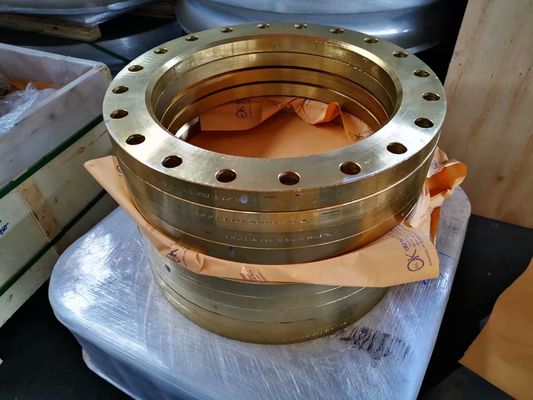

Plate SABS 1123 Flange 600kpa 1000kpa 1600kpa 2500kpa Table D Table E Carbon Steel 1 Plate SABS 1123 Flange 600kpa 1000kpa 1600kpa 2500kpa Table D Table E Carbon Steel 2Plate SABS 1123 Flange 600kpa 1000kpa 1600kpa 2500kpa Table D Table E Carbon Steel 3

Material
1) Carbon Steel P245GH,P250GH,S235 & Stainless Steel SS304, SS316, SS316L
Surface Antirust:
Surface antirust 1: Antirust light oil
Surface antirust 2: Black paint coating
Surface antirust 3: Yellow paint coating
Surface antirust 4: Galnavized (Hot Dipped Galvanized or  Electro Galvanized)

Connect Face:
Surface   1: Smooth finish
Surface   2: Sprial serrated
Surface   3: Two or three grooves (Water Lines)
(Raised face=RF ,Flat face=FF)

Terms:
1) Payment: Irrevocable L/C at sight or T/T, D/P
2) Delivery term FOB China Port or CIF Buyer’s Port
3) Packing: Plywood Pallet/case

Plate SABS 1123 Flange 600kpa 1000kpa 1600kpa 2500kpa Table D Table E Carbon Steel 4

Contact:

Sales Manager: Grace Zhang

HEBEI XINFENG HIGH-PRESSURE FLANGE AND PIPE FITTING CO.,LTD.

Add.: Mencun County,Cangzhou City,Hebei province,China 061400

Mobile:86 18031772015 (wechat, whatsapp)

Tel: 86-317-6725755

Email: info4@hbxfgj.com

Skype: cangzhouzhangnan



FAQ:



1. What is your MOQ?
Normally our MOQ for each size is 1ton. If you think it is too much, we can discuss according to your requirement in details.
2. Can you offer free sample?
Yes, we can provide free samples of 150m - 200m.
3. What is your delivery time?
We wil deliver in 30-45 days
4. Can you accept mixed products in one container?
Yes, we accept for sure.
