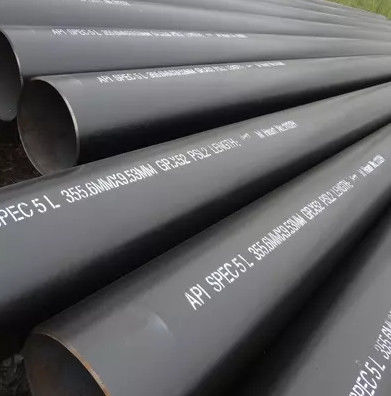

Thick 2.11mm To 60mm Carbon Steel Seamless Pipe Api 5l Grade B Seamless Pipe

Thick 2.11mm To 60mm Carbon Steel Seamless Pipe Api 5l Grade B Seamless Pipe
Thick 2.11mm To 60mm Carbon Steel Seamless Pipe Api 5l Grade B Seamless Pipe Thick 2.11mm To 60mm Carbon Steel Seamless Pipe Api 5l Grade B Seamless Pipe Thick 2.11mm To 60mm Carbon Steel Seamless Pipe Api 5l Grade B Seamless Pipe

Large Image :  Thick 2.11mm To 60mm Carbon Steel Seamless Pipe Api 5l Grade B Seamless Pipe

Product Details:
Place of Origin: CHINA
Brand Name: XF
Certification: API,ISO,PED
Model Number: 1/2"-40"
Payment & Shipping Terms:
Minimum Order Quantity: 1TON
Price: NEGOCIATION
Packaging Details: international packages
Delivery Time: 5DAYS
Payment Terms: L/C, D/P, T/T
Supply Ability: 10000TONS PER MONTH
Contact Now

Thick 2.11mm To 60mm Carbon Steel Seamless Pipe Api 5l Grade B Seamless Pipe

Description
Surface: Natural, Varnished, Black Painting, FBE And 3PE, Cladding And Lined Etc Grades: B, X42, X52, X56, X60, X65, X70 And S (S For Sour Service, For Example X70QS)
Sizes: OD: 73-630mm, WT: 6-35mm,LENGTH: 5.8/6/11.8/12m Steel Pipe Dimensions OD: 1/2” To 2”, 3”, 4”, 6”, 8”, 10”, 12”, 16 Inch, 18 Inch, 20 Inch, 24 Inch, 26 Inch To 40 Inch.
Schedule: SCH 10. SCH 20, SCH 40, SCH STD, SCH 80, SCH XS, To SCH 160 Ends Type: Beveled Ends, Plain Ends
Length Range: 20 FT (6 Meter), 40FT (12 Meter)or Customized
Highlight:

2.11mm Carbon Steel Seamless Pipe

,

galvanized Carbon Steel Seamless Pipe

,

60mm api 5l grade b seamless pipe

Carbon steel pipe ,API 5L Pipe, Carbon Steel seamless pipe ,black steel pipe,seamless galvanized steel pipe

  • Types of seamless pipe
    Large diameter pipe
    Precision pipe
    Thin wall pipe
    Thickness wall pipe    		 Thick 2.11mm To 60mm Carbon Steel Seamless Pipe Api 5l Grade B Seamless Pipe 0
  • Sizes of seamless pipe
    Out diameter: 1/2 inch - 36 inch (21.3mm-914.4mm)
    Thickness: 2.11mm-60mm ( SCH10, SCH20, SCH40, SCH80, STD, SCH120, SCH160, XXS)

    Materials of seamless pipe
    ASTM
    ASTM A53 GR.B / ASTM A106 GR.B / ASTM A179 / ASTM A192 / ASTM A210 / ASTM A210 / ASTM A213 / ASTM A333 GR.6
    API
    API 5L GR.B / X42 / X46 / X52 / X56 / X60 / X65 / X70
    DIN/EN
    DN 17175 ST35, ST52 /EN10216-2 / DIN 2391 ST35, ST52 /EN10305-1 / DIN 1629/EN10216-1


  • Process of Seamless Pipe

    Thick 2.11mm To 60mm Carbon Steel Seamless Pipe Api 5l Grade B Seamless Pipe 1



Specification:



Available Dimension Range
OD(mm/inch)   Wall thickness(SCH)
10 20 30 STD 40 60 XS 80 100 120 140 160 XXS
21.3 (1/2'') √   √ √ √   √ √       √ √
26.7 (3/4'') √   √ √ √   √ √       √ √
33.4 (1'') √   √ √ √   √ √       √ √
42.2 (1 1/4'') √   √ √ √   √ √       √ √
48.3 (1 1/2'') √   √ √ √   √ √       √ √
60.3 (2'') √   √ √ √   √ √       √ √
73 (2 1/2'') √   √ √ √   √ √       √ √
88.9 (3'') √   √ √ √   √ √       √ √
101.6 (3 1/2'') √   √ √ √   √ √
114.3 (4'') √   √ √ √   √ √   √   √ √
141.3 (5'') √       √   √ √   √   √ √
168.3 (6'') √       √ √ √ √   √   √ √
219.1 (8'') √ √ √ √ √ √ √ √ √ √ √ √ √
273 (10'') √ √ √ √ √ √ √ √ √ √ √ √ √
323.8 (12'') √ √ √ √ √ √ √ √ √ √ √ √ √
355.6 (14'') √ √ √ √ √ √ √ √ √ √ √ √
406.4 (16'') √ √ √ √ √ √ √ √ √ √ √ √
457 (18'') √ √ √ √ √ √ √ √ √ √ √ √
508 (20'') √ √ √ √ √ √ √ √ √ √ √ √
559 (22'') √ √ √ √   √ √ √ √ √ √ √
610 (24'') √ √ √ √ √ √ √         √
660 (26'') √ √         √
711 (28'') √ √ √ √     √
762 (30'') √ √ √ √     √
813 (32'') √ √ √ √ √   √
864 (34'') √ √ √ √ √   √
914 (36'') √ √ √ √ √   √



Chemical Analysis





API 5L-PSL 1 Chemical Requirements
Grade Composition %

C

max

Mn

max

 P

S

max

V

max

Nb

max

Ti

max
min max
B 0.28 1.2 - 0.03 0.03 c.d c,d d
X42 0.28 1.3 - 0.03 0.03 d d d
X46 0.28 1.4 - 0.03 0.03 d d d
X52 0.28 1.4 - 0.03 0.03 d d d
X56 0.28 1.4 - 0.03 0.03 d d d
X60 0.28 1.4 - 0.03 0.03 f f f
X65 0.28 1.4 - 0.03 0.03 f f f
X70 0.28 1.4 - 0.03 0.03 f f f
API 5L-PSL 2 Chemical Requirements
Grade Composition, %
C Si Mn P S V Nb Ti Other
BN 0.24 0.4 1.2 0.025 0.015 c c 0.04 e,l
X42N 0.24 0.4 1.2 0.025 0.015 0.06 0.06 0.04 e,l
X46N 0.24 0.4 1.4 0.025 0.015 0.07 0.07 0.04 d,e,l
X52N 0.24 0.45 1.4 0.025 0.015 0.1 0.1 0.04 d,e,l
X56N 0.24 0.45 1.4 0.025 0.015 0.1 0.1 0.04 d,e,l
X60N 0.24 0.45 1.4 0.025 0.015 0.1 0.1 0.04 g,h,l
BQ 0.18 0.45 1.4 0.025 0.015 0.05 0.05 0.04 e,l
X42Q 0.18 0.45 1.4 0.025 0.015 0.05 0.05 0.04 e,l
X46Q 0.18 0.45 1.4 0.025 0.015 0.05 0.05 0.04 e,l
X52Q 0.18 0.45 1.5 0.025 0.015 0.05 0.05 0.04 e,l
X56Q 0.18 0.45 1.5 0.025 0.015 0.07 0.07 0.04 d,e,l
X60Q 0.18 0.45 1.7 0.025 0.015 g g g h,l
X65Q 0.18 0.45 1.7 0.025 0.015 g g g h,l
X70Q 0.18 0.45 1.8 0.025 0.015 g g g h,l





Mechanial Properties





API 5L-PSL 1 Mechanical Properties
Grade Yield Strength Mpa Tensile Strength Mpa Elongation
B 245 415 c
X42 290 415 c
X46 320 435 c
X52 360 460 c
X56 390 490 c
X60 415 520 c
X65 450 535 c
X70 485 570 c



API 5L-PSL 2 Mechanical Properties
Grade Yield Strength Mpa Tensile Strength Mpa Raito Elongation
  min max min max max min
BN 245 450 415 655 0.93 f
BQ
X42N 290 495 415 655 0.93 f
X42Q
X46N 320 525 435 655 0.93 f
X46Q
X52N 360 530 460 760 0.93 f
X52Q
X56N 390 545 490 760 0.93 f
X56Q
X60N 415 565 520 760 0.93 f
X60Q
X65Q 450 600 535 760 0.93 f
X70Q 485 635 570 760 0.93 f

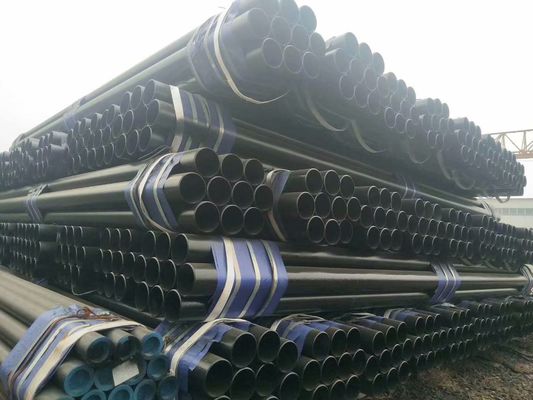

Thick 2.11mm To 60mm Carbon Steel Seamless Pipe Api 5l Grade B Seamless Pipe 2

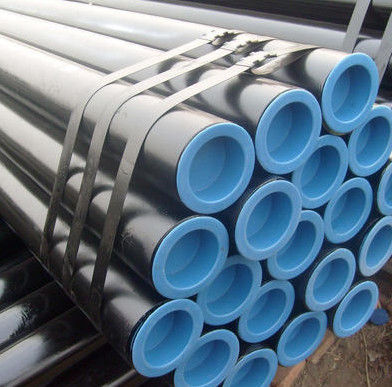

Thick 2.11mm To 60mm Carbon Steel Seamless Pipe Api 5l Grade B Seamless Pipe 3



Thick 2.11mm To 60mm Carbon Steel Seamless Pipe Api 5l Grade B Seamless Pipe 4



Thick 2.11mm To 60mm Carbon Steel Seamless Pipe Api 5l Grade B Seamless Pipe 5
