Home ProductsFLANGE DIN EN 1092-1

DIN2631 2632 2633 2634 2635 2636 Welding Neck Flange PN06 PN100 CARBON STEEL FLANGE

Certification
China Hebei Xinfeng High-pressure Flange and Pipe Fitting Co., Ltd. certification
China Hebei Xinfeng High-pressure Flange and Pipe Fitting Co., Ltd. certification
I'm Online Chat Now

DIN2631 2632 2633 2634 2635 2636 Welding Neck Flange PN06 PN100 CARBON STEEL FLANGE

DIN2631 2632 2633 2634 2635 2636 Welding Neck Flange PN06 PN100 CARBON STEEL FLANGE
DIN2631 2632 2633 2634 2635 2636 Welding Neck Flange PN06 PN100 CARBON STEEL FLANGE DIN2631 2632 2633 2634 2635 2636 Welding Neck Flange PN06 PN100 CARBON STEEL FLANGE DIN2631 2632 2633 2634 2635 2636 Welding Neck Flange PN06 PN100 CARBON STEEL FLANGE

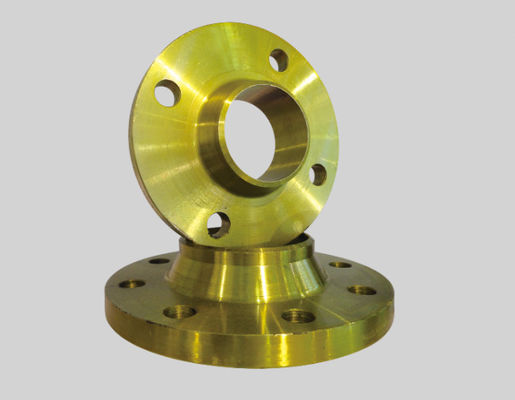

Large Image :  DIN2631 2632 2633 2634 2635 2636 Welding Neck Flange PN06 PN100 CARBON STEEL FLANGE

Product Details:
Place of Origin: CHINA
Brand Name: XF
Certification: ISO,TUV,CE
Model Number: DIN2633 PLATE FLANGE
Payment & Shipping Terms:
Minimum Order Quantity: 5 Tons
Packaging Details: plywood case and pallet
Delivery Time: 30-40 days
Payment Terms: L/C,, D/P, T/T
Supply Ability: 3000 tons/month

DIN2631 2632 2633 2634 2635 2636 Welding Neck Flange PN06 PN100 CARBON STEEL FLANGE

Description
Material: Carbon Steel And Stainless Steel Collor: Light Oil
Pressure: PN6-100 Surface Treatment: Galvanize
Type: SO,BLIND,WN LAPJOINT BSP Size: DN15-DN3000
High Light:

2635 2636 Welding Neck flange

,

2636 Welding Neck Flange PN06

,

PN06 PN100 CARBON STEEL FLANGE

DIN2631,2632,2633,2634,2635,2636 Welding Neck flange PN06-PN100 CARBON STEEL FLANGE PRESSURE PN06-PN100





STANDARD



Type

Pressure

Material size

Process

Surface

treatment



DIN



SO,BLIND,WN

LAPJOINT

BSP

PN06,PN10,PN16,

PN25,PN40,PN64,

PN100,

carbon steel

stainless steel


DN15-DN3000

FORGED, FORGING

Black paint

Yellow paint

Light oil

Flange Details:

DIN2527 Blind Flanges PN6-PN100

DIN2543,2544,2545 Flat Flange for welding(slip-on)PN16-PN40

DIN2565,2566,2567,2568,2569 Threaded flange with neck PN6-PN40

DIN2573,2576,2502,2503 Flat flange for welding(slip-on) PN6-PN40

DIN2631,2632,2633,2634,2635,2636 Welding Neck flange PN06-PN100

........

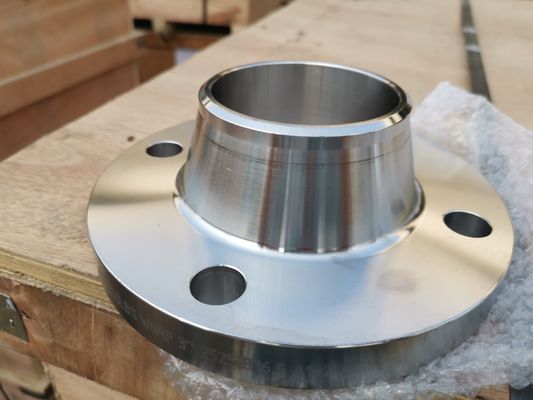

DIN2631 2632 2633 2634 2635 2636 Welding Neck Flange PN06 PN100 CARBON STEEL FLANGE 0  DIN2631 2632 2633 2634 2635 2636 Welding Neck Flange PN06 PN100 CARBON STEEL FLANGE 1 DIN2631 2632 2633 2634 2635 2636 Welding Neck Flange PN06 PN100 CARBON STEEL FLANGE 2



DIN PN16  STANDARD(weight kgs)
SIZE DIN2502  DIN2633 DIN 2527
KGS/PC KGS/PC KGS/PC
DN 15 0.67 0.65 0.72
DN 20 0.94 0.95 1.01
DN 25 1.11 1.14 1.23
DN 32 1.62 1.69 1.80
DN 40 1.86 1.86 2.09
DN 50 2.47 2.53 2.88
DN 65 3.00 3.06 3.66
DN 80 3.79 3.70 4.77
DN 100 4.03 4.62 5.65
DN 125 5.46 6.30 8.42
DN 150 6.57 7.75 10.40
DN 200 9.31 11.00 16.10
DN 250 13.40 15.60 24.90
DN 300 17.40 22.00 35.10
DN 350 26.60 28.80 47.80
DN 400 30.90 36.30 63.50
DN 500 54.00 61.00 102.00
DN 600 77.60 75.40 149.70

Material
1) Carbon Steel P245GH,P250GH,S235 & Stainless Steel SS304, SS316, SS316L
Surface Antirust:
Surface antirust 1: Antirust light oil
Surface antirust 2: Black paint coating
Surface antirust 3: Yellow paint coating
Surface antirust 4: Galnavized (Hot Dipped Galvanized or  Electro Galvanized)

Connect Face:
Surface   1: Smooth finish
Surface   2: Sprial serrated
Surface   3: Two or three grooves (Water Lines)
(Raised face=RF ,Flat face=FF)

Terms:
1) Payment: Irrevocable L/C at sight or T/T, D/P
2) Delivery term FOB China Port or CIF Buyer’s Port

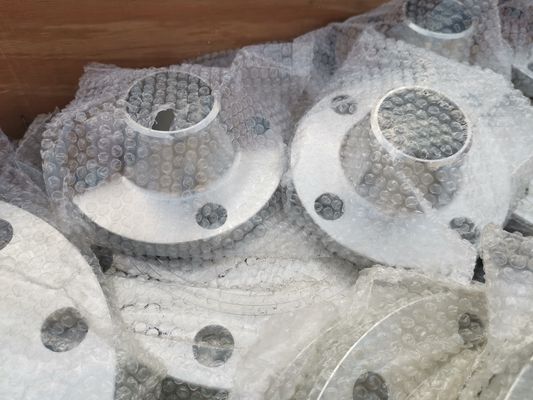

3) Packing: Plywood Pallet/case

DIN2631 2632 2633 2634 2635 2636 Welding Neck Flange PN06 PN100 CARBON STEEL FLANGE 3

Contact:

Sales Manager: Grace Zhang

HEBEI XINFENG HIGH-PRESSURE FLANGE AND PIPE FITTING CO.,LTD.

Add.: Mencun County,Cangzhou City,Hebei province,China 061400

Mobile:86 18031772015 (wechat, whatsapp)

Tel: 86-317-6725755

Email: info4@hbxfgj.com

Skype: cangzhouzhangnan



FAQ:



1. What is your MOQ?
Normally our MOQ for each size is 1ton. If you think it is too much, we can discuss according to your requirement in details.
2. Can you offer free sample?
Yes, we can provide free samples of 150m - 200m.
3. What is your delivery time?
We wil deliver in 30-45 days
4. Can you accept mixed products in one container?
Yes, we accept for sure.
