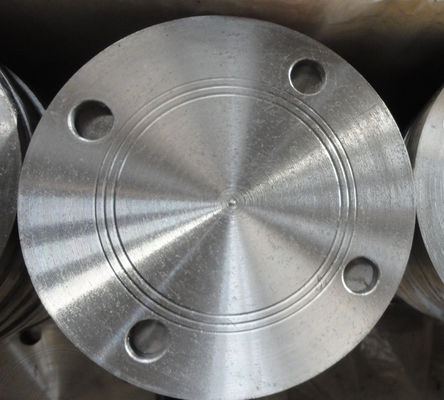

Carbon Or Stainless Steel Flange En 1092-1 Din Pn6 Pn10 Pn16 Pn25 Pn40 Plate Wn Blind

Carbon Or Stainless Steel Flange En 1092-1 Din Pn6 Pn10 Pn16 Pn25 Pn40 Plate Wn Blind
Carbon Or Stainless Steel Flange En 1092-1 Din Pn6 Pn10 Pn16 Pn25 Pn40 Plate Wn Blind Carbon Or Stainless Steel Flange En 1092-1 Din Pn6 Pn10 Pn16 Pn25 Pn40 Plate Wn Blind

Large Image :  Carbon Or Stainless Steel Flange En 1092-1 Din Pn6 Pn10 Pn16 Pn25 Pn40 Plate Wn Blind

Product Details:
Place of Origin: CHINA
Brand Name: HEBEI XINFENG
Certification: ISO
Model Number: EN1092-1 DIN
Payment & Shipping Terms:
Minimum Order Quantity: 1 TON
Price: USD1200-1500 PER TON
Packaging Details: PLYWOOD CASES AND PALLETS
Delivery Time: 4-6 WEEKS
Payment Terms: L/C D/P T/T O/A
Supply Ability: 2000 TONS PER MONTH

Carbon Or Stainless Steel Flange En 1092-1 Din Pn6 Pn10 Pn16 Pn25 Pn40 Plate Wn Blind

Description
Original: China Type: Type01.02.05.11.12
Material: P245GH P250GH P280GH S235JR RST37.2 Material1: SS304 SS316
Surface Treatment: Rust-proof Oil Hot Dip Pressure: PN6 PN10 PN16 PN25 PN40
Size: DN15-DN1200 Packages: Plywood Cases Or Pallets
High Light:

Din Pn6 Stainless Steel Flange

,

Pn40 Plate Wn Blind Flange

,

En 1092-1 Carbon Steel Flange

Carbon Steel Stainless Steel Flange En 1092-1 And Din Pn6 Pn10 Pn16 Pn25 Pn40 Plate Wn Blind



EN 1092-1 Slip On Flange has also been listed in British Standards as the BS-EN 1092. The En 1092-1 Flange Material, has evolved from the DIN 2501 standard. DIN 2501, is a standard which has become a part of the ISO 7005, following which the Flange EN 1092-1 RF was created as the standard for DIN based flanges.

Generally the now obsolete, BS4504 flanges were same as the old DIN 2501 specification, but the new Lap Joint Flange En 1092 standard covers a wider range. The Flat Flange En 1092-1 standard is not only meant to be used for steel flanges but also for EN 1092-2 is for iron flanges, EN 1092-3 is for alloy flanges as well as EN 1092-4 is for aluminium alloy flanges.

PN in the En 1092-1 Pn 63 Flange stands for Nominal Pressure. The nominal pressure in the En 1092-1 Pn25 Flange roughly equates to the number of bar. For instance, if the cold working pressure of PN10 is 10 bar or the nominal pressure for the En 1092-1 Pn40 Flange
Is 40 bars . EN 1092-1 Flange Manufacturers In India produce these flanges with a ratings range from PN2.5 to PN420. The latest Australian standard that is the AS4331 references this rating system (PN2.5 to PN420).

Both the Din En 1092 1 Type 11 Form B1 Flanges With Raised Face or the AS4331 is a reproduction of ISO 7005, which is based on the American and European flange systems. The nominal pressure grades such as the PN20, PN50, PN 110, PN 150, PN 260 and PN 420 steel En 1092-1 Type 01 Plate Flange are designed to be interchangeable with flanges to American standards such as the ANSI/ASME B16.5 as well as the MSS SP44. Although the En 1092-1 Pn6 Flange are not identical to the American standards, but the EN 1092-1 Type 02 Loose Flange are considered to be deemed to comply with the dimensions that have been specified in ANSI/ASME B16.5 and MSS SP44 as appropriate.

The main processes used by the manufacturer to produce the EN 1092-1 Threaded Flange include forging and stamping. Besides following the EN 1092-1 Type 12 Flange standard, many manufacturers also create special, customised flanges based on the buyers requirement or drawing. Apart from the oil & gas industries, typical applications of the EN 1092-1 Type 11 Flange include - the petrochemical as well as the allied industries.



Material Stainless Steel: SS304, SS316, SS304L, SS316L, SS321, SS310 ,1.4401, 1.4403
Carbon steel:P245GH P250GH P280GH S235JR RST37.2
Type Plate, Slip-on , Welding Neck, Blind, Threaded, Socked Weld, Loose, RTJ
Pressure  PN6 PN10 PN16 PN25 PN40
Standard  EN1092-1, DIN
Size 1/2”NB to 48”NB
Connection RF FF RTJ
Application For Water, Oil and Gas Industrial
Certificate CE / ISO / SGS

a) How can I get more details about your products?

You can send an email to our email address. We will provide catalogue and pictures of our products for your reference.We can also supply pipe fittings, bolt and nut, gaskets etc. We aim to be your piping system solution provider.

b) How can I get some samples?

If you need, we will offer you samples for free, but new customers are expected to pay express charge.

c) Do you provide customized parts?

Yes, you can give us drawings and we will manufacture accordingly.

d) How can we trust you to make a guaranteed deal?

We can trade through alibaba credit guarantee orders, which will fully guarantee the effective rights and interests of buyers and sellers.

e) To which country have you supplied your products?

We have supplied to Thailand, China Taiwan, Vietnam, India, South Africa, Sudan, Peru, USA, Brazil, Trinidad and Tobago, Kuwait, Qatar, Sri Lanka, Pakistan, Romania, France, Spain, Germany, Belgium, Ukraine etc. (Figures here only include our customers in latest 5 years.).

f) I can’t see the goods or touch the goods, how can I deal with the risk involved?

We are 16 years Gold Supplier of Alibaba. Our quality management system conforms to the requirement of ISO 9001:2015 verified by DNV. We are absolutely worth your trust. We can accept trial order to enhance mutual trust.

Carbon Or Stainless Steel Flange En 1092-1 Din Pn6 Pn10 Pn16 Pn25 Pn40 Plate Wn Blind 0Carbon Or Stainless Steel Flange En 1092-1 Din Pn6 Pn10 Pn16 Pn25 Pn40 Plate Wn Blind 1Carbon Or Stainless Steel Flange En 1092-1 Din Pn6 Pn10 Pn16 Pn25 Pn40 Plate Wn Blind 2Carbon Or Stainless Steel Flange En 1092-1 Din Pn6 Pn10 Pn16 Pn25 Pn40 Plate Wn Blind 3
