Product Details:
|
| Standard: | EN1092-1 DIN | Material: | P245GH/P250GH/P280GH/P265GH/S235JRG2/ST37-2 |
|---|---|---|---|
| Surface: | Black Paint, Rust Proof Oil,yellow Paint | Type: | WN,SO,THREADED,BLIND |
| Usage: | GAS Or Petrolem | Package: | Plywood Case Or Pallet |
| Color: | Black Yellow | Size: | DN15-DN2000 |
| Steel: | Carbon Steel, Stainless Steel | Technical: | FORGED |
| Stainless Steel: | A182 F304/304L, A182 F316/316L,F321 | Pressure: | PN6/PN10/PN16/PN25/PN40/PN63/PN100/PN160 |
| Payment: | T/T,L/C,D/P | DIN: | DIN2631/DIN2633/DIN2634/DIN2635 |
| High Light: | WN FORGED PIPE FLANGE,DIN2633 FORGED PIPE FLANGE,FLANGE DIN EN1092-1 TYPE11 |
||
WN FORGED FLANGE DIN EN1092-1 TYPE11 DIN2633 PN16 DIN2632 P245GH PIPE FLANGE CARBON STEEL
HEBHEI XINFENG HIGH-PRESSURE FLANGE AND PIPE FITTING CO., LTD ( XINFENG) has become one of the biggest flange and pipe manufactures in Hebei Pro., China, with an annual capacity of 8000 tons. Products are manufactured in accordance with international standards such as ANSI,DIN, EN1092, JIS, BS, GOST standards or with customers special requirement and design. XINFENG has obtained ISO 9002 certificate and follows in line with the system in the management and production. Advanced production and inspection equipment, rich experience and strict management systems well ensure its product quality.
XINFENG was licensed with independent export entitlement in 2006 and now its products are mainly for oversee markets, exported far to South Korea, Russia, countries and regions in middle-east, southeast Asia, south America and west Europe. These products are widely used in the fields of petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, and well received with praise and trust by customers from home and abroad, wining the company a very good reputation.
With a new stance, we hope to tighten our relationships with customers from both abroad and domestics on the purpose of mutual benefit and development for our prosperous future. Warmly welcome customers to us for friendship and business negotiation.
| FLANGES DIN / EN | |||
| Type | Norm | Nominal Pressure | Dimension |
| Welding Neck Flange | EN1092-1 Typ11 | PN6-PN400 | DN10-DN2000 |
| DIN 2631 - DIN 2638 | |||
| Blind Flanges | EN1092-1 Typ05 | PN6-PN400 | DN10-DN2000 |
| DIN 2527 | |||
| Flat Flanges for welding | DIN 2573 | PN6-PN40 | DN10-DN2000 |
| DIN 2576 | |||
| EN1092-1 Typ01 | |||
| Loose Flange + Weld-on Collars | DIN2642 | PN10-40 | DN10-DN2000 |
| EN1092-1 Typ02 | |||
| EN1092-1 Typ32 | |||
| Loose Flange + Weld Neck Collars | DIN 2673 | PN10-PN40 | DN15-DN2000 |
| EN1092-1 Typ04 | |||
| EN1092-1 Typ34 | |||
| Threaded Flanges | EN1092-1 TYP13 | PN10-PN40 | ½“-6“ |
| Materials: P250GH/C22.8, P265GH, 16Mo3, 13CrMo4-5, 10CrMo9-10, P355N, P355QH1, 1.4301, 1.4307, 1.4404, 1.4541, 1.4571, 1.4462, 1.4539 | |||
| FLANGES ASME / ASTM / ANSI | |||
| Type | Norm | Class | Dimension |
| Welding Neck Flanges | ASME B16.5 | 150lbs – 2500lbs | ½“-48“ |
| ASME B16.47 Serie A | |||
| ASME B16.47 Serie B | |||
| BS3293 | |||
| Blind Flanges | ASME B16.5 | 150lbs – 2500lbs | ½“-48“ |
| ASME B16.47 Serie A | |||
| ASME B16.47 Serie B | |||
| BS3293 | |||
| Slip On Flanges | ASME B16.5 | 150lbs – 300 lbs | ½“-24“ |
| Materials: A105, C21, 316/316L, 304/304L, A350 LF2 | |||
Materail Mechanical Properties:
| MECHANICAL PROPERTIES 力学性能 | MECHANICAL PROPERTIES 力学性能 | |||||||||||||||
| Standard | C | Mn | P | S | Si | Cu | Ni | Cr | Mo | Tensile Strength | Yield Strength | Elongation | Reduction of Area | Hardness | ||
| 碳 | 锰 | 磷 | 硫 | 硅 | 铜 | 镍 | 铬 | 钼 | 抗拉强度 | 屈服强度 | 延伸率最小 | 面收缩率 | 硬度 | |||
| % | % | % | % | % | % | % | % | % | Mpa | Mpa | % | % | HB | |||
| P245GH | EN10222-2 | MIN% | 0.08 | 0.50 | 410 | 245 | 25 | 30 | ||||||||
| (1.0352) | MAX% | 0.20 | 1.30 | 0.025 | 0.015 | 0.40 | 530 | 180 | ||||||||
| P250GH(C22.8) | EN10222-2 | MIN% | 0.18 | 0.30 | 410 | 250 | 25 | |||||||||
| (1.0460) | MAX% | 0.23 | 0.90 | 0.025 | 0.015 | 0.40 | 0.30 | 0.30 | 540 | 180 | ||||||
| P265GH | EN10273 | MIN% | 0.80 | 410 | 265 | 22 | ||||||||||
| (1.0452) | MAX% | 0.20 | 1.40 | 0.025 | 0.015 | 0.40 | 0.30 | 0.30 | 0.30 | 0.08 | 530 | |||||
| P280GH | EN10222-2 | MIN% | 0.08 | 0.90 | 460 | 280 | 23 | 42 | ||||||||
| (1.0426) | MAX% | 0.20 | 1.50 | 0.025 | 0.015 | 0.40 | 0.30 | 0.30 | 0.08 | 580 | 180 | |||||
| P235GH | EN10273 | MIN% | 0.60 | 360 | 235 | 25 | ||||||||||
| (1.0345) | MAX% | 0.16 | 1.20 | 0.025 | 0.015 | 0.35 | 0.30 | 0.30 | 0.30 | 0.08 | 480 | |||||
| P295GH | EN10273 | MIN% | 0.08 | 0.90 | 460 | 295 | 21 | |||||||||
| (1.0481) | MAX% | 0.20 | 1.50 | 0.025 | 0.015 | 0.40 | 0.30 | 0.30 | 0.30 | 0.08 | 580 | |||||
| P355GH | EN10273 | MIN% | 0.10 | 1.00 | 510 | 355 | 20 | |||||||||
| (1.0473) | MAX% | 0.22 | 1.70 | 0.025 | 0.015 | 0.60 | 0.30 | 0.30 | 0.30 | 0.08 | 650 | |||||
| S235JR(RST37-2) | EN10025-2 | MIN% | 0.30 | 360 | 235 | 26 | 40 | |||||||||
| (1.0038) | MAX% | 0.17 | 0.65 | 0.035 | 0.035 | 0.30 | 0.30 | 510 | 45 | 180 | ||||||
| S275JR | EN10025-2 | MIN% | 430 | 275 | 23 | 122 | ||||||||||
| (1.0044) | MAX% | 0.21 | 1.50 | 0.035 | 0.035 | 0.55 | 540 | 162 | ||||||||
| S355JR | EN10025-2 | MIN% | 510 | 355 | ||||||||||||
| (1.0045) | MAX% | 0.24 | 1.60 | 0.035 | 0.035 | 0.55 | 0.55 | 600 | ||||||||

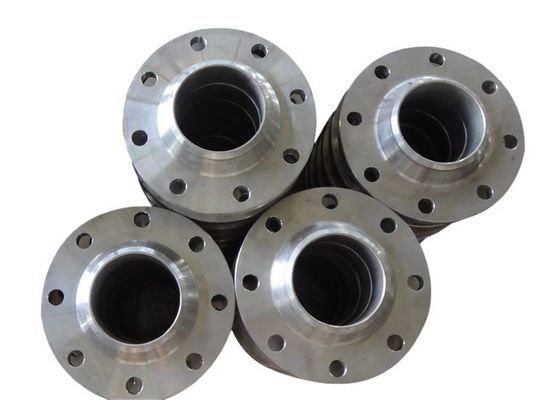

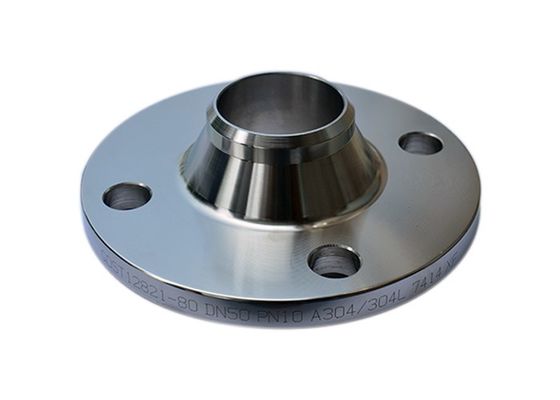

Product Pictures:
2018 Dusseldorf Tube
2016 Dusseldorf Tube
FAQ;
a) How can I get more details about your products?
You can send an email to our email address. We will provide catalogue and pictures of our products for your reference.We can also supply pipe fittings, bolt and nut, gaskets etc. We aim to be your piping system solution provider.
b) How can I get some samples?
If you need, we will offer you samples for free, but new customers are expected to pay express charge.
c) Do you provide customized parts?
Yes, you can give us drawings and we will manufacture accordingly.
