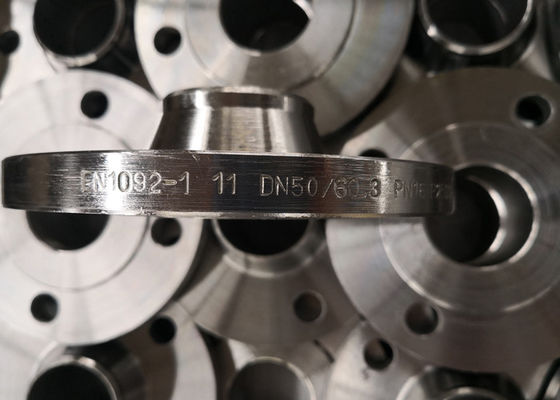

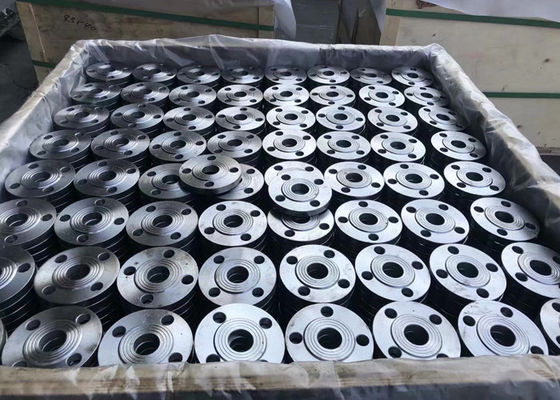

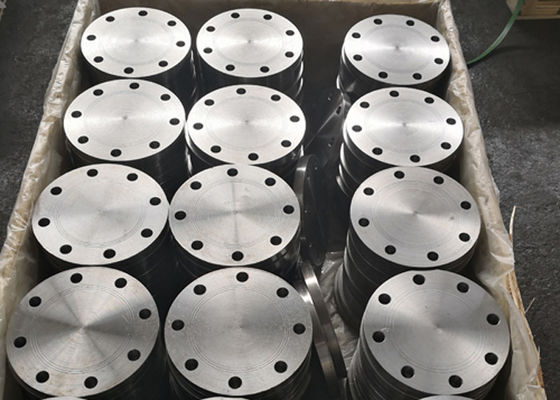

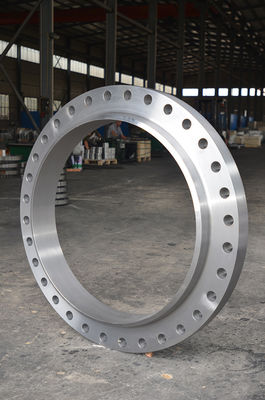

88" RF FF RTJ FORGED EN1092-1 FLANGE PN6 PN10 PN16 PN25 PN40 PN160

88" RF FF RTJ  FORGED EN1092-1 FLANGE PN6 PN10 PN16 PN25 PN40 PN160
88" RF FF RTJ  FORGED EN1092-1 FLANGE PN6 PN10 PN16 PN25 PN40 PN160 88" RF FF RTJ  FORGED EN1092-1 FLANGE PN6 PN10 PN16 PN25 PN40 PN160 88" RF FF RTJ  FORGED EN1092-1 FLANGE PN6 PN10 PN16 PN25 PN40 PN160 88" RF FF RTJ  FORGED EN1092-1 FLANGE PN6 PN10 PN16 PN25 PN40 PN160

Large Image :  88" RF FF RTJ FORGED EN1092-1 FLANGE PN6 PN10 PN16 PN25 PN40 PN160

Product Details:
Place of Origin: CHINA
Brand Name: XF
Certification: TUV ISO
Model Number: TYPE1(Plate Flanges); TYPE2(Loose Plate Flanges); TYPE5(Blank Flanges); TYPE11(Weld-neck Flanges); TYPE12(Hubbed Slip-on Flanges For Welding); TYPE13(Hubbed Threaded Flanges)
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: -
Packaging Details: No Fumigate or Fumigate Plywood/Wood Pallet or Case
Delivery Time: 30 DAYS -40DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 2000-3000 Tons per month

88" RF FF RTJ FORGED EN1092-1 FLANGE PN6 PN10 PN16 PN25 PN40 PN160

Description
Carbon Steel: ,S235JRG2,P245GH ,P250GH,A105,SS400,SF440 RST37.2C22.8 Stainless Steel: F304 F304L F316 F316L
Size: 1/2" NB TO 48"NB Pressure: PN6,PN10,PN16,PN25,PN40,PN64,PN100,PN160
Surface Treatment: Anti-rust Oil, Transparent/Yellow/Black Anti-rust Paint,Zinc,Hot Dipped Galvanized Packing: No Fumigate Or Fumigate Plywood/Wood Pallet Or Case
Usage: Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects Etc.
High Light:

120" RF FORGED EN1092-1

,

PN6 PN10 TF FLANGE PN6

,

PN40 PN160 GF FLANGE

EN1092-1 FLANGE EN1092-1-PN6 PN10 PN16 PN25 PN40 PN160 FORGED FLANGES



Product Despriction

PRODUCTS



Flanges



Type: Slip on, Weld neck, Binld, Plate, Lap joint, Threadhed, special designed

Size: 1/2" - 120" / DN15 - DN3000

Standard: ANSI B16.5; ASME B16.47; EN1092-1; DIN; BS4504; GOST 12820-80

Material: Carbon steel A105; C22.8; S235JR; P245GH; ST37.2;

Stalinessl steel: A182 F304/304L; F316/316L; F321



Butt weld Elbow; Tee; Reducer; Cap



Size: 1/2" -24" seamless; 4" -80" seam welded

Standard: ASME B16.9; B16.28; DIN; EN10253; GOST17375; JIS

Material; carbon steel; stainless steel



Forged fittings ASME B16.11



Product: Elbow; Tee;Cross; Coupling; Cap; Plug; Bushing; Union; Weldolet

Pressure: 2000#;3000#;6000#;9000#;

Size: 1/8" to 4"



Connection: threadhed and socket weld

Material: carbon steel and stainless steel





Product Name TYPE1(Plate Flanges); TYPE2(Loose Plate Flanges); TYPE5(Blank Flanges); TYPE11(Weld-neck Flanges); TYPE12(Hubbed Slip-on Flanges For Welding); TYPE13(Hubbed Threaded Flanges)
Items Forged Flanges, EN1092-1 & DIN Forged Flanges
Face Finish RF,FF,RTJ,TF,GF
Standard ANSI ANSI B16.5 ASME B16.47 series A/B
DIN DIN 2631 2573 2527 2565 2641
GOST GOST 12820-80,GOST 12821-80,Gost Blind
EN EN1092-1:2002
JIS JIS B2220-2004, KS D3576, KS B6216,KS B1511-2007,JIS B2261; JIS B8210
BS BS4504,BS10 Table D/E
UNI UNI 2253-67,UNI6091-67,UNI2276-67,UNI2280-67,UNI6089-67
SABS SABS 1123
  ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 ,JIS,DIN,BS4504,SABS1123,EN1092-1, UNI,AS2129,GOST-12820
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
B.S : BS4504 , BS4504, BS1560, BS10
Material ANSI CS A105/SA 105N,SS 304/304L,316/316L
DIN CS RST37.2;S235JR SS 304/304L,316/316L
GOST CS CT20;16MN;SS 304/304L,316/316L
EN CS RST37.2;S235JR;C22.8SS 304/304L,316/316L
JIS CS SS400,SF440,SS 304/304L, 316/316L
BS CSRST37.2;S235JR;C22.8;Q235SS 304/304L,316/316L
UNI CSRST37.2;S235JR;C22.8;Q235SS 304/304L,316/316L
SABS CSRST37.2;S235JR;Q235;SS 304/304L,316/316L
  Stainless Steel Forged Flanges: ASTM A182  F 304, 304L, 316, 316L
Carbon Steel Forged Flanges: ,S235JRG2,P245GH ,P250GH,A105,SS400,SF440
Pressure ANSI Class 150, 300, 600, 900, 1500 ,2500
DIN PN6,PN10,PN16,PN25,PN40,PN64,PN100
GOST PN6,PN10,PN16,PN25
EN PN6,PN10,PN16,PN25,PN40,PN64,PN100
JIS 1K,2K,5K,10K,16K,20K,30K,40K
BS PN6,PN10,PN16,PN25,PN40,PN64,PN100
UNI PN6,PN10,PN16,PN25,PN40
SABS 600KPA,1000,1600,2500,4000
Size ANSI 1/2” – 60”
DIN DN15-DN2000
GOST DN10-DN1600
EN DN15-DN2000
JIS 15A-1500A
BS DN15-DN2000
UNI DN10-DN2000
SABS DN10-DN1200
Coating Black Paint, Yellow Paint, Anti-rust oil, Galvanizing etc
Usage Used for the connection of all kinds of pipeline
to convey the water, steam, air, gas and oil
Package Wooden cases/pallets
Delivery Within 30 days
Certificate TUV, ISO9001
Pressure Class Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64 etc.As per drawing
Specialize
88" RF FF RTJ  FORGED EN1092-1 FLANGE PN6 PN10 PN16 PN25 PN40 PN160 088" RF FF RTJ  FORGED EN1092-1 FLANGE PN6 PN10 PN16 PN25 PN40 PN160 188" RF FF RTJ  FORGED EN1092-1 FLANGE PN6 PN10 PN16 PN25 PN40 PN160 2
