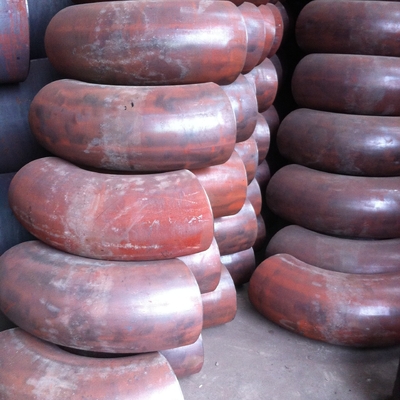

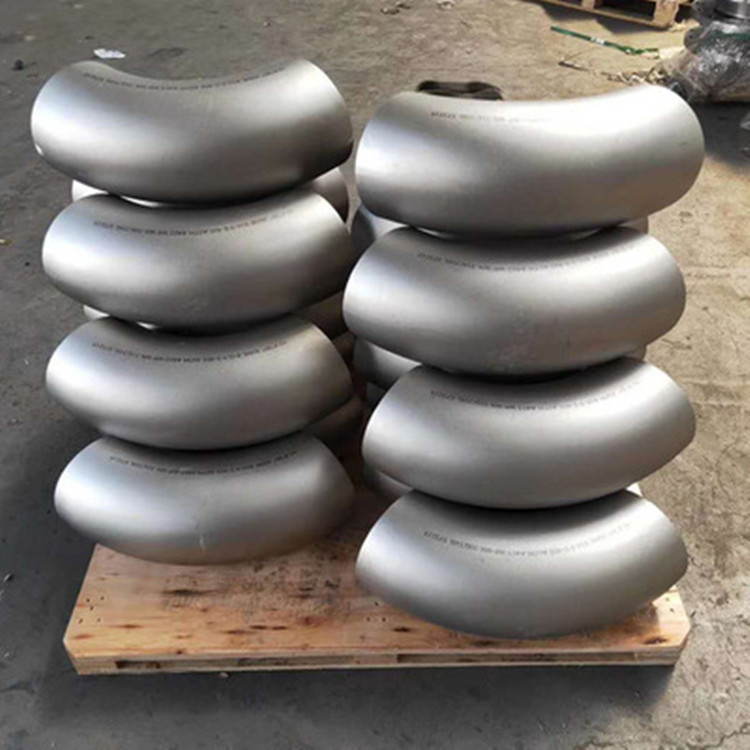

DN32 Steel Pipe Elbow Bending Radius R 15D SCH10

DN32 Steel Pipe Elbow Bending Radius R 15D SCH10
DN32 Steel Pipe Elbow Bending Radius R 15D SCH10 DN32 Steel Pipe Elbow Bending Radius R 15D SCH10

Large Image :  DN32 Steel Pipe Elbow Bending Radius R 15D SCH10

Product Details:
Place of Origin: Hebei . CHINA
Brand Name: XF
Certification: ISO,WRAS,CE,TUV ISO、WRAS、CE、TUV
Model Number: welded ELBOW, SEAMLESS ELBOW
Payment & Shipping Terms:
Minimum Order Quantity: 10 piece
Price: negotiable

DN32 Steel Pipe Elbow Bending Radius R 15D SCH10

Description
Size: DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450, DN500, DN600, DN700, DN800, DN900, DN1000, DN12000, DN1400, DN1600, DN1800, DN2000 Material: A234-WPB, Steel 20#, CT20, ST37.0, ST35.8, ST45.8, S235JR, P235GH, P265GH, JIS G3454, STPG370, TPG410, WP304, WP304L,WP316L, WP321
Available Standard: ANSI B16.9,ANSI B16.28,MSS-SP-75. DIN2605,DIN2615, DIN2616, DIN2617, DIN28011,EN10253-1 EN10253-2 JIS B2313 Section Shape: Round
Port: Tianjin, Qingdao, Shanghai Application: Oil, Gas, Chemical, Power, Water, Construction
Thickness: SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80, SCH100 SCH120, SCH160, XS, XXS Surface: Black Paint, Yellow Paint,transparent Paint, Cold And Hot Dip Galvanize
High Light:

DN32 steel pipe elbow

,

SCH10 steel pipe elbow

Product Description:

PRODUCT OVERVIEW: STEEL PIPE ELBOW

The STEEL PIPE ELBOW is a type of pipe fitting that is used to change the direction of the flow of fluids or gases in a piping system. It is designed to connect two pipes of different diameters and redirect the flow by 90 or 45 degrees, depending on the angle of the elbow. This product is an essential component in various industries, including oil, gas, chemical, power, water, and construction.

Connection Type:

The STEEL PIPE ELBOW is available in various connection types to suit different piping systems. These include:

  • Butt Weld Connection: The butt weld connection is a permanent and strong joining method that involves welding the ends of two pipes together.
  • Flange Connection: This type of connection involves bolting two flanges together, with a gasket in between, to create a tight seal.
  • Socket Weld Connection: In this connection, the pipe is inserted into a socket and then welded for a secure joint.
  • Threaded Connection: The threaded connection involves screwing the pipes together, using threads on the ends of the pipes.
  • Clamp Connection: This connection type uses a clamp to hold two pipes together, providing a quick and easy installation method.
Application:

The STEEL PIPE ELBOW is suitable for a wide range of applications, including:

  • Oil: The elbow is used in oil pipelines to change the direction of the flow and navigate around obstacles.
  • Gas: It is also used in gas pipelines to redirect the flow and reduce pressure drops.
  • Chemical: The elbow is resistant to corrosion, making it ideal for use in chemical processing plants.
  • Power: In power plants, the elbow is used in piping systems for steam, water, and fuel.
  • Water: The elbow is commonly used in water supply systems, such as municipal water supply and irrigation systems.
  • Construction: The elbow is used in the construction of buildings, bridges, and other structures that require a piping system.
Port:

The STEEL PIPE ELBOW is manufactured in various ports to meet the needs of different customers. These ports include:

  • Tianjin: Located in northern China, Tianjin is a major port for exporting steel products.
  • Qingdao: Situated on the east coast of China, Qingdao is a major port for shipping goods to and from Asia.
  • Shanghai: As the largest port in China, Shanghai serves as a crucial hub for international trade.
Thickness:

The STEEL PIPE ELBOW is available in different thicknesses to meet the specific requirements of different applications. These include:

  • SCH10: This is a standard thickness that is suitable for low-pressure applications.
  • SCH20: This thickness is suitable for medium-pressure applications.
  • SCH30: This is a thicker option for high-pressure applications.
  • STD: This stands for standard thickness and is commonly used in various industries.
  • SCH40: This is a thicker option for high-pressure applications.
  • SCH60: This thickness is suitable for heavy-duty applications.
  • SCH80: This is a thicker option for extremely high-pressure applications.
  • SCH100: This thickness is suitable for extreme conditions and high-pressure applications.
  • SCH120: This is an extra-thick option for extreme conditions and high-pressure applications.
  • SCH160: This is the thickest option for extreme conditions and high-pressure applications.
  • XS: XS stands for extra strong and is suitable for heavy-duty applications.
  • XXS: XXS stands for double extra strong and is the thickest option for extreme conditions and high-pressure applications.
Available Standard:

The STEEL PIPE ELBOW is manufactured in compliance with various international standards to ensure its quality and performance. These standards include:

  • ANSI B16.9: This is the American National Standards Institute standard for factory-made wrought steel butt-welding fittings.
  • ANSI B16.28: This standard covers short radius elbows and returns for butt welding.
  • MSS-SP-75: This is the standard developed by the Manufacturers Standardization Society of the Valve and Fittings Industry for high-test fittings.
  • DIN2605: This is the German standard for butt-welding pipe fittings.
  • DIN2615: This standard covers steel butt-welding fittings, tees, and reducers.
  • DIN2616: This standard specifies the dimensions and tolerances for pipe elbows.
  • DIN2617: This standard specifies the dimensions and tolerances for steel butt-welding end caps.
  • DIN28011: This standard specifies the dimensions for dished ends, also known as torispherical heads.
  • EN10253-1: This is the European standard for butt-welded pipe fittings.
  • EN10253-2: This standard specifies the technical delivery conditions for seamless and welded pipe fittings.
  • JIS B2313: This is the Japanese Industrial Standards standard for steel butt-welding pipe fittings.
Key Features:

The STEEL PIPE ELBOW has several key features that make it a preferred choice for various piping systems. These include:

  • Elbow LR 180 Degree: The elbow is designed with a long radius, providing a smoother flow and less friction loss.
  • SEAMLESS ELBOW: The seamless design of the elbow ensures a leak-proof and stronger joint, making it ideal for high-pressure applications.
  • STEEL PIPE ELBOW: Made of high-quality steel, this product is durable, corrosion-resistant, and can withstand extreme conditions.

With its various connection types, applications, ports, thicknesses, and compliance with international standards, the STEEL PIPE ELBOW is a reliable and versatile product that is essential in many industries. Its key features make it a preferred choice for piping systems, ensuring efficiency, durability, and safety.



Features:

  • Product Name: STEEL PIPE ELBOW
  • Connection Type:
    • Butt Weld Connection
    • Flange Connection
    • Socket Weld Connection
    • Threaded Connection
    • Clamp Connection
  • Thickness:
    • SCH10
    • SCH20
    • SCH30
    • STD
    • SCH40
    • SCH60
    • SCH80
    • SCH100
    • SCH120
    • SCH160
    • XS
    • XXS
  • Available Standard:
    • ANSI B16.9
    • ANSI B16.28
    • MSS-SP-75
    • DIN2605
    • DIN2615
    • DIN2616
    • DIN2617
    • DIN28011
    • EN10253-1
    • EN10253-2
    • JIS B2313
  • Application:
    • Oil
    • Gas
    • Chemical
    • Power
    • Water
    • Construction
  • Material:
    • A234-WPB
    • Steel 20#
    • CT20
    • ST37.0
    • ST35.8
    • ST45.8
    • S235JR
    • P235GH
    • P265GH
    • JIS G3454
    • STPG370
    • TPG410
    • WP304
    • WP304L
    • WP316L
    • WP321
  • Elbow LR 180 Degree
  • Elbow SR
  • Welded Elbow
  • Seamless Elbow


Applications:

Product Application and Scenes of STEEL PIPE ELBOW

The XF brand offers high-quality steel pipe elbow for various industries and applications. Our welded and seamless elbows are manufactured in Hebei, China and are certified by ISO, WRAS, CE, and TUV. The minimum order quantity is 10 pieces and the price is negotiable.

Application

Our steel pipe elbow is widely used in the following industries:

  • Oil
  • Gas
  • Chemical
  • Power
  • Water
  • Construction
Surface Options

Our elbows come in various surface finishes to meet your specific needs:

  • Black Paint
  • Yellow Paint
  • Transparent Paint
  • Cold and Hot Dip Galvanize
Section Shape and Sizes

Our steel pipe elbows are available in round section shape and the following sizes:

  • DN15
  • DN20
  • DN25
  • DN32
  • DN40
  • DN50
  • DN65
  • DN80
  • DN100
  • DN125
  • DN150
  • DN200
  • DN250
  • DN300
  • DN350
  • DN400
  • DN450
  • DN500
  • DN600
  • DN700
  • DN800
  • DN900
  • DN1000
  • DN12000
  • DN1400
  • DN1600
  • DN1800
  • DN2000
Types of Elbows

Our steel pipe elbows come in different types to suit your specific needs:

  • SEAMLESS ELBOW
  • WELDED ELBOW
  • Elbow LR 90 Degree
  • Elbow SR
  • Elbow 45 Degree
  • Elbow 180 Degree
Origin and Certification

Our steel pipe elbows are proudly manufactured in Hebei, China and are certified by ISO, WRAS, CE, and TUV. We ensure the highest quality standards for our products to meet your expectations.

Ordering and Shipping

You can place your order for our steel pipe elbows with a minimum quantity of 10 pieces, and the price is negotiable. We offer shipping from the ports of Tianjin, Qingdao, and Shanghai for your convenience.



Customization:

STEEL PIPE ELBOW Customized Service - XF

Brand Name: XF

Model Number: welded ELBOW, SEAMLESS ELBOW

Place of Origin: Hebei, CHINA

Certification: ISO, WRAS, CE, TUV

Minimum Order Quantity: 10 piece

Price: negotiable

Port: Tianjin, Qingdao, Shanghai

Material: A234-WPB, Steel 20#, CT20, ST37.0, ST35.8, ST45.8, S235JR, P235GH, P265GH, JIS G3454, STPG370, TPG410, WP304, WP304L, WP316L, WP321

Surface: Black Paint, Yellow Paint, Transparent Paint, Cold and Hot Dip Galvanize

Connection Type: Butt Weld Connection, Flange Connection, Socket Weld Connection, Threaded Connection, Clamp Connection

Size: DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450, DN500, DN600, DN700, DN800, DN900, DN1000, DN1200, DN1400, DN1600, DN1800, DN2000

Elbow LR 180 Degree, Elbow LR 45 Degree, welded ELBOW 90 Degree, SEAMLESS ELBOW 45 Degree - these are our specialty!



Packing and Shipping:

Packaging and Shipping for STEEL PIPE ELBOW

Our STEEL PIPE ELBOW is carefully packaged to ensure safe delivery to our customers. We use high-quality materials and techniques to protect the product from damage during transportation.

Packaging Method
  • The STEEL PIPE ELBOW is wrapped with bubble wrap to protect it from scratches and dents.
  • It is then placed in a sturdy cardboard box with cushioning material to prevent any movement during shipping.
  • The box is sealed with strong packing tape to ensure the product stays in place.
Shipping Options

We offer various shipping options to meet our customers' needs:

  • Standard shipping: Our standard shipping option takes 3-7 business days for delivery.
  • Expedited shipping: For urgent orders, we offer expedited shipping which takes 1-3 business days for delivery.
  • International shipping: We also offer international shipping for our customers outside of the United States. Shipping times may vary depending on the destination.

Once your order is shipped, you will receive a tracking number via email to track the status of your delivery.

For bulk orders, we can arrange for a freight service to deliver your products directly to your designated location.

At STEEL PIPE ELBOW, we strive to provide our customers with the best packaging and shipping solutions to ensure a smooth and timely delivery of our products.
