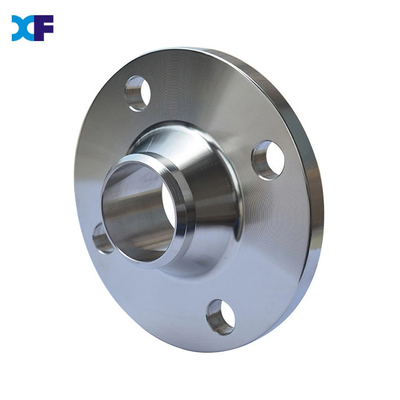

STD Class 300 Carbon Steel Forged Flanges Asme B16.47 Ser B

Product Description:

FLANGE ANSI B16.5 ASME B16.47 is a standard of pipe flanges in the American National Standard Institute (ANSI) and American Society of Mechanical Engineers (ASME). It covers pressure-temperature ratings, materials, dimensions, tolerances, marking, testing, and methods of designating openings for pipe flanges and flanged fittings. It is applicable to all flanges and flanged fittings from NPS 1/2 through NPS 24. The flanges in this standard can be coated with BLACK PAINT, YELLOW PAINT, TRANSPARENT PAINT, COLD AND HOT DIP GALVANIZE, etc. for different purposes. It has various types such as ANSI B16.5 Slip-on Flanges, ANSI B16.5 Welding Neck Flanges, FLANGE ASME B16.5 Blind Flanges, ASME B16.47 Series A & B Flanges, etc.

FLANGE ANSI B16.5 ASME B16.47 is available in different sizes ranging from 1/2” to 24” and thicknesses including STD, SCH40, SCH80, SCH160 and SCHXXS. It is also customizable for OEM and ODM purposes. This flange is made of high quality materials and is highly durable and corrosion resistant. It is widely used in various industries such as oil and gas, petrochemicals, nuclear power plants, etc. for connecting different pipes and is highly reliable.

Features:

• Product Name: FLANGE ANSI B16.5 ASME B16.47
• Pressure Rating: CLASS150-CLASS2500, Class 150, Class 300,Class 400, Class 600, Class 900, Class 1500 ,Class 2500
• Thickness: STD, SCH40, SCH80, SCH160. SCHXXS
• Material: Carbon Steel, A105,A105N,ASTM A350 LF2,Stainless Steel, Alloy Steel
• Customization: OEM, ODM
• Processing method: Forged Flange, Cast Flange
• Keywords: CLASS 150 SLIP ON A105/A105N, ANSI B16.5 FLANGE, ANSI B16.5 Slip-on Flanges, ANSI B16.5 Weld Neck Flanges, ASME B16.47 Weld Neck Flanges, Forged Flange, Cast Flange

Technical Parameters:

Applications:

The FLANGE ANSI B16.5 ASME B16.47 is manufactured by XF and has a model number of ANSI. It is certified with ISO9001.PED and the minimum order quantity is 1 Ton. The price is negotiable and it is packed in a standard export seaworthy package or as required. The delivery time is 15-45 days and payment terms are L/C, D/A, D/P, T/T. The supply ability is 1000-5000 TONS/MONTH. The material used to make this flange is Carbon Steel, A105, A105N, ASTM A350 LF2, Stainless Steel, and Alloy Steel. The processing method is Forged Flange and Cast Flange. It has a pressure rating of CLASS150-CLASS2500 and the size ranges from 1/2" to 18". OEM and ODM customization is available. The FLANGE ANSI B16.5 ASME B16.47 is suitable for CLASS 150 SLIP ON A105/A105N applications.

Customization:

XF offers a wide range of FLANGE ASME B16.5 and ANSI B16.47 Welding Neck Flanges and Blind Flanges, made of Carbon Steel, A105, A105N, ASTM A350 LF2, Stainless Steel, Alloy Steel. These Flanges come in different Pressure Ratings of CLASS150-CLASS2500, Class 150, Class 300, Class 400, Class 600, Class 900, Class 1500, Class 2500, with different thicknesses from STD, SCH40, SCH80, SCH160 to SCHXXS. All of them are Forged and Coated with BLACK PAINT.

Minimum Order Quantity: 1Ton
Price: Negotiable
Packaging Details: Standard export seaworthy package, or as required
Delivery Time: 15-45 DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000-5000 TONS/MONTH

Packing and Shipping:

Packaging and Shipping for FLANGE ANSI B16.5 ASME B16.47:

• The products are packed in seaworthy wooden cases.
• The products are shipped by air, sea, or express.

FAQ:

Q1. What is the Brand Name of this product?

A1. The Brand Name of this product is XF.

Q2. What is the Model Number of this product?

A2. The Model Number of this product is ANSI.

Q3. Where is the Place of Origin of this product?

A3. The Place of Origin of this product is CHINA.

Q4. What is the Minimum Order Quantity of this product?

A4. The Minimum Order Quantity of this product is 1Ton.

Q5. What is the Supply Ability of this product?

A5. The Supply Ability of this product is 1000-5000 TONS/MONTH.
