2 1 2 Welded Neck Flange Ansi B16.47 Asme B16.5

2 1 2 Welded Neck Flange Ansi B16.47 Asme B16.5
2 1 2 Welded Neck Flange Ansi B16.47 Asme B16.5 2 1 2 Welded Neck Flange Ansi B16.47 Asme B16.5

Large Image :  2 1 2 Welded Neck Flange Ansi B16.47 Asme B16.5

Product Details:
Place of Origin: China
Brand Name: XF flange
Certification: PED, ISO CERTIFICATE
Model Number: WN,SO,BLIND,THREADED
Payment & Shipping Terms:
Minimum Order Quantity: 5TON
Price: USD+2000-1750+TON
Packaging Details: PLYWOOD CASE OR PALLET
Delivery Time: 40DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 2500+TON+PER MONTH

2 1 2 Welded Neck Flange Ansi B16.47 Asme B16.5

Description
Standard: ANSI B16.5, ANSI B16.47, AIP605,MSS SP44 Color: Black And Yellow Paint
Material: ASTM/ASME A105 Size: DN15-DN1200
Certificate: ISO,PED Surface: FF,RF,RTJ
Finished: Black, Yellow Paint, Rust Proof Oil Built: Since 1986
Export: 2008 Pressure: 150LBS/300LBS/600LBS/900LBS/1500LBS/2500LBS
Location: Hebei Province Type: WN,BLIND,PLATE,SO,THREADED,LOOSE FLANGE
High Light:

ansi b16.47 welded neck flange

,

2 1 2 welded neck flange

,

asme 2 1 2 weld neck flange

Flange ANSI B16.47 Welded Neck Flange ASME B16.5



Advantages and disadvantages of socket welding flange and butt welding:

Socket welding is usually used for small pipes smaller than DN40 in diameter and is more economical. Butt welding is usually used for parts above DN40. Socket welding is the process of first inserting a socket and then welding (for example, there is a type of flange called a socket flange, which is a projection weld flange, which is a connection when connecting to other parts such as a valve. Butt welding method The connection form of flange and pipe welding, socket welding is usually the pipe is inserted into the flange and welded, butt welding is the use of butt welding flange to weld the pipe to the butt surface. Although X-ray inspection is not possible, butt welding can accept butt welding welding, so it is recommended to use butt welding flanges to improve the requirements of welding inspection



Butt welds are generally more demanding than socket welds and post welds. The quality is also good, but the detection method is more stringent, butt welding requires X-ray inspection, socket welding can be used for magnetic particle or permeability testing (carbon powder, penetrating carbon steel such as stainless steel), if the fluid in the pipeline is not suitable for welding The requirements are not high, socket welding is recommended, and the connection types that are convenient for detection are mainly small-diameter valves and pipes, which are used for pipe joints and pipe welding. Small-diameter pipes usually have thin walls, which are prone to edge dislocation and ablation, and are difficult to Butt welding, suitable for socket welds and sockets.



Welded sockets are often used under high pressure due to their reinforcing effect, but socket welding also has disadvantages. One is that the stress state after welding is not good, and it is difficult to completely melt. Trends are: piping systems with gaps and therefore unsuitable for crevice corrosion-sensitive media and piping systems with high cleanliness requirements; the use of socket welds; and ultra-high pressure piping. Large wall thicknesses are available even in small diameter pipes, and socket welds can be avoided as much as possible by butt welding.



Product Information:

ANSI B16.5

WELDING NECK, SLIP ON. BLIND, LAP JOINT, THREADED,

SOCKET WELD

ASME B16.47 SER.B(API605) WELDING NECK, BLIND

ASME B16.47 SER.A

(MSS SP44)

WELDING NECK, BLIND
DIN

WELDING NECK DIN2631,2632,2633,2634,2635,2637

PLATE DIN2573,2576,2502,2503,2543,2544,2545

BLIND DIN2527

SCREWED DIN2565,2566

LAPPED DIN2641,2642,2655,2656

EN1092-1

WELDING NECK TYPE 11

SLIP ON TYPE 12

THREADED TYPE 13

PLATE TYPE 01

LAPPED TYPE 02

BLIND TYPE 05

BS4504

PLATE 01

BLIND 105

WELDING NECK 111

SLIP ON 112

THREADED 113

BS10 TABLE D/E

PLATE

SLIP ON

THREADED

GOST 12820

PLATE GOST12820-80

WELDING NECK GOST12821-80

JIS B2220

SOP

SOH

BLIND

UNI

THREADED

BLIND

PLATE

WELDING NECK

LAPPED

SABS1123

WELDING NECK TYPE2

PLATE TYPE3

SLIP ON TYPE4

BLIND TYPE8

PRESS
PN6,10,16,25,40,64,100 CLASS 150,300,600,900,1500,2000,3000,6000,9000
MATERIAL

CS RST37.2,S235JR,C22.8,CT20,16MN,SS400,

SS SS304/304L,316/316L

COATING
RUST-PROOF OIL, YELLOW PAINT,BLACK PAINT,GALVANIZED
SCALING FACE
FF,RF,RTJ
PACKAGE
SEAWORTHY PLYWOODEN CASE OR WOODEN PALLET
PAYMENT
TT, LC, D/A OR D/P

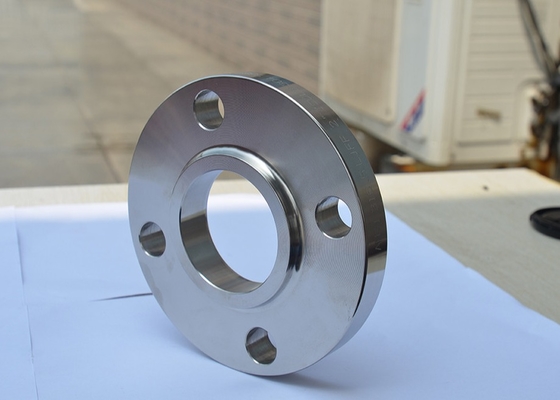

2 1 2 Welded Neck Flange Ansi B16.47 Asme B16.5 0

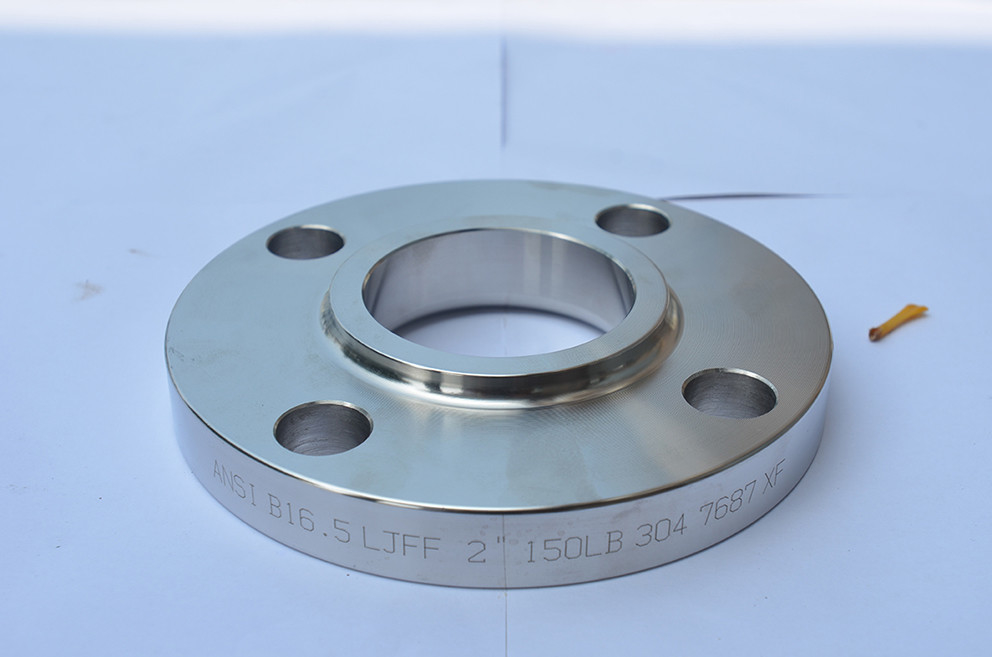

2 1 2 Welded Neck Flange Ansi B16.47 Asme B16.5 1

2 1 2 Welded Neck Flange Ansi B16.47 Asme B16.5 2

2 1 2 Welded Neck Flange Ansi B16.47 Asme B16.5 3

2 1 2 Welded Neck Flange Ansi B16.47 Asme B16.5 4

1.How can I get the price?

-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).
-If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.



2. Can I buy samples placing orders?

-Yes.Please feel free to contact us.



3.What is your lead time?

-It depends on the order quantity and the season you place the order.
-Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.



4.What is your payment term?

-T/T,L/C,D/P

5.What is the shipping method?

-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).
Please confirm with us before placing orders.



6.How do you make our business long-term and good relationship?

-1. We keep good quality and competitive price to ensure our customers benefit ;
-2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
