2 300LBS Carbon Steel Socket Weld Flange Asme Ansi B16.5 Asme Ansi B16.47

2 300LBS Carbon Steel Socket Weld Flange Asme Ansi B16.5 Asme Ansi B16.47
2 300LBS Carbon Steel Socket Weld Flange Asme Ansi B16.5 Asme Ansi B16.47 2 300LBS Carbon Steel Socket Weld Flange Asme Ansi B16.5 Asme Ansi B16.47

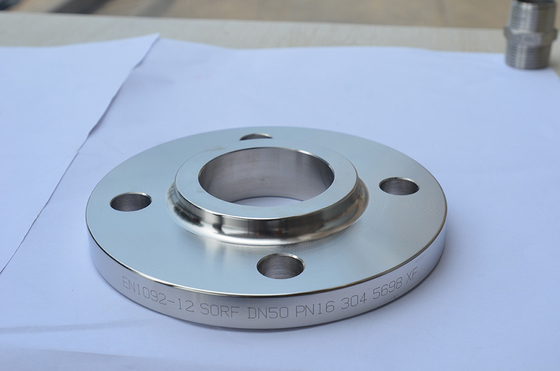

Large Image :  2 300LBS Carbon Steel Socket Weld Flange Asme Ansi B16.5 Asme Ansi B16.47

Product Details:
Place of Origin: China
Brand Name: XF flange
Certification: PED, ISO CERTIFICATE
Model Number: WN,SO,BLIND,THREADED,SW
Payment & Shipping Terms:
Minimum Order Quantity: 5TON
Price: USD+2000-1750+TON
Packaging Details: PLYWOOD CASE OR PALLET
Delivery Time: 40DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 2500+TON+PER MONTH

2 300LBS Carbon Steel Socket Weld Flange Asme Ansi B16.5 Asme Ansi B16.47

Description
Standard: ANSI, MSS, AWWA, DIN, UNI, JIS, BS, EN1092, GOST, SABS Material: ASTM/ASME A105
Size: DN15-DN1200 Pressure: 150LBS/300LBS/600LBS/900LBS/1500LBS/2500LBS
Certificate: ISO,PED Color: Black And Yellow Paint
Surface: FF,RF,RTJ Finished: Black, Yellow Paint, Rust Proof Oil
Built: Since 1986 Export: 2008
Location: Hebei Province Type: WN,BLIND,PLATE,SO,THREADED,LOOSE FLANGE
Process: Forged
High Light:

300lbs carbon steel socket weld flange

,

2 carbon steel socket weld flange

,

300lbs 2 socket weld flange

Socket Weld Flange, Asme ANSI B16.5, Asme ANSI B16.47 Flanges



The socket welding flange is called (SW flange), and the basic shape of the socket flange is the same as the flat welding flange with neck. A socket is opened in the inner hole of the flange, and a pipe is inserted into the socket and welded. Weld the weld ring on the back of the flange. The crevice between the socket flange and the grass groove is prone to corrosion, and corrosion can be avoided if the inner weld is welded. The fatigue strength of the inner and outer welded socket flanges is 5% higher than that of the flat welded flanges, and the static strength is the same. When using this Socket Flange, its ID must match the ID of the pipe. Socket flanges are only suitable for pipes with a nominal diameter of 50 or less.

Plug welding flange sealing surface shape: convex surface (RF), concave and convex surface (MFM), tongue surface (TG), annular joint surface (RJ)

Socket welding flange applications: boiler pressure vessels, petroleum, chemical, shipbuilding, pharmaceutical, metallurgy, machinery and elbow stamping industries.

Socket welding flanges are usually used in pipes with PN≤10.0 MPa and DN≤50.



Product Information:

To protect the flange, for small size, we will pack them into plywood case. For large size, we will also pack them into plywood case and protect them very well. But if we deliver it in a container, we will load them ino pallet. It is also a protective method.

Concentrate on customers' demand and support you with our sincere is our soul.

Size 1/2″ to 48″ DN10~DN5000
Flange Standards ANSI, MSS, AWWA, DIN, UNI, JIS, BS, EN1092, GOST, SABS
Pressure Rating Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
ANSI B16.5 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64
JIS 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K
UNI 6Bar 10Bar 16Bar 25Bar 40Bar
EN 6Bar 10Bar 16Bar 25Bar 40Bar
Coating Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized
Process Forged
Test Certificates Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Production technique Forged, Heat treated and machined
Types Weld Neck, Blind, Slip-On, Socket-Weld, Threaded, Orifice, Spectacle Blinds
Uses & application

Bitumen upgraders.

Heavy oil refineries.
Nuclear power (mostly seamless).
Petrochemicals and acids.

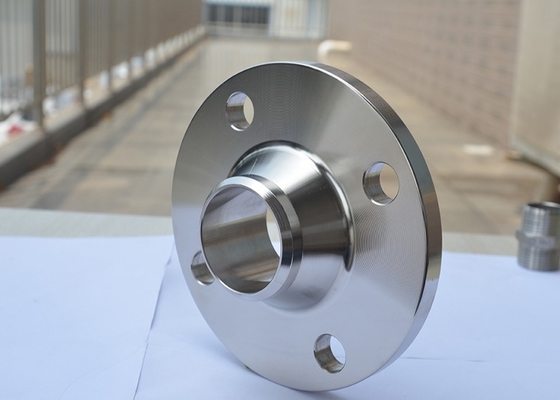

2 300LBS Carbon Steel Socket Weld Flange Asme Ansi B16.5 Asme Ansi B16.47 0

2 300LBS Carbon Steel Socket Weld Flange Asme Ansi B16.5 Asme Ansi B16.47 1


2 300LBS Carbon Steel Socket Weld Flange Asme Ansi B16.5 Asme Ansi B16.47 2

2 300LBS Carbon Steel Socket Weld Flange Asme Ansi B16.5 Asme Ansi B16.47 3

Q1. Can I have a sample order for stainless steel Flanges products?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days;

Q3. Do you have any MOQ limit Flanges products order?
A:3ton

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping was also optional. For mass products, ship freight is preferred.

Q5. Is it OK to print my logo on products?
A: Yes.

Q6: How to ensure quality?
A: Mill Test Certificate is supplied with the shipment. If needed, a Third Party Inspection is acceptable
