Product Details:
|
| Location: | Hebei Province,China | Material: | SS400 F304/304L, F316/316L |
|---|---|---|---|
| Color: | Black,Yellow,Rust Proof Oil | Export: | Since 1988 |
| Usage: | GAS Or Petrolem | Standard: | JIS B2220 |
| Output: | 3000Ton Each Month | Surface: | RF,FF,RTJ |
| Packing: | Plywood Case Or Pallet | Price: | Discount Based On Quantity |
| High Light: | flange jis b2220 sop,petrolem flange jis b2220,jis b 2220 soh flange |
||

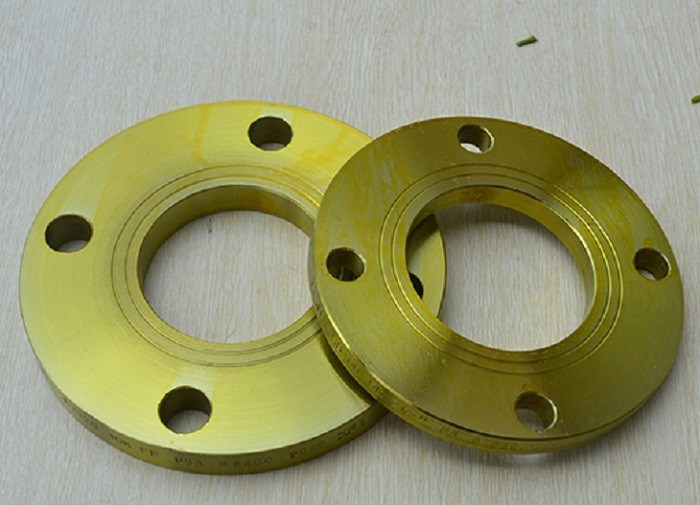

JIS B2220-1984 Sop Flange Soh Flange Carbon Steel Flange Tainless Steel Flange
Types of stainless steel flanges:
304 stainless steel flanges are the same as other flanges, and there are 13 common types as follows:
1. Flat welding flange (flat plate flange) must insert the pipe into the flange welded on the inner ring of the flange.
2. Butt welding flange A flange with a neck, a smooth transition section, and a butt welding connection with the pipe.
3. Socket welding flanges are flanges with sockets that are connected to pipes by socket welding.
4. Threaded flanges are flanges with threads that are threaded with pipes.
5. Loose flanges are flanges that are looped on pipes and used in combination with flanging short joints or welding rings.
6. Special flanges Non-circular flanges, such as diamond flanges, square flanges, etc.
7. Reducing flanges (also known as large and small flanges) are connected to standard flanges, but the nominal diameter of the nozzle is smaller than the nominal diameter of the standard flange.
8. Full plane flange The sealing surface is the same plane as the entire flange surface.
9. Boss face flange The sealing surface is slightly higher than the entire flange surface.
10. Concave-convex flanges A pair of flanges, the sealing surfaces of which are concave and convex.
11. Tenon and groove flanges The sealing surfaces of a pair of flanges have a tenon and a groove that matches the tenon.
12. Ring connection surface stainless steel flange (also known as ring groove surface flange) The sealing surface of the flange is a trapezoidal ring groove.
13. Stainless steel flange cover (also known as blind flange) is a circular plate with bolt holes that is connected to the pipe end flange and closes the pipe. In order to prevent rust and cracks on the surface of stainless steel flanges, the surface of carbon steel flanges is usually coated with electroplating (yellow zinc, white zinc, etc.), or brushed with anti-rust oil and sprayed with anti-rust paint.
| JIS SO | JIS BLIND |
| 5K,10K,16K,20K | 5K,10K,16K,20K |
| SS400,A182 F304,A182 F316 | SS400,A182 F304,A182 F316 |
| Specification (Latest edition) | Item Type | Pressure Class | Size Range |
| ASME/ANSI B16.5 | Blind, Weld Neck, Slip-on, Socket Weld, Threaded and Lap Joint Flanges | 150 to 2500LBS | 26“ to 60" |
| 150 to 1500LBS | 26“ to 48" | ||
| ASME/ANSI B16.47 | Orifice Flanges ( Weld neck, Slip-on, Threaded) | 75 to 300LBS | 1/2“ to 12" |
| 400, 600LBS | 26“ to 60" | ||
| 900LBS | 26“ to 48" | ||
| ASME/ANSI B16.36 | Orifice Flanges ( Weld neck, Slip-on, Threaded) | 300 To 2500LBS | 1" to 12" |
| EN 1092-1 / DIN / BS 4504 Flanges | 01 (Plate flange), 02 (Loose plate flange for Types 32—37), 04 (Loose plate flange for Type 34),05 (Blind flange), 11 (Weld-neck flange), 12 (Hubbed slip-on flange), 13 (Hubbed | PN2.5 to PN16 | 10mm to 1800mm |
| PN25 | 10mm to 1000mm | ||
| PN40 | 10mm to 600mm | ||
| PN63 | 10mm to 400mm | ||
| PN100 | 10mm to 350mm | ||
| PN160, PN250 | 10mm to 300mm | ||
| PN320 | 10mm to 250mm | ||
| PN400 | 10mm to 200mm | ||
| BS 10 | Blind, Slip-on and Welding neck flanges | TABLE-A, D, E, F, H, J, K, R, S, T | 15mm to 600mm |
| ASME/ANSI B16.9/MSS SP-43 | Stub end -Type:A, B, C (Short pattern) | S10, S40, S80 | ½” to 24” |
COMPANY INFORMATION
XINFENG has a group of rich-experienced engineers and technical professionals, making it strong in technical force. Products are manufactured in accordance with international standards such as ANSI,DIN, EN1092, JIS, BS, GOST standards or with customers special requirement and design. XINFENG has obtained ISO 9002 certificate and follows in line with the system in the management and production. Advanced production and inspection equipment, rich experience and strict management systems well ensure its product quality.
XINFENG was licensed with independent export entitlement in 2006 and now its products are mainly for oversee markets, exported far to South Korea, Russia, countries and regions in middle-east, southeast Asia, south America and west Europe. These products are widely used in the fields of petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, and well received with praise and trust by customers from home and abroad, wining the company a very good reputation.
1. who are we?
We are based in Hebei, China, start from 1986,sell flange and pipe fitting sold around the world.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Forged Flange, Fitting,Forged Fitting, Seamless Pipe.
4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Arabic,French
