Product Details:
|
| WELDING TYPE: | BUTT WELDED | FITTING TYPE: | ELBOW , TEE , REDUCER , CAP |
|---|---|---|---|
| COATING: | ANTI-RUST OIL, BLACK PAINTING, GALVANISED | SIZE: | 1/2"-80" |
| MATERIAL: | CARBON STEEL , STAINLESS STEEL | THICKNESS: | SCH10, SCH20, STD, SCH40, SCH80, SCH160 , XXS |
| SURFACE TREATMENT: | SEAMLESS , WELDED | STANDARD: | ASME B16.9 / B16.28 |
| High Light: | asme b16.9 butt welded pipe fittings,wpb elbow butt welded pipe fittings,asme b16.28 butt weld elbow |
||
ASME B16.9 B16.28 Butt Welded Pipe Fittings A234WPB Elbow Tee Reducer Cap
ASME B16.9 covers overall dimensions, tolerances, ratings, testing, and markings for wrought carbon and alloy steel factory-made buttwelding fittings of NPS 1/2 through 48 (DN 15 through 1200). It covers fittings of any producible wall thickness. This standard does not cover low pressure corrosion resistant buttwelding fittings. See MSS SP-43, Wrought Stainless Steel Butt-Welding Fittings.
Short radius elbows and returns, which were previously included in ASME B16.28-1994, are included in this standard.
B16.9 is to be used in conjunction with equipment described in other volumes of the ASME B16 series of standards as well as with other ASME standards, such as the Boiler and Pressure Vessel Code and the B31 Piping Codes.
Fitting type:

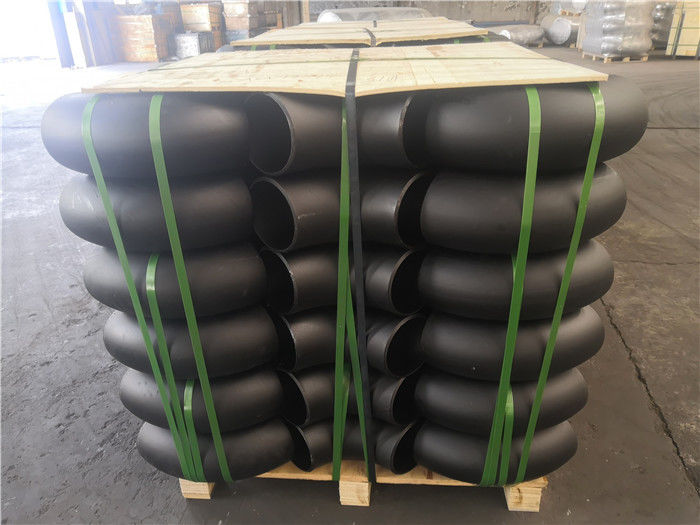

Elbow LR ( long raidus) SR (short radius) 45/60/90/180DEG; 3D/5D Bend 45DEG/90DEG;

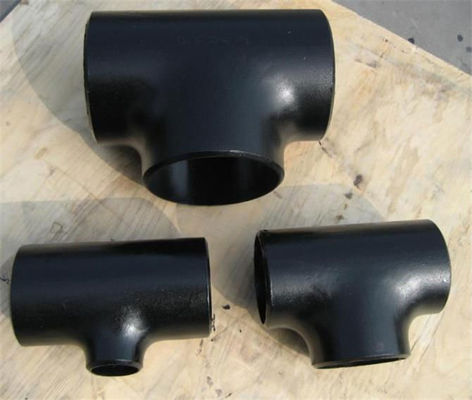

Tee, equal Tee, reducing Tee, cross , saddle

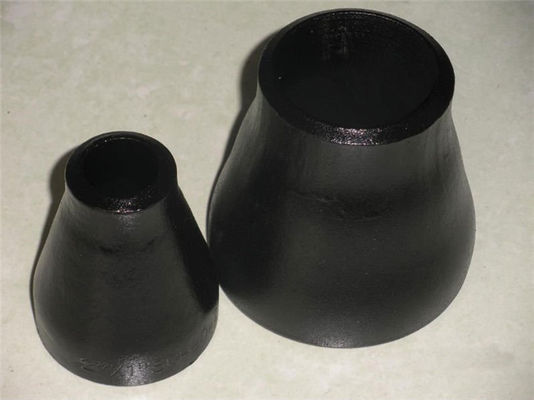

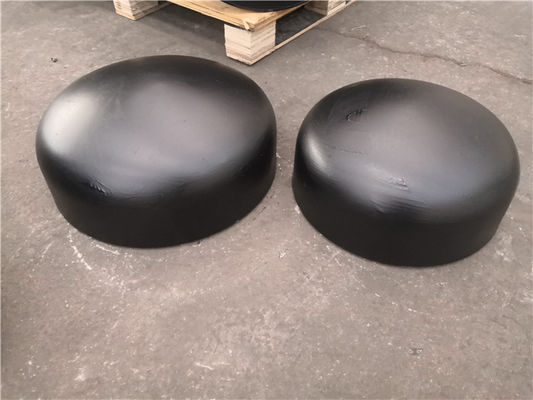

Reducer Concentric reducer, Eccentric reducer , pipe end Cap
Material:
carbon steel ASTM A234 WPB, WP9, ASTM A420 Gr. WPL6, ASTM A105, ASTM A694 F42-F70
stainless steel ASTM A403 WP304/304L; WP316/316L; WP321; DIN1.4301; DIN1.4306; DIN1.4401; DIN 1.4404
| NPS | O.D. D |
90° Long Rad Center to End A |
45° Long Rad Center to End B |
90° 3D Center to End A |
45° 3D Center to End B |
| 1/2 | 21.3 | 38 | 16 | / | / |
| 3/4 | 26.7 | 38 | 19 | 57 | 24 |
| 1 | 33.4 | 38 | 22 | 76 | 31 |
| 1.1/4 | 42.2 | 48 | 25 | 95 | 39 |
| 1.1/2 | 48.3 | 57 | 29 | 114 | 47 |
| 2 | 60.3 | 76 | 35 | 152 | 63 |
| 2.1/2 | 73 | 95 | 44 | 190 | 79 |
| 3 | 88.9 | 114 | 51 | 229 | 95 |
| 3.1/2 | 101.6 | 133 | 57 | 267 | 111 |
| 4 | 114.3 | 152 | 64 | 305 | 127 |
| 5 | 141.3 | 190 | 79 | 381 | 157 |
| 6 | 168.3 | 229 | 95 | 457 | 189 |
| 8 | 219.1 | 305 | 127 | 610 | 252 |
| 10 | 273 | 381 | 159 | 762 | 316 |
| 12 | 323.8 | 457 | 190 | 914 | 378 |
| 14 | 355.6 | 533 | 222 | 1067 | 441 |
| 16 | 406.4 | 610 | 254 | 1219 | 505 |
| 18 | 457 | 686 | 286 | 1372 | 568 |
| 20 | 508 | 762 | 318 | 1524 | 632 |
| 22 | 559 | 838 | 343 | 1676 | 694 |
| 24 | 610 | 914 | 381 | 1829 | 757 |
| 26 | 660 | 991 | 406 | 1981 | 821 |
| 28 | 711 | 1067 | 438 | 2134 | 883 |
| 30 | 762 | 1143 | 470 | 2286 | 946 |
| 32 | 813 | 1219 | 502 | 2438 | 1010 |
| 34 | 864 | 1295 | 533 | 2591 | 1073 |
| 36 | 914 | 1372 | 565 | 2743 | 1135 |
| 38 | 965 | 1448 | 600 | 2896 | 1200 |
| 40 | 1016 | 1524 | 632 | 3048 | 1264 |
| 42 | 1067 | 1600 | 660 | 3200 | 1326 |
| 44 | 1118 | 1676 | 695 | 3353 | 1389 |
| 46 | 1168 | 1753 | 727 | 3505 | 1453 |
| 48 | 1219 | 1829 | 759 | 3658 | 1516 |
