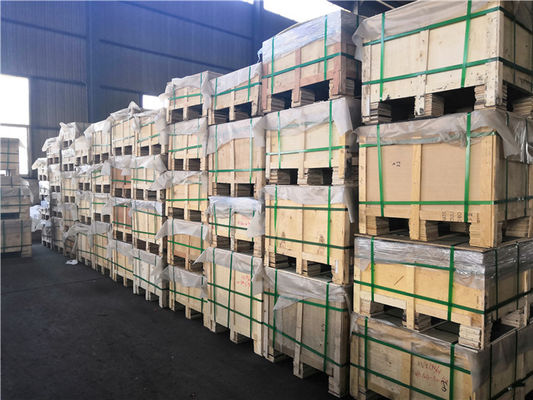

Packaging Details: PLYWOODEN AND PALLET
Delivery Time: 30DAYS
Payment Terms: L/C, D/A, T/T,
Supply Ability: 2000TONS ONE MONTH

10A Pipe Blind Flange Jis B2220 5k 10k 16k 20k 30k 40k Ss400

Description
PRODUCTION PROCESS: FORGED MATERIAL: CARBON STEEL SS400 , STAINLESS STEEL SS304 / SS316
FLANGE TYPE: SOP , BL PRESSURE: 5K 10K 16K 20K 30K 40K

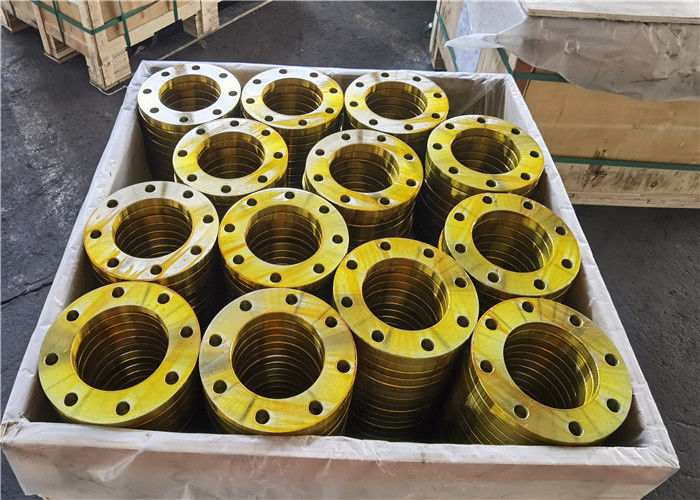

SIZE: 10A - 1500A COATING: YELLOW PAINT , ANTI-RUST OIL , GALVANIZED
High Light:

5k pipe blind flange

,

jis pipe blind flange

,

10k ss blind flange

JIS B2220 5K 10K 16K 20K 30K 40K BLIND FLANGE PLATE FLANGE SS400 FLANGE



For JIS B2220 flange,usually we production SOP and BL two types.

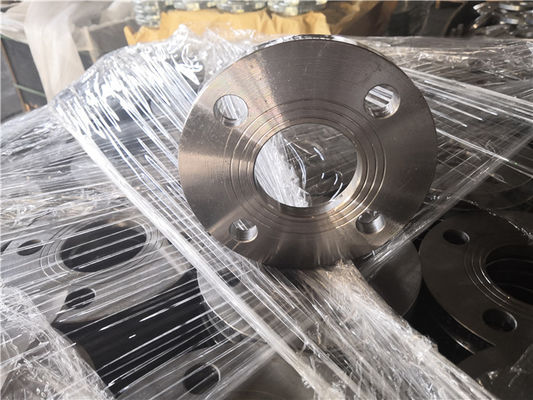

Slip On Plate (SOP) Flange is the most common flange, it 's wihtout a low or high hub. The pipe is welded onto inside of the bore of the flange.

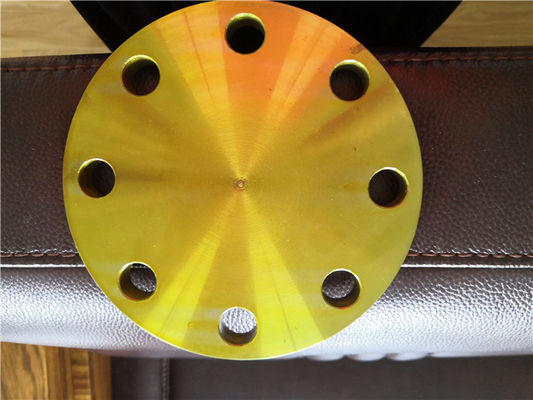

Blind Flange is a flange without a bore. This flange is used for easy access to lines in which one side of rear part of piping system is closed or reopened after closure and to interior of pipe.





Material: Carbon Steel SS400 and Stainless Steel SS304/304L  SS316/316L



Pressure :5K, 10K ,16K ,20K, 30K, 40K



Size Range:10A - 1500A



Coating: Yellow Paint , Anti Rust Oil , Hot Galvanized and Cold Galvanized







JIS B2220 Flange Dimensions



JIS B2220 5K Flange Dimensions

JIS B2220 Class 150 Flange Dimensions



Pipe Pipe Bo D t T G f r H X C Holes Bolt Dia.
inch mm
3/8 10 17.3 17.8





+0.5
-0

75







+1.0
-0

9









+1.0
-0















±1.0

42







±0.8

1













+2.0
-0













+2.0
-0

55







±0.5

4 12
1/2 15 21.7 22.2 80 9 48 1 60 4 12
3/4 20 27.2 27.7 85 10 52 1 65 4 12
1 25 34.0 34.5 95 10 62 1 75 4 12
1-1/4 32 42.7 43.2 115 12 72 2 90 4 15
1-1/2 40 48.6 49.1 120 12 78 2 95 4 15
2 50 60.5 61.1 130 14 88 2 105 4 15
2-1/2 65 76.3 77.1 155 14 112 2 130 4 15
3 80 89.1 90.0 180 14 125 2 145 4 19
3-1/2 90 101.6 102.6





+1.0
-0

190 14 135 2 155 4 19
4 100 114.3 115.4 200 16 145 2 165 8 19
5 125 139.8 141.2   235   16     180   2     200   8 19
6 150 165.2 166.6 265 18 210 2 230 8 19
7 175 190.7 192.1 300 18 235







±0.9

2 260





±0.6

8 23
8 200 216.3 218.0 320



+1.5
-0

20 255 2 280 8 23
9 225 241.8 243.7 345 20 280 2 305 12 23
10 250 267.4 269.5 385 22











+1.5
-0

32 320 2 5 286 290 345 12 23
12 300 318.5 321.0 430 22 34 365 3 5 338 342 390 12 23
14 350 355.6 358.1 480 24 36 405 3 5 378 382 435 12 25
16 400 406.4 409.0



+1.5
-0

540 24 36 465 3 5 432 436 495 16 25
18 450 457.2 460.0 605





+2.0
-0

24 40 525 3 5 495 500 555





±0.8

16 25
20 500 508.0 511.0 655 24 40 575 3 5 546 552 605 20 25
22 550 558.8 562.0 720 26 42 630 3 5 597 603 665 20 27
24 600 609.6 613.0



+2.0
-0

770 26 44 680





±1.0

3 5 648 654



+2.5
-0

715 20 27
26 650 660.4 664.0 825 26 48 735 3 5 702 +2.5
-0
708 770 24 27
28 700 711.2 715.0 875 26 48 785 3 5 751 758 820 24 27
30 750 762.0 766.0   945   28   52





±1.5

840   3 5 802   810   880   24 33
32 800 812.8 817.0 +2.5
-0
995 28 52 890 3 5 854 +3.0
-0
862 +3.0
-0
930 24 33
34 850 863.6 868.0 1045



+2.5
-0

28 54 940 3 5 904 912 980



±1.0

24 33
36 900 914.4 919.0 1095 30 56 990 3 5 956 964 1030 24 33
40 1000 1016.0 1021.0



+3.0
-0

1195 32 60 1090



±1.2

3 5 1058



+3.5
-0

1066



+3.5
-0

1130 28 33
44 1100 1117.6 1123.0 1305 32 1200 3 1240 28 33
48 1200 1219.2 1224.0 1420 34 1305 3 1350 32 33
54 1350 1371.6 1377.0 1575 +3.0
-0
34 1460 3 1505 ±1.5 32 33
60 1500 1524.0 1529.0 1730 36 1615 3 1660 36 33

JIS B2220 10K Flange Dimensions

JIS B2220 20K Flange Dimensions



Pipe Pipe Bo D t T G f r H X C Holes Bolt Dia.
inch mm
3/8 10 17.3 17.8





+0.5
-0

90







+1.0
-0

12







+1.0
-0













±1.0

48







±0.8

1











+1.5
-0











+1.5
-0

65







±0.5

4 15
1/2 15 21.7 22.2 95 12 52 1 70 4 15
3/4 20 27.2 27.7 100 14 58 1 75 4 15
1 25 34.0 34.5 125 14 70 1 90 4 19
1-1/4 32 42.7 43.2 135 16 80 2 100 4 19
1-1/2 40 48.6 49.1 140 16 85 2 105 4 19
2 50 60.5 61.1 155 16 100 2 120 4 19
2-1/2 65 76.3 77.1 175 18 120 2 140 4 19
3 80 89.1 90.0 185 18 130 2 150 8 19
3-1/2 90 101.6 102.6





+1.0
-0

195 18 140 2 160 8 19
4 100 114.3 115.4 210 18 155 2 175 8 19
5 125 139.8 141.2   250   20     185   2     210   8 23
6 150 165.2 166.6 280 22













+1.5
-0

215 2 240 8 23
7 175 190.7 192.1 305





+1.5
-0

22 32 240







±0.9

2 6 208 212 265





±0.6

12 23
8 200 216.3 218.0 330 22 32 265 2 6 234 238 290 12 23
9 225 241.8 243.7 350 22 34 285 2 6 260 264 310 12 23
10 250 267.4 269.5 400 24 36 325 2 6 288 292 355 12 25
12 300 318.5 321.0 445 24 38 370 3 6 340 346 400 16 25
14 350 355.6 358.1 490 26 42 415 3 6 380 386 445 16 25
16 400 406.4 409.0



+1.5
-0

560   28   44   475   3 6 436   442   510   16 27
18 450 457.2 460.0 620





+2.0
-0

30 48 530 3 6 496 +2.0
-0
502 +2.0
-0
565





±0.8

20 27
20 500 508.0 511.0 675 30 48 585 3 6 548 554 620 20 27
22 550 558.8 562.0 745 32 52







±1.5

640 3 6 604 610 680 20 33
24 600 609.6 613.0



+2.0
-0

795 32 52 690



±1.0

3 6 656



+2.5
-0

662



+2.5
-0

730 24 33
26 650 660.4 664.0 845 34 56 740 3 6 706 712 780 24 33
28 700 711.2 715.0 905 34 58 800 3 6 762 770 840 24 33
30 750 762.0 766.0 970 36 62 855 3 6 816 824 900 24 33
32 800 812.8 817.0 +2.5
-0
1020



+2.5
-0

36 64 905 3 6 868 +3.0
-0
876 +3.0
-0
950 28 33
34 850 863.6 868.0 1070 36 66 955 3 6 920 928 1000



±1.0

28 33
36 900 914.4 919.0 1120 38 70 1005



±1.2

3 6 971 979 1050 28 33
40 1000 1016.0 1021.0



+3.0
-0

1235   40   74   1110   3 6 1073



+3.5
-0

1081



+3.5
-0

1160   28 39
44 1100 1117.6 1123.0 1345 42 78 1220 3 8 1175 1185 1270 28 39
48 1200 1219.2 1224.0 1465 44 82 1325 3 8 1278 1290 1380



±1.5

32 39
54 1350 1371.6 1377.0 1630 +3.0
-0
48 88 1480 3 8 1432 1450 1540 36 45
60 1500 1524.0 1529.0 1795 50 90 1635 3 8 1585 1600 1700 40 45



JIS B2220 16K Flange Dimensions


JIS B2220 20K Flange Dimensions



Pipe Pipe Bo D t T G f r H X C Holes Bolt Dia.
inch mm
3/8 10 17.3 17.8





+0.5
-0

90







+1.0
-0

12







+1.0

16











±1.0

48







±0.8

1 4 26







+1.0
-0

28







+1.0
-0

65







±0.5

4 15
1/2 15 21.7 22.2 95 12 16 52 1 4 30 32 70 4 15
3/4 20 27.2 27.7 100 14 20 58 1 4 38 42 75 4 15
1 25 34.0 34.5 125 14 20 70 1 4 46 50 90 4 19
1-1/4 32 42.7 43.2 135 16 22 80 2 5 56 60 100 4 19
1-1/2 40 48.6 49.1 140 16 24 85 2 5 62 66 105 4 19
2 50 60.5 61.1 155 16 24 100 2 5 76 80 120 8 19
2-1/2 65 76.3 77.1 175 18 26 120 2 5 94 98 140 8 19
3 80 89.1 90.0   200   20   28   135   2 6 108   112   160   8 23
3-1/2 90 101.6 102.6





+1.0
-0

210 20 30 145 2 6 120 124 170 8 23
4 100 114.3 115.4 225 22









+1.5
-0

34 160 2 6 134 138 185 8 23
5 125 139.8 141.2 270 22 34 195 2 6 164 170 225 8 25
6 150 165.2 166.6 305





+1.5
-0

24 38 230







±0.9

2 6 196 202 260





±0.6

12 25
7 175 190.7 192.1 325 26 40 250 2 6 216 222



+1.5
-0

280 12 25
8 200 216.3 218.0 350 26 40 275 2 6 244



+1.5
-0

252 305 12 25
9 225 241.8 243.7 385 26 40 325 2 6 266 272 335 12 27
10 250 267.4 269.5 430 28 44 345 2 6 304 312 380 12 27
12 300 318.5 321.0 480 30 48 395 3 8 354 364 430 16 27
14 350 355.6 358.1   540   34   52







±1.5

440   3 8 398   408   480   16 33
16 400 406.4 409.0



+1.5
-0

605





+2.0
-0

38 60 495 3 10 446 456



+2.0
-0

540 16 33
18 450 457.2 460.0 675 40 64 560 3 10 504 +2.0
-0
514 605





±0.8

20 33
20 500 508.0 511.0 730 42 68 615 3 10 558 568 660 20 33
22 550 558.8 562.0 795 44 70 670





±1.0

3 10 612 622 720 20 39
24 600 609.6 613.0



+2.0
-0

845 46 74 720 3 10 666



+2.5
-0

676



+2.5
-0

770 24 39
26 650 660.4 664.0 895 48 77 770 5 10 704 726 820 24 39
28 700 711.2 715.0 960 50 80 820 5 10 754 776 875 24 42
30 750 762.0 766.0 1020



+2.5
-0

52







+2.0
-0

83 880 5 10 806 832 935 24 42
32 800 812.8 817.0 +2.5
-0
1085 54 86 930 5 10 865 +3.0
-0
885 +3.0
-0
990



±1.0

24 48
34 850 863.6 868.0 1135 56 89 980 5 10 916 936 1040 24 48
36 900 914.4 919.0 1185 58 93 1030





±1.2

5 10 968 986 1090 28 48
40 1000 1016.0 1021.0





+3.0
-0

1320   62   99   1140   5 12 1070





+3.5
-0

1098





+3.5
-0

1210   28 56
44 1100 1117.6 1123.0 1420 66 105



±2.0

1240 5 12 1180 1200 1310 32 56
48 1200 1219.2 1225.0 1530



+3.0
-0

70 112 1350 5 12 1282 1302 1420



±1.5

32 56
52 1300 1320.8 1326.0 1645 74 1450 5 1530 32 62
54 1350 1371.6 1377.0 1700 76 1510 5 1590 32 62
56 1400 1422.4 1428.0 1755 78 1560 5 1640 36 62
60 1500 1524.0 1529.0 1865 80 1670 5 1750 36 62



JIS B2220 20K Flange Dimensions

JIS B2220 20K Flange Dimensions



Pipe Pipe Bo D t T G f r H X C Holes Bolt Dia.
inch mm
3/8 10 17.3 17.8





+0.5
-0

90







+1.0
-0

14





+1.0

20









±1.0

48







±0.8

1 4 30







+1.0
-0

32







+1.0
-0

65







±0.5

4 15
1/2 15 21.7 22.2 95 14 20 52 1 4 34 36 70 4 15
3/4 20 27.2 27.7 100 16 22 58 1 4 40 42 75 4 15
1 25 34.0 34.5 125 16 24 70 1 4 48 50 90 4 19
1-1/4 32 42.7 43.2 135 18 26 80 2 5 56 60 100 4 19
1-1/2 40 48.6 49.1 140 18 26 85 2 5 62 66 105 4 19
2 50 60.5 61.1 155 18 26 100 2 5 76 80 120 8 19
2-1/2 65 76.3 77.1 175 20 30 120 2 5 100 104 140 8 19
3 80 89.1 90.0   200   22







+1.5
-0

34   135   2 6 113   117   160   8 23
3-1/2 90 101.6 102.6





+1.0
-0

210 24 36 145 2 6 126 130 170 8 23
4 100 114.3 115.4 225 24 36 160 2 6 138 142 185 8 23
5 125 139.8 141.2 270 26 40 195 2 6 166 172 225 8 25
6 150 165.2 166.6 305





+1.5
-0

28 42 230







±0.9

2 6 196 202 260





±0.6

12 25
7 175 190.7 192.1 325 30 46 250 2 6 218 226



+1.5
-0

280 12 25
8 200 216.3 218.0 350 30 46 275 2 6 244



+1.5
-0

252 305 12 25
9 225 241.8 243.7 385 32 48 300 2 6 266 274 335 12 27
10 250 267.4 269.5 430 34 52 ±1.5 345 2 6 304 312 380 12 27
12 300 318.5 321.0 480 36 56 395 3 8 354 364 430 16 27
14 350 355.6 358.1   540   40   62   440   3 8 398   408   480   16 33
16 400 406.4 409.0



+1.5
-0

605





+2.0
-0

46 70 495 3 10 446 456



+2.0
-0

540 16 33
18 450 457.2 460.0 675 48 78 560 3 10 504 +2.0
-0
514 605



±0.8

20 33
20 500 508.0 511.0 730 50 84 615 3 10 558 568 660 20 33
22 550 558.8 562.0 795 52





+2.0
-0

90 670



±1.0

3 10 612 622 720 20 39
24 600 609.6 613.0



+2.0
-0

845 54 96 720 3 10 666





+2.5
-0

676





+2.5
-0

770 24 39
26 650 660.4 664.0 945 60 - 790 5 - - - 850 24 48
28 700 711.2 715.0 995 64 - 840 5 - - - 900 24 48
30 750 762.0 766.0 1080



+2.5
-0

68 - 900 5 - - - 970



±1.0

24 56
32 800 812.8 817.0 +2.5
-0
1140 72 - 960 5 - - - 1030 24 56
34 850 863.6 868.0 1200 74 - 1020 ±1.2 5 - - - 1090 24 56
36 900 914.4 919.0 1250 76 - 1070 5 - - - 1140 28 56





JIS B2220 30K Flange Dimensions

JIS B2220 30K Flange Dimensions



Pipe Pipe D t f g C Holes h Plate,Slip-On Weld Neck Slip-On Type A,B,C
inch Mm do T a b r d d a b T R r S1 m S2 n a l
3/8 10 17.3 110 16 1 52 75 4 19 17.8 24 30 34 4 - - - - - - - 27 4 27 4 - -
1/2 15 21.7 115 18 1 55 80 4 19 22.2 26 36 40 5 - 16.1 21.7 40 45 20 6 31 4 40 5 - -
3/4 20 27.2 120 18 1 60 85 4 19 27.7 28 42 46 5 - 21.4 27.2 44 45 20 6 37 5 44 5 - -
1 25 34.0 130 20 1 70 95 4 19 34.5 30 50 54 5 - 27.2 34.0 52 48 20 6 44 6 52 5 - -
1-1/4 32 42.7 140 22 2 80 105 4 19 43.2 32 60 64 6 - 35.5 42.7 62 52 30 6 52 6 60 5 - -
1-1/2 40 48.6 160 22 2 90 120 4 23 49.1 34 66 70 6 - 41.2 48.6 70 54 30 6 58 6 66 5 - -
2 50 60.5 165 22 2 105 130 8 19 61.1 36 82 86 6 - 52.7 60.5 84 57 30 8 70 6.5 78 5 - -
2-1/2 65 76.3 200 26 2 130 160 8 23 77.1 40 102 106 8 65.9 65.9 76.3 104 69 30 8 96 9.5 - - 20° 6
3 80 89.1 210 28 2 140 170 8 23 90.0 44 115 121 8 78.1 78.1 89.1 118 73 30 8 109 9.5 - - 20° 6
3-1/2 90 101.6 230 30 2 150 185 8 25 102.6 46 128 134 8 90.2 90.2 101.6 130 74 30 8 122 9.5 - - 20° 6
4 100 114.3 240 32 2 160 195 8 25 115.4 48 141 147 8 102.3 102.3 114.3 142 76 30 8 135 9.5 - - 20° 6
5 125 139.8 275 36 2 195 230 8 25 141.2 54 166 172 8 126.6 126.6 139.8 172 86 50 10 160 9.5 - - 20° 6
6 150 165.2 325 38 2 235 275 12 27 166.6 58 196 204 8 151.0 151.0 165.2 202 95 50 10 186 9.5 - - 20° 6
8 200 216.3 370 42 2 280 320 12 27 218.0 64 248 256 8 199.9 199.9 216.3 254 102 50 10 237 9.5 - - 20° 6
10 250 267.4 450 48 2 345 390 12 33 269.5 72 306 314 10 248.8 248.8 267.4 312 118 50 12 290 10 - - 20° 6
12 300 318.5 515 52 3 405 450 16 33 321.0 78 360 370 10 297.9 297.9 318.5 366 127 50 15 345 12 - - 30° 6
14 350 355.6 560 54 3 450 495 16 33 358.1 84 402 412 12 333.4 333.4 355.6 406 134 80 15 383 13 - - 30° 6
16 400 406.4 630 60 3 510 560 16 39 409.0 92 456 468 15 381.0 381.0 406.4 462 149 80 20 435 14 - - 30° 7



JIS B2220 40K Flange Dimensions

JIS B2220 40K Flange Dimensions

Pipe Pipe D do t f g c Holes h Weld Neck
inch mm d a b T
3/8 10 17.3 110 17.8 18 1 52 75 4 19 - 17.3 38 53
1/2 15 21.7 115 22.2 20 1 55 80 4 19 15.8 21.7 40 53
3/4 20 27.2 120 27.7 20 1 60 85 4 19 21.1 27.2 45 58
1 25 34.0 130 34.5 22 1 70 95 4 19 26.8 34.0 54 63
1-1/4 32 42.7 140 43.2 24 2 80 105 4 19 35.1 42.7 62 69
1-1/2 40 48.6 160 49.1 24 2 90 120 4 23 40.7 48.6 72 72
2 50 60.5 165 61.1 26 2 105 130 8 19 52.2 60.5 88 75
2-1/2 65 76.3 200 77.1 30 2 130 160 8 23 65.3 76.3 108 81
3 80 89.1 210 90.0 32 2 140 170 8 23 76.4 89.1 119 85
3-1/2 90 101.6 230 102.6 34 2 150 185 8 25 89.5 101.6 130 88
4 100 114.3 250 115.4 36 2 165 205 8 25 101.5 114.3 146 104
5 125 139.8 300 141.2 40 2 200 250 8 27 - - - -
6 150 165.2 355 166.6 44 2 240 295 12 33 150.0 165.2 215 120
8 200 216.3 405 218.0 50 2 290 345 12 33 198.7 216.3 270 135
10 250 267.4 475 269.5 56 2 355 410 12 33 247.5 267.4 333 154
12 300 318.5 540 321.0 60 2 410 470 16 39 296.4 318.5 400 159
14 350 355.6 585 358.1 64 3 455 515 16 39 331.8 355.6 432 168
16 400 406.4 645 409.0 70 3 515 570 16 39 379.1 406.4 466 181
