Product Details:
|
| Material: | A105 | Color: | Black And Yellow Paint |
|---|---|---|---|
| Pressure: | Class150-2500 | Connection: | Welding, Threaded |
| High Light: | a105 socket weld raised face flange,sch40 socket weld raised face flange,forged rf socket flange welding |
||

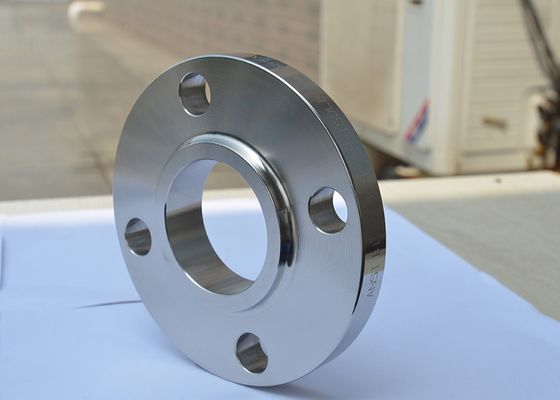

ANSI B16.5& B16.47 SLIP ON FLANGE CS A105 150LBS 300lbs --2500LBS WNRF,SORF,BLIND,SWRF,LJFF YELLOW AND BLACK PAINT
| CLASS 150 | |||||||
| APPROXIMATE WEIGHT | |||||||
| SIZE | welding neck | Slip-on and Threaded | Lap Joint | Blind | Socket welding | ||
| SCH40 | SCH80 | SCH160 | |||||
| 1/2" | 0.60 | 0.60 | 0.60 | 0.41 | 0.40 | 0.43 | 0.41 |
| 3/4" | 0.90 | 0.90 | 0.90 | 0.58 | 0.58 | 0.63 | 0.58 |
| 1" | 1.14 | 1.18 | 1.24 | 0.80 | 0.80 | 0.89 | 0.80 |
| 1-1/4" | 1.41 | 1.48 | 1.54 | 1.07 | 1.07 | 1.20 | 1.07 |
| 1-1/2" | 1.81 | 1.90 | 2.01 | 1.37 | 1.37 | 1.58 | 1.37 |
| 2" | 2.72 | 2.84 | 3.07 | 2.21 | 2.21 | 2.39 | 2.21 |
| 2 1-2" | 4.45 | 4.70 | 4.98 | 3.32 | 3.34 | 4.07 | 3.32 |
| 3" | 5.22 | 5.54 | 5.90 | 3.83 | 3.83 | 4.92 | 3.83 |
| 3-1/2" | 6.40 | 6.76 | 7.46 | 5.20 | 5.20 | 5.90 | 5.20 |
| 4" | 7.49 | 7.96 | 8.90 | 5.40 | 5.40 | 7.13 | 5.90 |
| 5" | 9.53 | 10.54 | 12.04 | 6.26 | 6.26 | 8.72 | 6.80 |
| 6" | 11.80 | 13.12 | 15.11 | 7.50 | 7.50 | 11.40 | 8.60 |
| 8" | 19.10 | 21.34 | 25.84 | 12.30 | 12.40 | 20.10 | 13.60 |
| 10" | 24.50 | 28.85 | 35.74 | 17.10 | 17.10 | 28.70 | 19.50 |
| 12" | 39.90 | 46.80 | 58.01 | 26.50 | 26.50 | 43.80 | 29.10 |
| 14" | 51.80 | 62.58 | 77.60 | 34.50 | 38.50 | 58.20 | 40.90 |
| 16" | 64.50 | 79.42 | 98.82 | 45.50 | 51.20 | 77.40 | 44.50 |
| 18" | 74.90 | 97.63 | 124.32 | 48.50 | 55.70 | 94.00 | 59.00 |
| 20" | 89.40 | 120.44 | 154.18 | 61.80 | 70.20 | 122.70 | 74.90 |
| 24" | 121.70 | 169.37 | 223.92 | 87.70 | 98.70 | 187.00 | 99.90 |
Material
1) Carbon Steel A105 & Stainless Steel SS304, SS316, SS316L
Surface Antirust:
Surface antirust 1: Antirust light oil
Surface antirust 2: Black paint coating
Surface antirust 3: Yellow paint coating
Surface antirust 4: Galnavized (Hot Dipped Galvanized or Electro Galvanized)
Connect Face:
Surface 1: Stock finish
Surface 2: Sprial serrated
Surface 3: Two or three grooves (Water Lines)
Surface 4: Smooth finish
Terms
1) Payment: Irrevocable L/C at sight or T/T, D/P
2) Delivery term FOB China Port or CIF Buyer’s Port
3) Packing: Plywood Pallet/case
