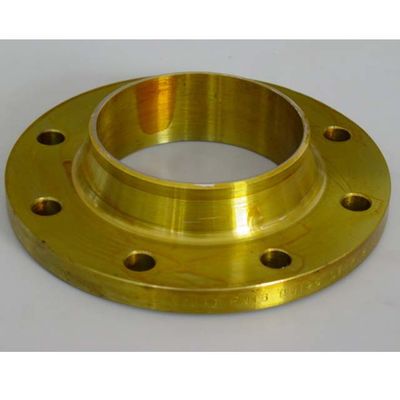

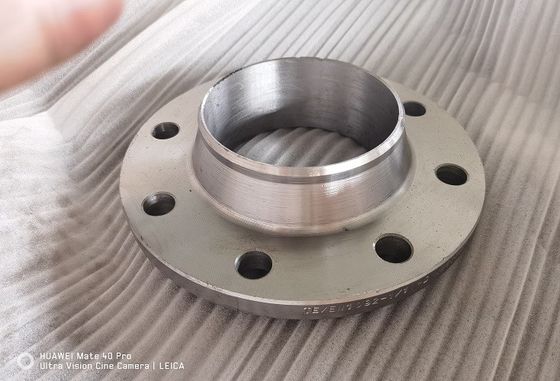

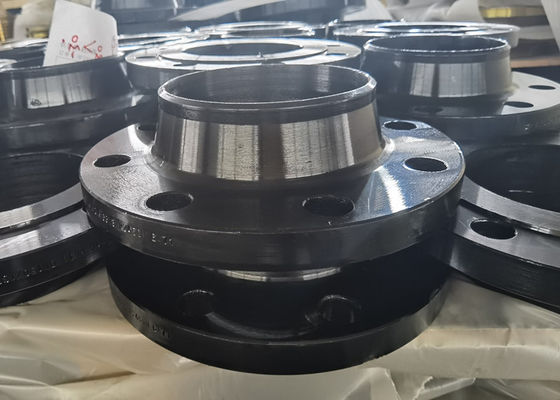

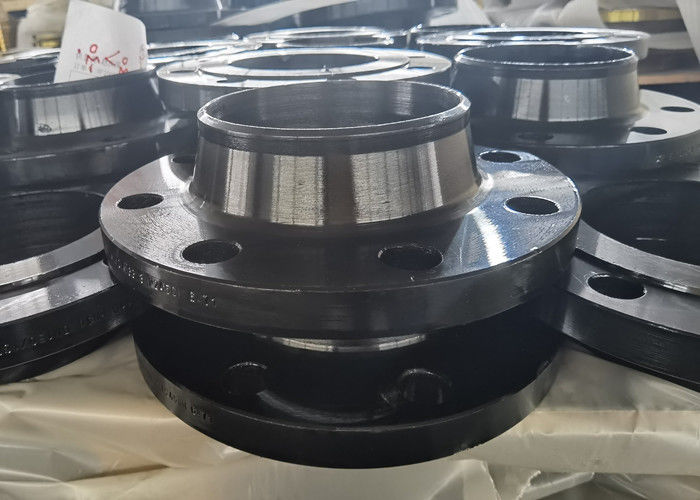

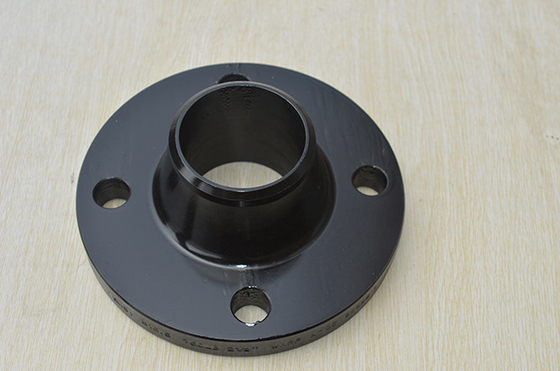

Ansi B16.5 Class 150 Flange Welding Neck Sch40 Pipe A105

Ansi B16.5 Class 150 Flange Welding Neck Sch40 Pipe A105
Ansi B16.5 Class 150 Flange Welding Neck Sch40 Pipe A105 Ansi B16.5 Class 150 Flange Welding Neck Sch40 Pipe A105 Ansi B16.5 Class 150 Flange Welding Neck Sch40 Pipe A105 Ansi B16.5 Class 150 Flange Welding Neck Sch40 Pipe A105

Large Image :  Ansi B16.5 Class 150 Flange Welding Neck Sch40 Pipe A105

Product Details:
Place of Origin: CHINA
Brand Name: XF
Certification: TUV , ISO9001
Model Number: ½" (15 NB) to 48" (1200NB) in 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: --
Packaging Details: No Fumigate or Fumigate Plywood/Wood Pallet or Case
Delivery Time: 30 DAYS -40DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 2000-3000 Tons per month
Contact Now

Ansi B16.5 Class 150 Flange Welding Neck Sch40 Pipe A105

Description
Carbon Steel: ,S235JRG2,P245GH ,P250GH,A105,SS400,SF440 Stainless Steel: F304 F304L F316 F316L
Size: 1/2" NB TO 48"NB Pressure: 150 LBS, 300 LBS, 600 LBS, 900 LBS,1500LBS,2500LBS
Surface Treatment: Anti-rust Oil, Transparent/Yellow/Black Anti-rust Paint,Zinc,Hot Dipped Galvanized Packing: No Fumigate Or Fumigate Plywood/Wood Pallet Or Case
Usage: Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects Etc.
High Light:

sch40 flange welding neck

,

a105 flange welding neck

,

ansi wnrf flange

ANSI B16.5 CLASS 150 FLANGE WELDING NECK SCH40 STEEL PIPE A105 CARBON STEEL AND SS304 STAINLESS STEEL FORGED FLANGE



ASME/ANSI B16.5 provides

  • weld neck
  • slip-on
  • socket weld
  • threaded
  • lap joint
  • blind

flange dimensions for pipes ranging 1/2" to 24" - in classes ranging 150 to 2500. Note that the ratings are in steps with terminology like ASME class xxx or API xxxx.

In general you need to specify the schedule (thickness) of the connected pipe when it is being butt welded to the flange. Socket welded and threaded connections is unaffected by wall thickness and should only require the OD.

Nominal Pipe Size
NPS
(inches)		 Class 150
Diameter of
Flange
(inches)		 No.
of
Bolts		 Diameter of
Bolts
(inches)		 Diameter of
Bolt Holes
(inches)		 Bolt
Circle
(inches)
1/4 3-3/8 4 1/2 0.62 2-1/4
1/2 3-1/2 4 1/2 0.62 2-3/8
3/4 3-7/8 4 1/2 0.62 2-3/4
1 4-1/4 4 1/2 0.62 3-1/8
1-1/4 4-5/8 4 1/2 0.62 3-1/2
1-1/2 5 4 1/2 0.62 3-7/8
2 6 4 5/8 0.75 4-3/4
2-1/2 7 4 5/8 0.75 5-1/2
3 7-1/2 4 5/8 0.75 6
3-1/2 8-1/2 8 5/8 0.75 7
4 9 8 5/8 0.75 7-1/2
5 10 8 3/4 0.88 8-1/2
6 11 8 3/4 0.88 9-1/2
8 13-1/2 8 3/4 0.88 11-3/4
10 16 12 7/8 1 14-1/4
12 19 12 7/8 1 17
14 21 12 1 1.12 18-3/4
16 23-1/2 16 1 1.12 21-1/4
18 25 16 1-1/8 1.25 22-3/4
20 27-1/2 20 1-1/8 1.25 25
24 32 20 1-1/4 1.38 29-1/2
  • 1 inch = 25.4 mm
Nominal Pipe Size
NPS
(inches)		 Class 300
Diameter of
Flange
(inches)		 No.
of
Bolts		 Diameter of
Bolts
(inches)		 Diameter of
Bolt Holes
(inches)		 Bolt
Circle
(inches)
1/4 3-3/8 4 1/2 0.62 2-1/4
1/2 3-3/4 4 1/2 0.62 2-5/8
3/4 4-5/8 4 5/8 0.75 3-1/4
1 4-7/8 4 5/8 0.75 3-1/2
1-1/4 5-1/4 4 5/8 0.75 3-7/8
1-1/2 6-1/8 4 3/4 0.88 4-1/2
2 6-1/2 8 5/8 0.75 5
2-1/2 7-1/2 8 3/4 0.88 5-7/8
3 8-1/4 8 3/4 0.88 6-5/8
3-1/2 9 8 3/4 0.88 7-1/4
4 10 8 3/4 0.88 7-7/8
5 11 8 3/4 0.88 9-1/4
6 12-1/2 12 3/4 0.88 10-5/8
8 15 12 7/8 1 13
10 17-1/2 16 1 1.12 15-1/4
12 20-1/2 16 1-1/8 1.25 17-3/4
14 23 20 1-1/8 1.25 20-1/4
16 25-1/2 20 1-1/4 1.38 22-1/2
18 28 24 1-1/4 1.38 24-3/4
20 30-1/2 24 1-1/4 1.38 27
24 36 24 1-1/2 1.62 32
Nominal Pipe Size
NPS
(inches)		 Class 400
Diameter of
Flange
(inches)		 No.
of
Bolts		 Diameter of
Bolts
(inches)		 Diameter of
Bolt Holes
(inches)		 Bolt
Circle
(inches)
1/4 3-3/8 4 1/2 0.62 2-1/4
1/2 3-3/4 4 1/2 0.62 2-5/8
3/4 4-5/8 4 5/8 0.75 3-1/4
1 4-7/8 4 5/8 0.75 3-1/2
1-1/4 5-1/4 4 5/8 0.75 3-7/8
1-1/2 6-1/8 4 3/4 0.88 4-1/2
2 6-1/2 8 5/8 0.75 5
2-1/2 7-1/2 8 3/4 0.88 5-7/8
3 8-1/4 8 3/4 0.88 6-5/8
3-1/2 9 8 7/8 1 7-1/4
4 10 8 7/8 1 7-7/8
5 11 8 7/8 1 9-1/4
6 12-1/2 12 7/8 1 10-5/8
8 15 12 1 1.12 13
10 17-1/2 16 1-1/8 1.25 15-1/4
12 20-1/2 16 1-1/4 1.38 17-3/4
14 23 20 1-1/4 1.38 20-1/4
16 25-1/2 20 1-3/8 1.5 22-1/2
18 28 24 1-3/8 1.5 24-3/4
20 30-1/2 24 1-1/2 1.62 27
24 36 24 1-3/4 1.88 32
Nominal Pipe Size
NPS
(inches)		 Class 600
Diameter of
Flange
(inches)		 No.
of
Bolts		 Diameter of
Bolts
(inches)		 Diameter of
Bolt Holes
(inches)		 Bolt
Circle
(inches)
1/4 3-3/8 4 1/2 0.62 2-1/4
1/2 3-3/4 4 1/2 0.62 2-5/8
3/4 4-5/8 4 5/8 0.75 3-1/4
1 4-7/8 4 5/8 0.75 3-1/2
1-1/4 5-1/4 4 5/8 0.75 3-7/8
1-1/2 6-1/8 4 3/4 0.88 4-1/2
2 6-1/2 8 5/8 0.75 5
2-1/2 7-1/2 8 3/4 0.88 5-7/8
3 8-1/4 8 3/4 0.88 6-5/8
3-1/2 9 8 7/8 1 7-1/4
4 10-3/4 8 7/8 1 8-1/2
5 13 8 1 1.12 10-1/2
6 14 12 1 1.12 11-1/2
8 16-1/2 12 1-1/8 1.25 13-3/4
10 20 16 1-1/4 1.38 17
12 22 20 1-1/4 1.38 19-1/4
14 23-3/4 20 1-3/8 1.5 20-3/4
16 27 20 1-1/2 1.62 23-3/4
18 29-1/4 20 1-5/8 1.75 25-3/4
20 32 24 1-5/8 1.75 28-1/2
24 37 24 1-7/8 2 33
Nominal Pipe Size
NPS
(inches)		 Class 900
Diameter of
Flange
(inches)		 No.
of
Bolts		 Diameter of
Bolts
(inches)		 Diameter of
Bolt Holes
(inches)		 Bolt
Circle
(inches)
1/2 4-3/4 4 3/4 0.88 3-1/4
3/4 5-1/8 4 3/4 0.88 3-1/2
1 5-7/8 4 7/8 1 4
1-1/4 6-1/4 4 7/8 1 4-3/8
1-1/2 7 4 1 1.12 4-7/8
2 8-1/2 8 7/8 1 6-1/2
2-1/2 9-5/8 8 1 1.12 7-1/2
3 9-1/2 8 7/8 1 7-1/2
4 11-1/2 8 1-1/8 1.25 9-1/4
5 13-3/4 8 1-1/4 1.38 11
6 15 12 1-1/8 1.25 12-1/2
8 18-1/2 12 1-3/8 1.5 15-1/2
10 21-1/2 16 1-3/8 1.5 18-1/2
12 24 20 1-3/8 1.5 21
14 25-1/4 20 1-1/2 1.62 22
16 27-3/4 20 1-5/8 1.75 24-1/2
18 31 20 1-7/8 2 27
20 33-3/4 20 2 2.12 29-1/2
24 41 20 2-1/2 2.62 35-1/2
Nominal Pipe Size
NPS
(inches)		 Class 1500
Diameter of
Flange
(inches)		 No.
of
Bolts		 Diameter of
Bolts
(inches)		 Diameter of
Bolt Holes
(inches)		 Bolt
Circle
(inches)
1/2 4-3/4 4 3/4 0.88 3-1/4
3/4 5-1/8 4 3/4 0.88 3-1/2
1 5-7/8 4 7/8 1 4
1-1/4 6-1/4 4 7/8 1 4-3/8
1-1/2 7 4 1 1.12 4-7/8
2 8-1/2 8 7/8 1 6-1/2
2-1/2 9-5/8 8 1 1.12 7-1/2
3 10-1/2 8 1-1/8 1.25 8
4 12-1/4 8 1-1/4 1.38 9-1/2
5 14-3/4 8 1-1/2 1.62 11-1/2
6 15-1/2 12 1-3/8 1.5 12-1/2
8 19 12 1-5/8 1.75 15-1/2
10 23 12 1-7/8 2 19
12 26-1/2 16 2 2.12 22-1/2
14 29-1/2 16 2-1/4 2.38 25
16 32-1/2 16 2-1/2 2.62 27-3/4
18 36 16 2-3/4 2.88 30-1/2
20 38-3/4 16 3 3.12 32-3/4
24 46 16 3-1/2 3.62 39
Nominal Pipe Size
NPS
(inches)		 Class 2500
Diameter of
Flange
(inches)		 No.
of
Bolts		 Diameter of
Bolts
(inches)		 Diameter of
Bolt Holes
(inches)		 Bolt
Circle
(inches)
1/2 5-1/4 4 3/4 0.88 3-1/2
3/4 5-1/2 4 3/4 0.88 3-3/4
1 6-1/4 4 7/8 1 4-1/4
1-1/4 7-1/4 4 1 1.12 5-1/8
1-1/2 8 4 1-1/8 1.25 5-3/4
2 9-1/4 8 1 1.12 6-3/4
2-1/2 10-1/2 8 1-1/8 1.25 7-3/4
3 12 8 1-1/4 1.38 9
4 14 8 1-1/2 1.62 10-3/4
5 16-1/2 8 1-3/4 1.88 12-3/4
6 19 8 2 2.12 14-1/2
8 21-3/4 12 2 2.12 17-1/4
10 26-1/2 12 2-1/2 2.62 21-1/4
12 30 12 2-3/4 2.88 24-3/8



Ansi B16.5 Class 150 Flange Welding Neck Sch40 Pipe A105 0Ansi B16.5 Class 150 Flange Welding Neck Sch40 Pipe A105 1

Ansi B16.5 Class 150 Flange Welding Neck Sch40 Pipe A105 2
