Product Details:
|
| Size: | 1/2"-72" | Material: | ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L |
|---|---|---|---|
| Standard: | JIS B2220,DIN, ANSI B16.5, BS4504 | Package: | Ply Wooden Cases,pallet |
| High Light: | asme b16.47 stainless steel pipe flange,ss316 stainless steel pipe flange,ansi b16.5 stainless steel 304 flanges |
||
Stainless steel 304L flanges will be packed by individual protective sleeve and packing box for export or as customer's request, customer can arrange the shipping forwarder by themselves if you want to establish a long term business with China factory for stainless steel 304L flanges, contact us.
| CLASS | Nominal Pipe Size | Slip On | Threaded | Socket Weld | Lap Joint | Blind | Weld Neck |
|---|---|---|---|---|---|---|---|
| 150 lb | ½ | 1 | 1 | 2 | 1 | 2 | 2 |
| ¾ | 2 | 2 | 2 | 2 | 2 | 2 | |
| 1 | 2 | 2 | 2 | 2 | 2 | 3 | |
| 1¼ | 3 | 3 | 3 | 3 | 3 | 3 | |
| 1½ | 3 | 3 | 3 | 3 | 4 | 4 | |
| 2 | 5 | 5 | 5 | 5 | 5 | 6 | |
| 2½ | 8 | 8 | 8 | 8 | 7 | 10 | |
| 3 | 9 | 9 | 9 | 9 | 9 | 11.5 | |
| 3½ | 11 | 12 | 11 | 11 | 13 | 12 | |
| 4 | 13 | 13 | 13 | 13 | 17 | 16.5 | |
| 5 | 15 | 15 | 15 | 15 | 20 | 21 | |
| 6 | 19 | 19 | 19 | 19 | 27 | 26 | |
| 8 | 30 | 30 | 30 | 30 | 47 | 42 | |
| 10 | 43 | 43 | 43 | 43 | 70 | 54 | |
| 12 | 64 | 64 | 64 | 64 | 123 | 88 | |
| 14 | 90 | 90 | 90 | 105 | 140 | 114 | |
| 16 | 106 | 98 | 98 | 140 | 180 | 140 | |
| 18 | 130 | 130 | 130 | 160 | 220 | 165 | |
| 20 | 165 | 165 | 165 | 195 | 285 | 197 | |
| 22 | 185 | 185 | 185 | 245 | 355 | 225 | |
| 24 | 220 | 220 | 220 | 275 | 430 | 268 | |
| CLASS | Nominal Pipe Size | Slip On | Threaded | Socket Weld | Lap Joint | Blind | Weld Neck |
| 300 lb | ½ | 2 | 2 | 3 | 2 | 2 | 2 |
| ¾ | 3 | 3 | 3 | 3 | 3 | 3 | |
| 1 | 3 | 3 | 3 | 3 | 4 | 4 | |
| 1¼ | 4.5 | 4.5 | 4 | 4.5 | 6 | 5 | |
| 1½ | 6.5 | 6.5 | 6 | 6.5 | 7 | 7 | |
| 2 | 7 | 7 | 7 | 7 | 8 | 9 | |
| 2½ | 10 | 10 | 10 | 10 | 12 | 12 | |
| 3 | 13 | 14 | 13 | 14.5 | 16 | 18 | |
| 3½ | 17 | 17 | 17 | 17 | 21 | 20 | |
| 4 | 23.5 | 24 | 22 | 24 | 28 | 26.5 | |
| 5 | 29 | 31 | 28 | 28 | 37 | 36 | |
| 6 | 39 | 39 | 39 | 39 | 50 | 45 | |
| 8 | 58 | 58 | 58 | 58 | 81 | 69 | |
| 10 | 81 | 81 | 81 | 91 | 124 | 100 | |
| 12 | 115 | 115 | 115 | 140 | 185 | 142 | |
| 14 | 165 | 165 | 165 | 190 | 250 | 206 | |
| 16 | 210 | 220 | 190 | 234 | 315 | 250 | |
| 18 | 253 | 280 | 250 | 305 | 414 | 320 | |
| 20 | 315 | 325 | 315 | 375 | 515 | 400 | |
| 22 | 370 | 370 | 370 | 435 | 640 | 465 | |
| 24 | 490 | 490 | 475 |

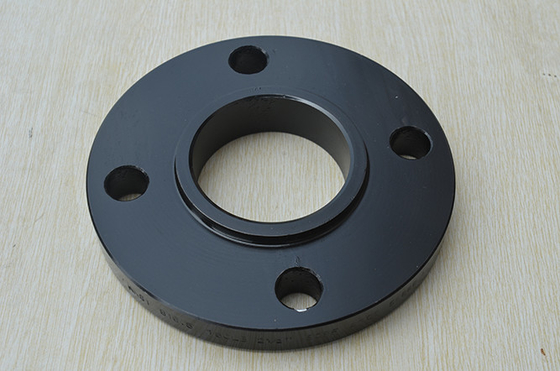

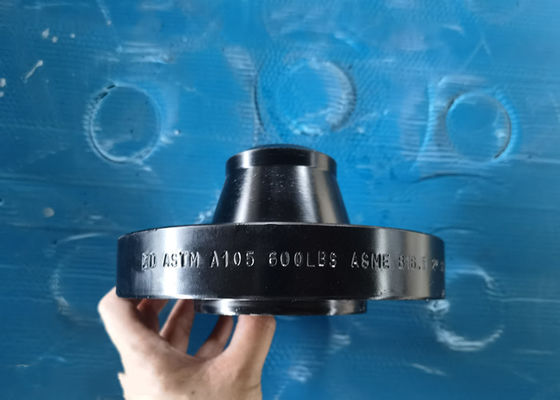

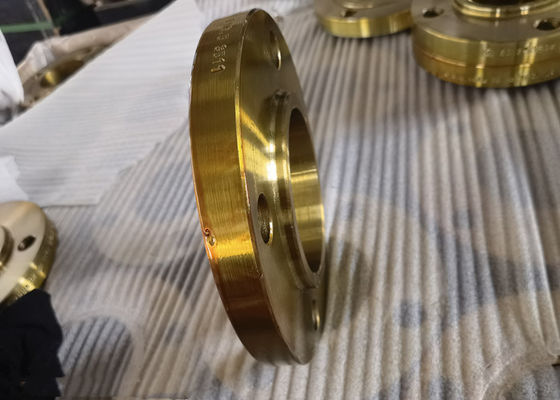

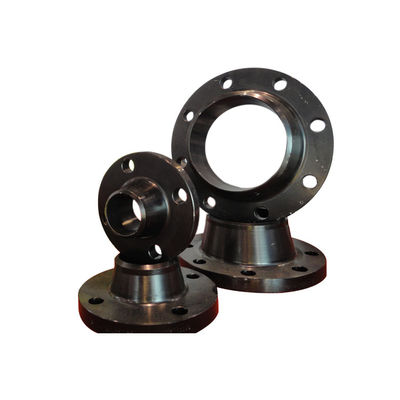

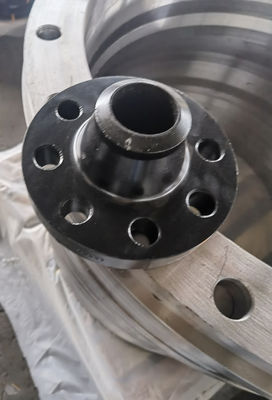

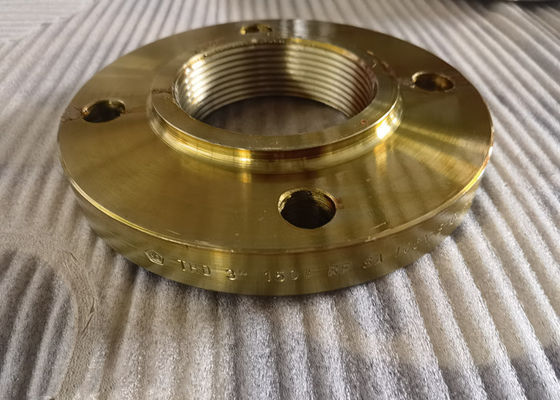

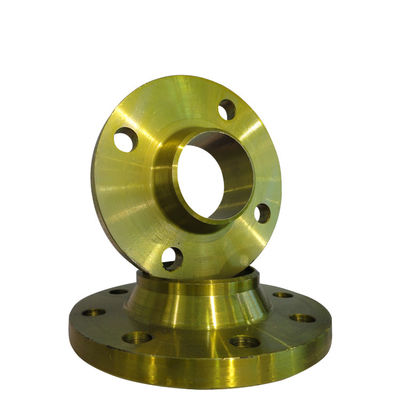

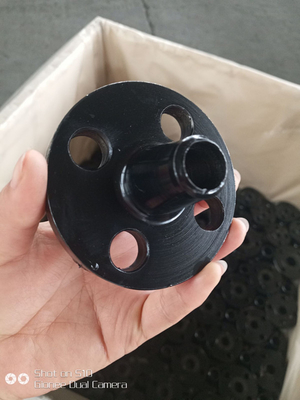

Products Show:
Stainless Steel 304L Flanges are the parts that connect two pipe ends, flange connection is defined by the flange, gasket and bolt three are connected as a group of the combined sealing structure of the detachable connection. The gasket is added between the two flanges and then fastened by bolts.
Workshop:
Different pressure flange, thickness is different, and the bolts they use are different, when pump and valve connect with pipe, the parts of the equipment are also made of the corresponding flange shape, also known as flange connection, usually closured bolted connection parts are also known as flanges, such as the connection of ventilation pipe, this kind of parts can be called "flange type part", but this connection is only part of a device, such as the connection between flange and water pump, it's not inapposite to call water pump as flange type parts, but relative small valve, it can be called as flange type parts.
Quality Assurance:
Regarding product quality, our factory is very professional no matter from testing tools, testing machines, to testing personnel.
Why choose the Stainless Steel 304L Flanges of Yasco:
1. 24 hours online service -- Anytime, anywhere can provide what you want.
2. 100% quality inspection Before Shippment.
3. Reasonable and competitive price.
4. Best production capability, best quality control, best Service.
