Product Details:
|
| PRESSURE: | PN6.PN10.PN16.PN25.PN40,PN63 | MATERIAL: | CT20/16MN/ Cт 09г2с/ ст.12х18 Н 10Т/ ст.10х17Н13М2Т |
|---|---|---|---|
| Flange Type: | PLATE FLANGE GOST12820, WN FLANGE GOST 12821, BLIND FLANGE GOST ATK | COATING: | RUST PROOF OIL ,YELLOW PAINT |
| SIZE: | DN15-DN1500 | Payment Term: | T/T , L/C , D/P 30% ADVATANGE PAYMENT 70% SEE B/L COPY |
| PORT OF LOADING: | XINGANG,QINGDAO,SHANGHAI OR ACCORDING TO YOUR REQUIRMENT | Delivery Term: | FOB/CIF/CFR |
| Packing: | Seaworthy Plywood Cases/Pallets | ||
| High Light: | gost33259 type01 forged flanges and fittings,ct20 forged flanges and fittings,gost33259 type11 forged flanges |
||

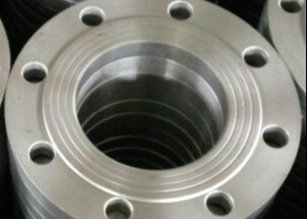

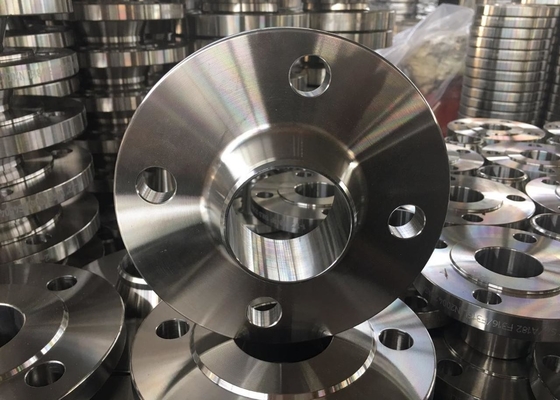

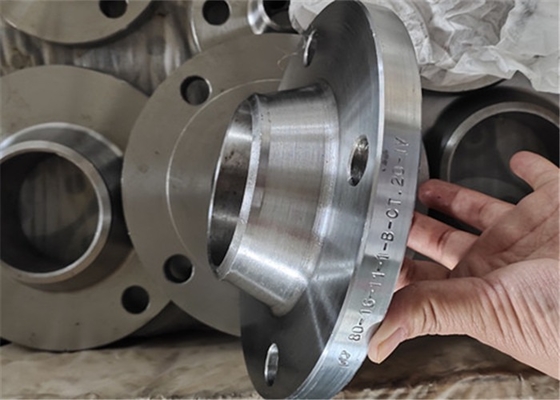

CT20 Forged Flange GOST33259 Type01 Plate Flange GOST33259 Type11 WN cт 09г2с Flange
STANDARD: GOST33259 TYPE01/ GOST33259 TYPE11/ GOST ATK/ GOST12820/ GOST12821
SIZE:DN10-DN2000
PRESSURE:PN16,PN10,PN6,PN25,PN40,PN63
TYPE:PLATE ,WE ALSO CAN SUPPLY OTHER WELDING NECK,SLIP ON , BLIND ,THREADED FLANGE
MATERAIL:ст.12х18 Н 10Т, ст.10х17Н13М2Т, 12MN, 16MN,CT20, 20#.
COATING:STAINLESS STEEL, RUST-PROOF OIL
MIN ORDER :5TONS

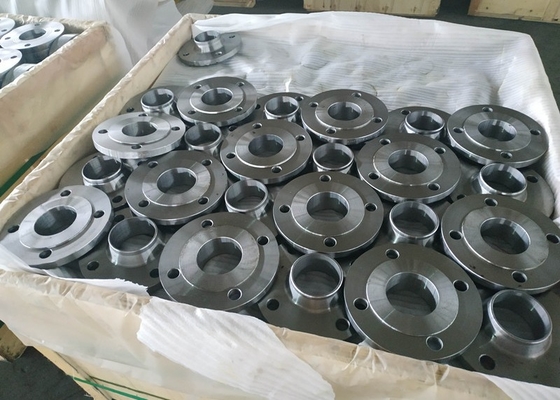

PACKAGE:PLYWOODEN CASE PACKAGE,WOOD PALLET PACKAGE
PAYMENT:L/C,T/T
DELIVERY TIME:15DAYS AFTER THE PAYMENT AND YOUR REQUIRMENTS
| 压力 | 尺寸 | 外径 | 中心距 | 突台径 | 盘厚 | 水线径 | 孔径 | 突台高 | 水线高 | 孔数 | 单重 |
| PN | Dy,MM | D,MM | D1,MM | D2,MM | b,MM | d2,MM | d,MM | h1,MM | h,MM | |
Macca,kr |
| Py = 1,0MПа(10кгс/CM2) | |||||||||||
| PN=1.0 | 15 | 95 | 65 | 45 | 12 | 10 | 14 | 2 | 2 | 4 | 0.43 |
| 20 | 105 | 75 | 58 | 16 | 0.55 | ||||||
| 25 | 115 | 85 | 68 | 22 | 0.67 | ||||||
| 32 | 135 | 100 | 78 | 28 | 18 | 0.91 | |||||
| 40 | 145 | 110 | 88 | 14 | 36 | 3 | 1.24 | ||||
| 50 | 160 | 125 | 102 | 46 | 1.55 | ||||||
| 65 | 180 | 145 | 122 | 60 | 2.04 | ||||||
| 80 | 195 | 160 | 138 | 76 | 2.44 | ||||||
| 100 | 215 | 180 | 158 | 94 | 8 | 2.97 | |||||
| 125 | 245 | 210 | 188 | 16 | 118 | 4.69 | |||||
| 150 | 280 | 240 | 212 | 142 | 23 | 6.07 | |||||
| 200 | 335 | 295 | 268 | 196 | 9.09 | ||||||
| 250 | 390 | 350 | 320 | 18 | 244 | 12 | 14.26 | ||||
| 300 | 440 | 400 | 370 | 20 | 294 | 4 | 3 | 19.88 | |||
| 350 | 500 | 460 | 430 | 24 | 344 | 16 | 31.94 | ||||
| 400 | 565 | 515 | 482 | 26 | 390 | 27 | 44.43 | ||||
| 500 | 670 | 620 | 585 | 30 | 490 | 20 | 74.31 | ||||
| 600 | 780 | 725 | 685 | 34 | 590 | 30 | 5 | 4 | 119.27 | ||
| 800 | 1010 | 950 | 905 | 42 | 780 | 33 | 24 | 242.06 | |||
| 1000 | 1220 | 1160 | 1110 | 50 | 980 | 28 | 429.64 | ||||
| 1200 | 1455 | 1380 | 1325 | 55 | 1180 | 40 | 32 | 673.13 | |||
| 压力 | 尺寸 | 外径 | 中心距 | 突台径 | 盘厚 | 水线径 | 孔径 | 突台高 | 水线高 | 孔数 | 单重 |
| PN | Dy,MM | D,MM | D1,MM | D2,MM | b,MM | d2,MM | d,MM | h1,MM | h,MM | |
Macca,kr |
| Py = 1,6 MПа(16кгс/CM2) | |||||||||||
| PN=1.6 | 15 | 95 | 65 | 45 | 12 | 10 | 14 | 2 | 2 | 4 | 0.43 |
| 20 | 105 | 75 | 58 | 16 | 0.55 | ||||||
| 25 | 115 | 85 | 68 | 22 | 0.67 | ||||||
| 32 | 135 | 100 | 78 | 28 | 18 | 0.91 | |||||
| 40 | 145 | 110 | 88 | 14 | 36 | 3 | 1.24 | ||||
| 50 | 160 | 125 | 102 | 46 | 1.55 | ||||||
| 65 | 180 | 145 | 122 | 60 | 2.04 | ||||||
| 80 | 195 | 160 | 138 | 76 | 2.44 | ||||||
| 100 | 215 | 180 | 158 | 16 | 94 | 8 | 3.51 | ||||
| 125 | 245 | 210 | 188 | 118 | 4.69 | ||||||
| 150 | 280 | 240 | 212 | 18 | 142 | 23 | 6.99 | ||||
| 200 | 335 | 295 | 268 | 20 | 196 | 12 | 11.49 | ||||
| 250 | 405 | 355 | 320 | 24 | 244 | 27 | 19.74 | ||||
| 300 | 460 | 410 | 378 | 28 | 294 | 4 | 3 | 29.58 | |||
| 350 | 520 | 470 | 438 | 32 | 344 | 16 | 44.22 | ||||
| 400 | 580 | 525 | 490 | 34 | 390 | 30 | 59.86 | ||||
| 500 | 710 | 650 | 610 | 40 | 490 | 33 | 20 | 102.69 | |||
| 600 | 840 | 770 | 720 | 45 | 590 | 40 | 5 | 4 | 161.98 | ||
| 800 | 1020 | 950 | 900 | 52 | 780 | 24 | 300.60 | ||||
| 1000 | 1255 | 1170 | 1110 | 63 | 980 | 46 | 28 | 542.16 | |||
| 1200 | 1485 | 1390 | 1325 | 75 | 1180 | 52 | 32 | 922.18 | |||
