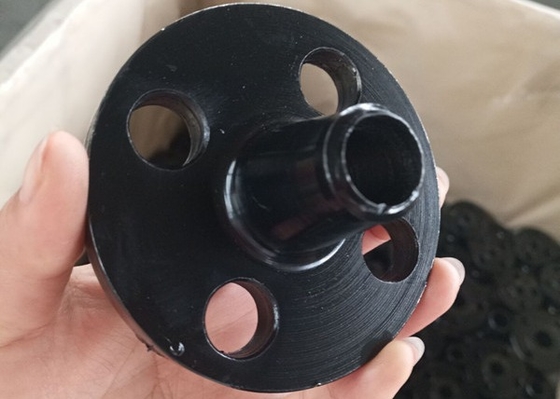

0.5 INCH SS 304 A105 FORGED STAINLESS STEEL FLANGES

0.5 INCH SS 304 A105 FORGED STAINLESS STEEL FLANGES
0.5 INCH SS 304 A105 FORGED STAINLESS STEEL FLANGES 0.5 INCH SS 304 A105 FORGED STAINLESS STEEL FLANGES 0.5 INCH SS 304 A105 FORGED STAINLESS STEEL FLANGES

Large Image :  0.5 INCH SS 304 A105 FORGED STAINLESS STEEL FLANGES

Product Details:
Place of Origin: CHINA
Brand Name: XF
Certification: ISO, CE
Model Number: XF-FLANGE058
Payment & Shipping Terms:
Minimum Order Quantity: 2TONS
Price: USD1580/TON TO USD2640/TON
Packaging Details: PLYWOOD CASES AND PALLETS
Delivery Time: 10-45DAYS
Payment Terms: L/C, D/P, T/T
Supply Ability: 5000TONS/MONTH
Contact Now

0.5 INCH SS 304 A105 FORGED STAINLESS STEEL FLANGES

Description
STEEL MATERIAL: CARBON STEEL A105/S235JR/ST37.5/ STAINLESS STEEL SS316/L SS304/L SURFACE TREATMENT: BLACK PAINTING, YELLOW PAINTING, GALVANISING, ANTI-RUST OIL
SEALING FACE FLANGE: RAISED FACE (RF), FLAT FACE (FF), RING JOINT TYPE(RTJ) Package: Sea Worthy Plywood Cases/pallets
Price Term: FOB, CIF, CFR Production Period: Less Than 60tons Within 30days, More Than 60tons 50days
Certificate: PED, ISO STANDARD: ANSI B16.5, ANSI B16.47A, ANSI B16.47B, AWWA CLASS D, D
FLANGE TYPE: N FLANGE, SO FLANGE, BLIND FLANGE, SW FLANGE, PLATE FLANGE, LAP JOINT FLANGE SIZE: 1/2" TO 80", 0.5 INCH TO 80 INCH
High Light:

0.5 inch forged stainless steel flanges

,

a105 forged stainless steel flanges

,

0.5 inch flange ss 304



A105 Flange Forged Steel Welding Neck Flange Slip On Flange Blind Flange Socket Weld Flange



The Weld neck flange is designed to joint a piping system by butt welding. The hub, or neck, transfer the stresses to the pipe to reduce high stress concentrations. The bore of the weld neck flange matches the pipe bore.
Weld Neck flange is typically provided with a raised face(RF), flat face(FF), or ring type joint face(RTJ). When a raised face is necessary for weld neck flange, the standard height is 1/16" for blind flanges under 400#. For blind flange of 400# and up, the standard blind flange raised face height is 1/4".
We, HEBEI XINFENG STEEL FLANGE FITTING can supply weld neck flanges in all materials grades, specification and sizes. HEBEI XINFENG STEEL FLANGE FITTING have some stock and can delivery weld neck flange in 3 days.
Specifications:
Size: 1/2" to 96".
Flange Face: Raised Face(RF), Flat Face(FF), Ring Type Joint(RTJ), T&G.
Flange Pressure: PN6-PN63, 150#--6000#
Schedule: SCH40/XS, STD.
Material:
Carbon Steel: ASTM A105.
Low-Temperature: ASTM A350 LF1 LF2 CL1/CL2, LF3 CL1/CL2.
Stainless Steel: ASTM A182 F304/304L, F316/316L, F321.




SIZE MATERIAL FLANGE TYPE
1/2"-80" Stainless Steel weld neck flange
Slip on Flange
socket weld flange
LAP Joint Flange
Threaded flange
blind flange
CARBON STEEL, STAINLESS STEEL weld neck flange
Slip on Flange
socket weld flange
LAP Joint Flange
Threaded flange
blind flange
Sealing face of flanges RF with serrated finish
FF with 3 waterlines
FF with smooth finis
RTJ (Ring Joint Type)
FF with serrated finish
RF with water lines



Name: RF Forged Steel Slip on Flange.
Type: Slip on Flange.
Material: ASTM A105, Forged Steel.
Face: RF.
Standard: EN1092-1.
Pressure: PN16.
Size: DN200 (8 Inch).
Surface Finish: Black Painting.
A105 Forged Steel Slip On Flange, DN200, PN16 - Landee Flange
Flange
Normal Diam.		 O.D. Flange Thk. Of Flange Min Diam.
of
Hub		 Diameter of Raised Face Length Hub.Y Bore Diam.
of Bolt
Circle		 Diam.
of Bolt
Holes		 Number
of Bolts		 Diam. of
Bolts
(inch)		 KG LB
inch dn O C X G Y B BC BH BN BD
1/2" 15 89.00 11.20 30.20 35.10 15.70 22.40 60.50 15.80 4 1/2" 0.4 0.9
3/4" 20 98.50 12.70 38.10 42.90 15.70 27.70 69.90 15.80 4 1/2" 0.7 1.5
1" 25 108.00 14.20 49.30 50.80 17.50 34.50 79.30 15.80 4 1/2" 0.8 1.8
1-1/4" 32 117.50 15.70 58.70 63.50 20.60 43.20 88.90 15.80 4 1/2" 1.2 2.6
1-1/2" 40 127.00 17.50 65.00 73.20 22.40 49.50 98.60 15.80 4 1/2" 1.4 3.1
2" 50 152.50 19.10 77.70 91.90 25.40 62.00 120.70 19.10 4 5/8" 2.2 4.8
2-1/2" 65 178.00 22.40 90.40 104.60 28.40 74.70 139.70 19.10 4 5/8" 3.5 7.7
3" 80 190.50 23.90 108.00 127.00 30.20 90.70 152.40 19.10 4 5/8" 3.8 8.4
3-1/2" 90 216.00 23.90 122.20 139.70 31.80 103.40 177.80 19.10 8 5/8" 5 11
4" 100 228.50 23.90 134.90 157.20 33.30 116.10 190.50 19.10 8 5/8" 5.6 12.3
5" 125 254.00 23.90 163.60 185.70 36.60 143.80 215.90 22.40 8 3/4" 6.5 14.3
6" 150 279.50 25.40 192.00 215.90 39.60 170.70 241.30 22.40 8 3/4" 8.1 18
8" 200 343.00 28.40 246.10 269.70 44.50 221.50 298.50 22.40 8 3/4" 13 28.6
10" 250 406.50 30.20 304.80 323.90 49.30 276.40 362.00 25.40 12 7/8" 18.4 40
12" 300 482.50 31.80 365.30 381.00 55.60 327.20 431.80 25.40 12 7/8" 28.5 63
14" 350 533.50 35.10 400.10 412.80 57.20 359.20 476.30 28.50 12 1" 37.5 83
16" 400 597.00 36.60 457.20 469.90 63.50 410.50 539.80 28.50 16 1" 44.5 98
18" 450 635.00 39.60 505.00 533.40 68.30 461.80 577.90 31.80 16 1 1/8" 54 119
20" 500 698.50 42.90 558.80 584.20 73.20 513.10 635.00 31.80 20 1 1/8" 72 158
24" 600 813.00 47.80 663.40 692.20 82.60 616.00 749.30 35.10 20 1 1/4" 95

200

0.5 INCH SS 304 A105 FORGED STAINLESS STEEL FLANGES 1



SIZE D C T K A F Hole Number H weight
150#
1/2" 89 22.4 11.5 60.5 35.1 1.6 4 15.8 0.45
3/4" 99 27.7 13 70 42.9 1.6 4 15.8 0.64
1" 108 34.5 14 79.5 50.8 1.6 4 15.8 0.81
1-1/4" 117 43.2 16 89.5 63.5 1.6 4 15.8 1.06
1-1/2" 127 49.5 17.5 98.5 73.2 1.6 4 15.8 1.37
2" 152 62 19.5 120.5 91.9 1.6 4 19 2.14
2-1/2" 178 74.7 22.5 139.5 104.6 1.6 4 19 3.37
3" 190 90.7 24 152.5 127 1.6 4 19 3.92
4" 229 116.1 24 190.5 157.2 1.6 8 19 5.35
5" 254 143.8 24 216 185.7 1.6 8 22.2 5.91
6" 279 170.7 25.5 241.5 215.9 1.6 8 22.2 7.06
8" 343 221.5 29 298.5 269.7 1.6 8 22.2 11.58
10" 406 276.4 30.5 362 323.9 1.6 12 25.4 15.11
12" 483 327.2 32 432 381 1.6 12 25.4 23.35
14" 533 359.2 35 476 412.8 1.6 12 28.5 31.18
16" 597 410.5 37 540 469.9 1.6 16 28.5 39.70
18" 635 461.8 40 578 533.4 1.6 16 31.8 42.54
20" 698 513.1 43 635 584.2 1.6 20 31.8 53.66
24" 813 616 48 749.5 692.2 1.6 20 35.1 75.70

SIZE D C T K A F Hole Number H weight
300#
1/2" 95 22.4 14.2 66.5 35.1 1.6 4 15.8 0.66
3/4" 117 27.7 15.7 82.5 42.9 1.6 4 19.1 1.11
1" 124 34.5 17.5 88.9 50.8 1.6 4 19.1 1.37
1-1/4" 133 43.2 19.1 98.6 63.5 1.6 4 19.1 1.69
1-1/2" 156 49.5 20.6 114.3 73.2 1.6 4 22.4 2.53
2" 165 62 22.4 127 91.9 1.6 8 19.1 2.83
2-1/2" 190 74.7 25.4 149.4 104.6 1.6 8 22.4 4.15
3" 210 90.7 28.4 168.1 127 1.6 8 22.4 5.58
4" 254 116.1 31.8 200.2 157.2 1.6 8 22.4 9.23
5" 279 143.8 35.1 235 185.7 1.6 8 22.4 11.51
6" 318 170.7 38.5 269.7 215.9 1.6 12 22.4 15.67
8" 381 221.5 41.1 330.2 269.7 1.6 12 25.4 22.41
10" 445 276.4 47.8 387.4 323.9 1.6 16 28.4 32.07
12" 521 327.2 50.8 450.9 381 1.6 16 31.8 46.45
14" 584 359.2 53.8 514.4 412.8 1.6 20 31.8 63.67
16" 648 410.5 57.2 571.5 469.9 1.6 20 35.1 80.03
18" 711 461.8 60.5 628.7 533.4 1.6 24 35.1 98.06
20" 775 513.1 63.5 685.8 584.2 1.6 24 35.1 120.59
24" 914 616 69.9 812.8 692.2 1.6 24 41.1 179.15

0.5 INCH SS 304 A105 FORGED STAINLESS STEEL FLANGES 2



0.5 INCH SS 304 A105 FORGED STAINLESS STEEL FLANGES 3



0.5 INCH SS 304 A105 FORGED STAINLESS STEEL FLANGES 4



0.5 INCH SS 304 A105 FORGED STAINLESS STEEL FLANGES 5
