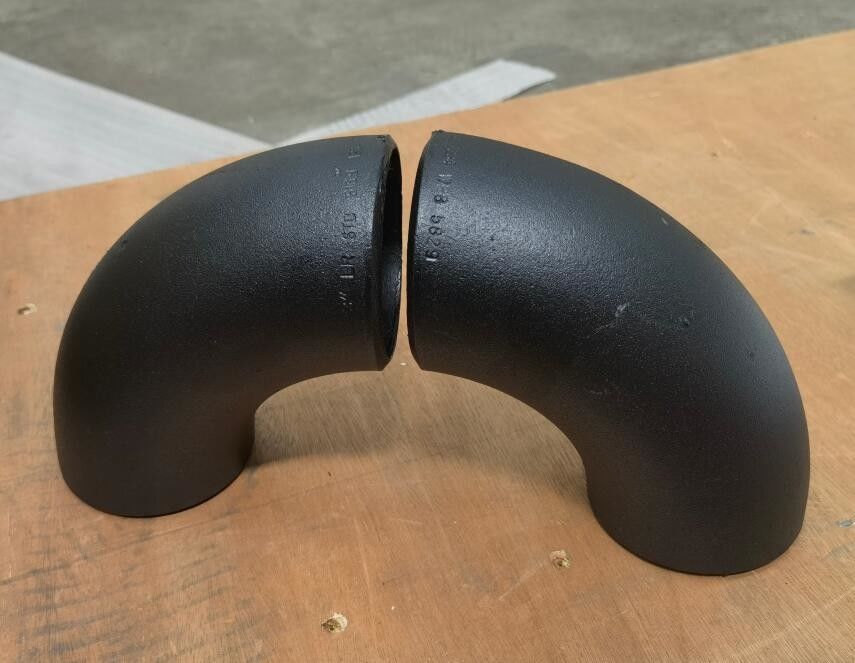

SEAMLESS ASTM A234 WPB STEEL PIPE ELBOW CARBON BLACK GALVANIZED

SEAMLESS ASTM A234 WPB STEEL PIPE ELBOW CARBON BLACK GALVANIZED
SEAMLESS ASTM A234 WPB STEEL PIPE ELBOW CARBON BLACK GALVANIZED SEAMLESS ASTM A234 WPB STEEL PIPE ELBOW CARBON BLACK GALVANIZED SEAMLESS ASTM A234 WPB STEEL PIPE ELBOW CARBON BLACK GALVANIZED

Large Image :  SEAMLESS ASTM A234 WPB STEEL PIPE ELBOW CARBON BLACK GALVANIZED

Product Details:
Place of Origin: CHINA
Brand Name: XF
Certification: ISO TUV
Model Number: 1/2"-80"
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: ---
Packaging Details: No Fumigate or Fumigate Plywood/Wood Pallet or Case
Delivery Time: 30 DAYS -40DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000-2000 Tons per month

SEAMLESS ASTM A234 WPB STEEL PIPE ELBOW CARBON BLACK GALVANIZED

Description
CARBON STEEL: A234WPB SS STEEL: 304L ,316L
TYPE: LR, SR DEGREE: 45° 90° 180°
Coating: Anti-Rust Oil , Black Painting
High Light:

black galvanized steel pipe elbow

,

astm a234 wpb steel pipe elbow

,

a234 wpb carbon steel elbow

SEAMLESS STEEL PIPE ASTM A234 WPB Carbon Steel Pipe Elbow Black Galvanized





ASTM A234 WPB is a common grade for 90 degree long radius elbow, which is one of the highly demanded. They available in a large size and thickness range. They have a good performance and suffices most industrial pipeline needs.





How Many Types of Steel Pipe Elbow?

According to the shape, there are straight and reducing elbow.

Depending on the angle, there are normally 45 degree, 90 degree and 180 degree elbow.

As based on radius, there are long radius ( 1.5D) and short radius ( 1D) elbow.

For connection, they can divided into socket weld elbow, butt weld elbow and threaded elbow.



Package of 90 Degree Elbow

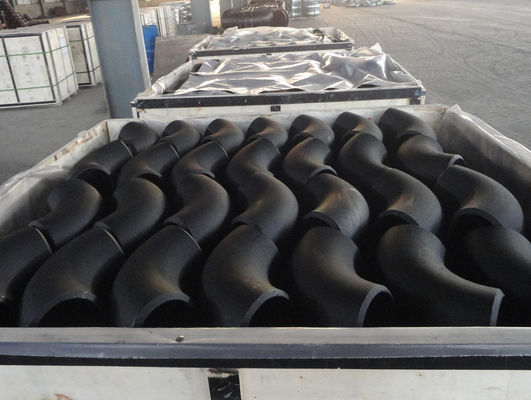

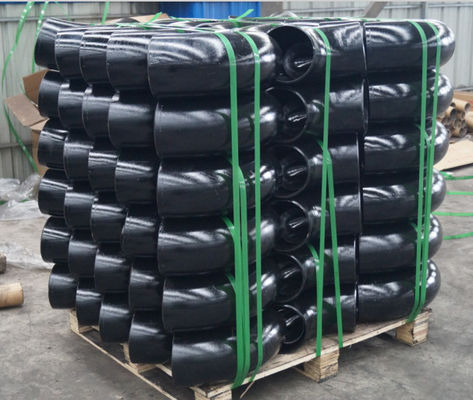

We marked all Carbon Steel Buttweld Fittings with Name, Grade, Heat No, Size, Standard and Schedule Thickness. After done of blasting, painting and marking of 90 Degree ASTM A234 WPB Elbow, our workers wrapped them with plastic foam and packed them into wooden cases or pallets.

Clear labels are tagged on the outside of the package for easy identification of the quantity and product I.D. great care is taken during operation and transportation.



Carbon Steel Elbow Dimensions

Dimensions of Carbon Steel 90 Degree Elbow & 45 Degree Elbow

Dimensions of Carbon Steel 90 Degree & 45 Degree Elbow

NPS O.D.
D
90°
Long Rad
Center to End
A
45°
Long Rad
Center to End
B
90°
3D
Center to End
A
45°
3D
Center to End
B
1/2 21.3 38 16
3/4 26.7 38 19 57 24
1 33.4 38 22 76 31
1.1/4 42.2 48 25 95 39
1.1/2 48.3 57 29 114 47
2 60.3 76 35 152 63
2.1/2 73 95 44 190 79
3 88.9 114 51 229 95
3.1/2 101.6 133 57 267 111
4 114.3 152 64 305 127
5 141.3 190 79 381 157
6 168.3 229 95 457 189
8 219.1 305 127 610 252
10 273 381 159 762 316
12 323.8 457 190 914 378
14 355.6 533 222 1067 441
16 406.4 610 254 1219 505
18 457 686 286 1372 568
20 508 762 318 1524 632
22 559 838 343 1676 694
24 610 914 381 1829 757
26 660 991 406 1981 821
28 711 1067 438 2134 883
30 762 1143 470 2286 946
32 813 1219 502 2438 1010
34 864 1295 533 2591 1073
36 914 1372 565 2743 1135
38 965 1448 600 2896 1200
40 1016 1524 632 3048 1264
42 1067 1600 660 3200 1326
44 1118 1676 695 3353 1389
46 1168 1753 727 3505 1453
48 1219 1829 759 3658 1516


Carbon Steel 45 Degree Elbow & Carbon Steel 90 Degree Elbow Dimensions are in millimeters unless otherwise indicated. Wall thickness (t) must be specified by customer.

DIMENSIONAL TOLERANCES OF BUTT WELD ELBOWS - 45° AND 90° - LR AND 3D - ASME B16.9



Nominal Pipe Size 1/2 to 2.1/2 3 to 3.1/2 4 5 to 8
Outside Diameter
at Bevel (D)
+ 1.6
- 0.8
1.6 1.6 + 2.4
- 1.6
Inside Diameter at End 0.8 1.6 1.6 1.6
Center to End LR (A/B) 2 2 2 2
Center to End 3D (A/B) 3 3 3 3
Nominal Pipe Size 10 to 18 20 to 24 26 to 30 32 to 48
Outside Diameter
at Bevel (D)
+ 4
- 3.2
+ 6.4
- 4.8
+ 6.4
- 4.8
+ 6.4
- 4.8
Inside Diameter at End 3.2 4.8 + 6.4
- 4.8
+ 6.4
- 4.8
Center to End LR (A/B) 2 2 3 5
Center to End 3D (A/B) 3 3 6 6
Wall Thickness (t) Not less than 87.5% of Nominal Wall Thickness


ASTM A234 WPB Elbow Dimensions

ASTM A234 WPB Elbow Dimensions

ASTM A234 WPB Elbow Dimensions

Standard: ASME B16.9, SH3408, HG/T21635 / 21631, SY/T0510

Diameter: DN20 to DN1500/ 3/4” to 60”

Schedule: Sch 20, STD, 40, XS, 80, 100, 120, 160, XXS

Radius: Short Radius (SR) and Long Radius (LR)

Type: Seamless and Welded

Surface: Black Primer, Galvanized

SEAMLESS ASTM A234 WPB STEEL PIPE ELBOW CARBON BLACK GALVANIZED 2SEAMLESS ASTM A234 WPB STEEL PIPE ELBOW CARBON BLACK GALVANIZED 3SEAMLESS ASTM A234 WPB STEEL PIPE ELBOW CARBON BLACK GALVANIZED 4
