CARBON STEEL A105 FLANGE ANSI B16.5 ASME B16.47 150LBS - 2500LBS 1/2"-80"

Large Image : CARBON STEEL A105 FLANGE ANSI B16.5 ASME B16.47 150LBS - 2500LBS 1/2"-80"

Product Details:

Place of Origin:	CHINA
Brand Name:	XF
Certification:	ISO9001 , PED AND AD2000 W0 ,MTC WITH EN 10204-3.1
Model Number:	1/2"-80"

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	1

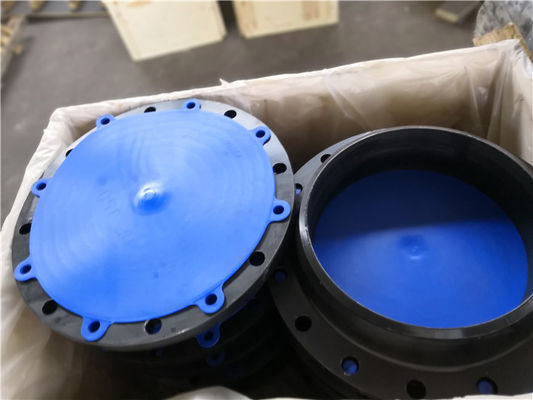

Packaging Details:	PLYWOODEN AND PALLET
Delivery Time:	30DAYS
Payment Terms:	L/C, T/T, D/P, Western Union
Supply Ability:	2000Tons One Month

Contact Now

CARBON STEEL A105 FLANGE ANSI B16.5 ASME B16.47 150LBS - 2500LBS 1/2"-80"

Description

Produce Method:	Forged	Material:	Carbon Steel
Size:	1/2"-80"	Pressure:	150LB-2500LB

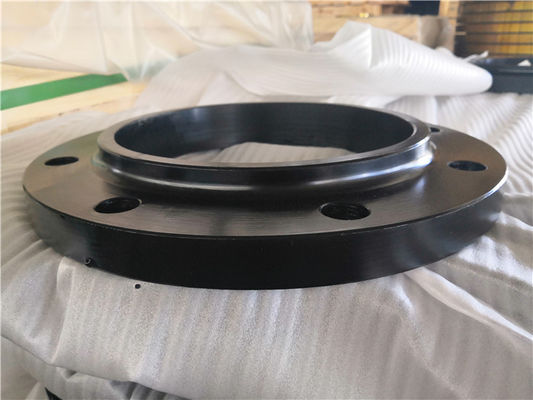

Flange Type:	Welding Neck , Slip On , Blind , Socket Welding, Lap Jont ,Plate And Threaded Flange	Coating:	Black Paint , Yellow Paint , Hot Galvanized , Cold Galvanized
Surface:	RAISED FACE , FLAT FACE AND RING JOINT	THREADED TYPE:	NPT
High Light:	150lbs carbon steel flange , 2500lbs a105 flange , 80" a105 flange

CARBON STEEL A105 FLANGE ANSI B16.5 ASME B16.47 150LBS-2500LBS 1/2"-80"

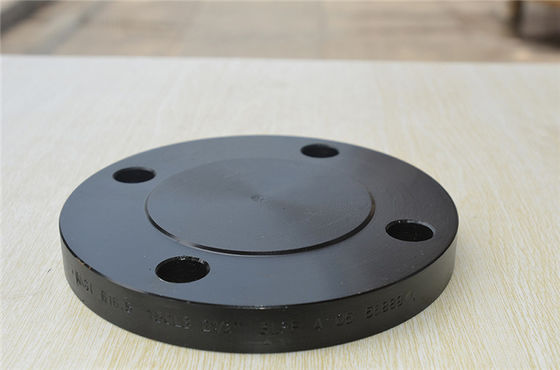

SLIP ON FLANGE , WELDING NECK FLANGE , BLIND FLANGE , PLATE FLANGE

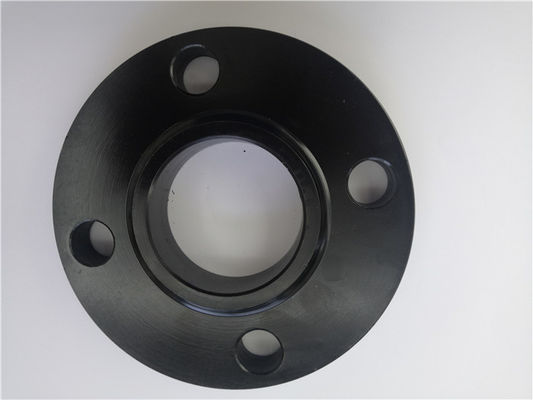

SOCKET WELDING FLANGE , THREADED(NPT) FLANGE , LAP JOINT FLANGE

ANSI B16.5 Flanges Dimensions

ASME B16.5 Class 150 Dimensions in MM

Nominal Size	Outside Diameter (OD)	Min. Thickness (T)	RF Dia. (R)	No. of Bolt Holes	Diameter of Holes	Bolt Circle (BC)	SO Bore ID (SB)	WN Bore ID (WB)	Dia. Hub Base (HB)	Dia. of Hub Top (HT)	SO LTH (SL)	WN LTH (WL)
1⁄2	3.50	0.38	1.38	4	0.62	2.38	0.88	0.62	1.19	0.84	0.56	1.81
3⁄4	3.88	0.44	1.69	4	0.62	2.75	1.09	0.82	1.50	1.05	0.56	2.00
1	4.25	0.50	2.00	4	0.62	3.12	1.36	1.05	1.94	1.32	0.62	2.12
11⁄4	4.62	0.56	2.50	4	0.62	3.50	1.70	1.38	2.31	1.66	0.75	2.19
11⁄2	5.00	0.62	2.88	4	0.62	3.88	1.95	1.61	2.56	1.90	0.81	2.38
2	6.00	0.69	3.62	4	0.75	4.75	2.44	2.07	3.06	2.38	0.94	2.44
21⁄2	7.00	0.81	4.12	4	0.75	5.50	2.94	2.47	3.56	2.88	1.06	2.69
3	7.50	0.88	5.00	4	0.75	6.00	3.57	3.07	4.25	3.50	1.12	2.69
31⁄2	8.50	0.88	5.50	8	0.75	7.00	4.07	3.55	4.81	4.00	1.19	2.75
4	9.00	0.88	6.19	8	0.75	7.50	4.57	4.03	5.31	4.50	1.25	2.94
5	10.00	0.88	7.31	8	0.88	8.50	5.66	5.05	6.44	5.56	1.38	3.44
6	11.00	0.94	8.50	8	0.88	9.50	6.72	6.07	7.56	6.63	1.50	3.44
8	13.50	1.06	10.62	8	0.88	11.75	8.72	7.98	9.69	8.63	1.69	3.94
10	16.00	1.12	12.75	12	1.00	14.25	10.88	10.02	12.00	10.75	1.88	3.94
12	19.00	1.19	15.00	12	1.00	17.00	12.88	12.00	14.38	12.75	2.12	4.44
14	21.00	1.31	16.25	12	1.12	18.75	14.14	13.25	15.75	14.00	2.19	4.94
16	23.50	1.38	18.50	16	1.12	21.25	16.16	15.25	18.00	16.00	2.44	4.94
18	25.00	1.50	21.00	16	1.25	22.75	18.18	17.25	19.88	18.00	2.62	5.44
20	27.50	1.62	23.00	20	1.25	25.00	20.20	19.25	22.00	20.00	2.81	5.62
22	29.50	1.75	25.25	20	1.38	27.25	22.22	21.25	24.25	22.00	3.07	5.82
24	32.00	1.81	27.25	20	1.38	29.50	24.25	23.25	26.12	24.00	3.19	5.94

DIMENSIONS ARE IN INCHES
Bolt hole diameter 1/8" larger than bolt diameter

ANSI B16.5 Class 300 Flange Dimensions, ASME B16.5 Class 300 Flange Dimensions in mm

Nominal Size	Outside Diameter (OD)	Min. Thickness (T)	RF Dia. (R)	No. of Bolt Holes	Diameter of Holes	Bolt Circle (BC)	SO Bore ID (SB)	WN Bore ID (WB)	Dia. Hub Base (HB)	Dia. Hub Top (HT)	SO LTH (SL)	WN LTH (WL)
1⁄2	3.75	0.50	1.38	4	0.63	2.62	0.88	0.62	1.50	0.84	0.81	2.00
3⁄4	4.62	0.56	1.69	4	0.75	3.25	1.09	0.82	1.88	1.05	0.94	2.19
1	4.88	0.62	2.00	4	0.75	3.50	1.36	1.05	2.12	1.32	1.00	2.38
11⁄4	5.25	0.69	2.50	4	0.75	3.88	1.70	1.38	2.50	1.66	1.00	2.50
11⁄2	6.12	0.75	2.88	4	0.88	4.50	1.95	1.61	2.75	1.90	1.13	2.63
2	6.50	0.81	3.62	8	0.75	5.00	2.44	2.07	3.31	2.38	1.25	2.69
21⁄2	7.50	0.94	4.12	8	0.88	5.88	2.94	2.47	3.94	2.88	1.44	2.94
3	8.25	1.06	5.00	8	0.88	6.62	3.57	3.07	4.62	3.50	1.63	3.06
31⁄2	9.00	1.12	5.50	8	0.88	7.25	4.07	3.55	5.25	4.00	1.69	3.13
4	10.00	1.19	6.19	8	0.88	7.88	4.57	4.03	5.75	4.50	1.82	3.32
5	11.00	1.31	7.31	8	0.88	9.25	5.66	5.05	7.00	5.56	1.94	3.82
6	12.50	1.38	8.50	12	0.88	10.62	6.72	6.07	8.12	6.63	2.00	3.82
8	15.00	1.56	10.62	12	1.00	13.00	8.72	7.98	10.25	8.63	2.38	4.32
10	17.50	1.81	12.75	16	1.12	15.25	10.88	10.02	12.62	10.75	2.56	4.56
12	20.50	1.94	15.00	16	1.25	17.75	12.88	12.00	14.75	12.75	2.82	5.06
14	23.00	2.06	16.25	20	1.25	20.25	14.14	13.25	16.75	14.00	2.94	5.56
16	25.50	2.19	18.50	20	1.38	22.50	16.16	15.25	19.00	16.00	3.19	5.69
18	28.00	2.31	21.00	24	1.38	24.75	18.18	17.25	21.00	18.00	3.44	6.19
20	30.50	2.44	23.12	24	1.38	27.00	20.20	19.25	23.12	20.00	3.69	6.32
22	33.00	2.57	25.25	24	1.63	29.25	22.22	21.25	25.25	22.00	3.93	6.43
24	36.00	2.69	27.62	24	1.63	32.00	24.25	23.25	27.62	24.00	4.13	6.56

* For flanges type 21 the outside hub diameter approximately corresponds to the outside pipe diameter.
Note : The p/t rating from ASME B16.5 apply only for flange type 05, 11, 12, 13 and 21 having nominal sizes up to and including DN 600. The p/t rating of all other flanges shall be agreed between the manufacturer and the purchaser.

ANSI B16.5 Class 400 Flange Dimensions

Nominal Size	Outside Diameter (OD)	Min. Thickness (T)	RF Dia. (R)	No. of Bolt Holes	Diameter of Holes	Bolt Circle (BC)	SO Bore ID (SB)	Dia. Hub Base (HB)	Dia. Hub Top (HT)	SO LTH (SL)	WN LTH (WL)	* WN Bore ID (WB)
1⁄2	3.75	0.56	1.38	4	0.63	2.62	0.88	1.5	0.84	0.88	2.06	*
3⁄4	4.62	0.62	1.69	4	0.75	3.25	1.09	1.88	1.05	1.00	2.25	*
1	4.88	0.69	2.00	4	0.75	3.50	1.36	2.12	1.32	1.06	2.44	*
11⁄4	5.25	0.81	2.50	4	0.75	3.88	1.70	2.50	1.66	1.12	2.62	*
11⁄2	6.12	0.88	2.88	4	0.88	4.50	1.95	2.75	1.90	1.25	2.75	*
2	6.50	1.00	3.62	8	0.75	5.00	2.44	3.31	2.38	1.44	2.88	*
21⁄2	7.50	1.12	4.12	8	0.88	5.88	2.94	3.94	2.88	1.62	3.12	*
3	8.25	1.25	5.00	8	0.88	6.62	3.57	4.62	3.50	1.81	3.25	*
31⁄2	9.00	1.38	5.50	8	1.00	7.25	4.07	5.25	4.00	1.94	3.38	*
4	10.00	1.38	6.19	8	1.00	7.88	4.57	5.75	4.50	2.00	3.50	*
5	11.00	1.50	7.31	8	1.00	9.25	5.66	7.00	5.56	2.12	4.00	*
6	12.50	1.62	8.50	12	1.00	10.62	6.72	8.12	6.63	2.25	4.06	*
8	15.00	1.88	10.62	12	1.12	13.00	8.72	10.25	8.63	2.69	4.62	*
10	17.50	2.12	12.75	16	1.25	15.25	10.88	12.62	10.75	2.88	4.88	*
12	20.50	2.25	15.00	16	1.38	17.75	12.88	14.75	12.75	3.12	5.38	*
14	23.00	2.38	16.25	20	1.38	20.25	14.14	16.75	14.00	3.31	5.88	*
16	25.50	2.50	18.50	20	1.50	22.50	16.16	19.00	16.00	3.69	6.00	*
18	28.00	2.62	21.00	24	1.50	24.75	18.18	21.00	18.00	3.88	6.50	*
20	30.50	2.75	23.12	24	1.62	27.00	20.20	23.12	20.00	4.00	6.62	*
22	33.00	2.88	25.25	24	1.75	29.25	22.22	25.25	22.00	4.25	6.75	*
24	36.00	3.00	27.25	24	1.88	32.00	24.25	27.62	24.00	4.50	6.88	*

Bolt hole diameter 1/8" larger than bolt diameter

ANSI B16.5 Class 600 Flange Dimensions, ASME B16.5 Class 600 Blind Flange Dimensions

Nominal Size	Outside Diameter (OD)	Min. Thickness (T)	RF Dia. (R)	No. of Bolt Holes	Diameter of Holes	Bolt Circle (BC)	SO Bore ID (SB)	Dia. Hub Base (HB)	Dia. Hub Top (HT)	SO LTH (SL)	WN LTH (WL)	* WN Bore ID (WB)
1⁄2	3.75	0.56	1.38	4	0.63	2.62	0.88	1.50	0.84	0.88	2.06	*
3⁄4	4.62	0.62	1.69	4	0.75	3.25	1.09	1.88	1.05	1.00	2.25	*
1	4.88	0.69	2.00	4	0.75	3.50	1.36	2.12	1.32	1.06	2.44	*
11⁄4	5.25	0.81	2.50	4	0.75	3.88	1.70	2.50	1.66	1.12	2.62	*
11⁄2	6.12	0.88	2.88	4	0.88	4.50	1.95	2.75	1.90	1.25	2.75	*
2	6.50	1.00	3.62	8	0.75	5.00	2.44	3.31	2.38	1.44	2.88	*
21⁄2	7.50	1.12	4.12	8	0.88	5.88	2.94	3.94	2.88	1.62	3.12	*
3	8.25	1.25	5.00	8	0.88	6.62	3.57	4.62	3.50	1.81	3.25	*
31⁄2	9.00	1.38	5.50	8	1.00	7.25	4.07	5.25	4.00	1.94	3.38	*
4	10.75	1.50	6.19	8	1.00	8.50	4.57	6.00	4.50	2.12	4.00	*
5	13.00	1.75	7.31	8	1.12	10.50	5.66	7.44	5.56	2.38	4.50	*
6	14.00	1.88	8.50	12	1.12	11.50	6.72	8.75	6.63	2.62	4.62	*
8	16.50	2.19	10.62	12	1.25	13.75	8.72	10.75	8.63	3.00	5.25	*
10	20.00	2.50	12.75	16	1.38	17.00	10.88	13.50	10.75	3.38	6.00	*
12	22.00	2.62	15.00	20	1.38	19.25	12.88	15.75	12.75	3.62	6.12	*
14	23.75	2.75	16.25	20	1.50	20.75	14.14	17.00	14.00	3.69	6.50	*
16	27.00	3.00	18.50	20	1.63	23.75	16.16	19.50	16.00	4.19	7.00	*
18	29.25	3.25	21.00	20	1.75	25.75	18.18	21.50	18.00	4.62	7.25	*
20	32.00	3.50	23.00	24	1.75	28.50	20.20	24.00	20.00	5.00	7.50	*
22	34.25	3.75	25.25	24	1.88	30.63	22.22	26.25	22.00	5.25	7.75	*
24	37.00	4.00	27.25	24	2.00	33.00	24.25	28.25	24.00	5.50	8.00	*

ANSI B16.5 Class 900 Flange Dimenisons

Nominal Size	Outside Diameter (OD)	Min. Thickness (T)	RF Dia. (R)	No. of Bolt Holes	Diameter of Holes	Bolt Circle (BC)	SO Bore ID (SB)	* WN Bore ID (WB)	Dia. Hub Base (HB)	Dia. Hub Top (HT)	SO LTH (SL)	WN LTH (WL)
3	9.50	1.50	5.00	8	1.00	7.50	3.57	*	5.00	3.50	2.12	4.00
4	11.50	1.75	6.19	8	1.25	9.25	4.57	*	6.25	4.50	2.75	4.50
5	13.75	2.00	7.31	8	1.38	11.00	5.66	*	7.50	5.56	3.12	5.00
6	15.00	2.19	8.50	12	1.25	12.50	6.72	*	9.25	6.63	3.38	5.50
8	18.50	2.50	10.63	12	1.50	15.50	8.72	*	11.75	8.63	4.00	6.38
10	21.50	2.75	12.75	16	1.50	18.50	10.88	*	14.50	10.75	4.25	7.25
12	24.00	3.12	15.00	20	1.50	21.00	12.88	*	16.50	12.75	4.63	7.88
14	25.25	3.38	16.25	20	1.63	22.00	14.14	*	17.75	14.00	5.12	8.38
16	27.75	3.50	18.50	20	1.75	24.25	16.16	*	20.00	16.00	5.25	8.50
18	31.00	4.00	21.00	20	2.00	27.00	18.18	*	22.25	18.00	6.00	9.00
20	33.75	4.25	23.00	20	2.13	29.50	20.20	*	24.50	20.00	6.25	9.75
24	41.00	5.50	27.25	20	2.63	35.50	24.25	*	29.50	24.00	8.00	11.50

ANSI B16.5 Class 1500 Flange Dimenisons

Nominal Size	Outside Diameter (OD)	Min. Thickness (T)	RF Dia. (R)	No. of Bolt Holes	Diameter of Holes	Bolt Circle (BC)	So Bore ID (SB)	Dia. Hub Base (HB)	Dia. Hub Top (HT)	SO LTH (SL)	WN LTH (WL)	* WN Bore ID (WB)
1⁄2	4.75	0.88	1.38	4	0.88	3.25	0.88	1.50	0.84	1.25	2.38	*
3⁄4	5.12	1.00	1.69	4	0.88	3.50	1.09	1.75	1.05	1.38	2.75	*
1	5.88	1.12	2.00	4	1.00	4.00	1.36	2.06	1.32	1.62	2.88	*
11⁄4	6.25	1.12	2.50	4	1.00	4.38	1.70	2.50	1.66	1.62	2.88	*
11⁄2	7.00	1.25	2.88	4	1.12	4.88	1.95	2.75	1.90	1.75	3.25	*
2	8.50	1.50	3.63	8	1.00	6.50	2.44	4.12	2.38	2.25	4.00	*
21⁄2	9.62	1.62	4.13	8	1.12	7.50	2.94	4.88	2.88	2.50	4.12	*
3	10.50	1.88	5.00	8	1.25	8.00	-	5.25	3.50	-	4.62	*
4	12.25	2.12	6.19	8	1.38	9.50	-	6.38	4.50	-	4.88	*
5	14.75	2.88	7.31	8	1.63	11.50	-	7.75	5.56	-	6.12	*
6	15.50	3.25	8.50	12	1.50	12.50	-	9.00	6.63	-	6.75	*
8	19.00	3.62	10.63	12	1.75	15.50	-	11.50	8.63	-	8.38	*
10	23.00	4.25	12.75	12	2.00	19.00	-	14.50	10.75	-	10.00	*
12	26.50	4.88	15.00	16	2.12	22.50	-	17.75	12.75	-	11.12	*
14	29.50	5.25	16.25	16	2.38	25.00	-	19.50	14.00	-	11.75	*
16	32.50	5.75	18.50	16	2.63	27.75	-	21.75	16.00	-	12.25	*
18	36.00	6.38	21.00	16	2.88	30.50	-	23.50	18.00	-	12.88	*
20	38.75	7.00	23.00	16	3.12	32.75	-	25.25	20.00	-	14.00	*
24	46.00	8.00	27.25	16	3.63	39.00	-	30.00	24.00	-	16.00	*

ASME B16.5 Class 2500 Flange Dimenisons

Nominal Size	Outside Diameter (OD)	Min. Thickness (T)	RF Dia. (R)	No. of Bolt Holes	Diameter of Holes	Bolt Circle (BC)	Dia. Hub Base (HB)	Dia. Hub Top (HT)	SO LTH (SL)	WN LTH (WL)	* WN Bore ID (WB)
1⁄2	5.25	1.19	1.38	4	0.88	3.50	1.69	0.84	1.56	2.88	*
3⁄4	5.50	1.25	1.69	4	0.88	3.75	2.00	1.05	1.69	3.12	*
1	6.25	1.38	2.00	4	1.00	4.25	2.25	1.32	1.88	3.50	*
11⁄4	7.25	1.50	2.50	4	1.12	5.13	2.88	1.66	2.06	3.75	*
11⁄2	8.00	1.75	2.88	4	1.25	5.75	3.12	1.90	2.38	4.38	*
2	9.25	2.00	3.63	8	1.12	6.75	3.75	2.38	2.75	5.00	*
21⁄2	10.50	2.25	4.13	8	1.25	7.75	4.50	2.88	3.12	5.62	*
3	12.00	2.62	5.00	8	1.38	9.00	5.25	3.50	-	6.62	*
4	14.00	3.00	6.19	8	1.63	10.75	6.50	4.50	-	7.50	*
5	16.50	3.62	7.31	8	1.88	12.75	8.00	5.56	-	9.00	*
6	19.00	4.25	8.50	8	2.12	14.50	9.25	6.63	-	10.75	*
8	21.75	5.00	10.63	12	2.12	17.25	12.00	8.63	-	12.50	*
10	26.50	6.50	12.75	12	2.63	21.25	14.75	10.75	-	16.50	*
12	30.00	7.25	15.00	12	2.88	24.38	17.38	12.75	-	18.25	*

CARBON STEEL A105 FLANGE ANSI B16.5 ASME B16.47 150LBS - 2500LBS 1/2"-80" 7

CARBON STEEL A105 FLANGE ANSI B16.5 ASME B16.47 150LBS - 2500LBS 1/2"-80" 8

CARBON STEEL A105 FLANGE ANSI B16.5 ASME B16.47 150LBS - 2500LBS 1/2"-80" 9

CARBON STEEL A105 FLANGE ANSI B16.5 ASME B16.47 150LBS - 2500LBS 1/2"-80" 10

CARBON STEEL A105 FLANGE ANSI B16.5 ASME B16.47 150LBS - 2500LBS 1/2"-80" 11

Contact Person : TINA

EMAIL:info12@hbxfgj.com

WhatsApp:0086-18031772025

Wechat:965397089

Tag:

Carbon Steel ANSI B16.5 Flange,

ANSI B16.5 B16.47 SORF FLANGE,

FLANGE Wnrf 150lbs 300lbs 316l

Contact Details

Hebei Xinfeng High-pressure Flange and Pipe Fitting Co., Ltd.

Contact Person: Miss. Mandy Liu

Tel: 0086 18903173335

Fax: 86-0317-6853077-6723871

Other Products

16" Ansi B16 5 Weld Neck Flange 150 Black Paint Coating

Customization: OEM, ODM

size: 1/ 2", 3/ 4", 1", 11/ 4", 11/ 2", 2", 21/ 2", 3", 4", 5", 6", 8", 10", 12", 14", 16", 18",

Coating: BLACK PAINT

Connection Type: WELDING

Carbon Steel Forged Schedule 40 Pipe Flange Asme B16.5 12"

Coating: BLACK PAINT

Pressure Rating: CLASS150-CLASS2500，Class 150, Class 300,Class 400, Class 600, Class 900, Class 1500 ,Class 2500

Face Type: RF,RTJ.Black Paint, Yellow Paint,transparent Paint, Cold And Hot Dip Galvanize

Technics: Forged

Alloy Steel Sch 40 Flange Asme B16.47 Ser B Coated With Black Paint

Face Type: RF,RTJ.Black Paint, Yellow Paint,transparent Paint, Cold And Hot Dip Galvanize

Material: Carbon Steel, A105,A105N,ASTM A350 LF2，Stainless Steel, Alloy Steel

size: 1/ 2", 3/ 4", 1", 11/ 4", 11/ 2", 2", 21/ 2", 3", 4", 5", 6", 8", 10", 12", 14", 16", 18",

Connection Type: WELDING

3/4" Asme B16.5 Carbon Steel Weld Neck Flange Std Thickness Oem Customization

Connection Type: WELDING

thickness: STD, SCH40, SCH80, SCH160. SCHXXS

Pressure Rating: CLASS150-CLASS2500，Class 150, Class 300,Class 400, Class 600, Class 900, Class 1500 ,Class 2500

Face Type: RF,RTJ.Black Paint, Yellow Paint,transparent Paint, Cold And Hot Dip Galvanize

Astm A350 Lf2 Stainless Steel Cast Flange Ansi B16.5 Asme B16.47

Connection Type: WELDING

size: 1/ 2", 3/ 4", 1", 11/ 4", 11/ 2", 2", 21/ 2", 3", 4", 5", 6", 8", 10", 12", 14", 16", 18",

Technics: Forged

Material: Carbon Steel, A105,A105N,ASTM A350 LF2，Stainless Steel, Alloy Steel

CARBON STEEL A105 FLANGE ANSI B16.5 ASME B16.47 150LBS - 2500LBS 1/2"-80"

CARBON STEEL A105 FLANGE ANSI B16.5 ASME B16.47 150LBS - 2500LBS 1/2"-80"

CARBON STEEL A105 FLANGE ANSI B16.5 ASME B16.47 150LBS - 2500LBS 1/2"-80"

150lbs carbon steel flange

2500lbs a105 flange

80" a105 flange

ANSI B16.5 Flanges Dimensions

ASME B16.5 Class 150 Dimensions in MM

ANSI B16.5 Class 300 Flange Dimensions, ASME B16.5 Class 300 Flange Dimensions in mm

ANSI B16.5 Class 400 Flange Dimensions

ANSI B16.5 Class 600 Flange Dimensions, ASME B16.5 Class 600 Blind Flange Dimensions

ANSI B16.5 Class 900 Flange Dimenisons

ANSI B16.5 Class 1500 Flange Dimenisons

ASME B16.5 Class 2500 Flange Dimenisons

Carbon Steel ANSI B16.5 Flange,

ANSI B16.5 B16.47 SORF FLANGE,
