90D LR SCHEDULE 40 45D BUTT WELDED ELBOW A234WPB

90D LR SCHEDULE 40 45D BUTT WELDED ELBOW A234WPB
90D LR SCHEDULE 40 45D BUTT WELDED ELBOW A234WPB 90D LR SCHEDULE 40 45D BUTT WELDED ELBOW A234WPB 90D LR SCHEDULE 40 45D BUTT WELDED ELBOW A234WPB

Large Image :  90D LR SCHEDULE 40 45D BUTT WELDED ELBOW A234WPB

Product Details:
Place of Origin: CHINA
Brand Name: XF
Certification: ISO9001.PED
Model Number: XF2201
Payment & Shipping Terms:
Minimum Order Quantity: 5TONS
Price: USD1160/TON
Packaging Details: PLYWOODEN CASES / PALLET
Delivery Time: 30DAYS AFTER GET THE ADVATNAGE PAYMENT
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1500TONS/MONTH

90D LR SCHEDULE 40 45D BUTT WELDED ELBOW A234WPB

Description
Business Term: FOB/ CIF/ CFR Payment Term: T/T , L/C , D/P 30% ADVATANGE PAYMENT
Surface Treatment: ANTI-RUST OIL, BLACK PAINTING, GALVANISED PORT OF LOADING: XINGANG PORT, CHINA
Conection Type: Butt Welding SIZE: 1/2"-64"
MATERIAL: CARBON STEEL, STAINLESS STEEL THICKNESS: SCH5, SCH10, SCH20, STD, SCH40, SCH80, SCH160
STANDARD: ANSI B16.9, SGP, DIN, GOST, EN RADIUS: SHORT RADIUS, LONG RADIUS, 3D, 5D
ELBOW DEGREE: 45D, 90D, 180D
High Light:

90d butt welded elbow

,

lr butt welded elbow

,

45d schedule 40 weld elbows

Varnish Butt Welded Pipe Fitting Elbow 90D LR SCH40 ELBOWS 45D ELBOWS Sandblasting Fittings



Product Description


Type STEEL PIPE FITTINGS ASME B16.9
Size Seamless Fittings:1/2"~24" DN15~DN600
Welded Fittings: 1/2"~100" DN15~DN2500
Wall thickness sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100,
sch120, sch140, sch160, xxs, std,sch5s, sch20s, sch40s, sch80s
Standards ANSI B16.9, ASME,DIN2506, JIS, BS,GOST
Material Carbon steel: ASTM/ASME A234 WPB,WPC, ST37-2,ST54
Alloy steel: ASTM/ASME A234 WP9-WP12-WP11-WP22-WP5-WP91
Stainless steel: ASTM/ASME A403 WP 304-304L, WP 316-316L,WP 321,201
Surface treatment Transparent oil, rust-proof black oil or hot galvanized
Packing wooden case, pallet or as customers' requirement
Applications Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc
Min order 10 piece
Delivery time 7 after receipt of advanced payment
Certification ASME, ISO9001:2000
Delivery Term FOB(30% down payment in advance, the balance before shipment)
CIF or C&F(30% in advance , the balance against with the copy of B/L)



Carbon Steel A234WPB, SS304/L, SS316L ELBOW,  45D/ 90D/180D ELBOW, Pipe Fittings Elbow ​Manufacturer

Dimensions of ASTM A105 Carbon Steel Sch60 45 Degree Pipe Fittings Elbow



Carbon Steel ASTM A105 SCH60 45 Degree Pipe Fittings 2



NPS O.D.
D
90°
Long Rad
Center to End
A
45°
Long Rad
Center to End
B
90°
3D
Center to End
A
45°
3D
Center to End
B
1/2 21.3 38 16 / /
3/4 26.7 38 19 57 24
1 33.4 38 22 76 31
1.1/4 42.2 48 25 95 39
1.1/2 48.3 57 29 114 47
2 60.3 76 35 152 63
2.1/2 73 95 44 190 79
3 88.9 114 51 229 95
3.1/2 101.6 133 57 267 111
4 114.3 152 64 305 127
5 141.3 190 79 381 157
6 168.3 229 95 457 189
8 219.1 305 127 610 252
10 273 381 159 762 316
12 323.8 457 190 914 378
14 355.6 533 222 1067 441
16 406.4 610 254 1219 505
18 457 686 286 1372 568
20 508 762 318 1524 632
22 559 838 343 1676 694
24 610 914 381 1829 757
26 660 991 406 1981 821
28 711 1067 438 2134 883
30 762 1143 470 2286 946
32 813 1219 502 2438 1010
34 864 1295 533 2591 1073
36 914 1372 565 2743 1135
38 965 1448 600 2896 1200
40 1016 1524 632 3048 1264
42 1067 1600 660 3200 1326
44 1118 1676 695 3353 1389
46 1168 1753 727 3505 1453
48 1219 1829 759 3658 1516

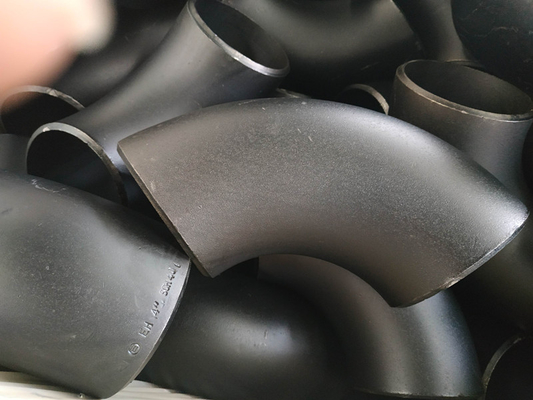

90D LR SCHEDULE 40 45D BUTT WELDED ELBOW A234WPB 1

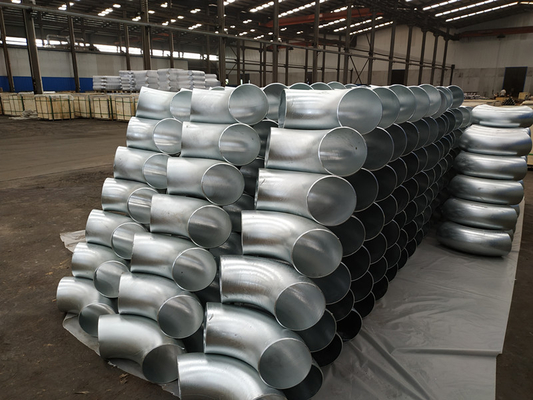

90D LR SCHEDULE 40 45D BUTT WELDED ELBOW A234WPB 2

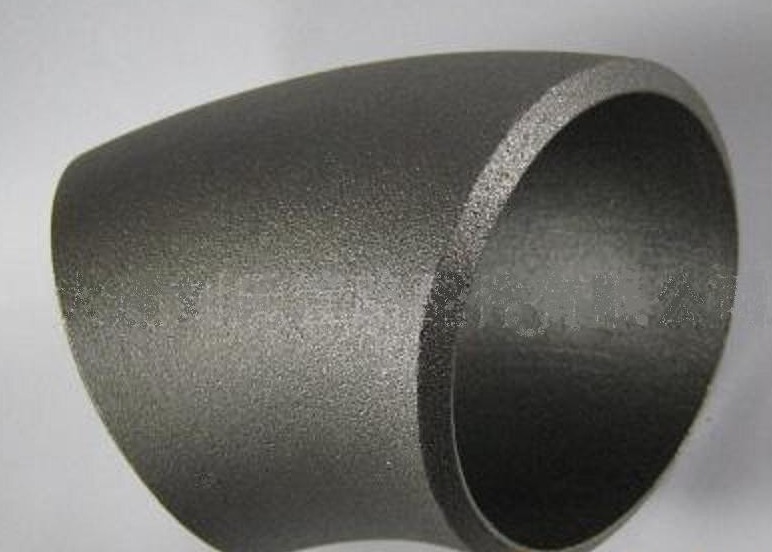

90D LR SCHEDULE 40 45D BUTT WELDED ELBOW A234WPB 3



90D LR SCHEDULE 40 45D BUTT WELDED ELBOW A234WPB 4



90D LR SCHEDULE 40 45D BUTT WELDED ELBOW A234WPB 5
