Product Details:
|
| Standard: | ANSI B16.5, ANSI B16.47, AIP605,MSS SP44 | Pressure: | 150LBS/300LBS/600LBS/900LBS/1500LBS/2500LBS |
|---|---|---|---|
| Color: | Black And Yellow Paint | Material: | ASTM/ASME A105 |
| Type: | WN,BLIND,PLATE,SO,THREADED,LOOSE FLANGE | Size: | DN15-DN1200 |
| Certificate: | ISO,PED | Surface: | FF,RF,RTJ |
| Finished: | Black, Yellow Paint, Rust Proof Oil | Built: | Since 1986 |
| Export: | 2008 | Location: | Hebei Province |
| High Light: | asme a105 stainless steel blind flange,dn150 stainless steel blind flange,150lbs ss blind flange |
||

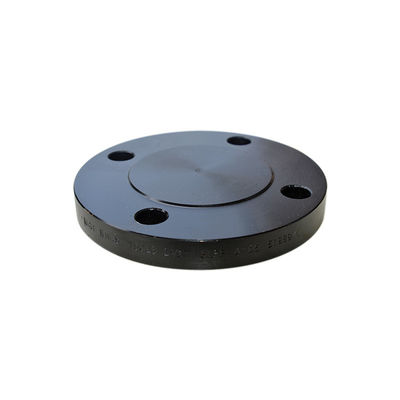

Blind Lap Joint Flange ANSI B16.5 ASME B16.47 ASTM/ASME A105 150LBS DN150
The product range below:
1.Carbon steel pipe fitting
· Kind: Elbow /Tee /Reducer /Cap
· Size: 1/2"-72"
· Material: ASTM A234 WPB
· Thickness: SCH10-SCH160 /STD/XS/XXS
· Standard: ASME B16.9 / B16.28 / B16.25
2.Carbon steel flange (Forged and cast)
· Kind: WN /SO /PL /BL/LJ
· Size: 1/2"-104"
· Material: ASTM A105,SS400,RST37.2,Q235,16Mn,20#,20Mn,S235JR,P245GH,P265GH,P280GH and so on.
· Standard: ASME B,GOST,EN1090-1,DIN,BS4504,AWWA,SABS1123,UNI.
3.Stainless steel pipe fitting
· Kind: Elbow /Tee /Reducer /Cap
· Size: 1/2"-72"
· Material: 304/304L,316/316L.
· Thickness: SCH10-SCH160 /STD/XS/XXS
· Standard: ASME B16.9 / B16.28 / B16.25
4.Stainless steel flange(forged and cast)
· Kind: WN /SO /PL /BL/LJ
· Size: 1/2"-104"
· Material: A182 F304/304L,F316/316L,316Ti,321,317L.
· Standard: ASME B,GOST,EN1090-1,DIN,BS4504,AWWA C207,SABS1123,UNI.
Company information:
HEBHEI XINFENG HIGH-PRESSURE FLANGE AND PIPE FITTING CO., LTD ( XINFENG) was founded in 1988, specializing in the manufacture of forged flanges and pipe fittings.
Covering an area of 12000 square meters, equipped with advanced production lines and inspection instruments, Xinfeng now has become one of the biggest flange and pipe manufactures in Hebei Pro., China, Products are manufactured in accordance with international standards such as ANSI,DIN, EN1092, JIS, BS, GOST standards or with customers special requirement and design. XINFENG has obtained ISO 9002 certificate and follows in line with the system in the management and production. Advanced production and inspection equipment, rich experience and strict management systems well ensure its product quality.
Product Information:
| ANSI B16.5 |
WELDING NECK, SLIP ON. BLIND, LAP JOINT, THREADED, SOCKET WELD |
|
| ASME B16.47 SER.B(API605) | WELDING NECK, BLIND | |
|
ASME B16.47 SER.A (MSS SP44) |
WELDING NECK, BLIND | |
| DIN |
WELDING NECK DIN2631,2632,2633,2634,2635,2637 PLATE DIN2573,2576,2502,2503,2543,2544,2545 BLIND DIN2527 SCREWED DIN2565,2566 LAPPED DIN2641,2642,2655,2656 |
|
| EN1092-1 |
WELDING NECK TYPE 11 SLIP ON TYPE 12 THREADED TYPE 13 PLATE TYPE 01 LAPPED TYPE 02 BLIND TYPE 05 |
|
| BS4504 |
PLATE 01 BLIND 105 WELDING NECK 111 SLIP ON 112 THREADED 113 |
|
| BS10 TABLE D/E |
PLATE SLIP ON THREADED |
|
| GOST 12820 |
PLATE GOST12820-80 WELDING NECK GOST12821-80 |
|
| JIS B2220 |
SOP SOH BLIND |
|
| UNI |
THREADED BLIND PLATE WELDING NECK LAPPED |
|
| SABS1123 |
WELDING NECK TYPE2 PLATE TYPE3 SLIP ON TYPE4 BLIND TYPE8 |
|
| PRESS | ||
| PN6,10,16,25,40,64,100 | CLASS 150,300,600,900,1500,2000,3000,6000,9000 | |
| MATERIAL | ||
|
CS RST37.2,S235JR,C22.8,CT20,16MN,SS400, SS SS304/304L,316/316L |
||
| COATING | ||
| RUST-PROOF OIL, YELLOW PAINT,BLACK PAINT,GALVANIZED | ||
| SCALING FACE | ||
| FF,RF,RTJ | ||
| PACKAGE | ||
| SEAWORTHY PLYWOODEN CASE OR WOODEN PALLET | ||
| PAYMENT | ||
| TT, LC, D/A OR D/P | ||

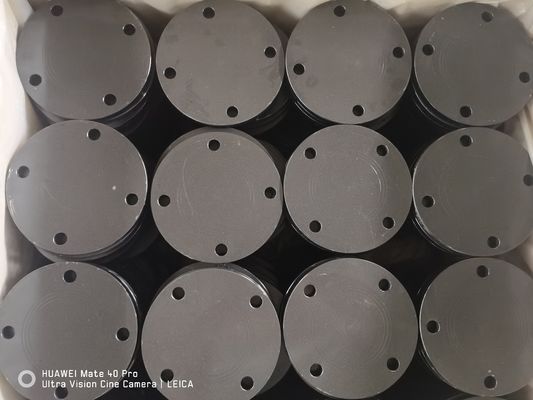

Packing Way:
Q: Can you accept TPI?
A: Yes, sure. Welcome visit our factory and come here to inspect the goods and inspect production process.
Q: Can you supply Form e, Cerficiate of origin? A: Yes, we can supply.
Q: Can you supply invoice and CO with chamber of commerce? A: Yes, we can supply.
Q: Can you accept L/C deferred 30, 60, 90days? A: We can. Please negotiate with sales.
Q: Can you accept O/A payment? A: We can. Please negotiate with sales.
Q: Can you supply samples? A: Yes, some samples are free, please check with sales.
Q: Can you supply the products which comply with NACE? A: Yes, we can.
