A350 Lf2 Ser.A Sorf Wnrf Forged Carbon Steel Flange

A350 Lf2 Ser.A Sorf Wnrf Forged Carbon Steel Flange
A350 Lf2 Ser.A Sorf Wnrf Forged Carbon Steel Flange A350 Lf2 Ser.A Sorf Wnrf Forged Carbon Steel Flange A350 Lf2 Ser.A Sorf Wnrf Forged Carbon Steel Flange A350 Lf2 Ser.A Sorf Wnrf Forged Carbon Steel Flange A350 Lf2 Ser.A Sorf Wnrf Forged Carbon Steel Flange A350 Lf2 Ser.A Sorf Wnrf Forged Carbon Steel Flange A350 Lf2 Ser.A Sorf Wnrf Forged Carbon Steel Flange A350 Lf2 Ser.A Sorf Wnrf Forged Carbon Steel Flange

Large Image :  A350 Lf2 Ser.A Sorf Wnrf Forged Carbon Steel Flange

Product Details:
Place of Origin: CHINA
Brand Name: XF
Certification: ISO, CE
Model Number: XF-FLANGE058
Payment & Shipping Terms:
Minimum Order Quantity: 2TONS
Price: USD1580/TON TO USD2640/TON
Packaging Details: PLYWOOD CASES AND PALLETS
Delivery Time: 10-45DAYS
Payment Terms: L/C, D/P, T/T
Supply Ability: 5000TONS/MONTH

A350 Lf2 Ser.A Sorf Wnrf Forged Carbon Steel Flange

Description
SIZE: 1/2" TO 80", 0.5 INCH TO 80 INCH SURFACE TREATMENT: BLACK PAINTING, YELLOW PAINTING, GALVANISING, ANTI-RUST OIL
SEALING FACE FLANGE: RAISED FACE (RF), FLAT FACE (FF), RING JOINT TYPE(RTJ) Package: Sea Worthy Plywood Cases/pallets
Price Term: FOB, CIF, CFR Production Period: Less Than 60tons Within 30days, More Than 60tons 50days
Certificate: PED, ISO MATERIAL: STAINLESS STEEL SS316/L SS304/L
STANDARD: ANSI B16.5, ANSI B16.47A, ANSI B16.47B, AWWA CLASS D, D FLANGE TYPE: N FLANGE, SO FLANGE, BLIND FLANGE, SW FLANGE, PLATE FLANGE, LAP JOINT FLANGE
High Light:

wnrf forged carbon steel flange

,

sorf carbon steel forged flanges

,

a350 lf2 forged carbon steel flange

FLANGE ANSI B16.5 ASME B16.47 Ser.A FORGED FLANGE CARBON STEEL FLANGE 150LB-2500LB FLANGE SORF WNRF FLANGE

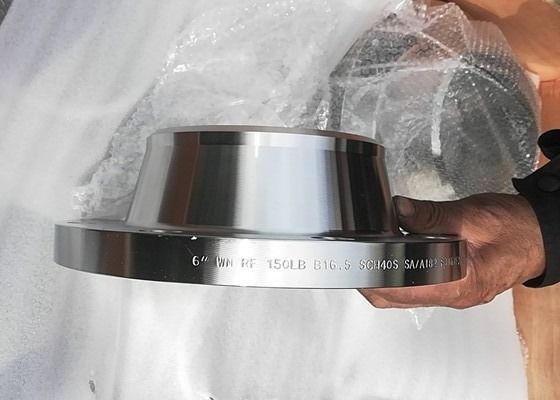

The Weld neck flange is designed to joint a piping system by butt welding. The hub, or neck, transfer the stresses to the pipe to reduce high stress concentrations. The bore of the weld neck flange matches the pipe bore.
Weld Neck flange is typically provided with a raised face(RF), flat face(FF), or ring type joint face(RTJ). When a raised face is necessary for weld neck flange, the standard height is 1/16" for blind flanges under 400#. For blind flange of 400# and up, the standard blind flange raised face height is 1/4".
We, HEBEI XINFENG STEEL FLANGE FITTING can supply weld neck flanges in all materials grades, specification and sizes. HEBEI XINFENG STEEL FLANGE FITTING have some stock and can delivery weld neck flange in 3 days.
Specifications:
Size: 1/2" to 96".
Flange Face: Raised Face(RF), Flat Face(FF), Ring Type Joint(RTJ), T&G.
Flange Pressure: PN6-PN63, 150#--6000#
Schedule: SCH40/XS, STD.
Material:
Carbon Steel: ASTM A105.
Low-Temperature: ASTM A350 LF1 LF2 CL1/CL2, LF3 CL1/CL2.
Stainless Steel: ASTM A182 F304/304L, F316/316L, F321.




SIZE MATERIAL FLANGE TYPE
1/2"-80" Stainless Steel weld neck flange
Slip on Flange
socket weld flange
LAP Joint Flange
Threaded flange
blind flange
CARBON STEEL, STAINLESS STEEL weld neck flange
Slip on Flange
socket weld flange
LAP Joint Flange
Threaded flange
blind flange
Sealing face of flanges RF with serrated finish
FF with 3 waterlines
FF with smooth finis
RTJ (Ring Joint Type)
FF with serrated finish
RF with water lines

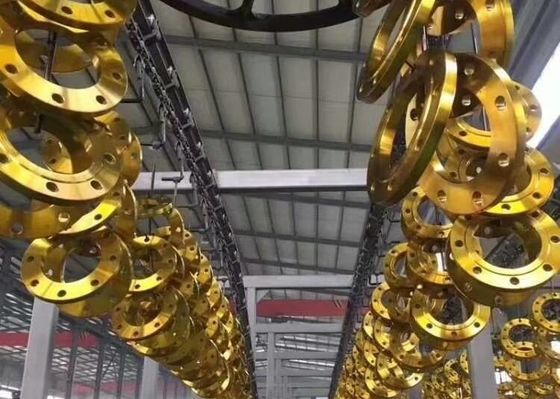

A350 Lf2 Ser.A Sorf Wnrf Forged Carbon Steel Flange 0

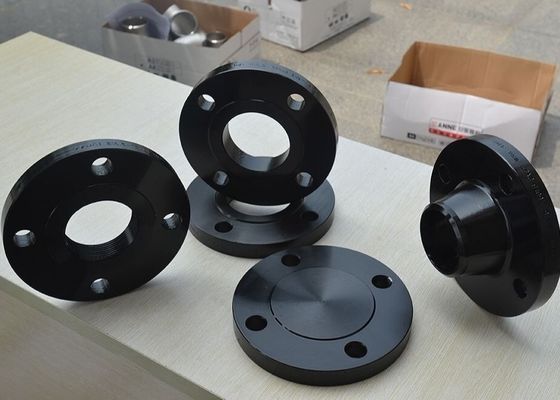

A350 Lf2 Ser.A Sorf Wnrf Forged Carbon Steel Flange 1

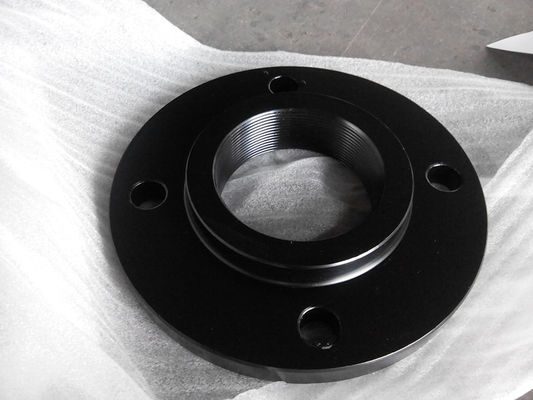

A350 Lf2 Ser.A Sorf Wnrf Forged Carbon Steel Flange 2



A350 Lf2 Ser.A Sorf Wnrf Forged Carbon Steel Flange 3

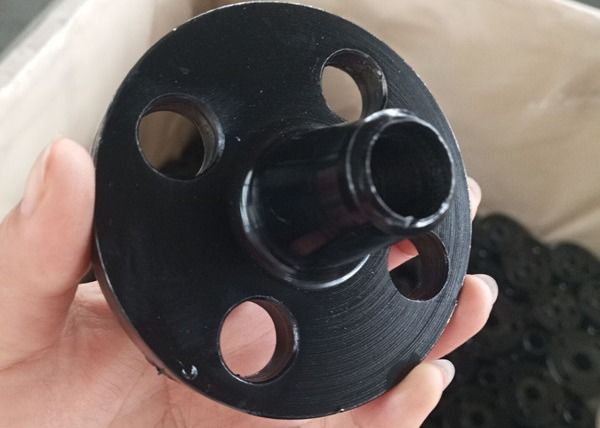

A350 Lf2 Ser.A Sorf Wnrf Forged Carbon Steel Flange 4

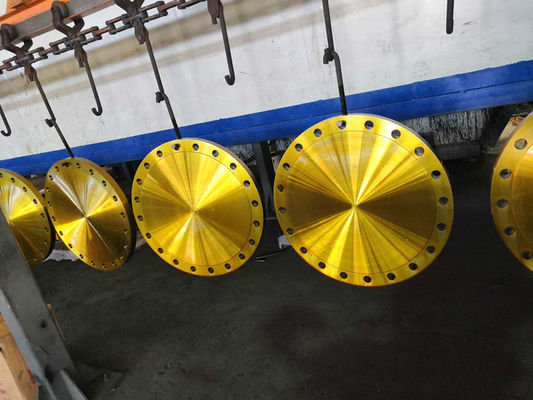

A350 Lf2 Ser.A Sorf Wnrf Forged Carbon Steel Flange 5

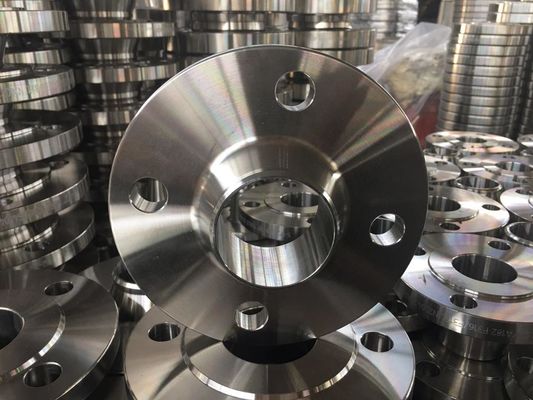

A350 Lf2 Ser.A Sorf Wnrf Forged Carbon Steel Flange 6



Name: RF Forged Steel Slip on Flange.
Type: Slip on Flange.
Material: ASTM A105, Forged Steel.
Face: RF.
Standard: EN1092-1.
Pressure: PN16.
Size: DN200 (8 Inch).
Surface Finish: Black Painting.
A105 Forged Steel Slip On Flange, DN200, PN16 - Landee Flange
Flange
Normal Diam.
O.D. Flange Thk. Of Flange Min Diam.
of
Hub
Diameter of Raised Face Length Hub.Y Bore Diam.
of Bolt
Circle
Diam.
of Bolt
Holes
Number
of Bolts
Diam. of
Bolts
(inch)
KG LB
inch dn O C X G Y B BC BH BN BD
1/2" 15 89.00 11.20 30.20 35.10 15.70 22.40 60.50 15.80 4 1/2" 0.4 0.9
3/4" 20 98.50 12.70 38.10 42.90 15.70 27.70 69.90 15.80 4 1/2" 0.7 1.5
1" 25 108.00 14.20 49.30 50.80 17.50 34.50 79.30 15.80 4 1/2" 0.8 1.8
1-1/4" 32 117.50 15.70 58.70 63.50 20.60 43.20 88.90 15.80 4 1/2" 1.2 2.6
1-1/2" 40 127.00 17.50 65.00 73.20 22.40 49.50 98.60 15.80 4 1/2" 1.4 3.1
2" 50 152.50 19.10 77.70 91.90 25.40 62.00 120.70 19.10 4 5/8" 2.2 4.8
2-1/2" 65 178.00 22.40 90.40 104.60 28.40 74.70 139.70 19.10 4 5/8" 3.5 7.7
3" 80 190.50 23.90 108.00 127.00 30.20 90.70 152.40 19.10 4 5/8" 3.8 8.4
3-1/2" 90 216.00 23.90 122.20 139.70 31.80 103.40 177.80 19.10 8 5/8" 5 11
4" 100 228.50 23.90 134.90 157.20 33.30 116.10 190.50 19.10 8 5/8" 5.6 12.3
5" 125 254.00 23.90 163.60 185.70 36.60 143.80 215.90 22.40 8 3/4" 6.5 14.3
6" 150 279.50 25.40 192.00 215.90 39.60 170.70 241.30 22.40 8 3/4" 8.1 18
8" 200 343.00 28.40 246.10 269.70 44.50 221.50 298.50 22.40 8 3/4" 13 28.6
10" 250 406.50 30.20 304.80 323.90 49.30 276.40 362.00 25.40 12 7/8" 18.4 40
12" 300 482.50 31.80 365.30 381.00 55.60 327.20 431.80 25.40 12 7/8" 28.5 63
14" 350 533.50 35.10 400.10 412.80 57.20 359.20 476.30 28.50 12 1" 37.5 83
16" 400 597.00 36.60 457.20 469.90 63.50 410.50 539.80 28.50 16 1" 44.5 98
18" 450 635.00 39.60 505.00 533.40 68.30 461.80 577.90 31.80 16 1 1/8" 54 119
20" 500 698.50 42.90 558.80 584.20 73.20 513.10 635.00 31.80 20 1 1/8" 72 158
24" 600 813.00 47.80 663.40 692.20 82.60 616.00 749.30 35.10 20 1 1/4" 95

200
