Product Details:
|
| Standard: | ANSI B16.5,ANSI B16.47 | Type: | WN,SO,BLIND,THREADED,SW,LJ |
|---|---|---|---|
| Pressure: | 150/300/400/600/900/1500/2500LBS | Material: | ASTM A105 |
| Stainless Steel: | ASME A182 F304/304L,316/316L | Certificate: | ISO,PED |
| Usage: | Connection The Pipe | Color: | Black,Yellow,Black Paint |
| Application: | Petroleum And Gas | Surface: | Raised Face |
| Output: | 2500ton Per Month | Payment Item: | 30% Advance Payment,70% Against BL Copy |
| Package: | Plywood Case Or Pallet | ||
| High Light: | ansi b16.5 astm a105 flange,astm a105 flange 600 lbs,ansi b16.47 a105 steel flanges |
||

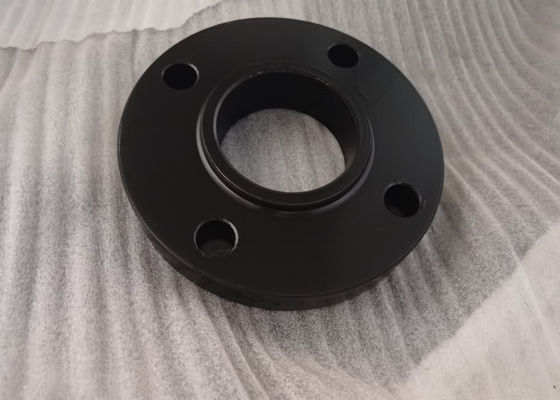

SO WN Flange ANSI B16.5 B16.47 Threaded ASTM A105 150LBS 300LBS 600LBS
COMPANY INTRODUCTION:
HEBHEI XINFENG HIGH-PRESSURE FLANGE AND PIPE FITTING CO., LTD ( XINFENG) was founded in 1988, specializing in the manufacture of forged flanges and pipe fittings. Located in Mengcun Hui Nationality Autonomous Region, known as the base for manufacture of elbows and pipe fittings in China, XINFENG enjoys a pleasant environment and convenient transportation, with Beijing and Tianjin city to the north and the Bohai Sea to the east.
Materials available are carbon steel, stainless steel and alloy steel. XINFENG has a group of rich-experienced engineers and technical professionals, making it strong in technical force. Products are manufactured in accordance with international standards such as ANSI,DIN, EN1092, JIS, BS, GOST standards or with customers special requirement and design. XINFENG has obtained ISO 9002 certificate and follows in line with the system in the management and production. Advanced production and inspection equipment, rich experience and strict management systems well ensure its product quality.
Product information:
Flange is the parts which connects two pipe ends, flange connection is defined by the flange, gasket and bolt three are connected as a group of combined sealing structure of the detachable connection. The gasket is added between the two flanges and then fastened by bolts. Different pressure flange, thickness is different, and the bolts they use are different, when pump and valve connect with pipe, the parts of the equipment are also made of the corresponding flange shape, also known as flange connection, usually closured bolted connection parts are also known as flanges, such as the connection of ventilation pipe, this kind of parts can be called "flange type part", but this connection is only part of a device, such as the connection between flange and water pump, it's not inapposite to call water pump as flange type parts,but relative small valve,it can be called as flange type parts .
FLANGE PRODUCT INTRODUCTION:
| ANSI B16.5 |
WELDING NECK, SLIP ON. BLIND, LAP JOINT, THREADED, SOCKET WELD |
|
| ASME B16.47 SER.B(API605) | WELDING NECK, BLIND | |
|
ASME B16.47 SER.A (MSS SP44) |
WELDING NECK, BLIND | |
| DIN |
WELDING NECK DIN2631,2632,2633,2634,2635,2637 PLATE DIN2573,2576,2502,2503,2543,2544,2545 BLIND DIN2527 SCREWED DIN2565,2566 LAPPED DIN2641,2642,2655,2656 |
|
| EN1092-1 |
WELDING NECK TYPE 11 SLIP ON TYPE 12 THREADED TYPE 13 PLATE TYPE 01 LAPPED TYPE 02 BLIND TYPE 05 |
|
| BS4504 |
PLATE 01 BLIND 105 WELDING NECK 111 SLIP ON 112 THREADED 113 |
|
| BS10 TABLE D/E |
PLATE SLIP ON THREADED |
|
| GOST 12820 |
PLATE GOST12820-80 WELDING NECK GOST12821-80 |
|
| JIS B2220 |
SOP SOH BLIND |
|
| UNI |
THREADED BLIND PLATE WELDING NECK LAPPED |
|
| SABS1123 |
WELDING NECK TYPE2 PLATE TYPE3 SLIP ON TYPE4 BLIND TYPE8 |
|
| PRESS | ||
| PN6,10,16,25,40,64,100 | CLASS 150,300,600,900,1500,2000,3000,6000,9000 | |
| MATERIAL | ||
|
CS RST37.2,S235JR,C22.8,CT20,16MN,SS400, SS SS304/304L,316/316L |
||
| COATING | ||
| RUST-PROOF OIL, YELLOW PAINT,BLACK PAINT,GALVANIZED | ||
| SCALING FACE | ||
| FF,RF,RTJ | ||
| PACKAGE | ||
| SEAWORTHY PLYWOODEN CASE OR WOODEN PALLET | ||
| PAYMENT | ||
| TT, LC, D/A OR D/P | ||
Product picture
Our Certificate:
FAQ:
Q1. What is your terms of packing?
A: Generally, we pack our goods in wooden boxes. If you have legally registered patent, we can pack the goods as your requirement.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% BL copy.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 5 to 10 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
