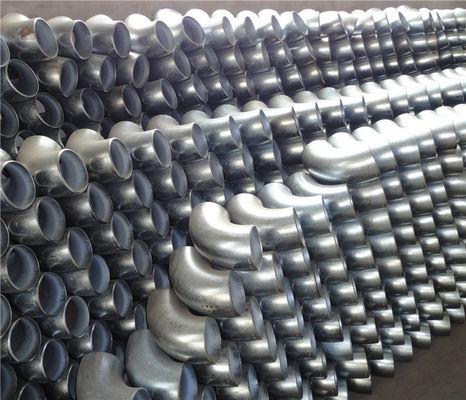

Name: EN10204 3.1 Carbon Steel Stainless Steel Fitting SGP JIS B2311 Elbow Tee Reducer Cap
Brand: XF/XINFENG
SKU: 1/2"-72"
Price: 1 USD
Availability: InStock
Rating: 4.7 (173 reviews)

Place of Origin:

CHINA

Brand Name:

XF/XINFENG

Certification:

ISO9001 , PED AND AD2000 W0 EN10204 3.1

Model Number:

1/2"-72"

Minimum Order Quantity:

1PCS

Price:

1USD

Packaging Details:

Plywood Cases And Pallets

Delivery Time:

30DAYS

Payment Terms:

L/C, D/A, D/P, T/T

Supply Ability:

2000TONS ONE MONTH

Standard:

JIS B2311

Size:

1/2" - 72"

Material:

A234 WPB ,SS400 SS304/304L SS316/316L

Coating:

Oil , Cold Galvanized And Hot Galvanized

Thicknss:

SGP

Production Type:

ELBOW , REDUCER TEE CAP

High Light:

STEEL FITTING SGP JIS B2311

B2311 Elbow Tee Reducer Cap

EN10204 3.1 Stainless Steel Fitting

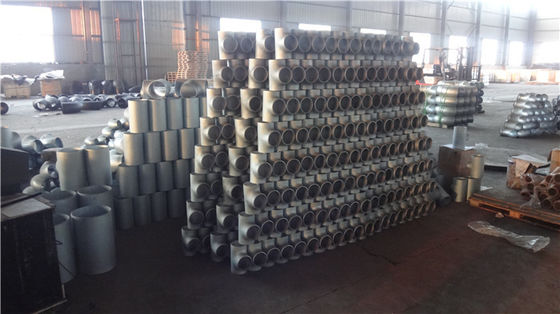

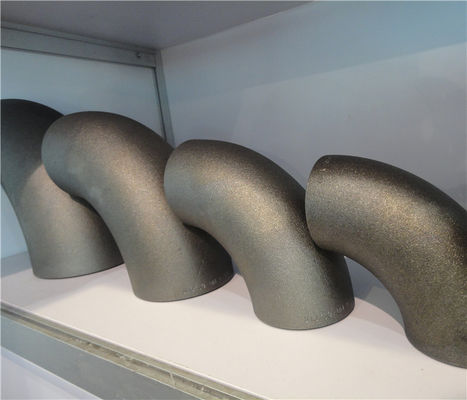

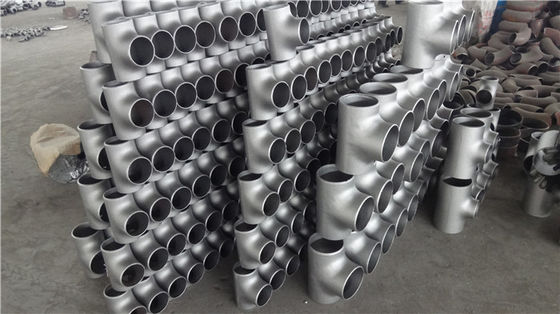

STEEL FITTING SGP JIS B2311 ELBOW TEE REDUCER AND CAP CARBON STEEL STAINLESS STEEL

Dimensions of SGP Elbows in JIS B2311/B2312.

Dimensions of JIS B2311/ B2312 SGP standard Elbows.

JIS-B2311-B2312-SGP-ELBOW-BEND-DRAWING

45° and 90° SGP elbows dimensions in mm

Nominal		OD	Center to End			90˚Weight		45 °Weight
(NPS)		OD	90˚(F)		45˚(H)	KG/PC		KG/PC
A	B	D	Long	Shot	Long	Long	Short	LONG
15	½	21.7	38.1	-	15.8	0.08	0.05	0.04
20	¾	27.2	38.1	-	15.8	0.1	0.07	0.05
25	1	34	38.1	25.4	15.8	0.15	0.1	0.08
32	1¼	42.7	47.6	31.8	19.7	0.26	0.17	0.13
40	1½	48.6	57.2	38.1	23.7	0.35	0.24	0.18
50	2	60.5	76.2	50.8	31.6	0.64	0.43	0.32
65	2½	76.3	95.3	63.5	39.5	1.12	0.75	0.56
80	3	89.1	114.3	76.2	47.3	1.58	1.05	0.79
90	3½	101.6	133.4	88.9	55.3	2.17	1.45	1.09
100	4	114.3	152.4	101.6	63.1	2.91	1.94	1.46
125	5	139.8	190.5	127	78.9	4.49	2.99	2.25
150	6	165.2	228.6	152.4	94.7	7.09	4.73	3.55
200	8	216.3	304.8	203.2	126.3	14.4	9.61	7.2
250	10	267.4	381	254	157.8	25.4	16.9	12.7
300	12	318.5	457.2	304.8	189.4	38.1	25.4	19.05
350	14	355.6	533.4	355.6	220.9	56.7	37.8	28.35
400	16	406.4	609.6	406.4	252.5	74.3	49.5	37.15
450	18	457.2	685.8	457.2	284.1	94.2	62.8	47.1
500	20	508	762	508	315.6	116	77.7	58
550	22	558.8	838.2	558.8	347.2	141	94.1	70.5
600	24	609.6	914.4	609.6	378.7	168	112	84
650	26	660.4	990.6	660.4	410.3	198	132	99
700	28	711.2	1066.8	711.2	441.9	230	154	115
750	30	762	1143	762	473.4	264	176	132
800	32	812.8	1219.2	812.8	505	301	201	150.5
850	34	863.6	1295.4	863.6	536.6	340	227	170
900	36	914.4	1371.6	914.4	568.1	380	253	190
950	38	965.2	1447.8	965.2	599.7	425	283	212.5
1000	40	1016	1524	1016	631.2	471	314	235.5
1050	42	1066.8	1600.2	1066.8	662.8	518	346	259
1100	44	1117.6	1676.4	1117.6	694.4	570	380	285
1150	46	1168.4	1752.6	1168.4	725.9	623	415	311.5
1200	48	1219.2	1828.8	1219.2	757.5	677	452	338.5

180° SGP elbows Dimensions in mm

Nominal		OD	C to C		End to End		180˚Weight
(NPS)		OD	180˚ (P)		180˚(K)		KG/PC
A	B	D	Long	Shot	Long	Shot	Long	Short
15	½	21.7	76.2	-	49	-	0.16	0.1
20	¾	27.2	76.2	-	51.7	-	0.2	0.14
25	1	34	76.2	50.8	55.1	42.4	0.3	0.2
32	1¼	42.7	95.2	63.6	69	53.2	0.52	0.34
40	1½	48.6	114.4	76.2	81.5	62.4	0.7	0.48
50	2	60.5	152.4	101.6	106.5	81.1	1.28	0.86
65	2½	76.3	190.6	127	133.5	101.7	2.24	1.5
80	3	89.1	228.6	152.4	158.9	120.8	3.16	2.1
90	3½	101.6	266.8	177.8	184.2	139.7	4.34	2.9
100	4	114.3	304.8	203.2	209.6	158.8	5.82	3.88
125	5	139.8	381	254	260.4	196.9	8.98	5.98
150	6	165.2	457.2	304.8	311.2	235	14.18	9.46
200	8	216.3	609.6	406.4	413	311.4	28.8	19.22
250	10	267.4	762	508	514.7	387.7	50.8	33.8
300	12	318.5	914.4	609.6	616.5	464.1	76.2	50.8
350	14	355.6	1066.8	711.2	711.2	533.4	113.4	75.6
400	16	406.4	1219.2	812.8	812.8	609.6	148.6	99
450	18	457.2	-	-	-	-	188.4	125.6
500	20	508	-	-	-	-	232	155.4
550	22	558.8	-	-	-	-	282	188.2
600	24	609.6	-	-	-	-	336	224
650	26	660.4	-	-	-	-	396	264
700	28	711.2	-	-	-	-	460	308
750	30	762	-	-	-	-	528	352
800	32	812.8	-	-	-	-	602	402
850	34	863.6	-	-	-	-	680	454
900	36	914.4	-	-	-	-	760	506
950	38	965.2	-	-	-	-	850	566
1000	40	1016	-	-	-	-	942	628
1050	42	1066.8	-	-	-	-	1036	692
1100	44	1117.6	-	-	-	-	1140	760
1150	46	1168.4	-	-	-	-	1246	830
1200	48	1219.2	-	-	-	-	1354	904
