Product Details:
|
| Product: | Steel Pipe Fitting Elbow Reducer Tee Cap | Standard: | E10253-1, EN10253-2 , DIN2605-2617 |
|---|---|---|---|
| Material: | Carbon Steel P235, P265GH, ST37, ; Stainless Steel 1.4301 (304); 1.4306 (304L); 1.4436(316); 1.4435(316L); 1.4541 (321) | Fitting Type: | Elbow 45deg, 90deg, 180deg, 2D, 3D, 5D; Equa Tee ,Reducing Tee; Reducer Concentric, Eccentric; Cap |
| Anti Rust Coating: | Bright Rust-proof Oil, Hot Dip Galvanized, Cold Galvanized | Welding End Type: | Plaine End, Bevel End, Shinning Bevel After Sandblasting |
| Size Range: | Seamless OD 17.2mm To 610mm; Welded OD 60mm To 1500mm | Wall Thickness: | 2mm -- 60mm |
| High Light: | XF DIN EN10253-1 Butt Welding Elbow,P235GH Tee Reducer Cap Welded,Tee Reducer Cap Welded P235GH |
||
BUTT WELDING STEEL FITTING DIN EN10253-1 ELBOW TEE REDUCER CAP SEAMLESS AND WELDED
STEEL FITTING DIN EN10253-1 BUTT WELDING ELBOW TEE REDUCER CAP SEAMLESS AND WELDED P235GH P265GH
DIN EN 10253 specifies the technical delivery requirements for seamless and welded butt-welding fittings (elbows, concentric and eccentric reducers, equal and reducing tees, caps) made of carbon and alloy steel which are intended for pressure purposes at room temperature, at low temperature or at elevated temperatures, and for the transmission and distribution of fluids and gases.
- type A : Butt-welding fittings with reduced pressure factor
- type B : Butt-welding fittings for use at full service pressure
| Standard | EN10253-1 butt welding pipe fittings of wrought carbon steel for general use and without specific requirements |
| EN 10253-2 for butt welding pipe fittings of non-alloy and ferritic alloy steels with specific inspection requirements. | |
| EN 10253-3 for butt welding pipe fittings of wrought austenitic and austenitic-ferritic(duplex) stainless steels without specific inspection requirements. | |
| EN 10253-4 for butt welding pipe fittings of wrought austenitic and austenitic-ferritic(duplex) stainless steels with specific inspection requirements. | |
| DIN2605 for butt welding pipe fitting elbows and bends with reduced pressure factor | |
| DIN2615 for butt welding pipe fitting tee with reduced pressure factor | |
| DIN2616 for butt welding pipe fitting reducer with reduced pressure factor | |
| DIN2617 for butt welding pipe fitting cap with reduced pressure factor | |
| Material | Carbon steel S235, S265, ST37, P235GH, P265GH, P355NH |
| Stainless steel 1.4301 (304); 1.4306 (304L); 1.4436(316); 1.4435(316L); 1.4541 (321) | |

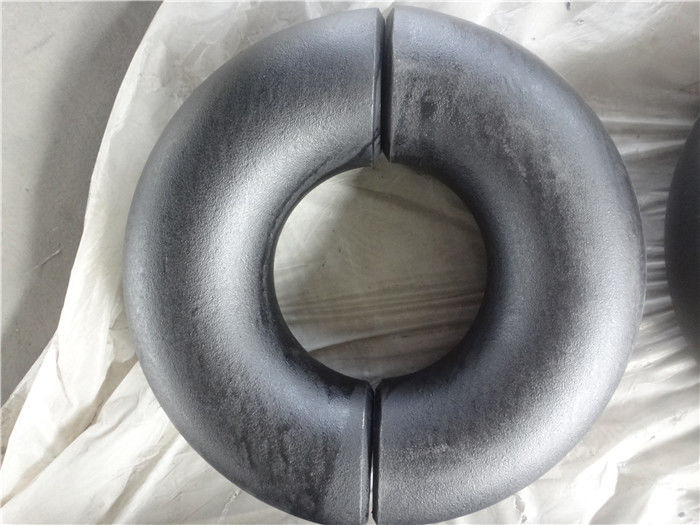

| Fitting type | Elbow 45deg, 90deg, 180deg, 2D, 3D, 5D |

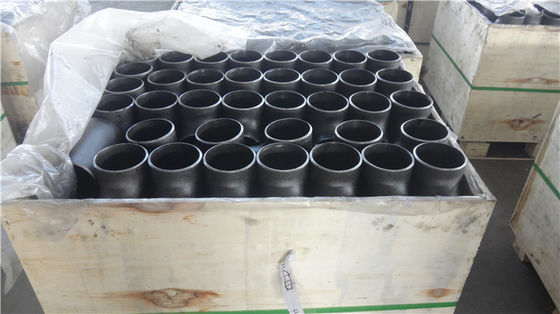

| Tee, reducing tee, equal tee, cross | |
| Reducer eccentric, concentric | |

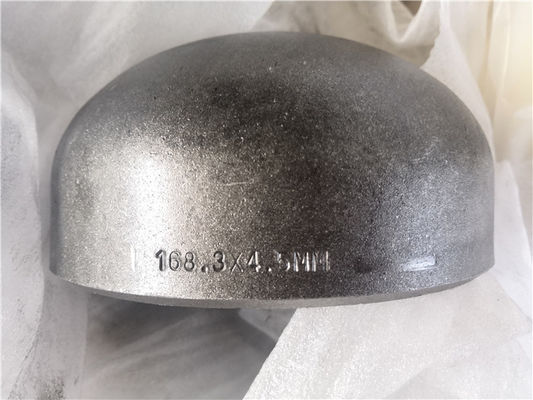

| Cap | |
| Wall thickness | 2mm to 60mm |
| Outside Diameter size | 17.2mm to 610mm for seamless type |
| 60mm to 1500mm for welded type | |
| Antirust coating | Rust-proof oil, hot dip galvanized, electric galvanized, |
| Weld end type | plaine end, bevel end, shinning bevel after sandblasting |
| Packing | carton box for szie up to 60mm, seaworthy plwood case or pallet for big size |
As a professional butt weld pipe fittings manufacturer, HEBEI XINFENG has accumulated more than 20 years of experience and expertise in producing carbon steel pipe fittings and stainless steel .We have full capacity to provide full series of carbon steel BW fittings including stainless steel elbows, stainless steel reducers, carbon steel tees and more related products for diverse applications. If you are looking for the ideal source of butt weld fittings, Golden Highope would be your best choice!
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
