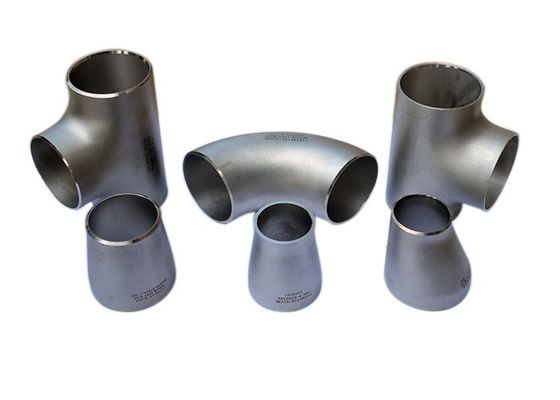

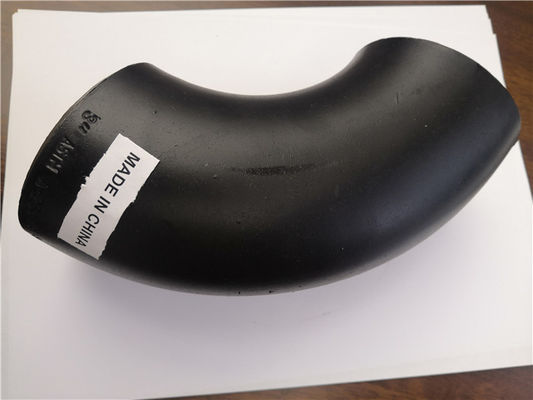

Steel Fitting ASME B16.9 B16.28 Elbow Tee Reducer Bend Cross Saddle Butt Welding

Description
Product: Steel Seamless Butt Welded Pipe Fitting Standard: ASME B16.9/B16.28
Fitting Type: Elbow, Tee, Reducer, Cap, Cross Material: Carbon Steel ASTM A234WPB,Stainless Steel SS304,SS316,SS321
Wall Thickness: Sch 5, Sch10, STD, Sch20, Sch30, Sch40 XS, Sch60,sch80, Sch100,sch120, Sch160, Sch Xxs Surface Coating: Black Paint Coating, Rust Proof Oil Coat, Cold Galvanized And Hot Dip Galvanized Coating
High Light:

Steel Fitting asme b16 9 elbow

,

Butt Welding asme b16 9 elbow

,

B16.28 Elbow Tee Reducer

STEEL FITTING ASME B16.9 / B16.28

Elbow Tee Reducer Bend Cross Saddle Butt Welding ASTM A234WPB



Standard ASME B16.9 / B16.28

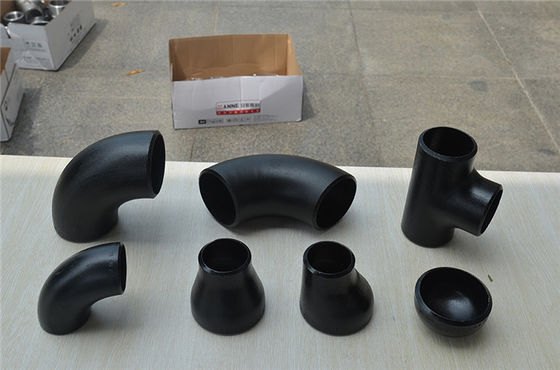

Fitting type

Elbow LR ( long raidus) SR (short radius) 45/60/90/180DEG;

3D/5D Bend 45DEG/90DEG;Tee, equal Tee, reducing Tee, cross , saddle;Reducer Concentric reducer, Eccentric reducer , pipe end Cap

Wall thickness

SCH5, SC5S, SCH10, SCH10S, SCH20,SCH30, SCH40, SCH40S , STD,

XS, SCH60, SCH80,SCH100, SCH120, SCH160, SCH XXS

Size range 1/2" to 24" seamless type; 4" - 72" wedled type
Form seamless and wedled
Material

carbon steel ASTM A234 WPB, WP9, ASTM A420 Gr. WPL6, ASTM A105,

ASTM A694 F42-F70

stainless steel ASTM A403 WP304/304L; WP316/316L; WP321; DIN1.4301; DIN1.4306; DIN1.4401; DIN 1.4404
Packing carton box for small size up to 2", seaworthy plywood cases or pallet



Steel Fitting ASME B16.9 B16.28 Elbow Tee Reducer Bend Cross Saddle Butt Welding 0









WROUGHT CARBON STEEL WALL THICKNESS STANDARDS



Nominal Pipe Size Outside Diameter Nominal Wall Thickness
A B ASME JIS DIN JIS(1) DIN(2) SCH10 SCH20 SCH30 STD SCH40 SCH60 XS SCH80 SCH100 SCH120 SCH140 SCH160 XXS
15 1/2" 21.3 21.7 21.3 2.8 2.0 2.11   2.41 2.77 2.77   3.73 3.73       4.78 7.47
20 3/4" 26.7 27.2 26.9 2.8 2.3 2.11   2.41 2.87 2.87   3.91 3.91       5.56 7.82
25 1" 33.4 34.0 33.7 3.2 2.6 2.77   2.90 3.38 3.38   4.55 4.55       6.35 9.09
32 1 1/4" 422 42.7 42.4 3.5 2.6 2.77   297 3.56 3.56   4.85 4.85       6.35 9.70
40 1 1/2" 48.3 48.6 48.3 3.5 2.9 2.77   3.18 3.68 3.68   5.08 5.08       7.14 10.15
50 2" 60.3 60.5 60.3 3.8 2.9 2.77   3.18 3.91 3.91   5.54 5.54       8.74 11.07
65 2 1/2" 73.0 76.3 76.1 4.2 2.9 3.05   4.78 5.16 5.16   7.01 7.01       9.53 14.02
80 3" 88.9 89.1 88.9 4.2 3.2 3.05   4.78 5.49 5.49   7.62 7.62       11.13 15.24
90 3-1/2" 101.6 101.6 4.2 3.05   4.78 5.74 5.74   8.08 8.08       -
100 4" 114.3 114.3 114.3 4.5 3.6 3.05   4.78 6.02 6.02   8.56 8.56   11.13   13.49 17.12
125 5" 141.3 139.8 139.7 4.5 4.0 3.40   - 6.55 6.55   9.53 9.53   12.70   15.99 19.05
150 6" 168.3 165.2 168.3 5.0 4.5 3.40 4.5 - 7.11 7.11   10.97 10.97   14.27   18.26 21.95
200 8" 219.1 216.3 219.1 5.8 6.3 376 6.35 7.04 8.18 8.18 10.31 12.70 12.70 1509 18.26 20.62 23.01 22.23
250 10" 273.1 267.4 273.0 6.6 6.3 4.19 6.35 7.80 9.27 9.27 12.70 12.70 15.09 18.26 21.44 25.40 28.58 25.40
300 12" 323.9 328.9 323.9 6.9 7.1 4.57 6.35 8.38 9.53 10.31 14.27 12.70 17.48 21.44 25.40 28.58 33.32 25.40
350 14" 355.6 355.6 355.6 7.9 8.0 6.35 7.92 9.53 9.53 11.13 15.09 12.70 19.05 23.83 27.79 31.75 35.71
400 16" 406.4 406.4 406.4 7.9 8.8 6.35 7.92 9.53 9.53 12.70 16.66 12.70 21.44 26.19 30.96 36.53 40.49
450 18" 457.2 457.2 457.0 7.9 10.0 6.35 7.92 11.13 9.53 14.27 19.05 12.70 23.83 29.36 34.93 39.67 45.24
500 20" 508.0 508.0 508.0 7.9 11.0 6.35 9.53 1270 9.53 15.09 20.62 12.70 26.19 32.54 38.10 44.45 50.01
550 22" 558.8 558.8 -   - 6.35 9.53 12.70 9.53 - 2223 12.70 2858 34.93 41.28 47.63 53.98
600 24" 609.6 609.6 610.0   12.5 6.35 9.53 14.27 9.53 17.48 24.61 12.70 30.96 38.89 46.02 52.37 59.54
650 26" 660.4 660.4 -   - 7.92 12.70 - 9.53 -   12.70 - - - -
700 28" 711.1 711.2 711.0   125 7.92 1270 15.88 9.53   12.70
750 30" 762.0 762.0 -   7.92 12.70 15.88 9.53   12.70   - -
800 32" 812.8 812.8 813.0   12.5 7.92 12.70 15.88 9.53 17.48   12.70 -
850 34" 863.6 863.6   - 7.92 12.70 15.88 9.53 17.48   12.70 JIS G34525 ASME B36.10M JIS G3454 DIN2448 JIS G3455 DIN2458 JISG3457
900 36" 914.4 914.4 914.0   12.5 7.92 12.70 15.88 9.53 19.05   12.70
950 38" 965.2 965.2 -   - 9.53   12.70 -
1000 40" 1016.0 1016.0 1016.0   12.5 - - - 9.53 -   12.70 -
1050 42" 1066.8 1066.8 -   - - - - 9.53 -   12.70 -
1100 44" 1117.6 1117.6 -   - - - - 9.53 -   12.70 - - - - -
1150 46" 1168.4 1168.4 -   - - - - 9.53 -   1270 - - - -
1200 48" 1219.2 1219.2 1220.0   - - - - 9.53 -   12.70 - - - - -
