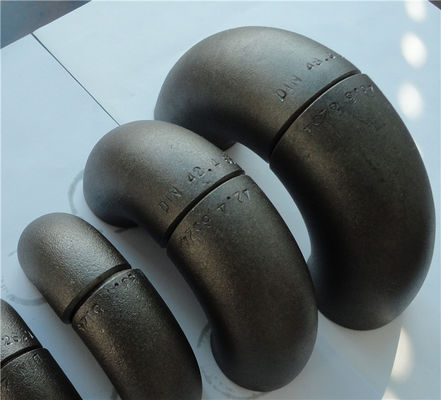

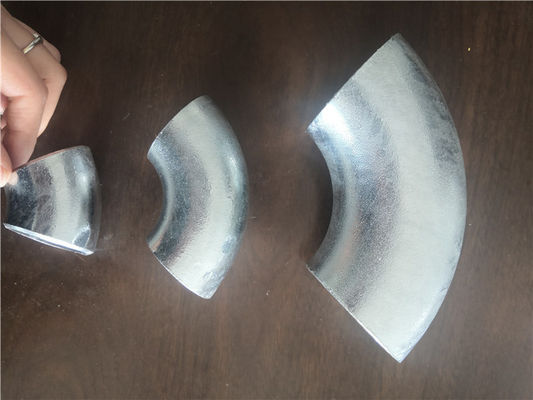

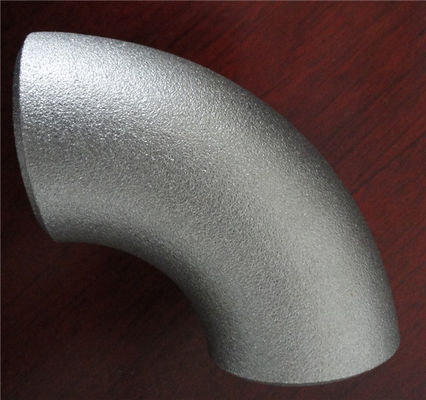

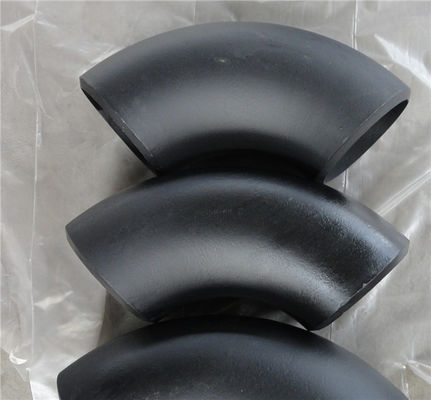

45D 90D 180D Steel Pipe Elbow SCH40 SCH80 SCH160 DIN JIS GOST Seamless Welded

45D 90D 180D Steel Pipe Elbow SCH40 SCH80 SCH160 DIN JIS GOST Seamless Welded
45D 90D 180D Steel Pipe Elbow SCH40 SCH80 SCH160 DIN JIS GOST Seamless Welded 45D 90D 180D Steel Pipe Elbow SCH40 SCH80 SCH160 DIN JIS GOST Seamless Welded 45D 90D 180D Steel Pipe Elbow SCH40 SCH80 SCH160 DIN JIS GOST Seamless Welded 45D 90D 180D Steel Pipe Elbow SCH40 SCH80 SCH160 DIN JIS GOST Seamless Welded

Large Image :  45D 90D 180D Steel Pipe Elbow SCH40 SCH80 SCH160 DIN JIS GOST Seamless Welded

Product Details:
Place of Origin: CHINA
Brand Name: XF/XINFENG
Certification: ISO9001,TUV PED
Model Number: 1/2"-80"
Payment & Shipping Terms:
Minimum Order Quantity: 1TON
Price: USD 1.00
Packaging Details: PLYWOODEN CASES,PALLET
Delivery Time: 30DAYS
Payment Terms: T/T, L/C, D/P, D/A
Supply Ability: 3000TON PER MONTH

45D 90D 180D Steel Pipe Elbow SCH40 SCH80 SCH160 DIN JIS GOST Seamless Welded

Description
Type: 45 Degree/90 Degree/180 Degree Elbow, Long Radius/Short Radius Elbow Specification: NPS: 1/2''~24''(Seamless), 24''~72''(Welded) DN: 15~1200
Thickness: SCH20,40,80,120,160,XS, XXS,DIN,SGP,GOST Bending Radius: R=1D,1.5D,3D,5D
Standard: ASME B16.9, DIN2605,EN10253,JIS B2311,GOST17375 Paintting: Black Painting,Anti-rust Oil,Galvanized
Material: Carbon Steel,ASTM A234 WPB/CT.20/P235GH ;Stainless Steel ,ASTM A403 304/304L/316/316L Process: Butting Welding
High Light:

180D Steel Pipe Elbow SCH40

,

90D STEEL PIPE ELBOW SCH80

,

45D GOST Seamless Welded ELBOW

45D 90D 180D Steel Pipe Elbow SCH40 SCH80 SCH160 DIN JIS GOST SEAMLESS AND WELDED



ASME B16.9, DIN2605,EN10253,JIS B2311,GOST17375



The elbow is bent with a complete set of bending equipment, which is divided into two processes: cold simmering and hot pushing.No matter what kind of machine equipment and pipeline, most of the use of elbow, mainly used for oil, gas, infusion, engineering bridge construction.Our pipe caps are made of carbon steel,stainless steel and alloy steel,etc.They feature high strength,good toughness,and high resistance to corrosion,and vibration.



45D 90D 180D Steel Pipe Elbow SCH40 SCH80 SCH160 DIN JIS GOST Seamless Welded 0




FITTINGS Steel Pipe Elbow
Technique Hot-pushing, welding
Standard ASME B16.9, ASME B16.28, GOST 17375-2001,
GOST 30753-2001, EN 10253,DIN2605,JIS B2311
Size DN 15-DN 2400, 1/2" - 96"
Thickness SCH 20, STD, SCH 40, SCH60, XS, SCH 80, SCH 160, XXS
2MM-32MM
1.6MM-customized
Pipe Elbow Ends Beveling
Type LR pipe elnow
SR pipe elbow
45 degree pipe elbow
90 degree pipe elbow
60 degree pipe elbow
180 degree pipe elbow
customized degree pipe elbow
Surface Treatment Black Painting, Transparent Anti-rust Oil, Sand Blast
PE/3PE anti-corrosion coating, other customized coating
Material A234-WPB, steel 20#, P235GH,A420-WPL6, WP304L, WP316L, WP304, WP316, etc..
Material in Stock Carbon steel, Mild steel, LTCS, Alloy Steel
Package Plastic bags, pallets, plywood case, etc
Production Time 3-5 days for stock goods, 15-30 days for one container,
more 10 days for one more container.
Application Petroleum, Natrual Gas, Water Disposal, Shipbuilding, Nuclear Energy,Chemical Engineering, Deckle, Electric Power




45D 90D 180D Steel Pipe Elbow SCH40 SCH80 SCH160 DIN JIS GOST Seamless Welded 1





Specification of Butt Welded Elbow:

Specification Type Data
Size 90 degree Long/Short Radius
45 degree Long Radius
Seamless 1/2”-20”(DN15-DN500)
Welded 1/2”-48” (DN15-DN1200)

  180 degree Return Band Seamless 1/2”-4”(DN15-DN100)
Wall Thickness 90 degree Long/Short Radius
45 degree Long Radius
SCH5S-SCH160

  180 degree Return Band SCH5S-SCH80S







      •  Process of manufacturing

       45D 90D 180D Steel Pipe Elbow SCH40 SCH80 SCH160 DIN JIS GOST Seamless Welded 2








• PACKAGE


Wooden case or wooden pallets or as customer's request....



45D 90D 180D Steel Pipe Elbow SCH40 SCH80 SCH160 DIN JIS GOST Seamless Welded 3



45D 90D 180D Steel Pipe Elbow SCH40 SCH80 SCH160 DIN JIS GOST Seamless Welded 4



45D 90D 180D Steel Pipe Elbow SCH40 SCH80 SCH160 DIN JIS GOST Seamless Welded 5







--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

45D 90D 180D Steel Pipe Elbow SCH40 SCH80 SCH160 DIN JIS GOST Seamless Welded 6
