Product Details:
|
| STANDARD: | DIN2605/1 EN10253-1 ISO 3419 | Material: | A234 WPB ST37.2 P265GH A182 F304/304L,316/316L |
|---|---|---|---|
| SIZE: | 1/2"*72" | Coating: | Oil , Hot Galvanized , Cold Galvanized |
| Load Port: | XINGANG , TIANJIN CHINA | Usage: | GAS Or Petrolem |
| High Light: | 2MM To 32MM Reducing Elbow Buttweld,Thick 2MM reducing elbow buttweld,XF Galvanized but weld fittings |
||

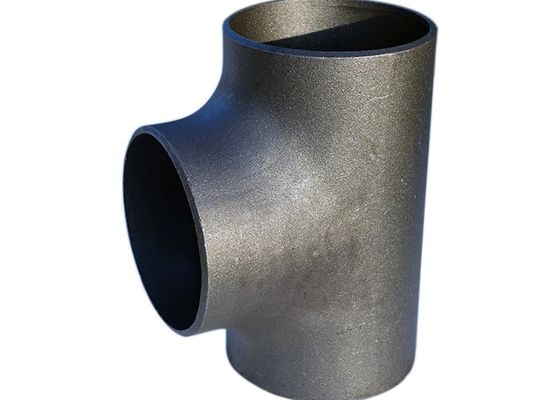

DIN2605/1 EN10253-1 ISO 3419 STEEL BUTT WELDING FITINGS ELBOW TEE REDUCER CAP
Material :A234 WPB ST37.2 P265GH A182 F304/304L,316/316L
Size:1/2"-72"
Coating:Oil , Hot galvanized , Cold galvanized
Package:Plywood Cases And Pallets
We can supply a complete range of butt weld fittings to BS EN 10253-2:2007, these seamless fittings are all made of carbon steel to BS EN 10216-2 and were previously known as BS 1965 welding fittings. All of our EN 10253-2 butt weld fittings are "Type B" meaning they're suitable for use at full service pressure, you'll normally find medium and heavy grades in this range to match the dimensions of the BS EN 10255 (BS1387) tube that these fittings are normally used with.
| FITTINGS Steel Pipe Elbow | |
| Technique | Hot-pushing, welding |
| Standard | ASME B16.9, GOST 17375-2001, GOST 30753-2001, EN 10253 |
| Size | DN 15-DN 2400, 1/2" - 96" |
| Thickness | SCH 20, STD, SCH 40, SCH60, XS, SCH 80, SCH 160, XXS 2MM-32MM 1.6MM-customized |
| Pipe Elbow Ends | Beveling |
| Type | LR pipe elnow SR pipe elbow 45 degree pipe elbow 90 degree pipe elbow 60 degree pipe elbow 180 degree pipe elbow customized degree pipe elbow |
| Surface Treatment | Black Painting, Transparent Anti-rust Oil, Sand Blast PE/3PE anti-corrosion coating, other customized coating |
| Material | A234-WPB, steel 20#, A420-WPL6, WP304L, WP316L, WP304, WP316, etc.. |
| Material in Stock | Carbon steel, Mild steel, LTCS, Alloy Steel |
| Package | Plastic bags, pallets, plywood case, etc |
| Production Time | 3-5 days for stock goods, 15-30 days for one container, more 10 days for one more container. |
| Application | Petroleum, Natrual Gas, Water Disposal, Shipbuilding, Nuclear Energy, Chemical Engineering, Deckle, Electric Power |
| Side D | Side D1 | Length | ||||
| DN | D | T | DN | D1 | T1 | L |
| 25 | 33.7 | 2.6 | 20 | 26.9 | 2.3 | 35 |
| 32 | 42.4 | 2.6 | 20 25 |
26.9 33.7 |
2.3 2.6 |
51 39 |
| 40 | 48.3 | 2.6 | 20 25 32 |
26.9 33.7 42.4 |
2.3 2.6 2.6 |
67 55 38 |
| 50 | 60.3 | 2.9 | 25 32 40 |
33.7 42.4 48.3 |
2.6 2.6 2.6 |
77 61 50 |
| 65 | 76.1 | 2.9 | 32 40 50 |
42.4 48.3 60.3 |
2.6 2.6 2.9 |
95 84 63 |
| 80 | 88.9 | 3.2 | 40 50 65 |
48.3 60.3 76.1 |
2.6 2.9 2.9 |
108 86 56 |
| 100 | 114.3 | 3.6 | 50 60 80 |
60.3 76.1 88.9 |
2.9 2.9 3.2 |
143 114 90 |
| 125 | 139.7 | 4.0 | 65 80 100 |
76.1 88.9 114.3 |
2.9 3.2 3.6 |
159 135 88 |
| 150 | 168.3 | 4.5 | 80 100 125 |
88.9 114.3 139.7 |
3.2 3.6 4.0 |
189 141 94 |
| 200 | 219.1 | 6.3 | 100 125 150 |
114.3 139.7 168.3 |
3.6 4.0 4.5 |
210 170 130 |
| 250 | 273.0 | 6.3 | 125 150 200 |
139.7 168.3 219.1 |
4.0 4.5 6.3 |
250 220 130 |
| 300 | 323.9 | 7.1 | 150 200 250 |
168.3 219.1 273.1 |
4.5 6.3 6.3 |
290 215 130 |
| 350 | 355.6 | 8.0 | 150 200 250 300 |
168.3 219.1 273.1 323.9 |
4.5 6.3 6.3 7.1 |
335 255 125 100 |
| 400 | 406.4 | 8.8 | 200 250 300 350 |
219.1 273.1 323.9 355.6 |
6.3 6.3 7.1 8 |
330 250 175 130 |
