Class 150 To 2500 SWRF LJFF SLIP ON FLANGE 1/2 Inch To 24 Inch Socket Welding FLANGE

Class 150 To 2500 SWRF LJFF SLIP ON FLANGE 1/2 Inch To 24 Inch Socket Welding FLANGE
Class 150 To 2500 SWRF LJFF SLIP ON FLANGE 1/2 Inch To 24 Inch Socket Welding FLANGE Class 150 To 2500 SWRF LJFF SLIP ON FLANGE 1/2 Inch To 24 Inch Socket Welding FLANGE Class 150 To 2500 SWRF LJFF SLIP ON FLANGE 1/2 Inch To 24 Inch Socket Welding FLANGE

Large Image :  Class 150 To 2500 SWRF LJFF SLIP ON FLANGE 1/2 Inch To 24 Inch Socket Welding FLANGE

Product Details:
Place of Origin: CHINA
Brand Name: XF
Certification: ISO,TUV,CE
Model Number: BLIND WNRF SORF LJFF
Payment & Shipping Terms:
Minimum Order Quantity: 5 Tons
Packaging Details: plywood case and pallet
Delivery Time: 30-40 days
Payment Terms: L/C,, D/P, T/T
Supply Ability: 3000 tons/month

Class 150 To 2500 SWRF LJFF SLIP ON FLANGE 1/2 Inch To 24 Inch Socket Welding FLANGE

Description
Material: A105 Color: Black And Yellow Paint
Pressure: Class150-2500 Connection: Welding, Threaded
High Light:

SWRF LJFF SLIP ON FLANGE

,

SWRF LJFF SLIP ON FLANGE 1/2 Inch

,

XF 24 Inch Socket Welding FLANGE

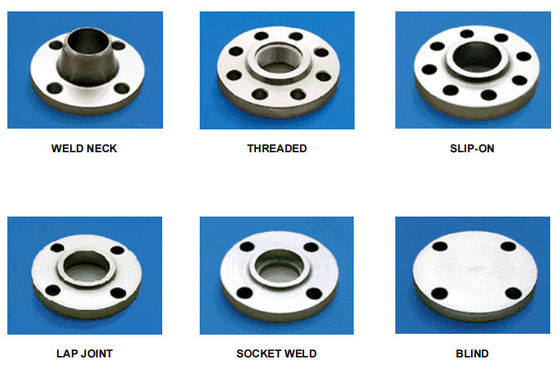

ANSI B16.5& B16.47 SLIP ON FLANGE CS A105 150LBS 300lbs --2500LBS WNRF,SORF,BLIND,SWRF,LJFF YELLOW AND BLACK PAINT



CLASS 150
APPROXIMATE WEIGHT
SIZE welding neck Slip-on and Threaded Lap Joint Blind Socket welding
SCH40 SCH80 SCH160
1/2" 0.60 0.60 0.60 0.41 0.40 0.43 0.41
3/4" 0.90 0.90 0.90 0.58 0.58 0.63 0.58
1" 1.14 1.18 1.24 0.80 0.80 0.89 0.80
1-1/4" 1.41 1.48 1.54 1.07 1.07 1.20 1.07
1-1/2" 1.81 1.90 2.01 1.37 1.37 1.58 1.37
2" 2.72 2.84 3.07 2.21 2.21 2.39 2.21
2 1-2" 4.45 4.70 4.98 3.32 3.34 4.07 3.32
3" 5.22 5.54 5.90 3.83 3.83 4.92 3.83
3-1/2" 6.40 6.76 7.46 5.20 5.20 5.90 5.20
4" 7.49 7.96 8.90 5.40 5.40 7.13 5.90
5" 9.53 10.54 12.04 6.26 6.26 8.72 6.80
6" 11.80 13.12 15.11 7.50 7.50 11.40 8.60
8" 19.10 21.34 25.84 12.30 12.40 20.10 13.60
10" 24.50 28.85 35.74 17.10 17.10 28.70 19.50
12" 39.90 46.80 58.01 26.50 26.50 43.80 29.10
14" 51.80 62.58 77.60 34.50 38.50 58.20 40.90
16" 64.50 79.42 98.82 45.50 51.20 77.40 44.50
18" 74.90 97.63 124.32 48.50 55.70 94.00 59.00
20" 89.40 120.44 154.18 61.80 70.20 122.70 74.90
24" 121.70 169.37 223.92 87.70 98.70 187.00 99.90

Class 150 To 2500 SWRF LJFF SLIP ON FLANGE 1/2 Inch To 24 Inch Socket Welding FLANGE 0

Class 150 To 2500 SWRF LJFF SLIP ON FLANGE 1/2 Inch To 24 Inch Socket Welding FLANGE 1

Flange Details:

Material
1) Carbon Steel A105 & Stainless Steel SS304, SS316, SS316L
Surface Antirust:
Surface antirust 1: Antirust light oil
Surface antirust 2: Black paint coating
Surface antirust 3: Yellow paint coating
Surface antirust 4: Galnavized (Hot Dipped Galvanized or  Electro Galvanized)

Connect Face:
Surface   1: Stock finish
Surface   2: Sprial serrated
Surface   3: Two or three grooves (Water Lines)
Surface   4: Smooth finish

Terms
1) Payment: Irrevocable L/C at sight or T/T, D/P
2) Delivery term FOB China Port or CIF Buyer’s Port
3) Packing: Plywood Pallet/case
